ESP32 development kit 1.54 inch e-ink touch panel 200x200 resolution SPI interface epaper display, GDEY0154D67-T03+ESP32-L(T01)

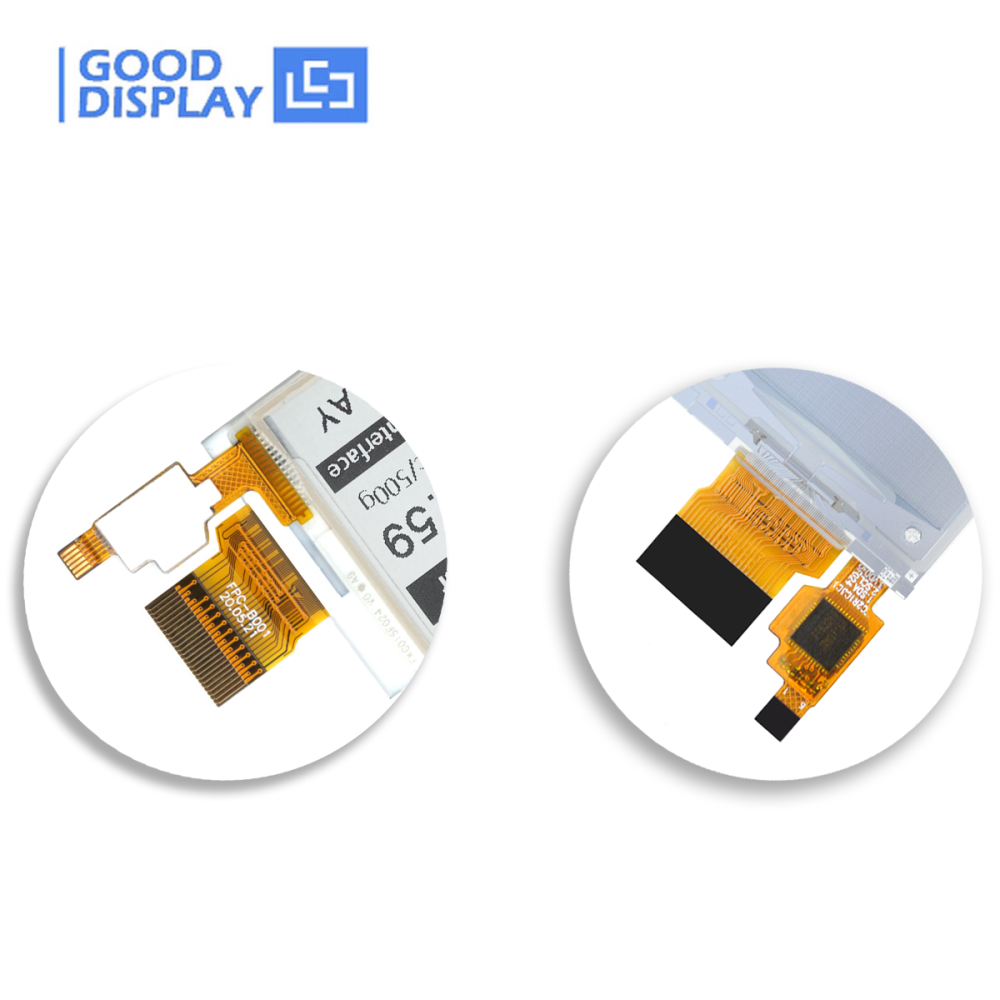

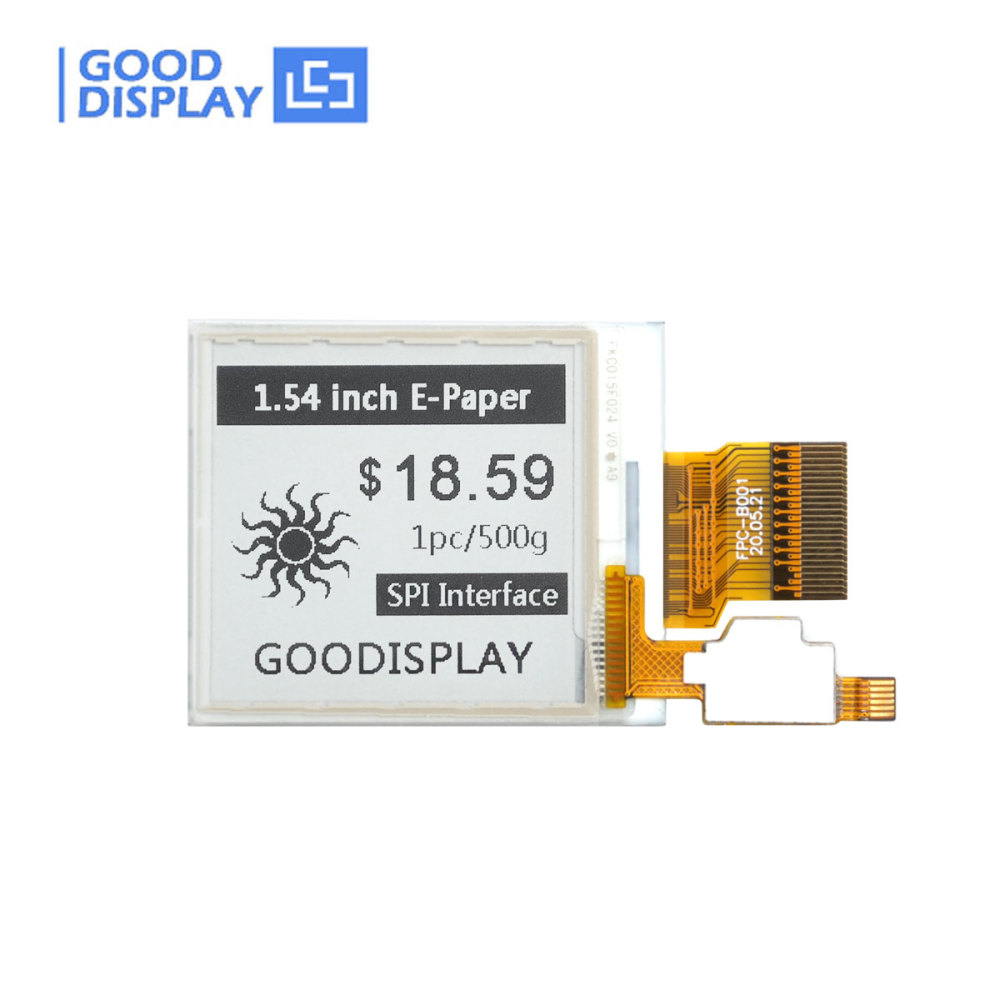

This is a epaper module consist of 1.54 inch capacitive touch screen e-ink display module with its development board, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$25.51
Quantity:
-
+
(49 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews


☆ INTRODUCTION




This is a epaper module consist of 1.54 inch capacitive touch screen e-ink display module with its development board, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 2s full screen update, 0.26s partial screen update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67-T03 is perfect for low power devices powered by solar or batteries.

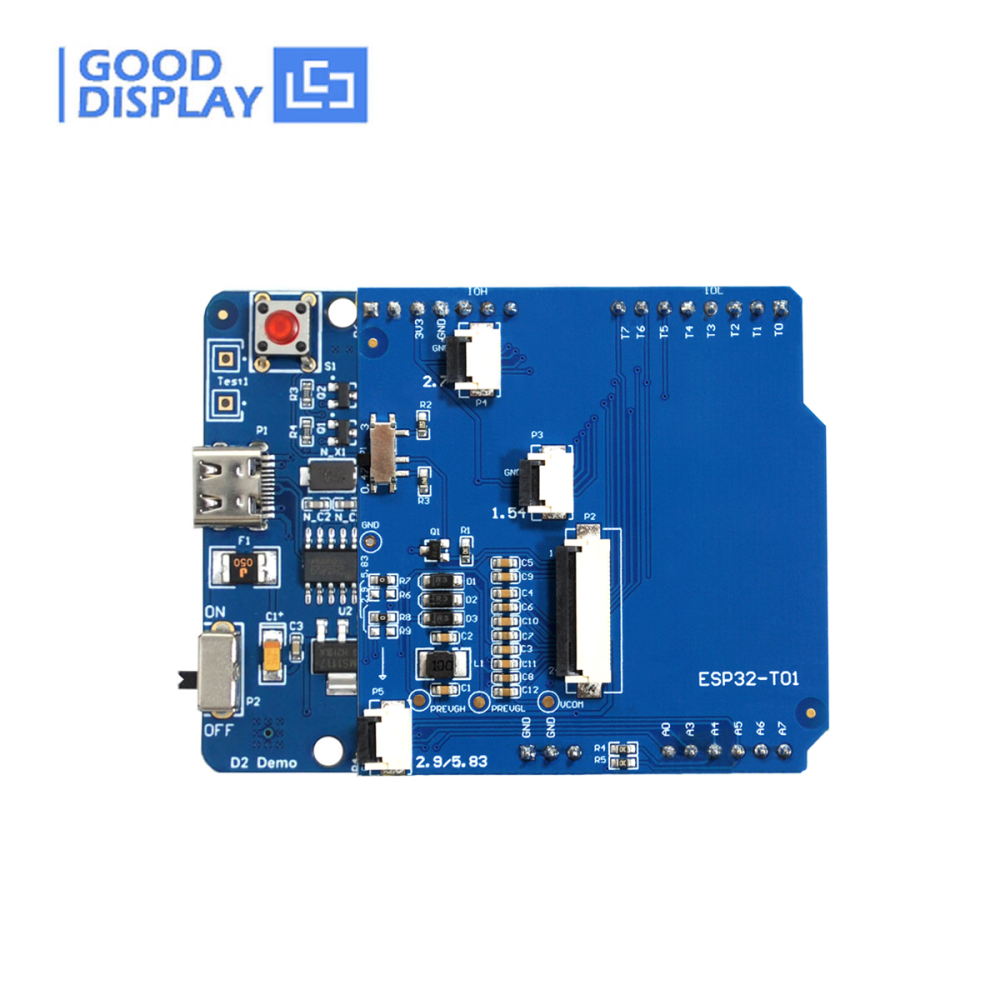

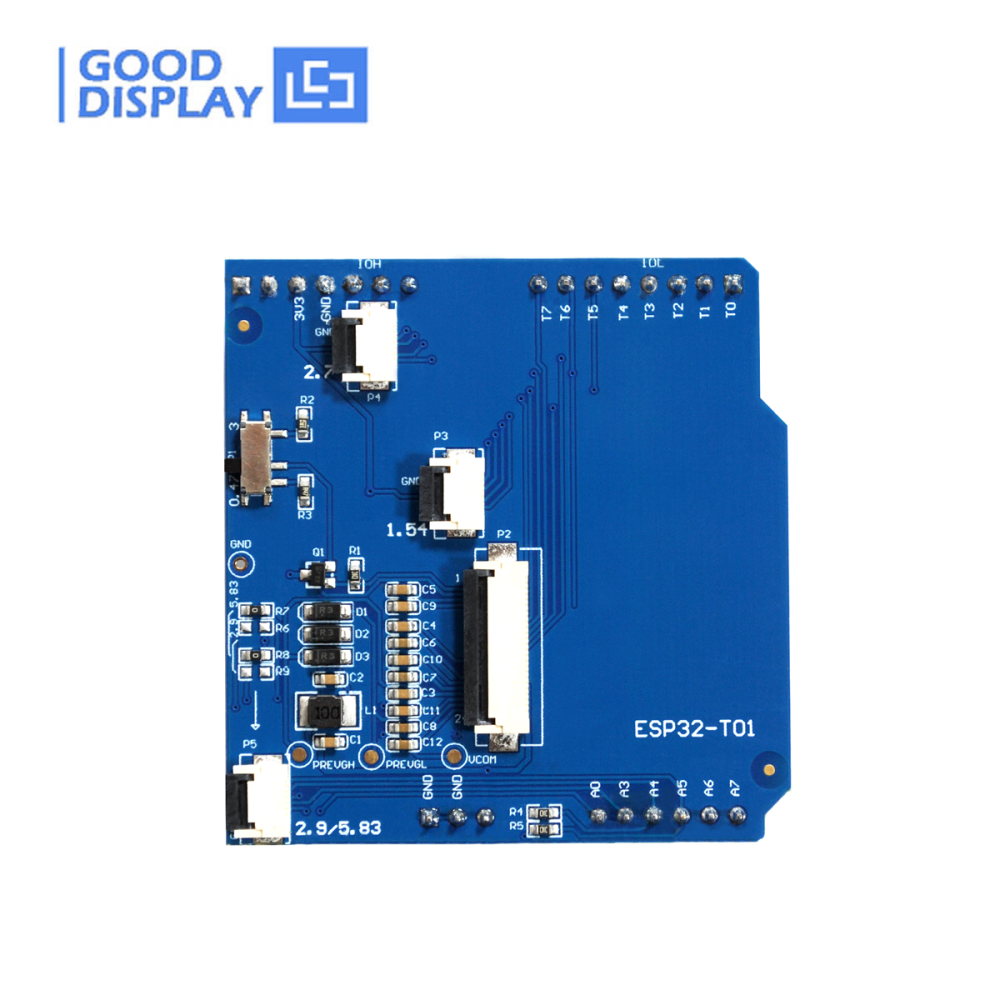

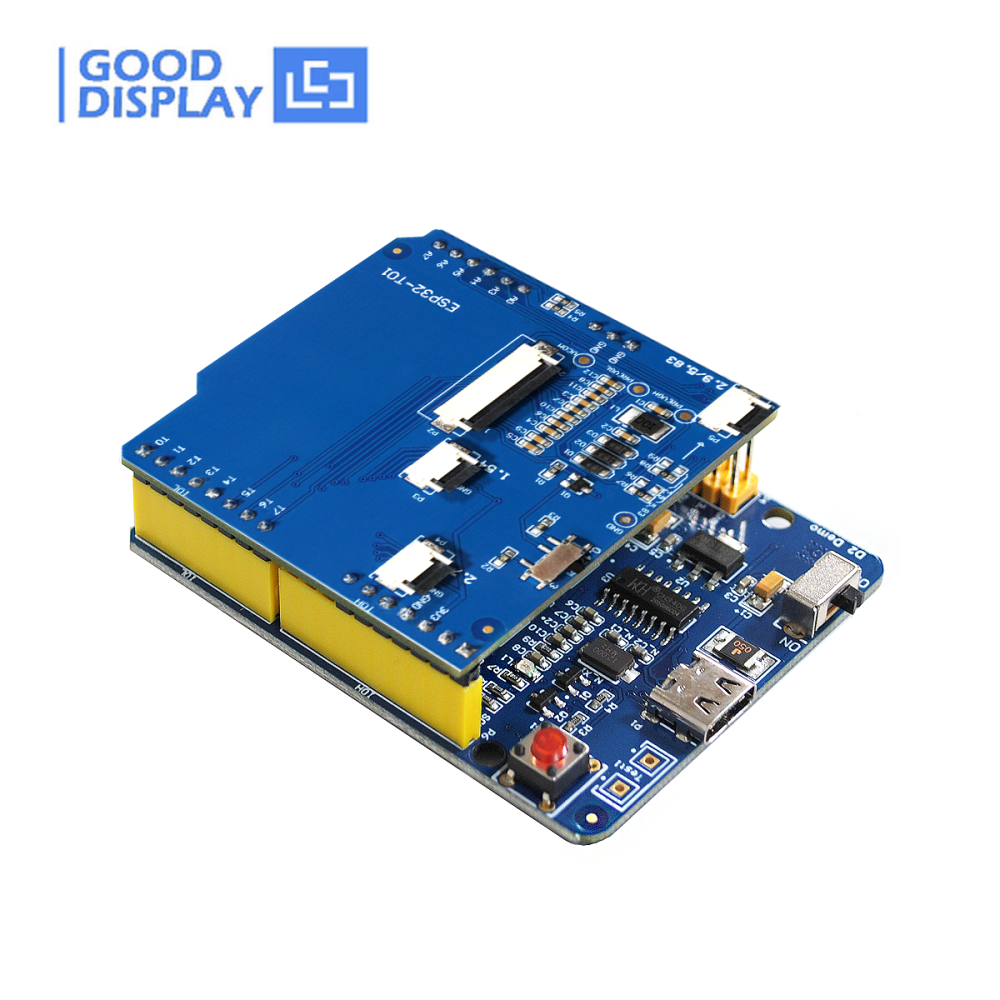

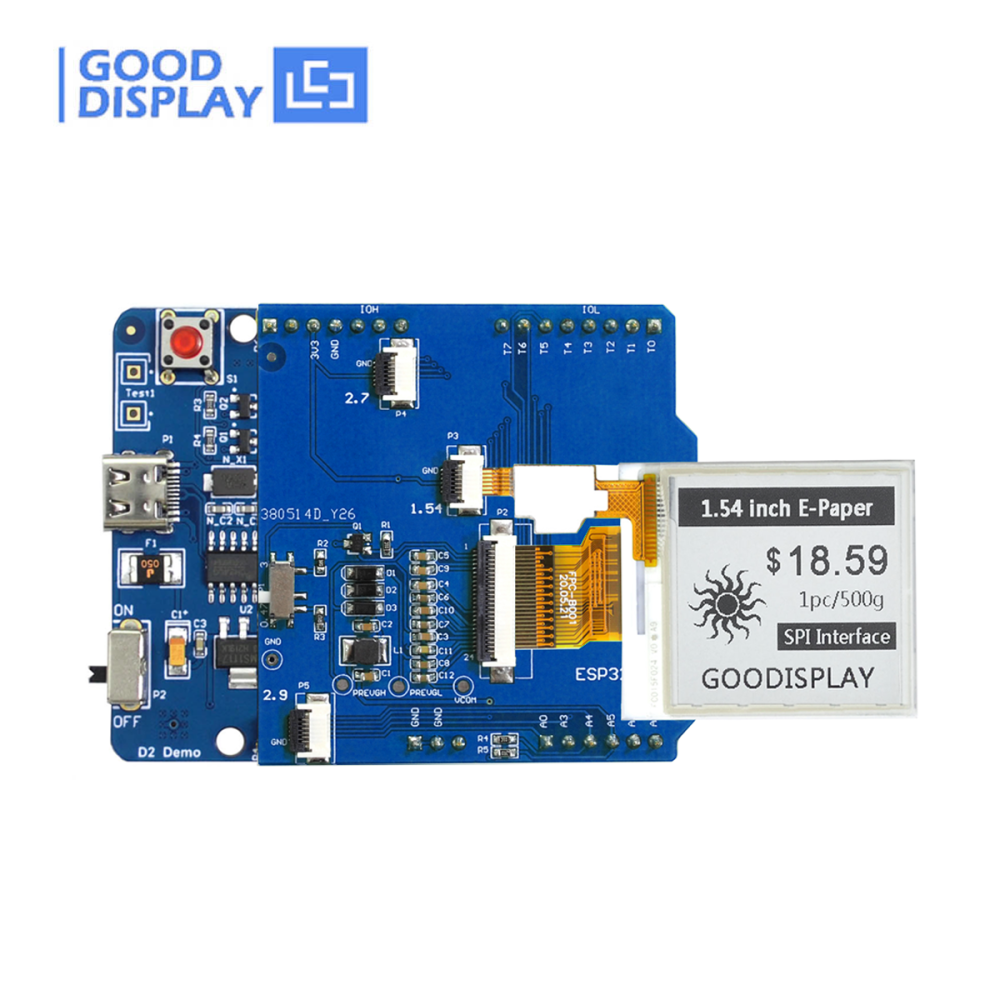

ESP32-L(T01) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers. And it is added the functions of LED indicator light, Reset button, font chip, Flash chip and etc.



Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array

* NoteWe can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.



☆ THE ABOVE PRICE INCLUDE

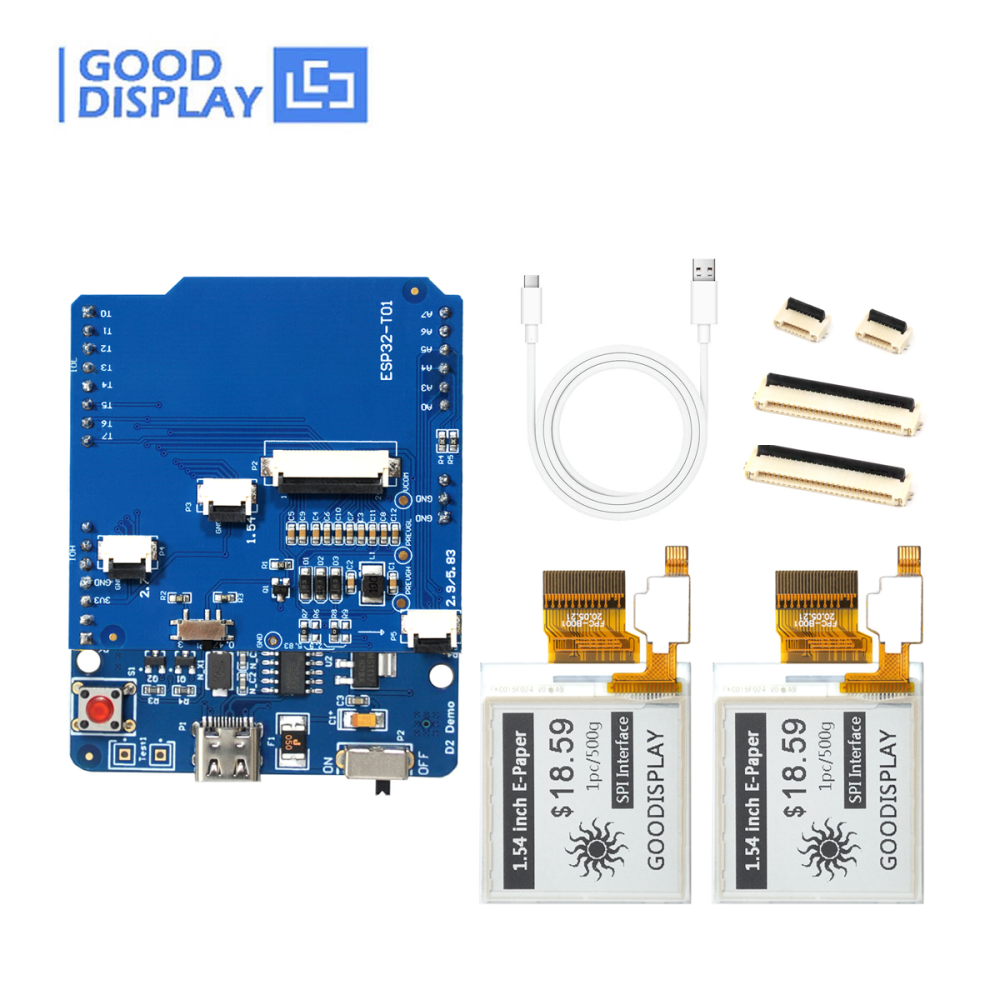

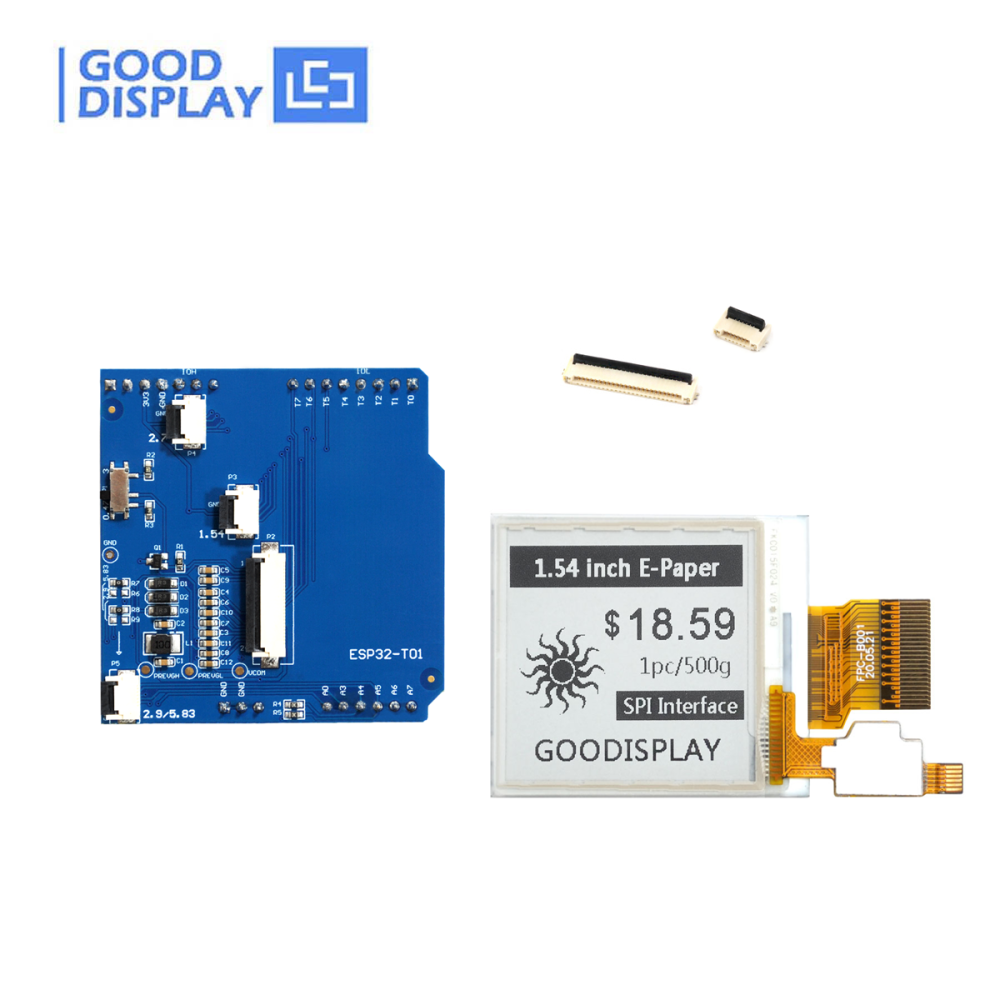

1) 1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display * 1pc
2) FPC Connector for EPD* 1pc
3) FPC Conenctor for Touch Panel * 1pc
4) Driving board ESP32-L * 1pc
5) Connector board ESP32-T01 * 1pc
6) USB port cable * 1pc



☆ MAIN PARAMETERS



PART NUMBER

GDEY0154D67-T03

SIZE 1.54 inch MAX GRAYSCALE 4

DISPLAY FORMAT

200x200

CHANNEL NUMBER 14
IC OF EPD SSD1681 CONNECTOR OF EPD 24 Pin FPC

IC OF TOUCH PANEL

FT6336U

CONNECTOR OF TOUCH PANEL 6 Pin FPC

OUTLINE DIMENSION(mm)

37.32x31.8x1.525

FULL REFRESH(s) 2

ACTIVE AREA(mm)

27x27

PARTIAL REFRESH TIME(s) 0.26

OPERATING ENVIRONMENT

0℃~50℃, ≤90%RH

COLOR Black, White
STORAGE ENVIRONMENT -20℃~70℃, ≤90%RH WORKING VOLTAGE(V) 2.8V~3.3V



PART NUMBER ESP32-L(T01)
PLATFORM Arduino OUTSIDE DIMENSION 70x54mm (ESP32-L)
53x51mm (ESP32-T01)
POWER INTERFACE Type-C OPERATING TEMP. -20~70℃
MAIN FUNCTION Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development
Additional Funtion Type-C interface; Indicator light; Reset button; Font chip; Flash chip; Current detection; Touch screen driving.


☆ FEATURE



●  Customizable 1.5s Fast Refresh
●  With capacitive touch screen
●  Black and white monochrome is easy to read.
●  Versatile. Use in portrait or landscape format.

●  It supports partial refresh, the refresh rate is 0.26s/frame.

●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor.



☆ DETAILS








☆ MATCHED DEVELOPMENT KIT




● ESP32-L(T01) (WiFi / Bluetooth)



☆ RELATED INFORMATION DOWNLOAD



● GDEY0154D67-T03_Specification

● ESP32-T01 Specification


● ESP32-T01_SCH
