E-paper display development demo kit, drive board Arduino, Support Wi-Fi, ESP8266(C02)

ESP8266(C02)
ESP8266(C02) for EPD development kit supports Arduino platform for SPI e-paper displays. Is mainly to assist customers to develop e-paper projects faster and smoother. Supports Wi-Fi, users need to develop by themselves.
Sold:2
Price:
USD
$13.58
    Please select the information you wantX
Quantity:
-
+
(98 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Any questions, just feel free to contact me, my email is: clara@good-display.com

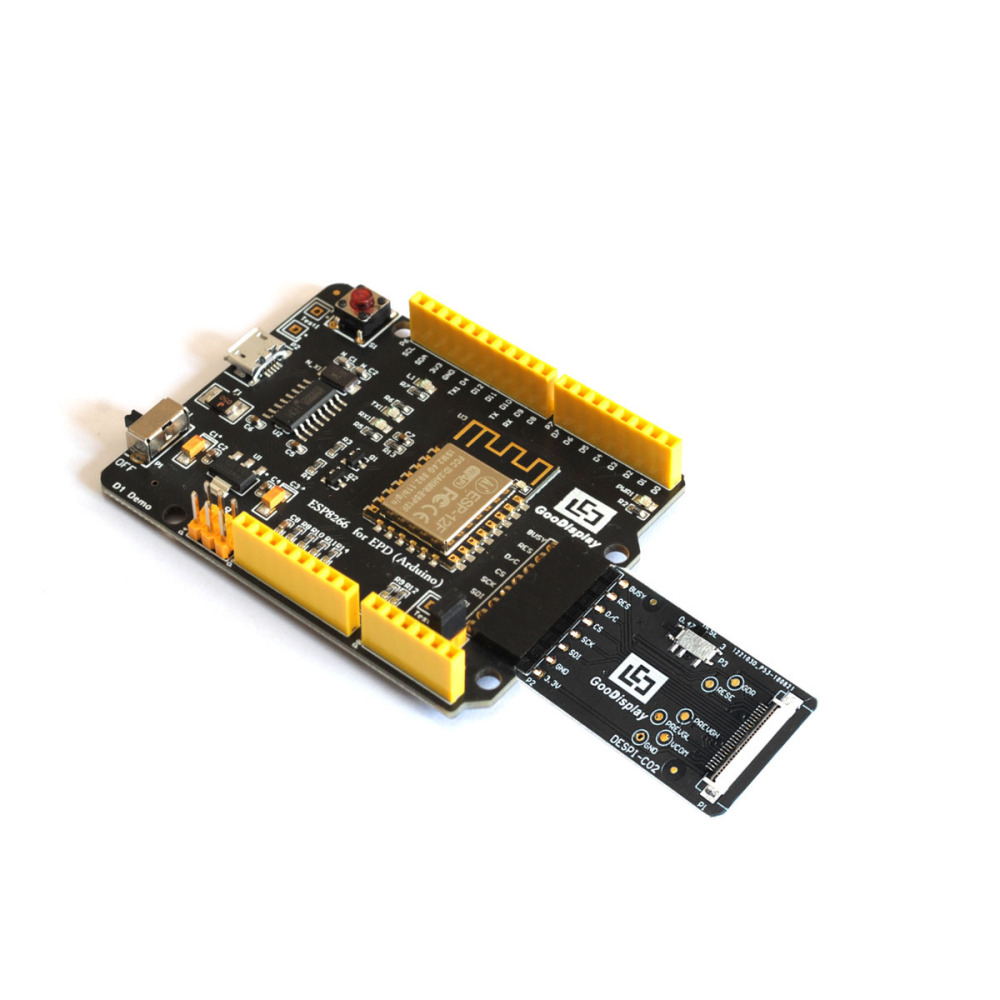

ESP8266(C02) for EPD development kit supports Arduino platform for development procedures. This development kit is mainly to assist customers to develop e-paper display projects faster and smoother. It supports driving Good Display's black-white SPI E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s SPI E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.

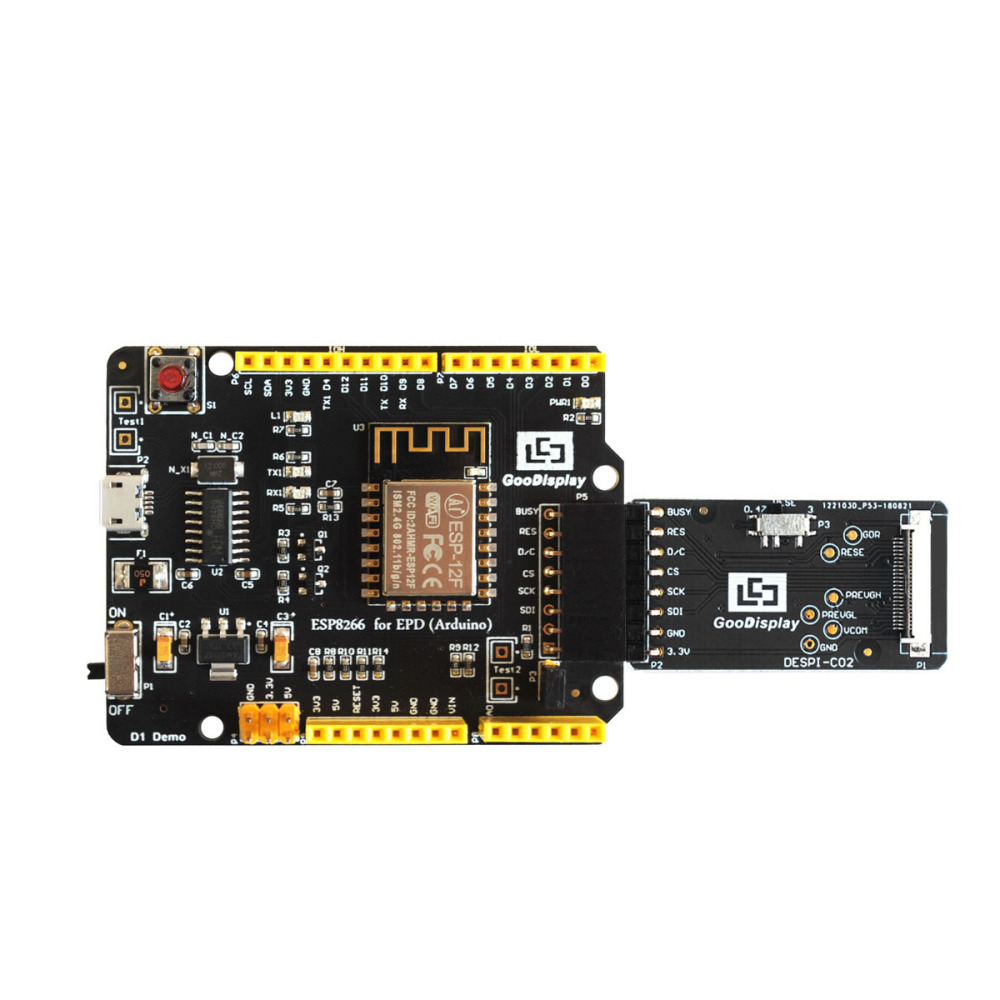

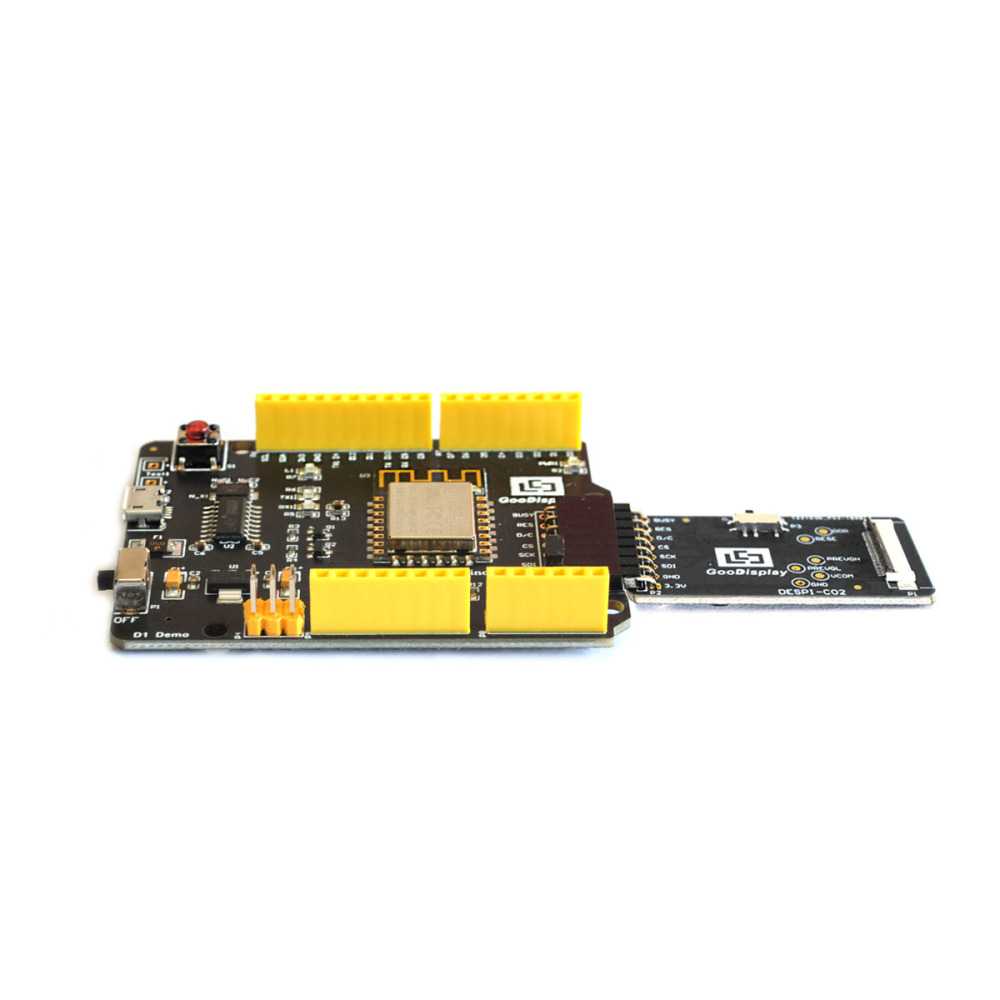

The ESP8266(C02) for EPD development kit supports Wi-Fi, users need to develop by themselves. And it includes the motherboard ESP8266 for EPD and the adapter board DESPI-C02.

· For SPI interface e-paper display.

· Supports Arduino platform.

· Supports Wi-Fi, users need to develop by themselves.

· USB interface and power indicator light.

· Come with helpful development demo kit with resources and manual (STM32 platform )

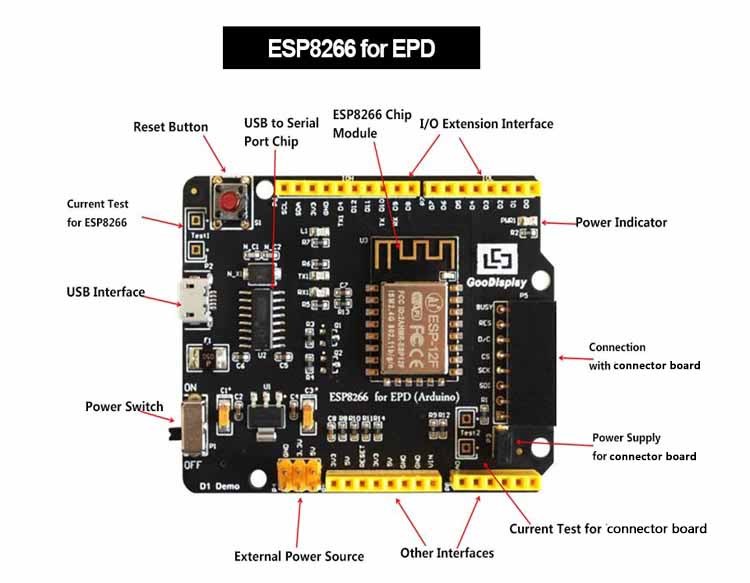

1. Driving board ESP8266 for EPD*1pc

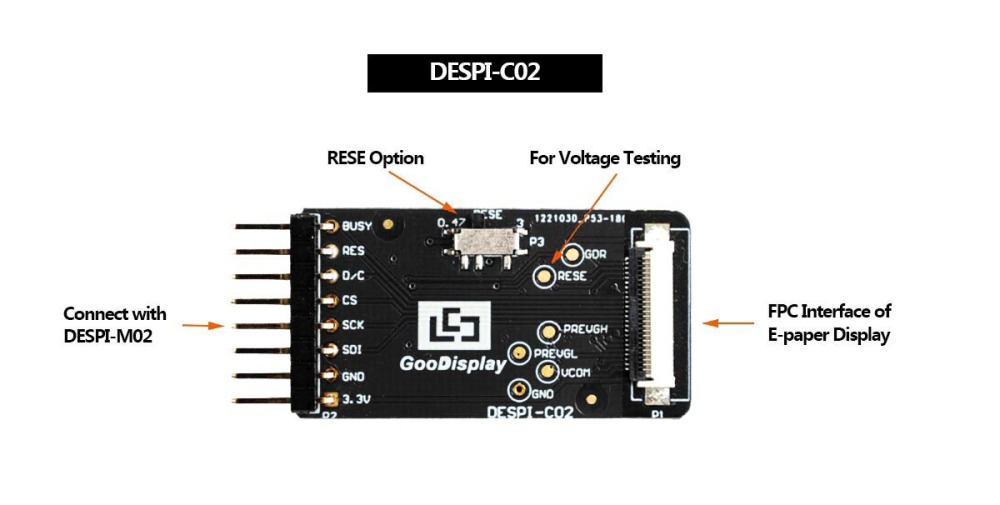

2. Connector board DESPI-C02 *1pc
3. USB port cable *1pc
4.Helpful resources and manual(sent via email or download link) *1pc

Part Number

ESP8266(C02)

MCU

Arduino

Function

Drive E-paper Display

Outside Dimension

70mmx54mm (ESP8266 for EPD)
41mmx22mm (DESPI-C02)

Power Interface

USB Interface

Main Function

Driving e-paper display

Sample Code

Available (please contact sales)

Operating Temp

-20~70℃

Additional Function  USB to serial port, indicator light, keys, current detection
and so on.

RESE To 0.47 Ω:
1.1.54 inch E-Paper Display:
GDEW0154T8,GDEW0154Z17,GDEW0154Z04,GDEW0154C39
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F,GDEW029C32
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64,GDEW0583Z83
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21,GDEW075C64,GDEW075Z08

RESE To 3 Ω:
1.1.54 inch E-Paper Display:
GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display:
GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

DEMO does not provide electronic paper screen, the screen must be purchased separately


http://www.good-display.com/product/ESP8266-Development-Platform-220.html
