☆ INTRODUCTION

Name: E-paper display development demo kit, drive board Arduino, Support Wi-Fi, for 1.02 inch e-ink, ESP8266(C102_30P)
Brand: GOOD DISPLAY
SKU: ESP8266(C102_30P)
Price: 12.23 USD
Availability: InStock

ESP8266 (C102_30P) development kit supports program development using Arduino development platform.This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving e-paper GDEW0102I3F and GDEW0102T4.

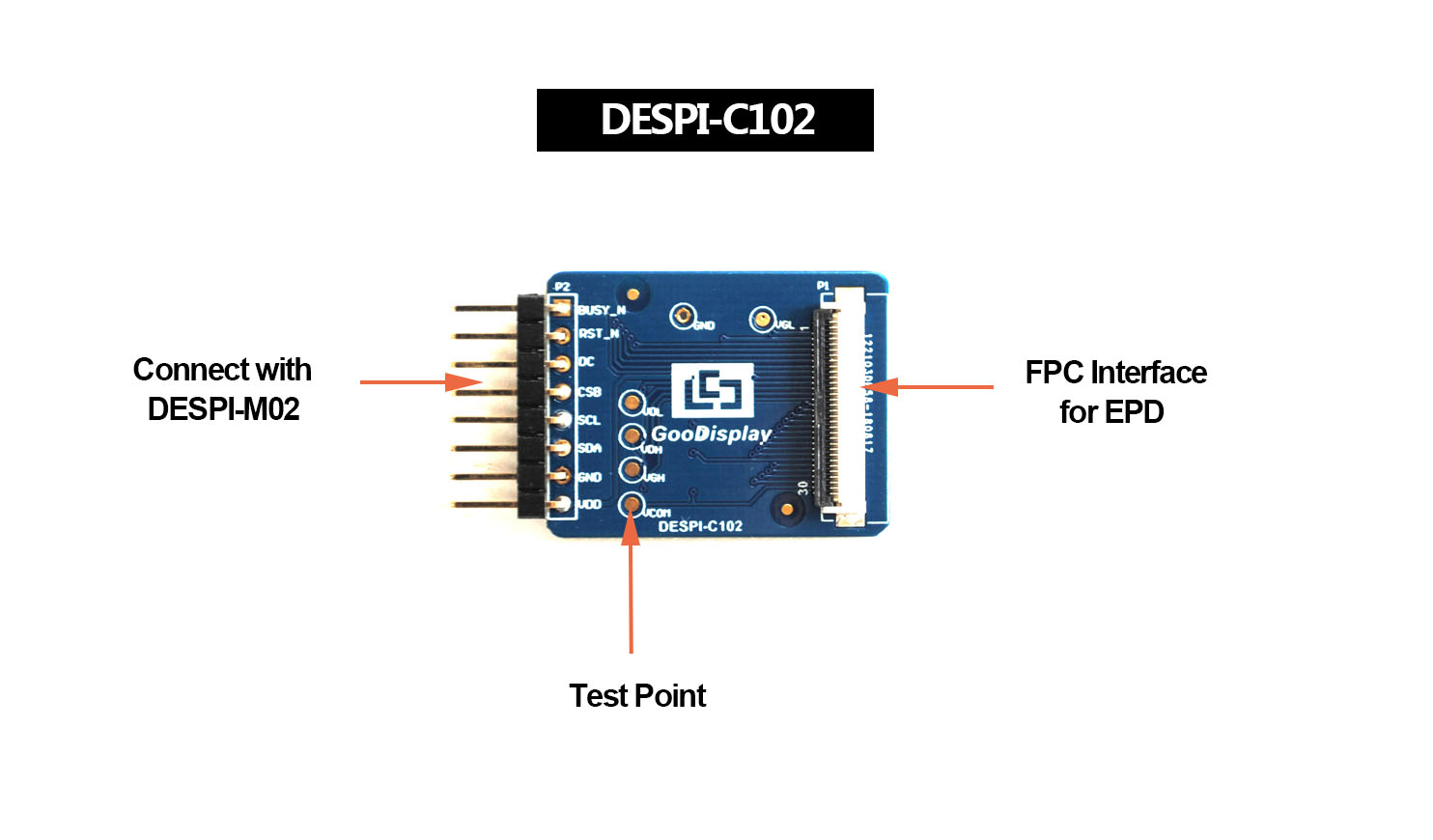

ESP8266 (C102_30P) development kit consists of motherboard ESP8266 for EPD and connector board DESPI-C102_30P.

ESP8266 development kit is only for driving the e-paper, WIFI and other functions need to be developed by users according to the project.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

☆ THE ABOVE PRICE INCLUDE

1) Driving board ESP8266 for EPD * 1pc
2) Connector board DESPI-C102_30Pin * 1pc
3) USB port cable * 1pc

☆ FEATURE

● USB serial port and LED indicator light.

● Learn how to drive 1.02 inch E-Paper Display based on Arduino.

● Test and evaluate the 1.02 inch E-Paper Display.

● Secondary development based on ESP8266(C102_30P).

● Support customers to develop WIFI and other functions.

☆ MAIN PARAMETERS

PART NUMBER	ESP8266(C102_30P)
MCU	Arduino
FUNCTION	Drive 1.02 inch E-paper Display
OUTSIDE DIMENSION	70mmx54mm (ESP8266 for EPD) 33.8mm x 22.2mm (DESPI-C102_30P)
POWER INTERFACE	USB Interface
MAIN FUNCTION	1) Learn to drive 1.02'' e-paper display, touch panel and front light panel 2) Test and evaluate 1.02'' e-paper display 3) For secondary development.
SAMPLE CODE	Available (please contact sales)
OPREATING TEMP.	-20~70℃
ADDITIONAL FUNCTION	USB to serial port, indicator light, reset key, current measurement

☆ DRIVE BOARD

● DESPI-102 (STM32 Platform/Universal)

● DEArduino(C102_30P) (Arduino Platform)

● ESP8266(C102_30P) (WiFi)

☆ MATCHED E-INK DISPLAY

Part Number	Color	Resolution	Features	Refresh Time
GDEW0102I3F	B/W	128x80	Partial refresh, Flexible	3s
GDEW0102T4	B/W	128x80	Partial refresh 0.3s/frame	3s

☆ ABOUT US

Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com

☆ SPECIFICATION DOWNLOAD

1)  ESP8266-102-30P Specification
2)  DESPI-C102(30P) Specification
3)  ESP8266 for EPD-SCH
4)  DESPI-C102-SCH

PART NUMBER	SIZE	COLOR	GREY SCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	FLEXIBLE	INTERFACE
GDEW0102T4	1.02''	BW	2	128x80	21.76x14	3	0℃~50℃	√		SPI
GDEW0102I3F	1.02''	BW	2	128x80	21.76x14	3	0℃~50℃	√	√	SPI
GDEW0154M10	1.54''	BW	2	152x152	27.512x27.512	3	-10℃~60℃			SPI
GDEH0154D67	1.54''	BW	4	200x200	27x27	2	0℃~50℃	√		SPI
GDEW0154M09	1.54''	BW	2	200x200	27.6x27.6	0.82	0℃~50℃	√		SPI
GDEW0154T8D	1.54''	BW	4	152x152	27.51x27.51	3	0℃~50℃	√		SPI
GDEH0154Z90	1.54''	BWR	2	200x200	27x27	15	0℃~40℃			SPI
GDEW0213M21	2.13''	BW	2	212x104	48.548x23.712	3	-10℃~60℃			SPI
GDEW0213I5FD	2.13''	BW	4	212x104	48.55x23.71	3	0℃~50℃	√	√	SPI
GDEM0213B74	2.13''	BW	4	250x122	48.55x23.7	3	0℃~50℃			SPI
GDEW0213V7LT	2.13''	BW	2	212x104	48.55x23.71	3	-25℃~10℃	√		SPI
GDEY0213Z98	2.13''	BWR	2	250x122	48.55x23.7046	14	0℃~40℃			SPI
GDEW0213T5D	2.13''	BW	4	212x104	48.55x23.71	3	0℃~50℃	√		SPI
GDEW0213T5D-FL01(With Frontlight)	2.13''	BW	4	212x104	48.55x23.71	3	0℃~50℃	√		SPI
GDEW026T0D	2.6''	BW	4	296x152	60.09x30.7	3	0℃~50℃	√		SPI
GDEY0266T90	2.66''	BW	4	296x152	60.088x30.704	3	0℃~50℃	√		SPI
GDEW027W3	2.7''	BW	4	264x176	57.288x38.192	3	0℃~50℃	√		SPI
GDEW027W3-T(With Touch Panel)	2.7''	BW	4	264x176	57.288x38.192	3	0℃~50℃	√		SPI
GDEM029E97	2.9''	BW	2	296x128	66.9x29.06	3	0℃~50℃			SPI
GDEH029Z13	2.9''	BWR	2	296x128	66.9x29.06	15	0℃~40℃			SPI
GDEM029T94	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√		SPI
GDEY029T94	2.9''	BW	4	296x128	66.896x29.056	3	0℃~50℃	√		SPI
GDEW029M06	2.9''	BW	2	296x128	66.896x29.056	3	-10℃~60℃			SPI
GDEW029I6FD	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√	√	SPI
GDEW029T5D	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√		SPI
GDEW029T5D-FL02(With Frontlight)	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√		SPI
GDEH037Z01	3.71''	BWR	2	416x240	81.54x47.04	16	0℃~40℃			SPI
GDEW0371W7	3.71''	BW	2	416x240	81.536x47.04	4	0℃~50℃			SPI

PART NUMBER	SIZE	COLOR	GREY SCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	FLEXIBLE	INTERFACE
GDEW042C37	4.2''	BWY	2	400x300	84.8x63.6	28	0℃~40℃			SPI
GDEW042T2	4.2''	BW	4	400x300	84.8x63.6	3	0℃~50℃			SPI
GDEQ042Z21	4.2''	BWR	2	400x300	84.8x63.6	19	0℃~40℃			SPI
GDE043A3	4.3''	BW	16	800x600	88x66	1	0℃~50℃	√		Parallel
GDEW0583C64	5.83''	BWY	2	600x448	118.80x88.26	25	0℃~40℃			SPI
GDEW0583T8	5.83''	BW	2	648x480	119.232x88.32	4	0℃~50℃			SPI
GDEW0583Z83	5.83''	BWR	2	648x480	119.232x88.32	12	0℃~40℃			SPI
GDE060F3	6.0''	BW	16	1024x758	90.581x122.368	1	0℃~50℃	√		Parallel
GDEY075T7	7.5''	BW	4	800x480	163.2x97.72	3	0℃~50℃	√		SPI
GDEY075Z08	7.5''	BWR	2	800x480	163.2x97.72	12	0℃~40℃			SPI
GDEH116T91	11.6''	BW	2	960x640	244.512x163.008	5	0℃~50℃			SPI
GDEH116Z91	11.6''	BWR	2	960x640	244.512x163.008	30	0℃~35℃			SPI
