2.7 inch e-ink touchscreen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel

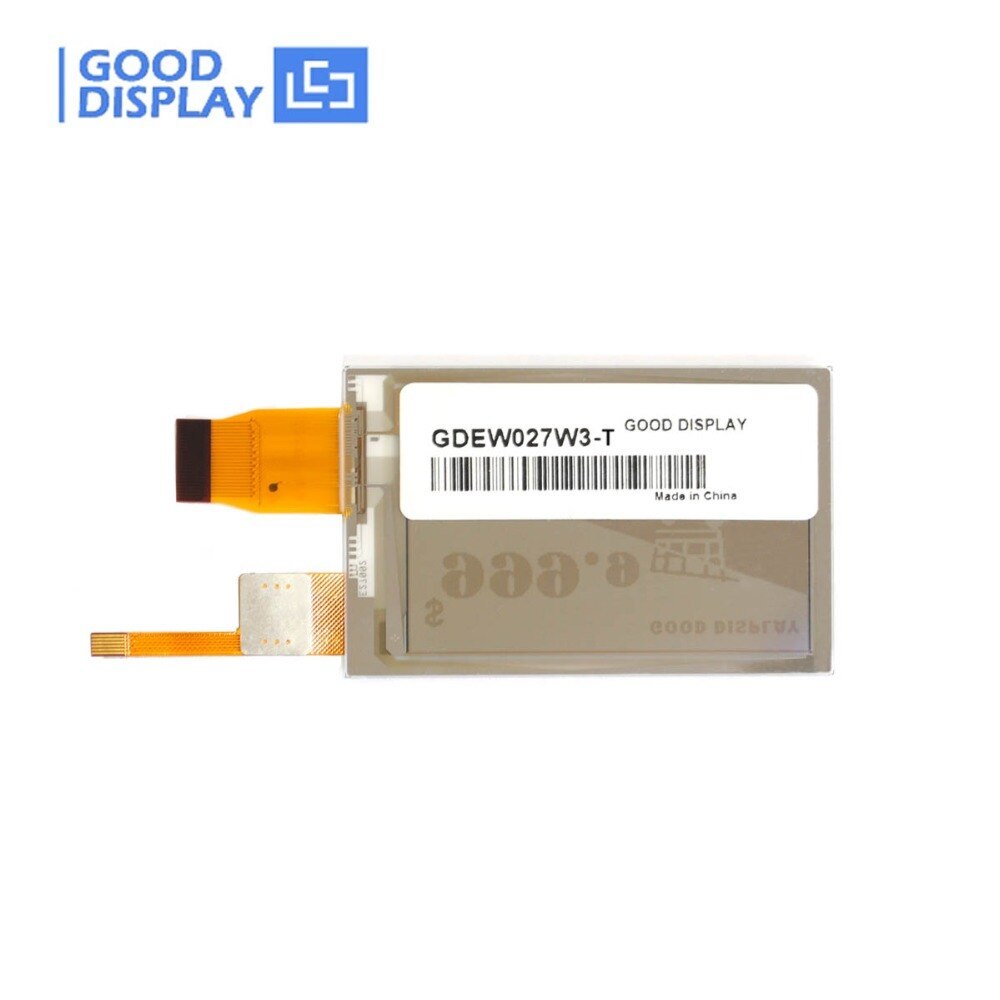

GDEW027W3-T

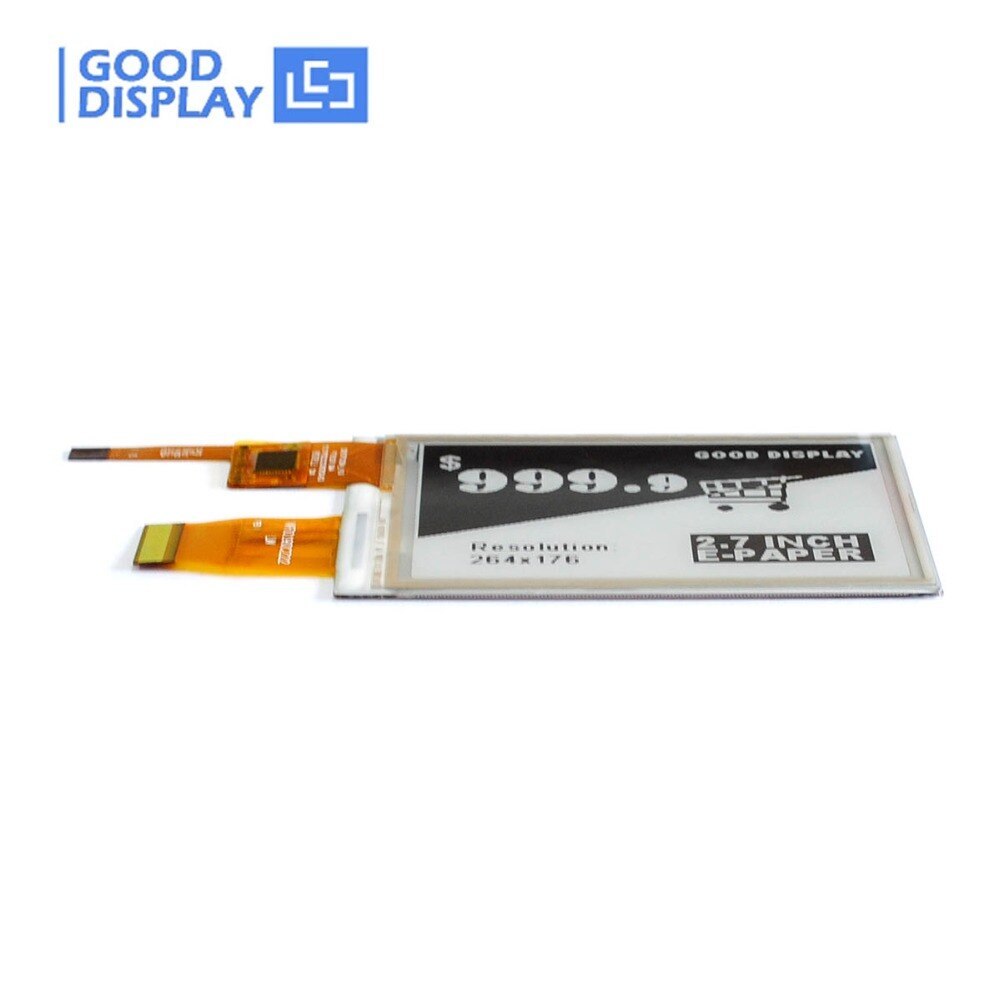

This is a 2.7 inch E ink E paper display with capacitive touch screen, 264*176 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, 4 Grayscale.
Sold:59
Price:
USD
$13.59
  • 规格:
    EPD
    With adapter board
    With demo kit
Quantity:
-
+
(20 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

This is a 2.7 inch E ink E paper display with capacitive touch screen, 264*176 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white, 4 Grayscale. It's IC Driver is EK79652.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW027W3-T is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, IED and other related products.
Partial refresh
4 Grayscale
With touch panel
Front light(optional)
Come with helpful development resources and manual (STM32 platform )
Development platform available STM32 / Arduino Raspberry Pi / ESP8266 / ESP32

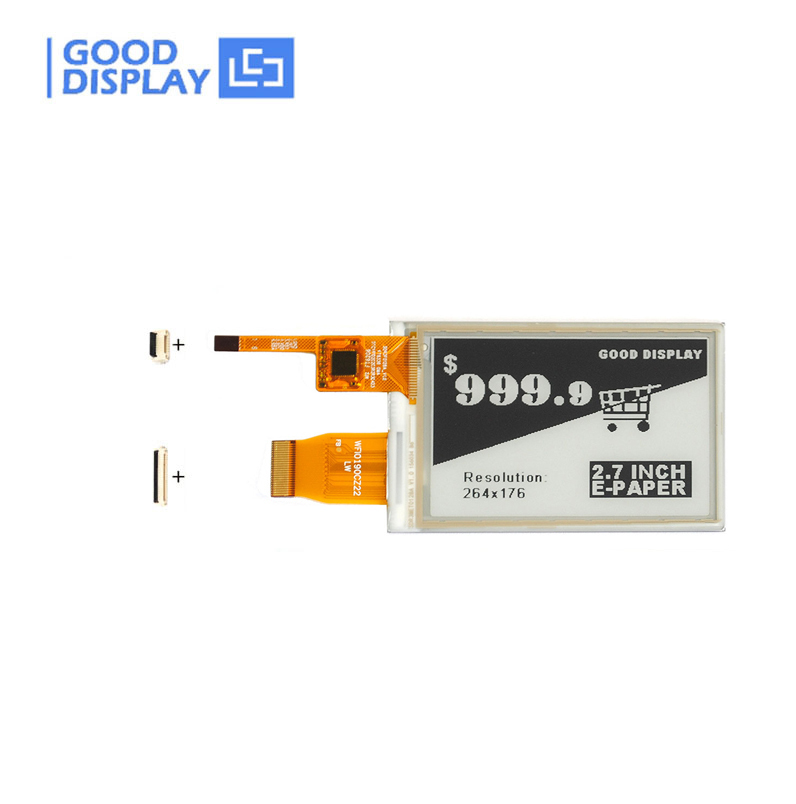

1. 2.7 inch 264*176 e-paper display with capacitive touch screen  *1pc

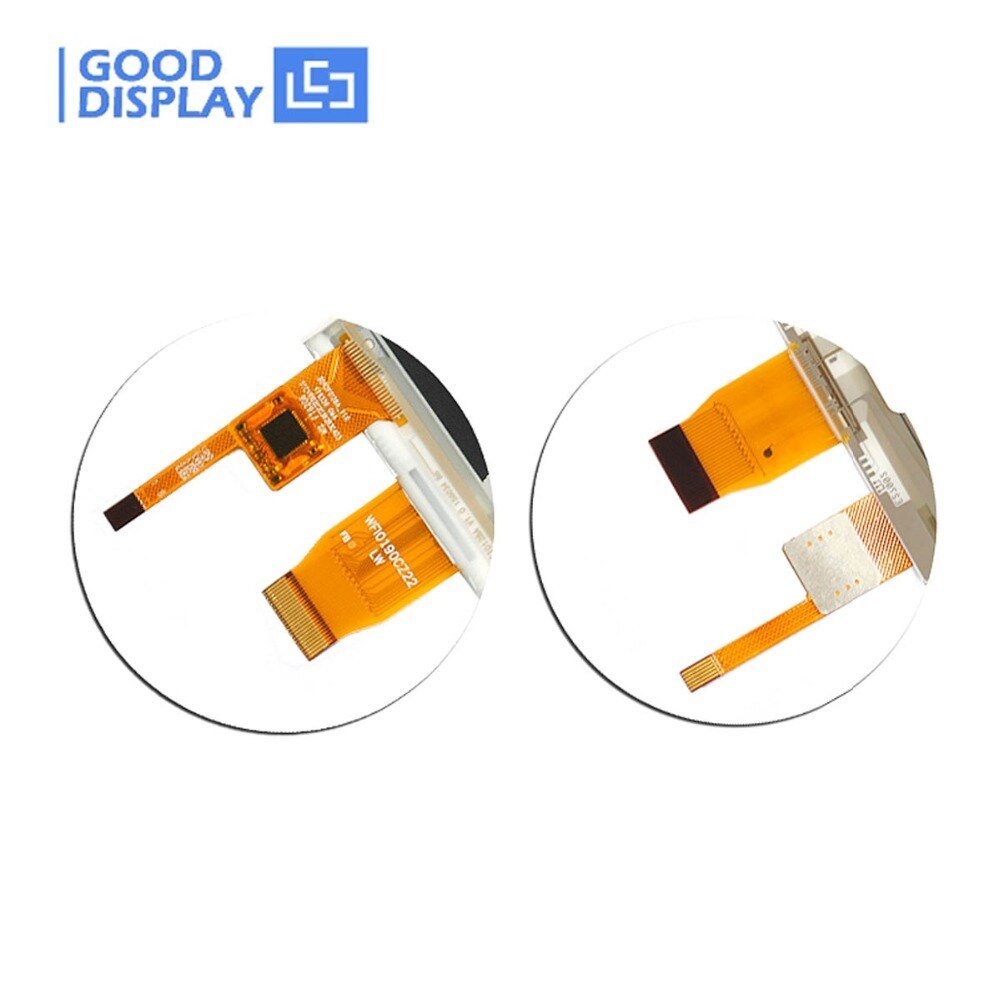

2. E-paper matched FPC Connector*1pc
3. Touch screen matched FPC Connector*1pc
4. Helpful resources and manual(sent via email or download link) *1pc
If you want to buy this display with demo kit together, click here:
http://upaj177.myueeshop.com/27inch-development-kit-with-e-paper-display-buy-p0129.html

If you want to buy this display with connect board, click here:
http://upaj177.myueeshop.com/27inch-e-ink-demo-connector-board-gdew027w3-t-p0147.html

Part Number

GDEW027W3-T

Type

Dot Matrix

IC EK79652

Resolution

264*176(DPI:117)

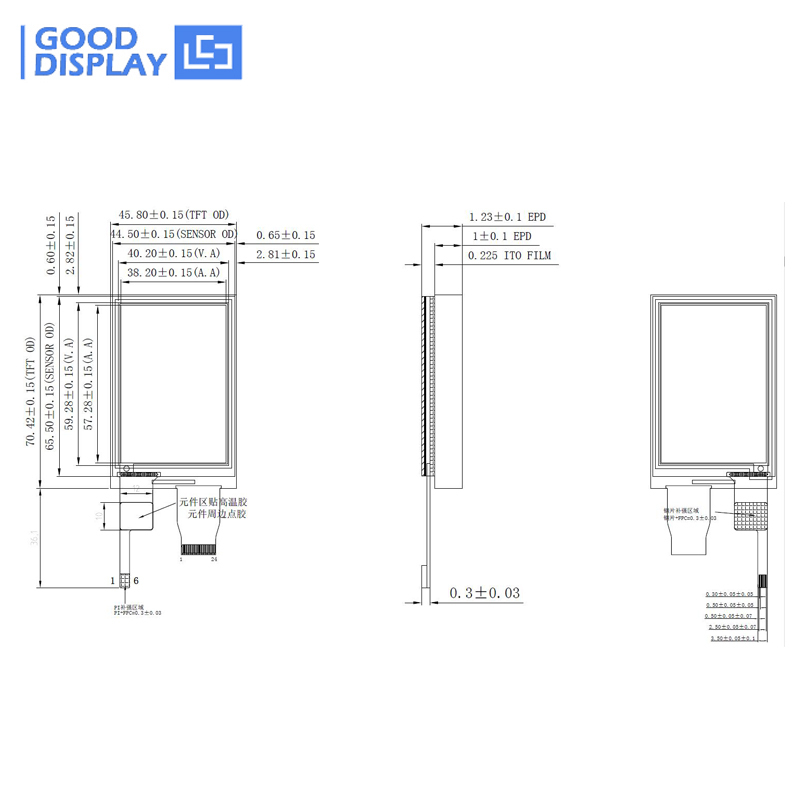

Outline Size(mm)

70.42*45.8*1.3

Actve Size(mm)

57.288*38.192

Pixel Pitch(mm)

0.217*0.217

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black, White

Max Grayscale

4

Time of refresh(s) 3
Time of partial refresh(s) 0.3
Power consumption of the e-paper only(mW) 26.4
Power consumption of the touch screen(mW) 14.3

Part Number

Color

Resolution

Features

Refresh Time

GDEW027W3

 B/W

264*176

Partial refresh, 4 Grayscale, Frontight/Touch screen(optional)

3S

GDEW027W3-T

     B/W

264*176

Partial refresh, touch screen, 4 Grayscale, Frontight/Touch screen(optional)

3S

GDEH027Z70 B/W/R 264*176 Three colors, Frontight/Touch screen(optional) 16S

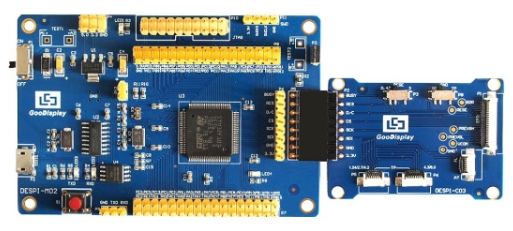

E-paper demo kit drive board with multifunction connection adapter board DESPI-V3.0
