6 inch 1024*758 High-resolution E-paper display screen panel with demo kit

GDE060F3+DESTM32-T

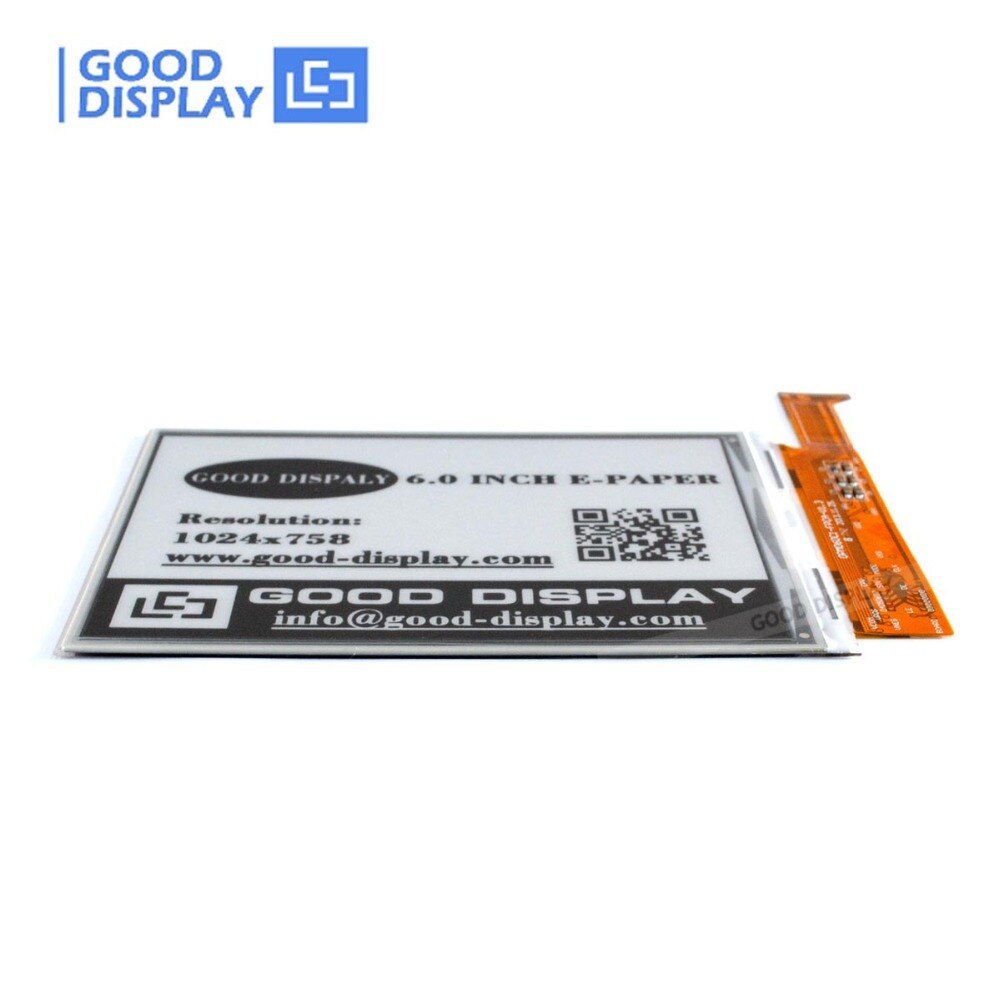

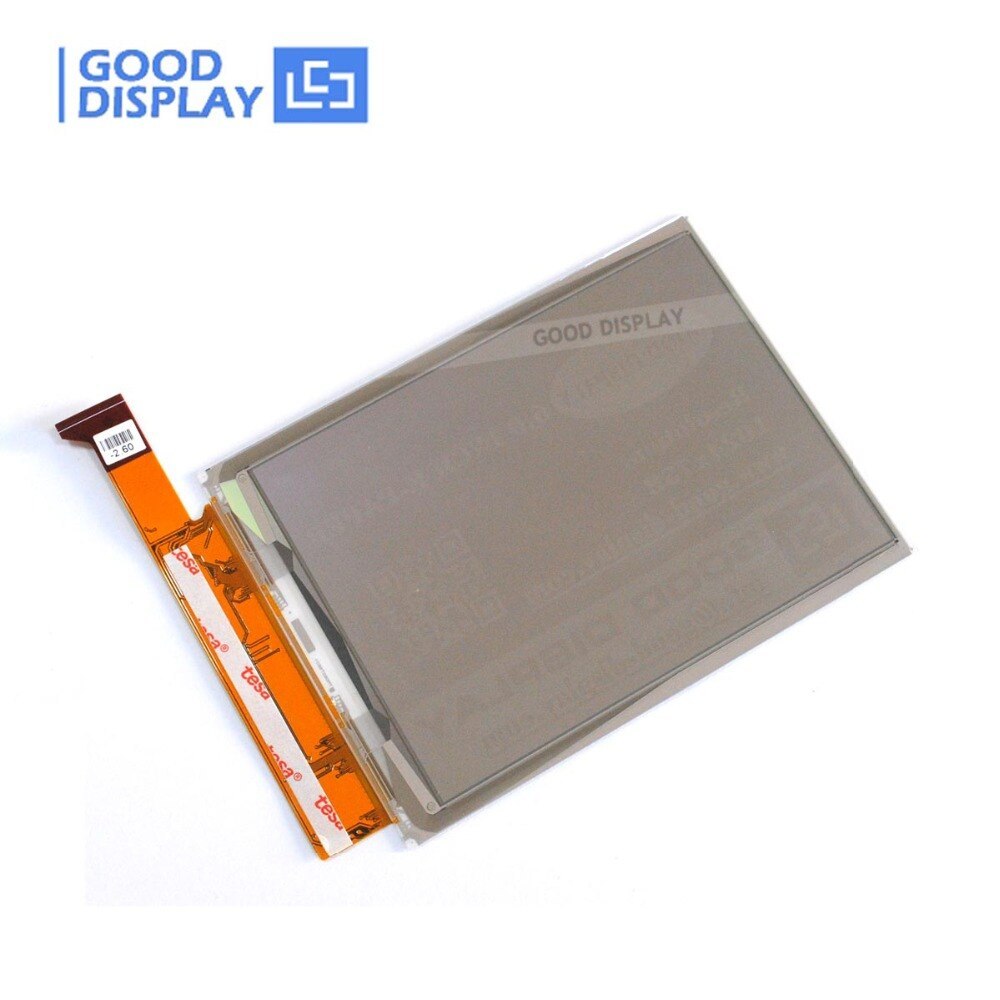

This is an 6.0 inch e-paper display, 1024*758 resolution, square, 34 pins FPC connection, Parallel interface, supports black, white. ultra low power consumption, wide viewing angle, readable under sunlight, GDE060F3 is a very good choice for E-book reader
Price:
USD
$82.32
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

This is an 6 inch E paper display panel with development kit, 1024*758 resolution, square, 34 pins FPC connection, optional FPC connector, communicating via Parallel interface, with integrated circuits including source and gate drivers,supports black, white.

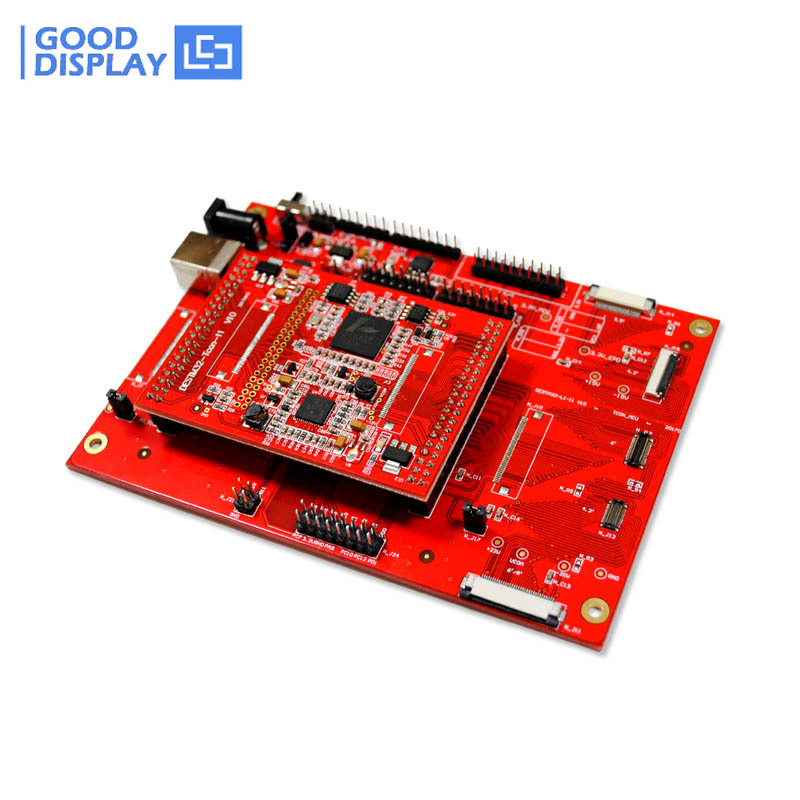

Two parts for the demo kit: Main Board DESTM32-L1-11 and Adapter Board DESTM32-Tcon-11.
The function of partial refresh can assistant to develop the related solution of 6 inch e paper display.To be convenient to test with it, there is an USB port transfer from parallel port EPD to serial one designed on board.

· Higher resolution 1024x758 than GDE060BA 800*600.
· Parallel interface
· 16 Grayscale
· Support partial refresh
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available
 DESTM32-T

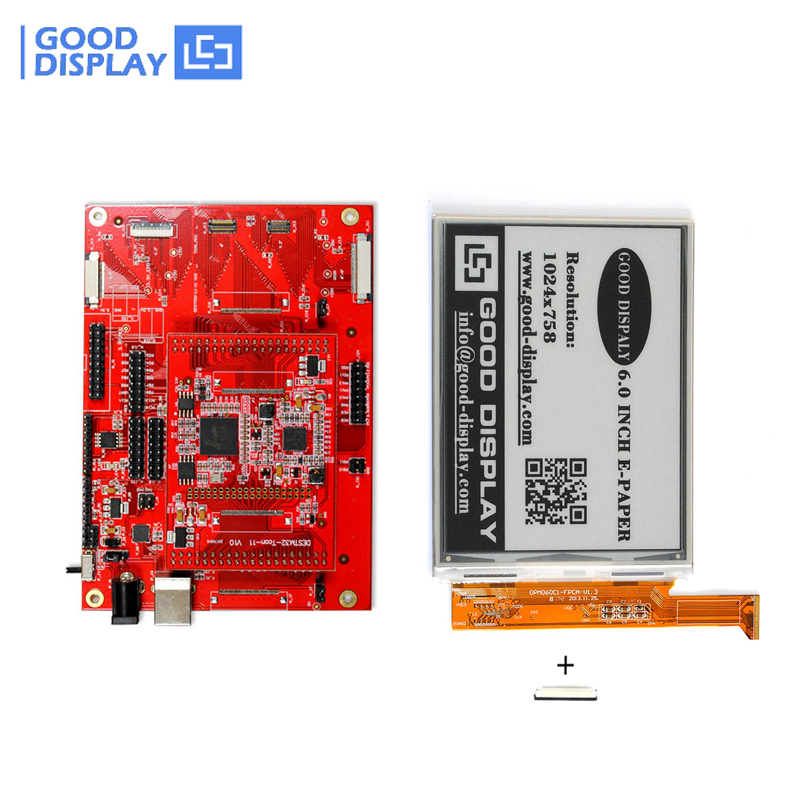

1. 6.0 inch 1024*758 Parallel E-paper Display GDE060F3 *1pc

2. Matched FPC Connector*1pc
3. New Big main board with USB port and power port(DESTM32-L1-11)
4. USB port cable
5. New Small converter board for connecting e-paper and main board( DESTM32-Tcon-11)
6. Helpful resources and manual(sent via email or download link) *1pc
If you only want to buy this e-paper display, click here:
https://buy-lcd.com/products/6-inch-1024758high-resolution-epd-display

Part Number

GDE060F3

Type

Dot Matrix

Resolution

1024*758

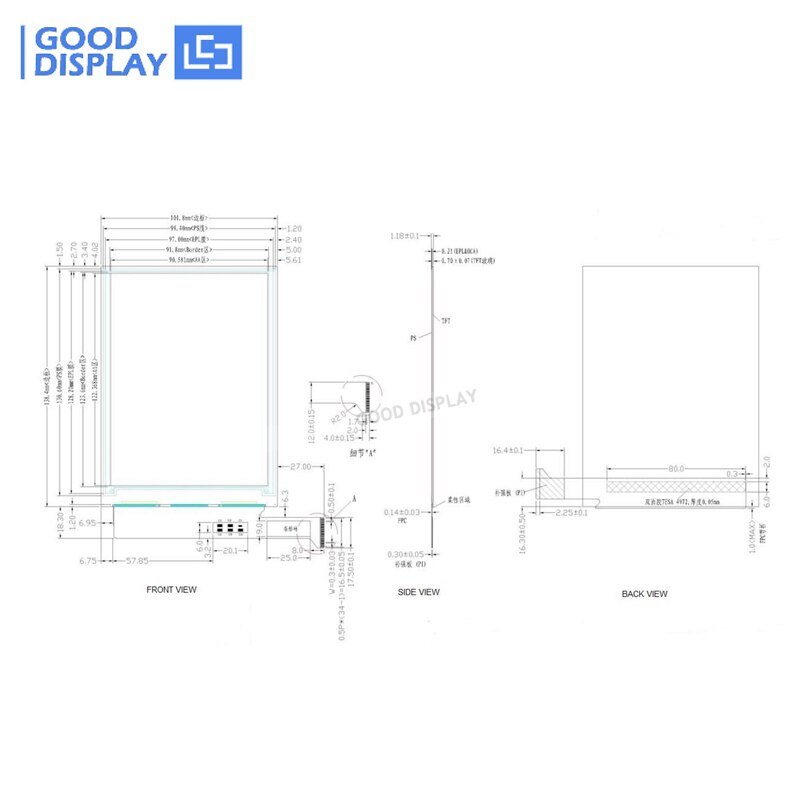

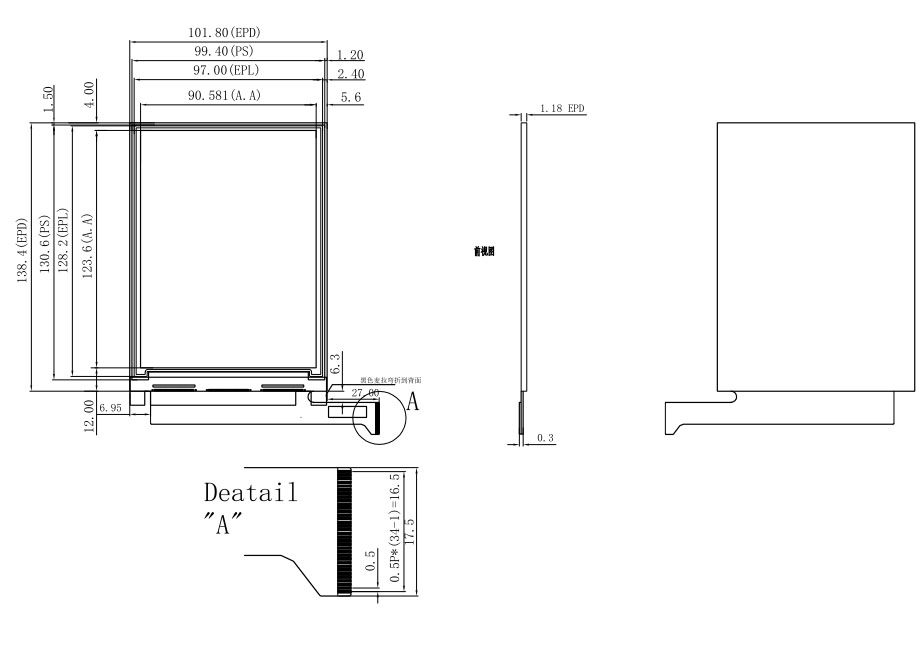

Outline Size(mm)

101.8*138.4*1.18

Active Size(mm)

90.581*122.368

Pixel Pitch(mm)

0.1195*0.1195

Operating Temp.

0~50C

Storage Temp.

-20~70C

Contrast Ratio

8:1

Max Grayscale

16

Color

Black,White

Power consumption of the refresh(mW) 600
Standby power consumption Pc(mW) 0.4
Time of refresh(s) 1
Time of partial refresh(s) 1



Part Number

DESTM32-T

Platform

STM32

Function

Drive E-paper Display

Suitable Size

4.3''/6.0''

Interface

USB

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to Serial



Part Number Color Resolution

Feature

Refresh time
GDE060B3 B/W 800x600 Parallel interface 1s
GDE060F3 B/W 1024x758 High resolution, Parallel, Partial refresh, 16 grayscale 1s
GDE060F3-FT01 B/W 1024x758 High resolution, Parallel, Front-light and touch screen, Partial refresh, 16 grayscale 1s



https://www.good-display.com/product/250.html
