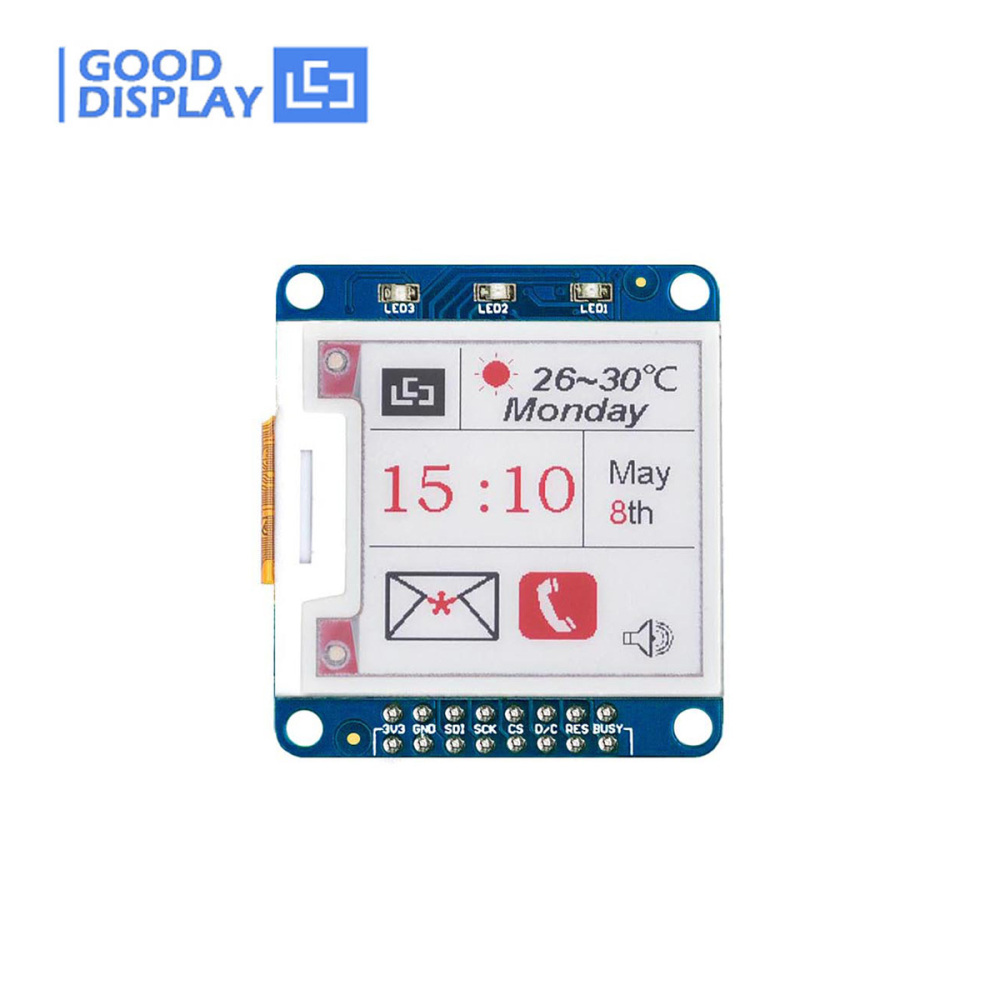

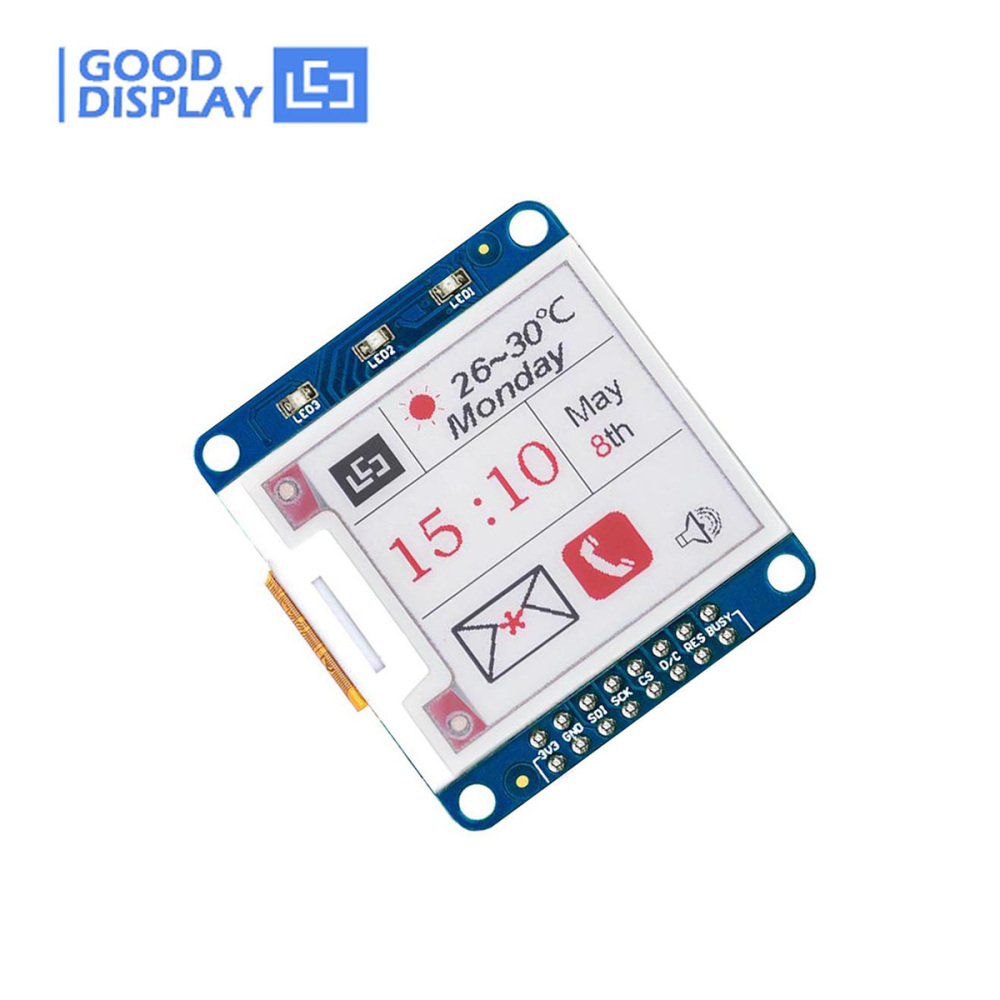

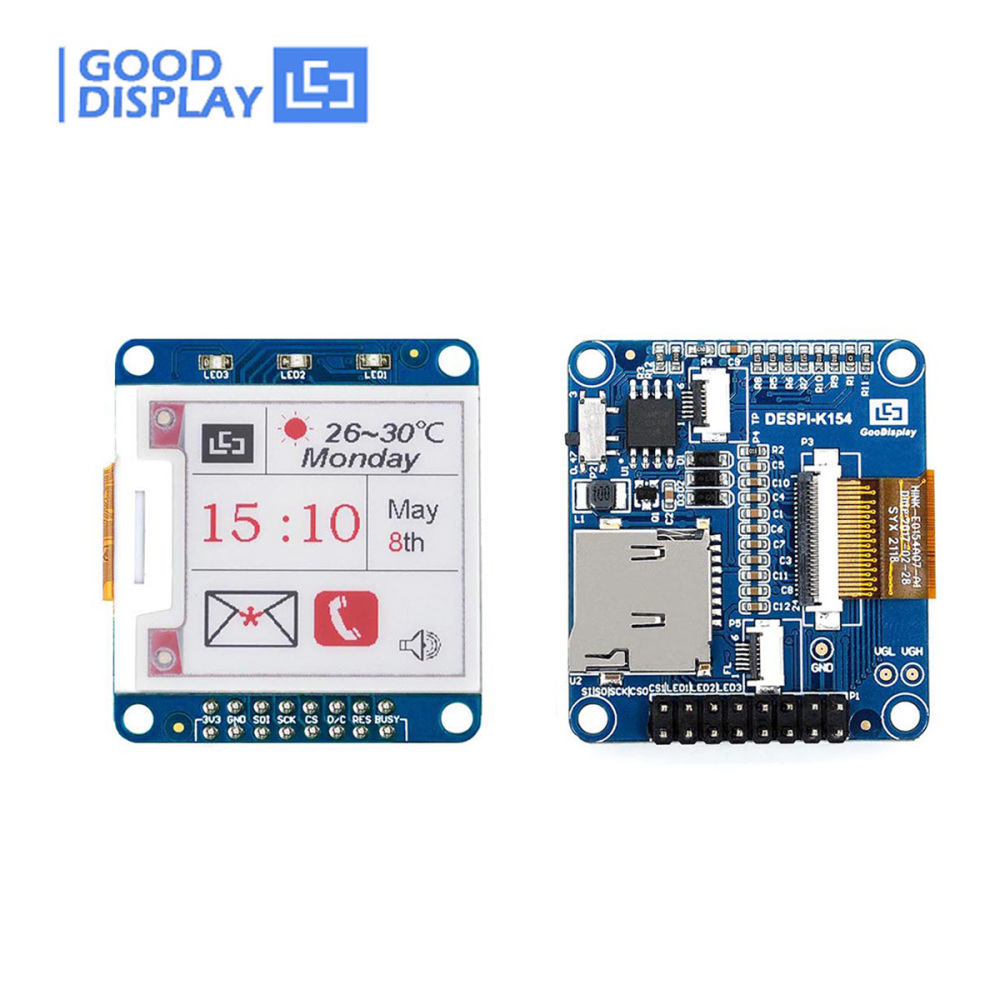

Color eink screen 1.54 inch 200x200 small e-paper display module, DESPI-K154Z90

DESPI-K154Z90 is designed for 1.54 inch SPI e-paper display GDEH0154Z90. It can boost the driving voltage of Good Display's color 1.54 inch e-paper display.
Price:
USD
$20.92
$23.24
(10% OFF)
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




DESPI-K154Z90 E-paper Display Module is designed for 1.54 inch SPI color eink screen GDEH0154Z90. It can boost the driving voltage of Good Display's 1.54 incheink screen. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

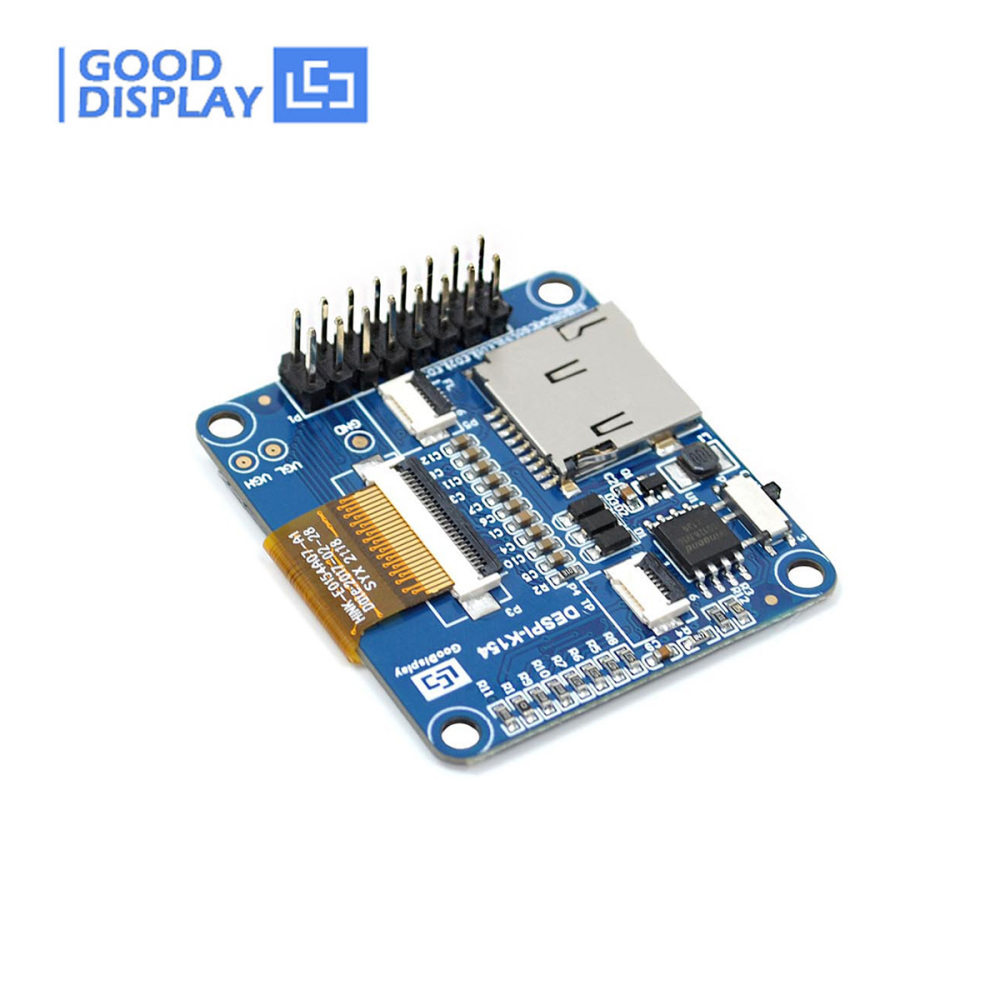

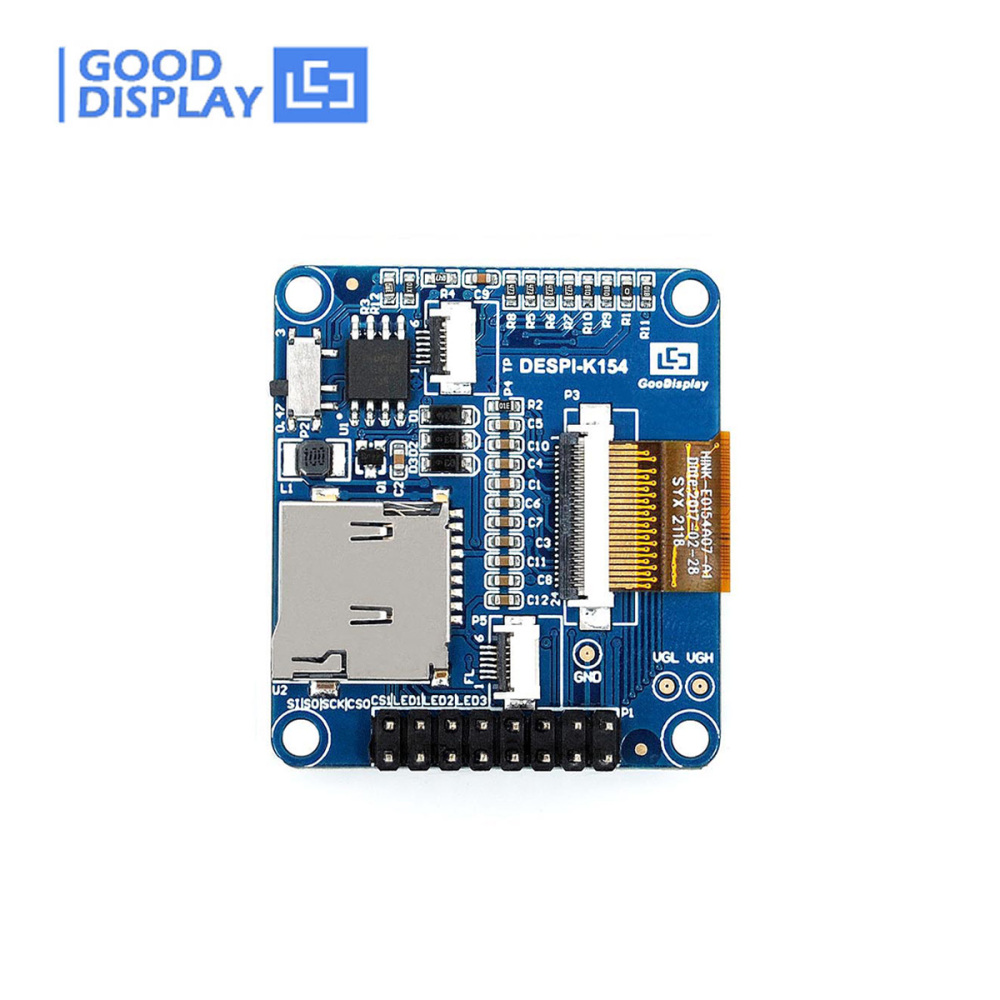

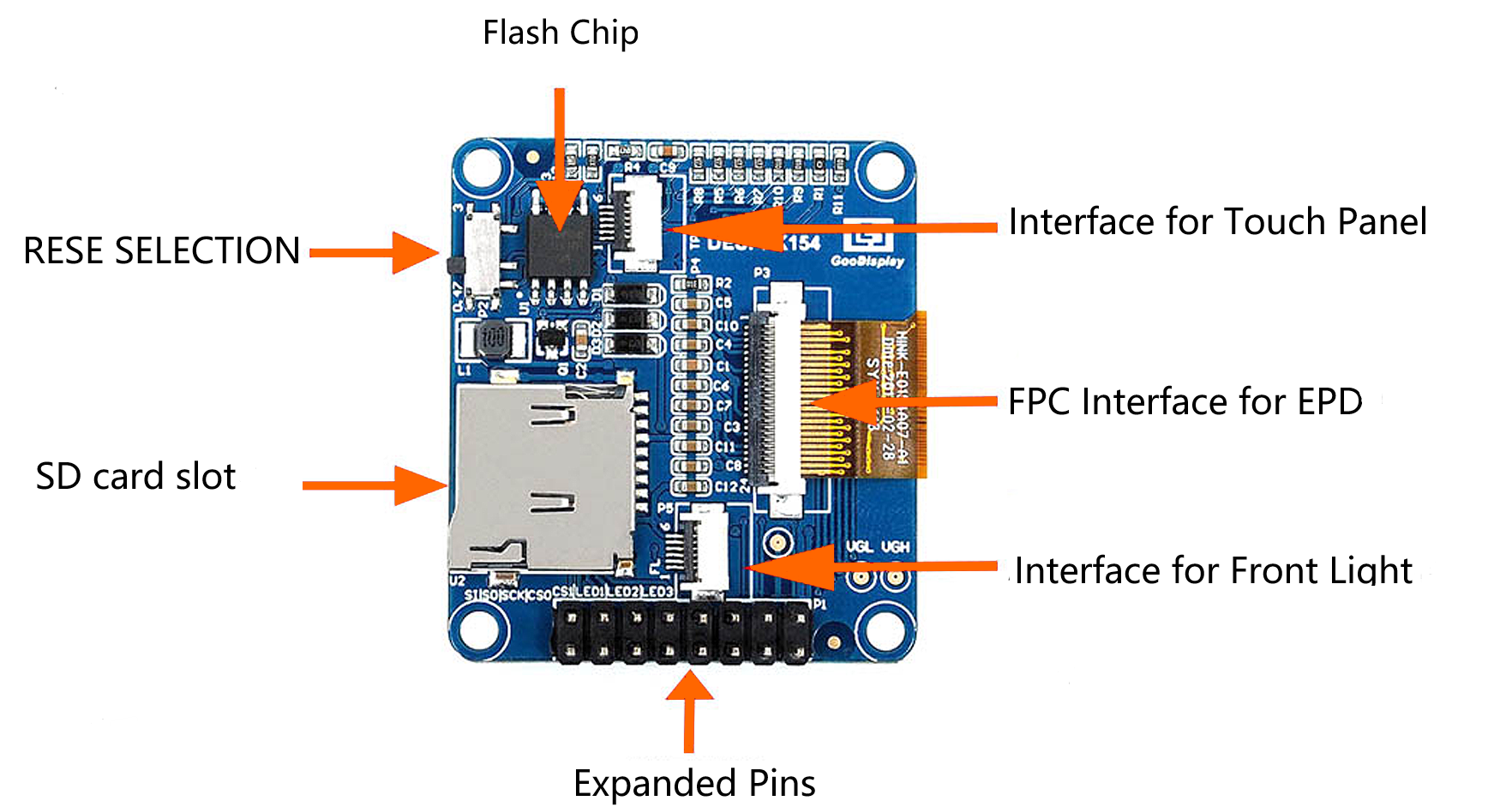

Also it preserves interfaces for 6 Pin touch panel and 6 Pin front light, which users can test. And this module board contains a Flash chip W25Q128 which is a serial NOR Flash memory with capacity of 128M-bit(16M-byte), making it easier for users to store pictures, libraries and other related data. And SD card slot is also reserved in the eink screen module, which users can choose to add an extra micro SD card. Therefore, Flash chip and SD card slot address the user need for more storage.

We also have other 24 Pin 1.54 e-paper display modules, if you have any needs, please contact us.


Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




●  SPI interface. It can be used on Raspberry Pi/Raspberry Pi Pico/ Arduino/ EPS8266/ ESP32/ STM32 Platform. We could provide the driving board, if you need, contact us please.

●   It integrated Flash chip and SD card slots for expanded development

●   Help users to learn how to drive the EPD with 6 PIN touch panel and 6 PIN front light

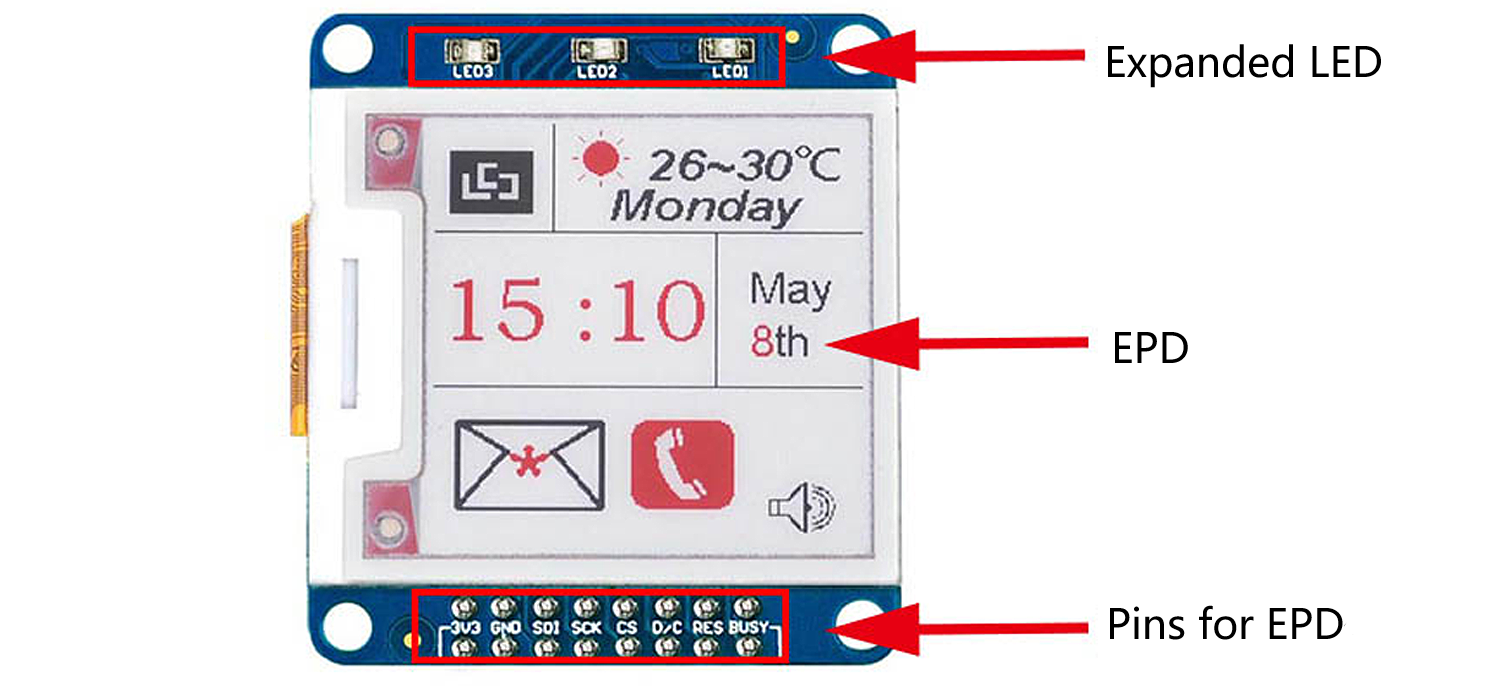

●   It has 3 LED lights, each LED light can be directly controled by the expansion pins. (Please refer to the PIN description.)







 THE ABOVE PRICE INCLUDE



1) Color eink screen 1.54 inch 200x200 small e-paper display module * 1pc





 MAIN PARAMETERS




PART NUMBER

DESPI-K154Z90

PLATFORM

STM32、Arduino、ESP32、ESP8266、Raspberry Pi、Raspberry Pi Pico

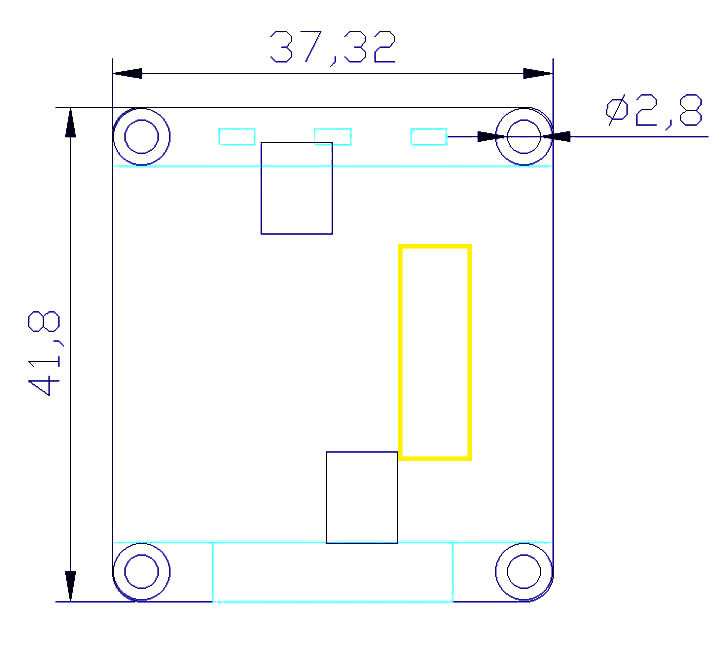

OUTSIDE DIMENSION(mm)

41.8x37.32

IC

SSD1681

RESOLUTION

200x200

POWER INTERFACE

3.3V

ACTIVE SIZE(mm)

27x27

OPERATING TEMP.

0℃~40℃

MAIN FUNCTION

Provide driving voltage for e-paper, touch panel and front light panel;
Help users operate e-paper quickly.

ADDITIONAL FUNCTION

Flash;

Micro SD;

LED;

MAX GRAYSCALE

2

COLOR

Black,White, Red

INTERFACE

SPI

FULL REFRESH(s)

15




☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDE043A2 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A2-T(With Touch Panel) 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A3 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDE060F3 6.0'' BW 16 1024x758 90.581x122.368 1 0℃~50℃   Parallel
GDEM075Z08 7.5'' BWR 2 800x480 163.2x97.92 17 0℃~40℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
