☆ INTRODUCTION
Arduino is a simple I/O platform based on open raw code, using languages similar to Java and C. The Arduino language functions some of the parameter settings so that users don't need to know the underlying code.
This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving e-paper GDEW0102I3F and GDEW0102T4. And it is added the functions of USB serial port and LED indicator light, etc. It also supports being updated by computer directly.

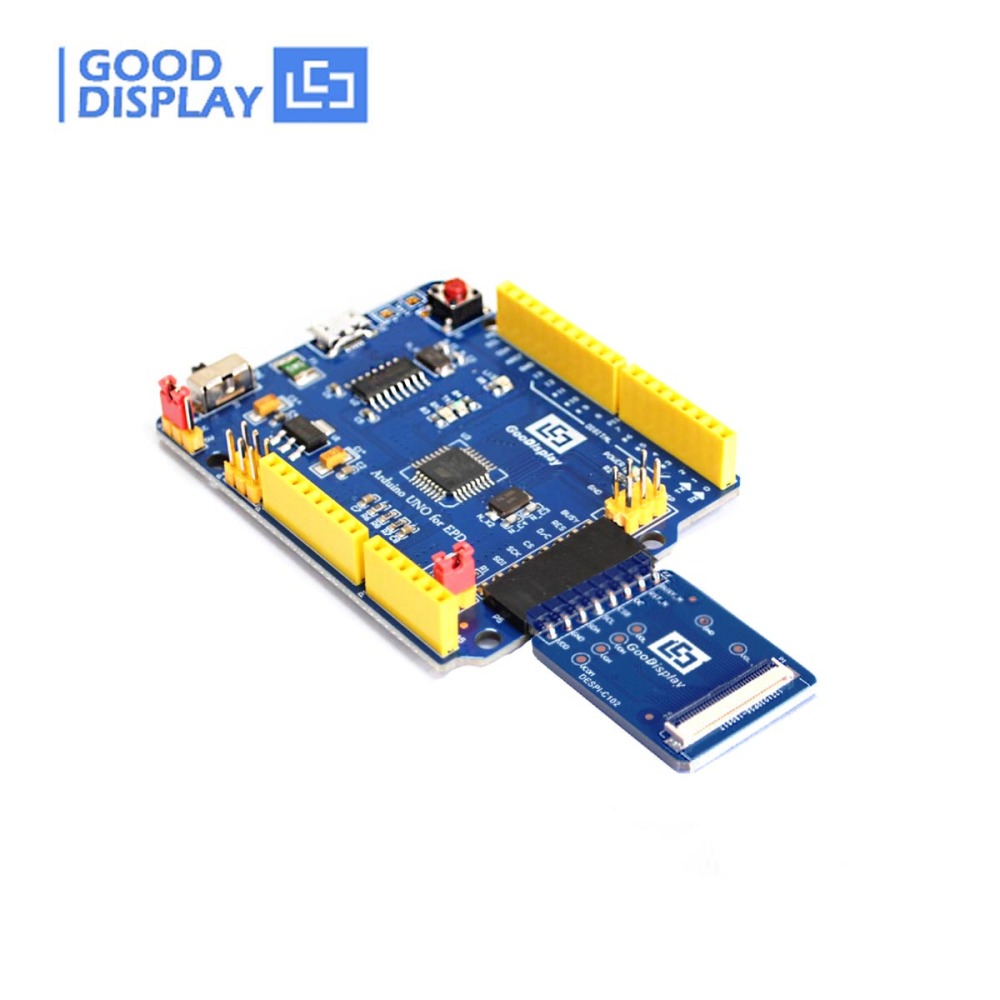

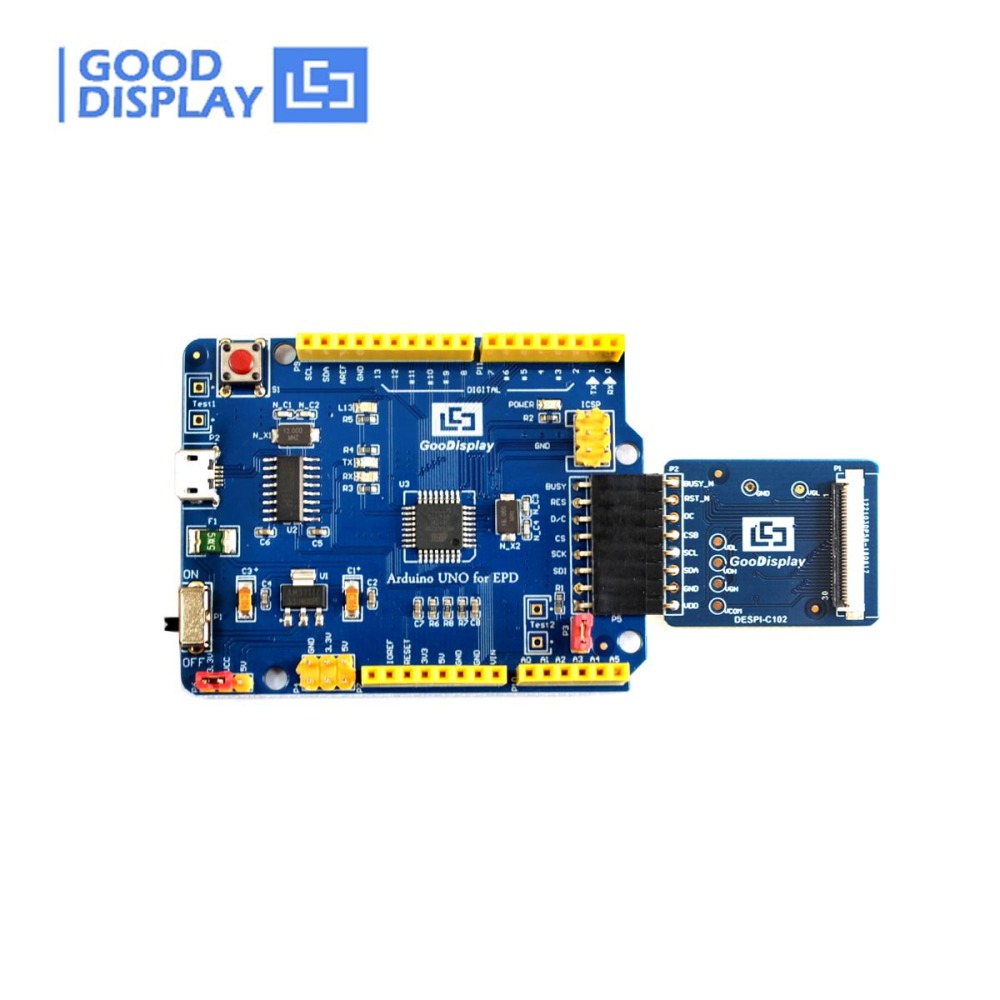

DEArduino (C102_30P) development kit consists of motherboard Arduino UNO for EPD and connector board DESPI-C102_30P.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

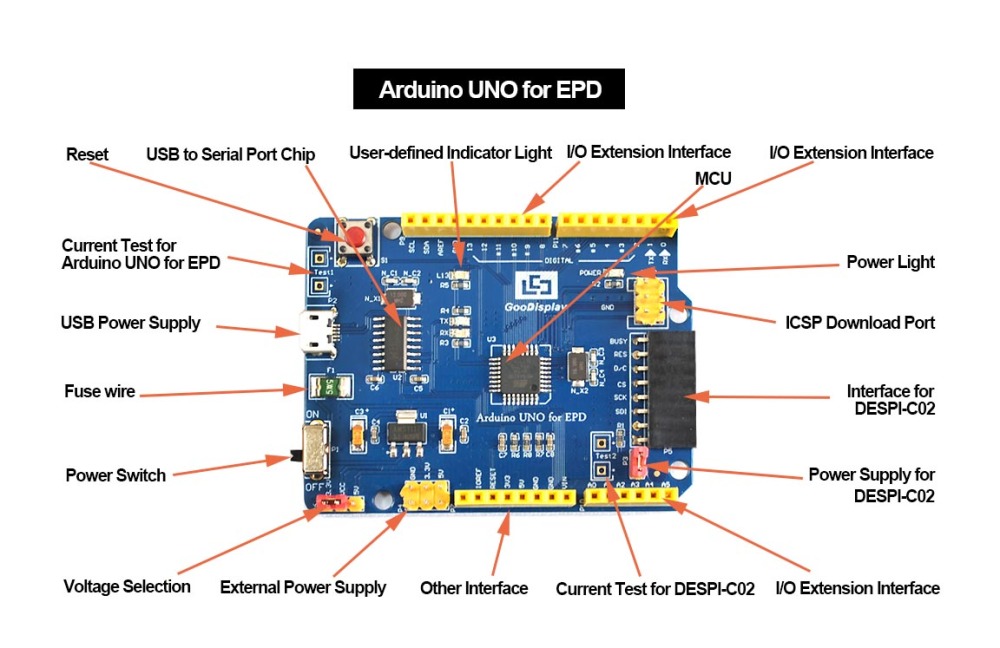

1) Driving board Arduino UNO for EPD * 1pc

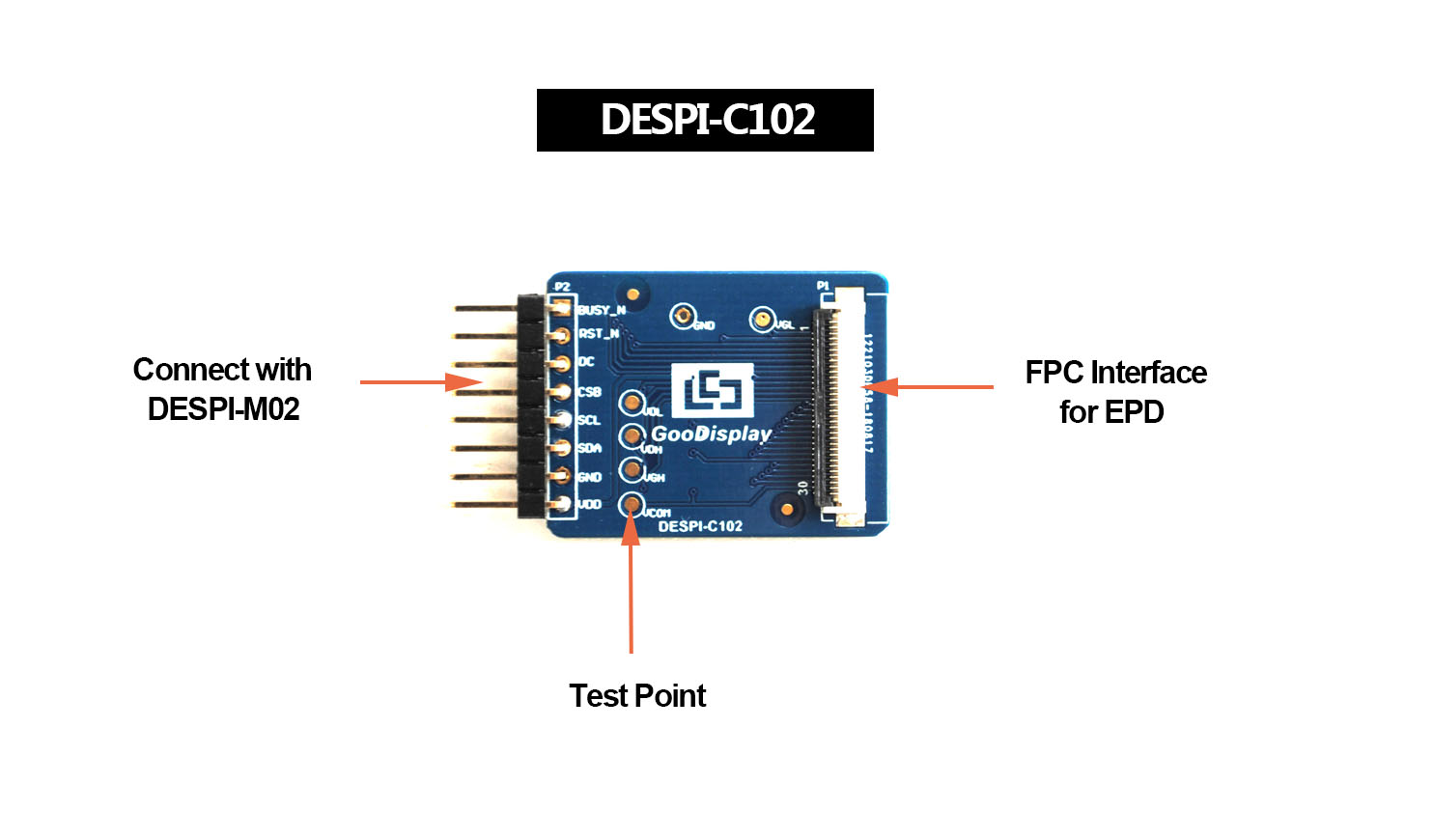

2) Connector board DESPI-C102_30Pin * 1pc
3) USB port cable * 1pc
☆ FEATURE
● USB serial port and LED indicator light.
● Learn how to drive E-Paper Display based on Arduino.
● Test and evaluate the E-Paper Display.
● Secondary development based on DEArduino.
☆ MAIN PARAMETERS
|
PART NUMBER
|
DEArduino（C102_30P）
|
|
MCU
|
Arduino
|
|
FUNCTION
|
Drive 1.02 inch E-paper Display
|
|
OUTSIDE DIMENSION
|
70mm x 54mm (Arduino UNO for EPD)
33.8mm x 22.2mm (DESPI-C102_30P) |
|
POWER INTERFACE
|
USB Interface
|
|
SAMPLE CODE
|
Available (please contact sales)
|
|
OPERATING TEMP.
|
-20~70℃
|
| MAIN FUNCTION |
1. Learn to drive e-paper display
2. Test and evaluate e-paper display
3. For secondary development. |
| ADDITIONAL FUNCTION |
USB to serial port, indicator light, keys, current detection
and so on. |
☆ DRIVE BOARD
● DEArduino(C102_30P) (Arduino Platform)
● ESP8266(C102_30P) (WiFi)
● ESP32-102 (WiFi / Bluetooth)
☆ MATCHED E-INK DISPLAY
|
Part Number
|
Color
|
Resolution |
Features
|
Refresh Time |
|
GDEW0102I3F
|
B/W
|
128x80 |
Partial refresh, Flexible
|
3s |
| GDEW0102T4 |
B/W |
128x80 |
Partial refresh 0.3s/frame |
3s |
