AFM203T IoT module based on RTL8720CM

AFM203T

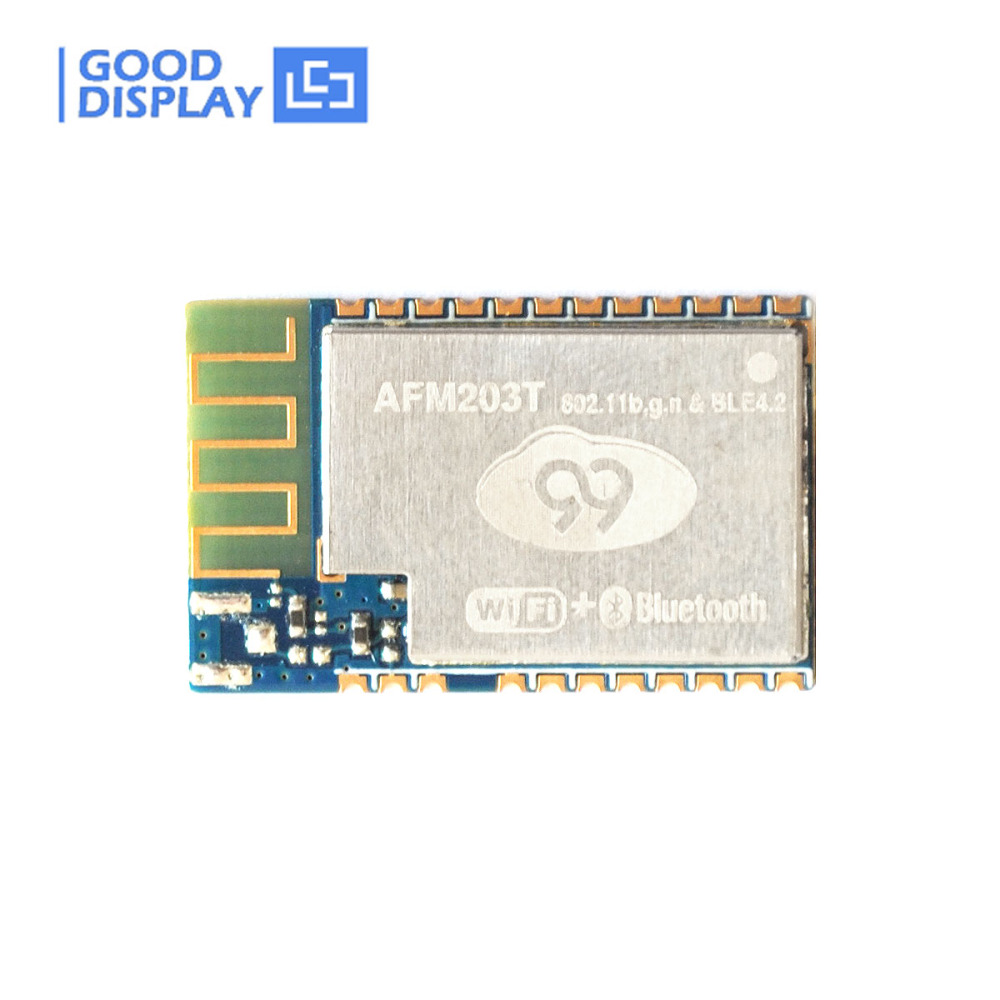

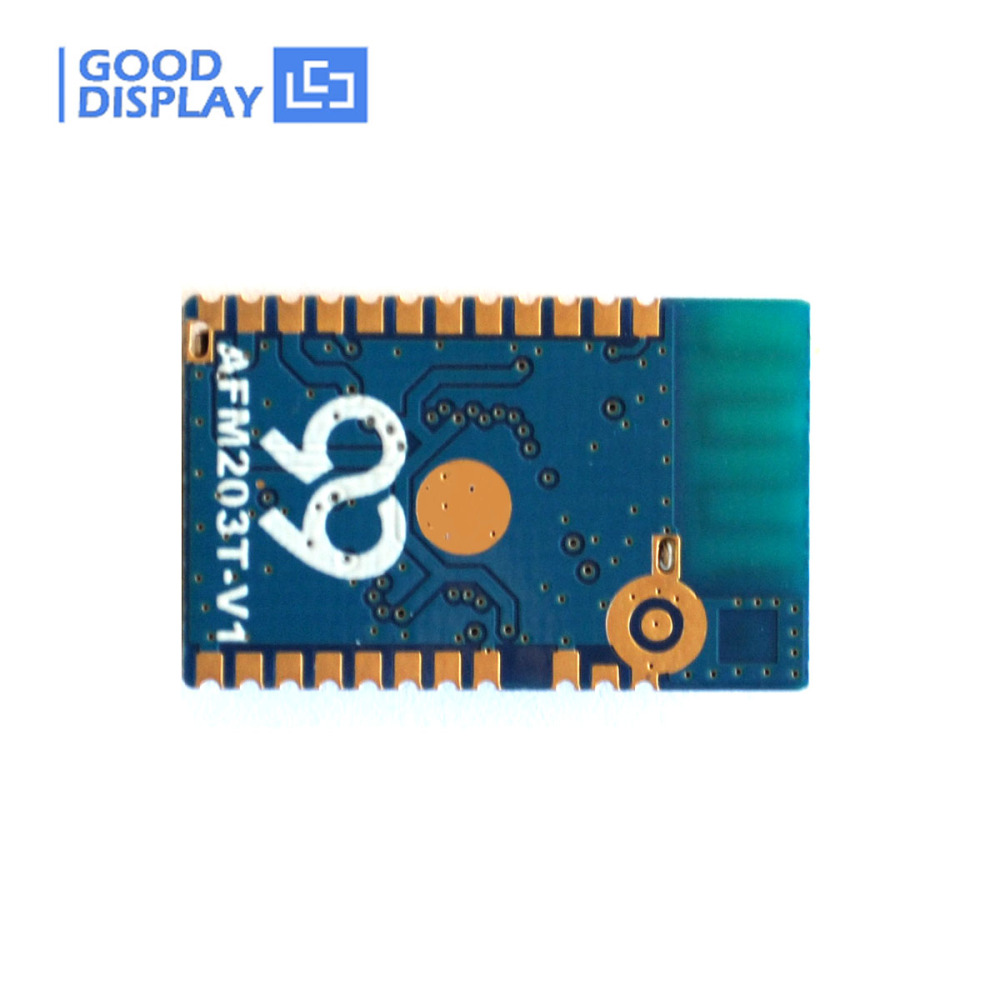

AFM203T RTL8720CM WIFI+bluetooth module
Price:
USD
$2.80
Quantity:
-
+
(2 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com





☆ INTRODUCTION





AFM203T is a low-power and small-volume embedded Wi-Fi + Bluetooth module. It uses Realtek's highly integrated wireless RF chip RTL8720CM and a small number of peripheral devices. The chip has built-in 802.11b / g / n Wi-Fi wireless Built-in ARM Cortex-M4F processing core, with large capacity (FLASH: 2MB ROM: 384KB) storage space (FLASH: up to 128MB), running space (SRAM: 256KB) and rich peripheral resources, RTOS system platform in MCU And the lightweight LWIP protocol, through packaging and optimization of the SDK, can meet a variety of embedded wireless communication applications.



Relevant manual about this product on our official website (www.iflabel.com), contact us please.

The official designated development board that matches the AFM203T module is RTL8720CM-EVB.






☆ TECHNICAL DETAILS




ARM Cortex-M4 processing core, clocked at 100MHz

3.3V, 5V DC single power supply

Package: Stamp Hole

Size: 24(L) × 15(W) × 3.0(T)mm

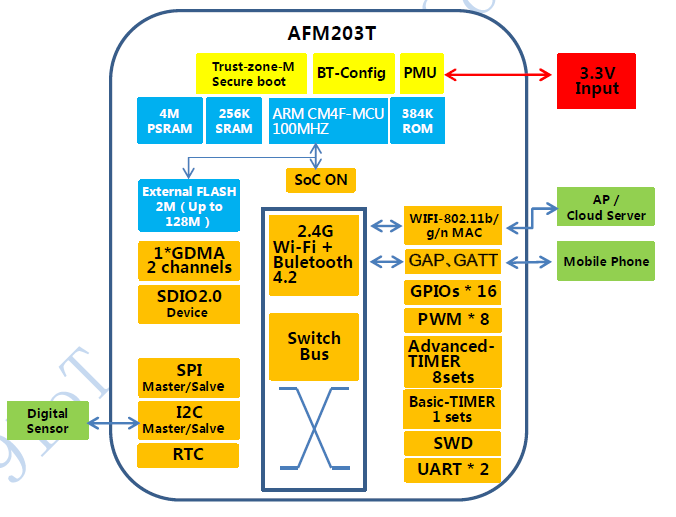

AFM203T structure










 THE ABOVE PRICE INCLUDE



AFM203T RTL8720CM WIFI+bluetooth module * 1pc





 WLAN, BLUETOOTH PARAMETERS



Standard: 802.11 b / g / n 1x1
Transmit power: 11b: 18dBm / 11g: 16dBm / 11n: 15dBm
Receiving sensitivity: 11b: -93dBm / 11g: -82dBm / 11n: -76dBm
Communication rate: 11Mbps @ 11b / 54Mbps @ 11g / 150Mbps @ 11n
Working mode: STA, AP, STA + AP, Buletooth
Hardware encryption: WPA / WPA2
Antenna: external antenna, IPEX antenna interface, on-board antenna






  FEATURES



● Complete IoT solution (low-level development, cloud services, APP)
● Support AT + application set secondary development
● Support secondary development of C-SDK package
● Support OTA wireless upgrade
● Support Bluetooth smart networking, Airkiss WeChat distribution network function
● Industrial-grade application design, 4-layer PCB design, performance consistency guarantee
● FCC / CE certification, RoHS compliant





 SOFTWARE FEATURES



● Built-in IPV4 / IPV6 protocol stack
● Built-in FreeRTOS system
● Supports low power BLE 4.0
● Supports HTTP / HTTPS (SSL) encryption
● Support Ella Cloud, Amazon, Cloud, JD Cloud, Alibaba Cloud
● Support customized private cloud or user private cloud docking
● Support secondary development, secondary integration




☆ MODULE MODEL




Name

Description

AFM203TI

PCB on-board antenna

AFM203TO

IPEX external antenna

AFM203TP

RF-Pin external antenna






☆ DOWNLOADS






File Type Description  Version Language Update Date Size
AFM203T Datasheet 1.0 English 2021-5-16 2.03MB
RTL872xZ2 IC Datasheet 0.8 English 2020-03-04 2.643MB







☆ RELATED PRODUCTS LISTS






Realtek
Chip

Series

EVB

Module

Package

Protocol

CPU

Fre.

SRAM

Flash

BLE

LCD

UART

SPI

I2S

SDIO Key
Scan

ADC/
DAC

RTL8710BX

Ameba Z

AFW121T-EVB

AFW121T

21Pin
18x22mm

WiFi

ARM M4

62.5M

256KB

Ext

-

N

1

1

N

N

Y/N

RTL8720CN

Ameba Zii

RTL8720CN-EVB
AFM201T-EVB

AFM201T

23Pin
15x24mm

WiFi+BLE4.2

ARM M4

100M

256KB

Ext

4.2

N

2

1

N

N 4x2/3x3

N/N

RTL8720CM

Ameba Zii

RTL8720CM-EVB

AFM203T

23Pin
15x24mm

WiFi+BLE4.2

ARM M4

100M

256KB

Ext

4.2

N

2

1

N

N 4x2/3x3

N/N

RTL8720CS

Ameba CS

RTL8720CS-EVB

AFM312T

23Pin
19x29mm

WiFi+BLE5 Mesh

 M0+M4

200M

512KB

Ext

5.0

N

2

2

Y

N 7x3/5x5

Y/Y

RTL8721CSM

Ameba CS

RTL8721CSM-EVB

AFM321T

66Pin
27x37mm

WiFi+BLE5 Mesh

 M0+M4

200M

512K
+4M

Ext

5.0

N

3

2

Y

N 4x8/6x6

Y/Y

RTL8722CSM

Ameba CS

RTL8722CSM-EVB

AFM331T

66Pin
27x37mm

WiFi+BLE5 Mesh

 M0+M4

200M

512K
+4M

Ext

5.0

RGB

4

2

Y

D/H 4x8/6x6

Y/Y

RTL8720DN

Ameba D

RTL8720DN-EVB

AFM412T

23Pin
19x29mm

2.4G+5G+BLE5

 M0+M4

200M

512K

Ext

5.0

N

2

1

Y

N 4x8/6x6

Y/Y

RTL8721DM

Ameba D

RTL8721DM-EVB

AFM421T

66Pin
27x37mm

2.4G+5G+BLE5

 M0+M4

200M

512K
+4M

Ext

5.0

N

3

2

Y

N 4x8/6x6

Y/Y

RTL8722DM

Ameba D

RTL8722DM-EVB

AFM431T

66Pin
27x37mm

2.4G+5G+BLE5

 M0+M4

200M

512K
+4M

Ext

5.0

RGB

4

2

Y

D/H 4x8/6x6

Y/Y





 APPLICATION



● Intelligent electrical outlet

● Industrial control
● Intelligent home appliances
● Internet of things applications
● Thermal printer
● LED control card
● The POS






 OTHER REFERENCES
