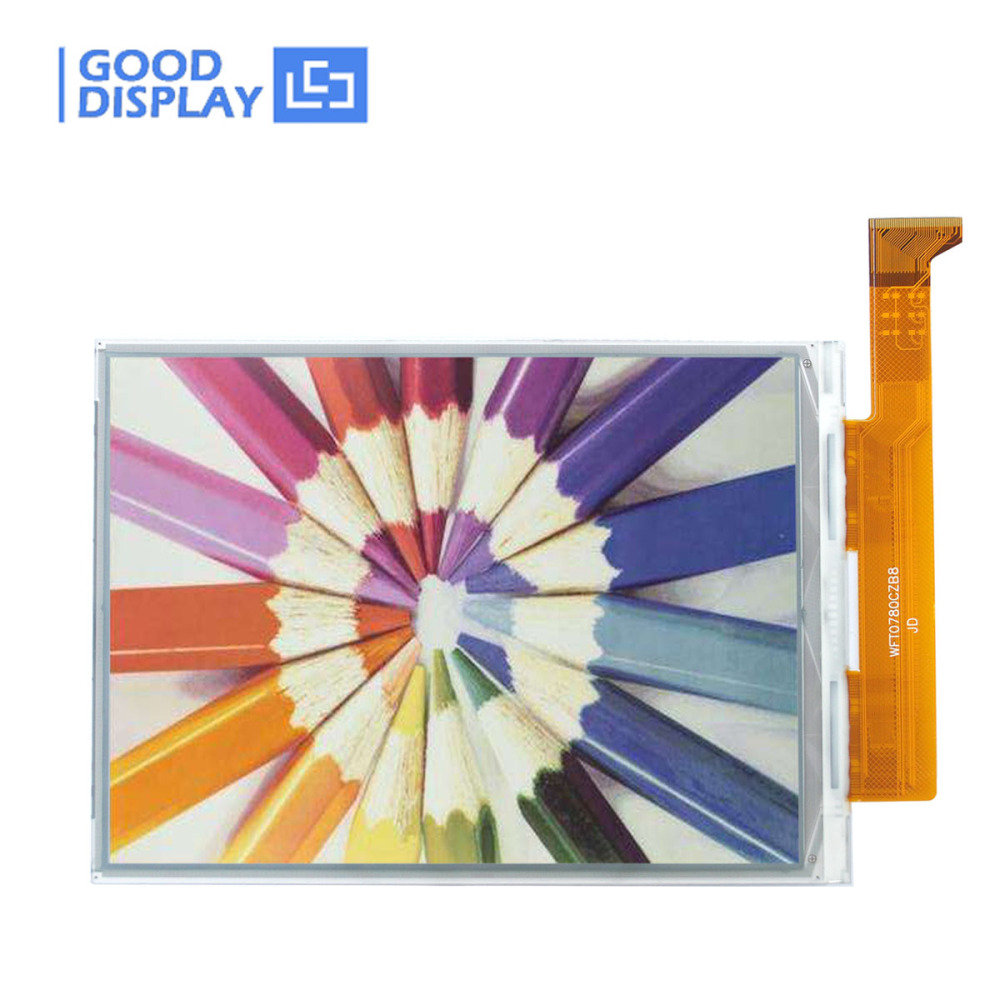

7.8 inch DES full color e-paper display parallel interface, extended operating temperature, GDEW078C01

DES 7.8 inch full color e-paper display, 1872x1404 resolution, 40 pins, parallel interface, support max 16 Grayscale, Wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments.
Price:
USD
$98.00
Quantity:
-
+
(0 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com


This is a DES (what is DES?) 7.8 inch full color e-paper display with 1872x1404 resolution, 40 pins FPC connection, optional FPC connector, communicating via parallel interface, support max 16 Grayscale, Wide working temperature range: -20℃~60℃. It can be used in sunlight and cold environments, so it is suitable for outdoor equipment.

In view of so many advantages: full color(64), ultra low power consumption, near 180 degree view angle, high contrast, better display effect, wide working temperature, GDEW078C01 is a very good choice for applications like smart home application, E-book, outdoor equipment.


1)7.8''e ink GDEW078C01 *1pc

Full color(64)
It is manufactured using a new process: DES, DES series products have the following characteristics:
* High contrast, better display effect, can be used in sunlight
*Wide working temperature range: -20℃~60℃, can be used in cold environments
(operating temp. of E-ink technology epaper is:  2-color: 0~50℃, 3-color: 0~40℃, low temp.: -25℃~25℃)
We think you can learn more from this contrast video between DES technology epaper and E-ink technology epaper:



1872x1404 resolution
Parallel interface, 40 pins FPC connection
Support max 16 Grayscale

Part Number GDEW078C01
Type DES
Size 7.8 inch
Resolution 1872x1404

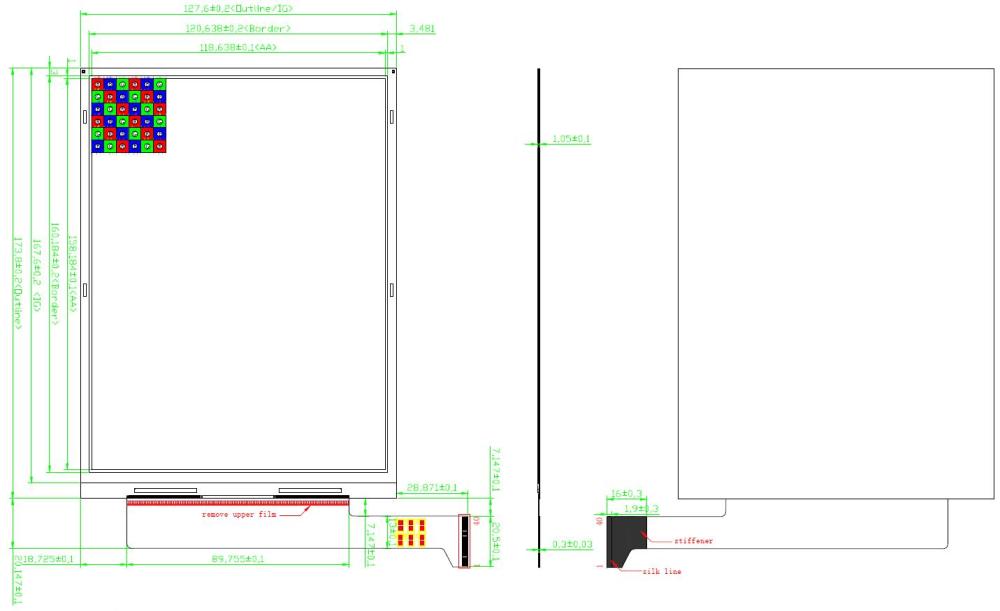

Outline Size(mm) 127.6x173.8x1.05
Active Size(mm) 118.638x158.184
Pixel Pitch(mm) 0.0845x0.0845
Operating Temp. -20℃~60℃
Storage Temp. -25℃~75℃
Connector 40 Pin
Feature Color
Interface Parallel
Max Grayscale 16
Power consumption of the refresh(mW) 285
Standby power consumption Pc(mW) 1.3
Time of refresh(s) 1


DES series(Wide Working Temperature Range -20℃~60℃, Can Be Used In Sunlight And Cold Environments)

Part Number

Size/Color

Refresh Time

Feature

GDEW0154M10

1.54 inch/BW

3S (full refresh)

IC UC8151D, Resolution 152x152

GDEW0213M21

2.13 inch/BW

3S (full refresh)

IC UC8151D, Resolution 212x104

GDEW026M01

2.6 inch/BW

3S (full refresh)

IC UC8151D, Resolution 296x152

GDEW029M06

2.9 inch/BW

3S (full refresh)

IC UC8151D, Resolution 296x128

GDEW042M01

4.2 inch/BW

3S (full refresh)

IC UC8176, Resolution 400x300

GDEW0583M09

5.83 inch/BW

3S (full refresh)

IC UC8179, Resolution 648x400

GDEW060C01

6.0 inch/Full Color

1S (full refresh)

Full color, IC Double JD79632, Parallel interface, 16 Grayscale, Resolution 1072x1448

GDEW075M10 7.5 inch/BW 3S (full refresh) IC UC8179, Resolution 800x400

GDEW078C01

7.8 inch/Full Color

1S (full refresh)

Full color, Parallel interface, 16 Grayscale, Resolution 1872x1404






https://www.good-display.com/product/366.html
