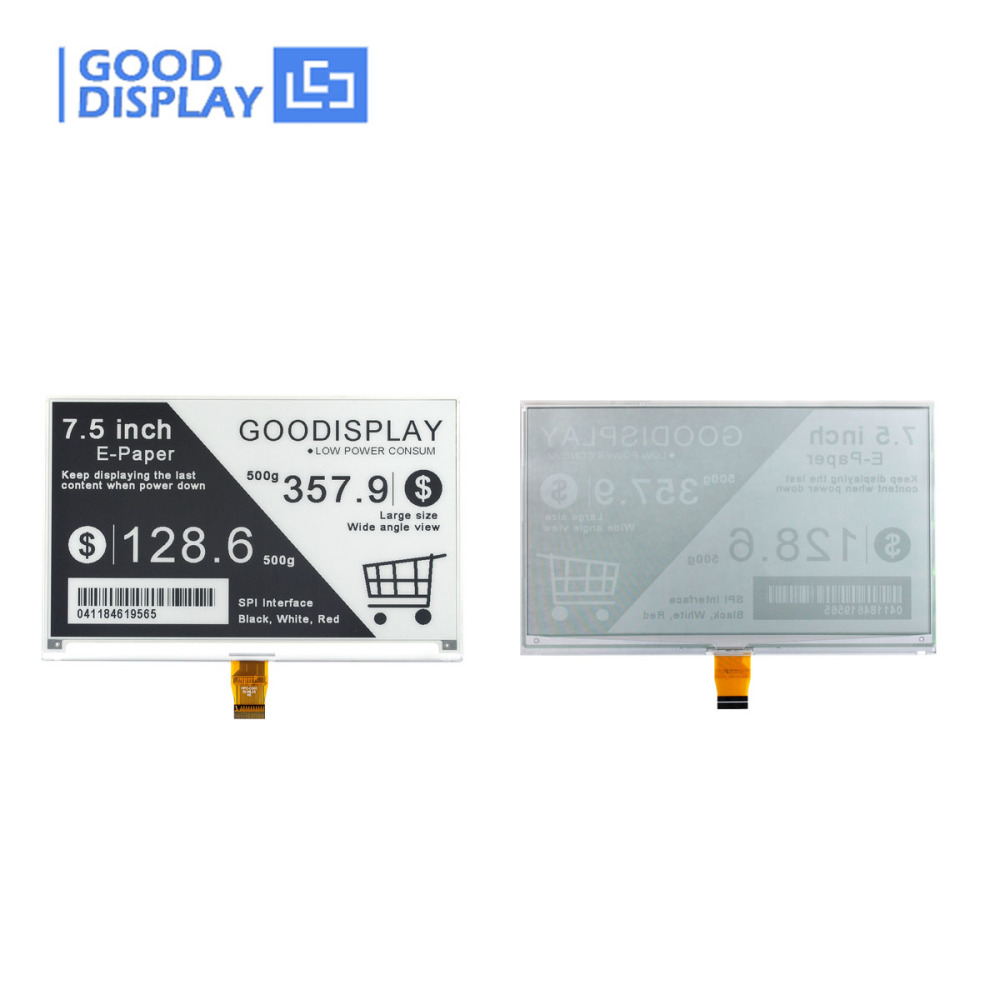

7.5 Inch Epaperdisplay 800x480 Electronic Paper Display With E-Ink HAT, GDEY075T7+DESPI-C02

This is a E-Ink HAT with a 7.5 inch e-ink screen with 800x480 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$56.98
  • 规格:
    With adapter board
    EPD
    E-Paper HAT
Quantity:
-
+
(897 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a connection board with a 7.5 inch e-ink screen with 800x480 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

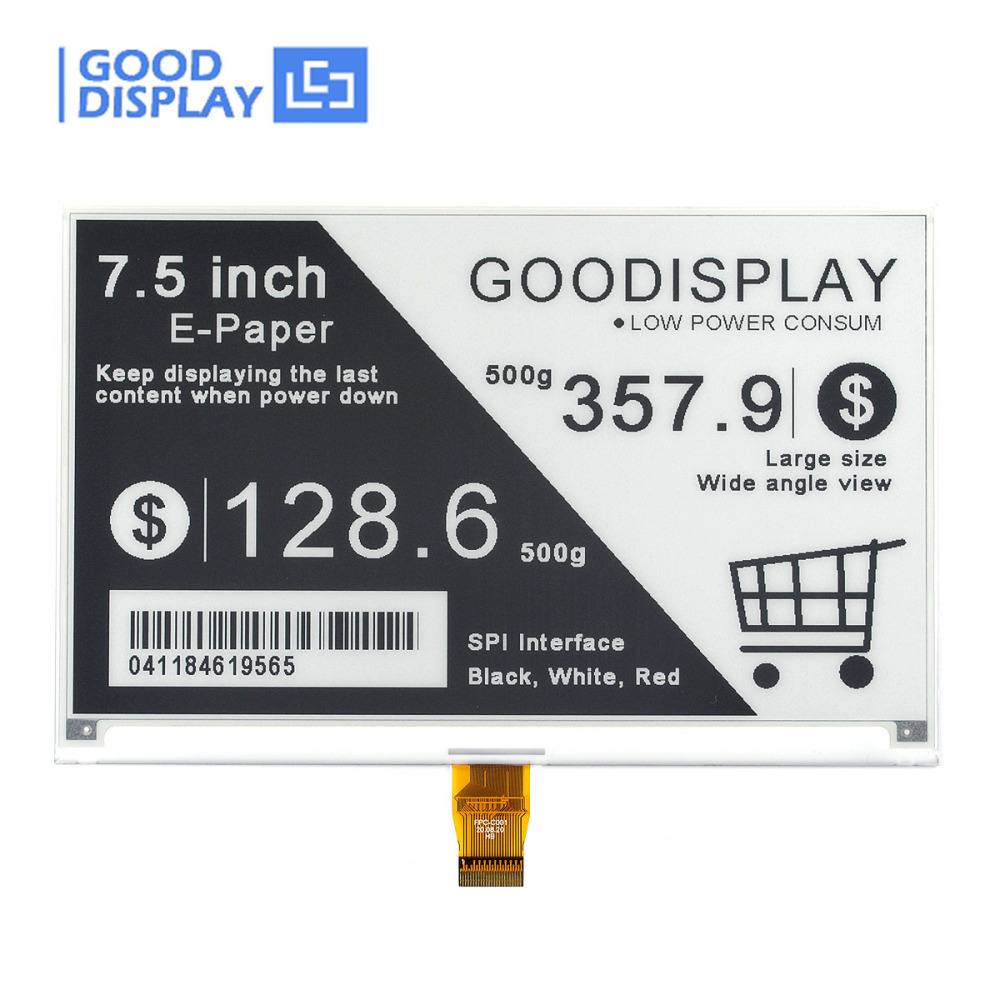

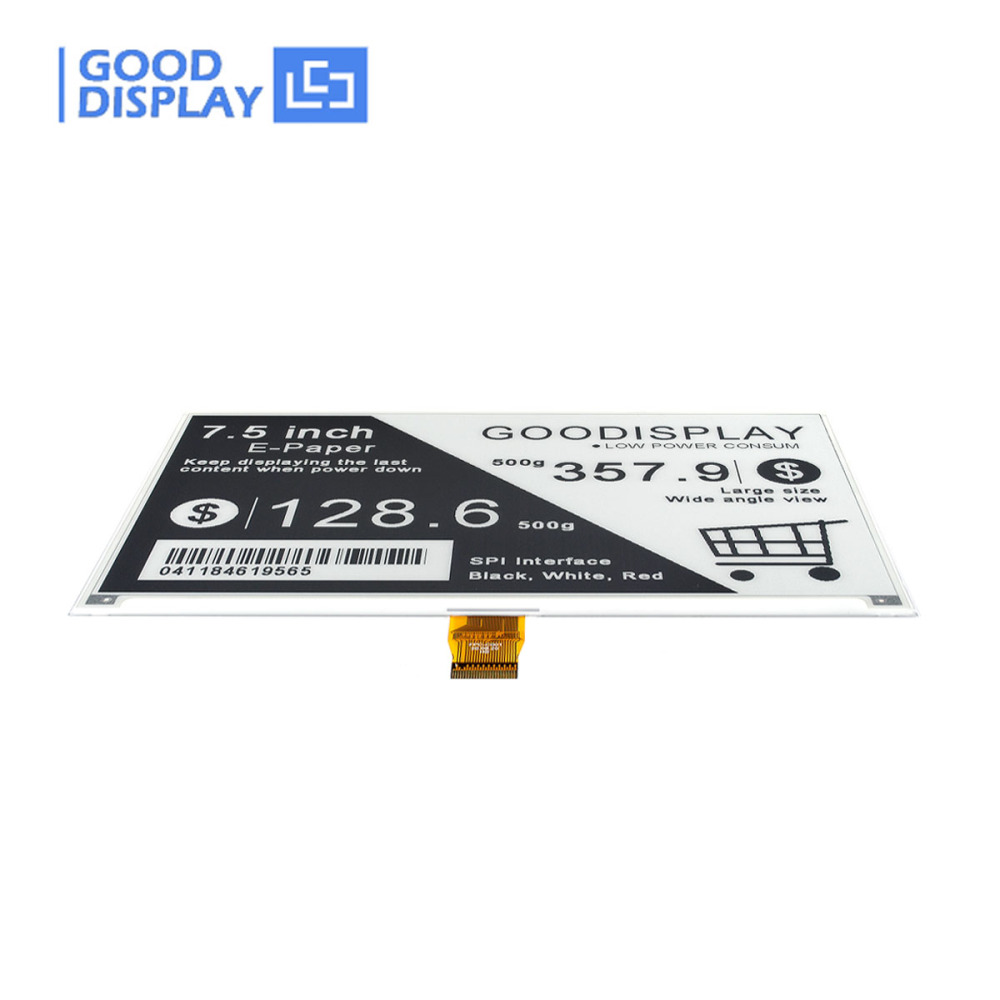

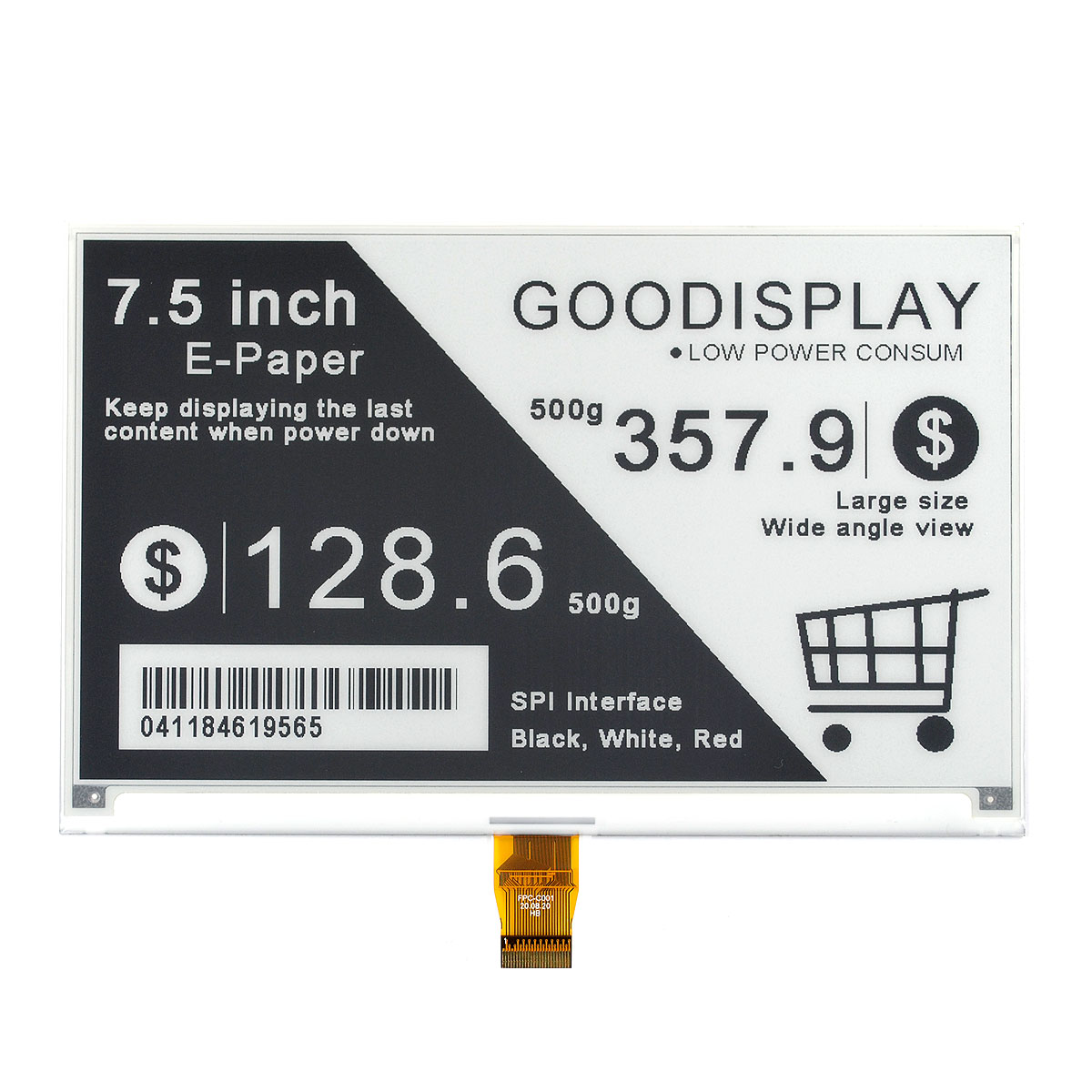

This 7.5 inch e-ink display GDEY075T7 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.

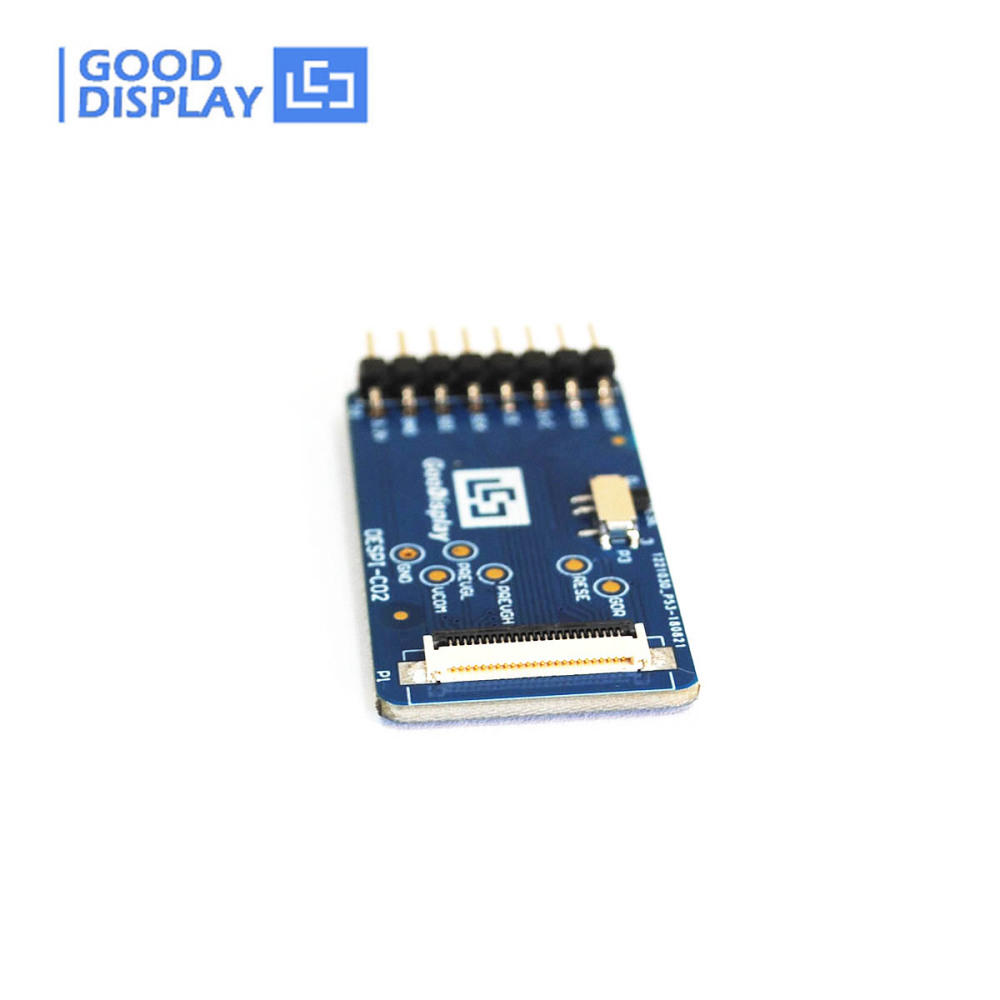

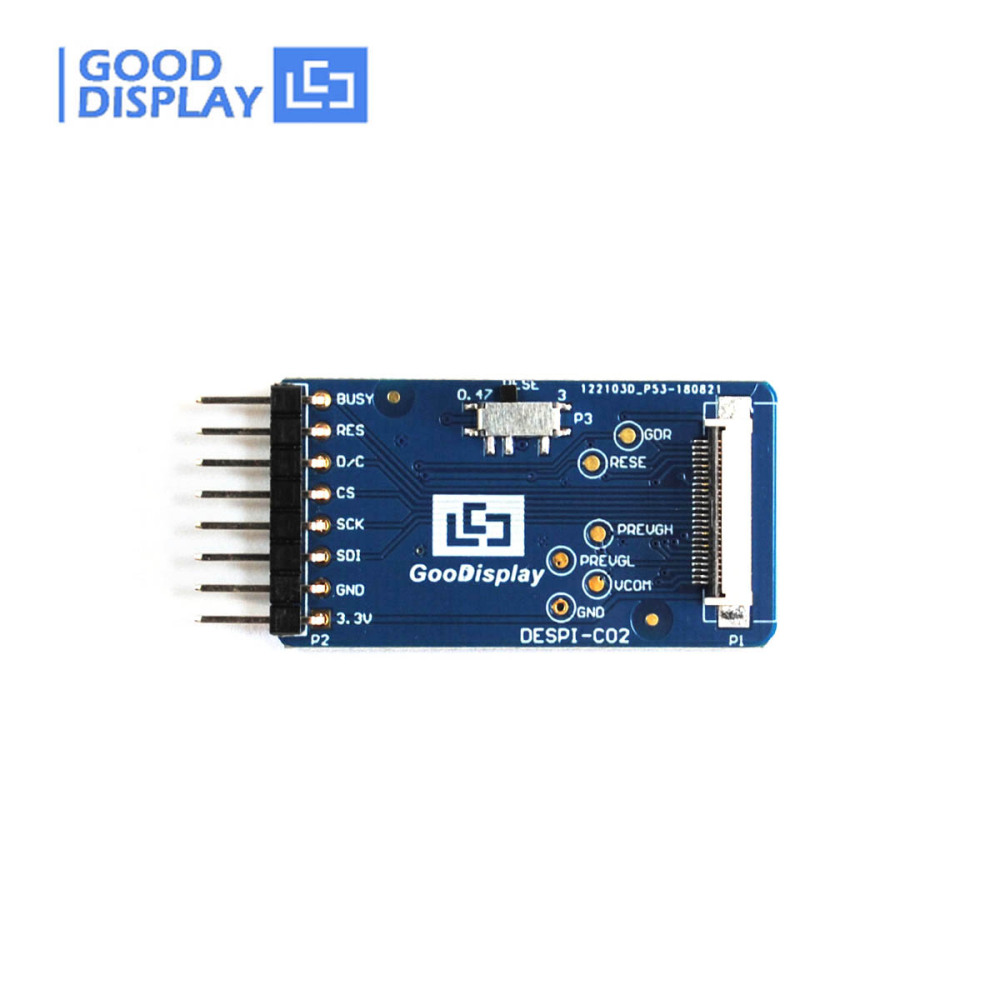

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)



We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html








 FEATURE



●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Color Optional. We also have other color for you to choose.

●  Development platform available STM32 / ArduinoESP8266 / ESP32









 THE ABOVE PRICE INCLUDE

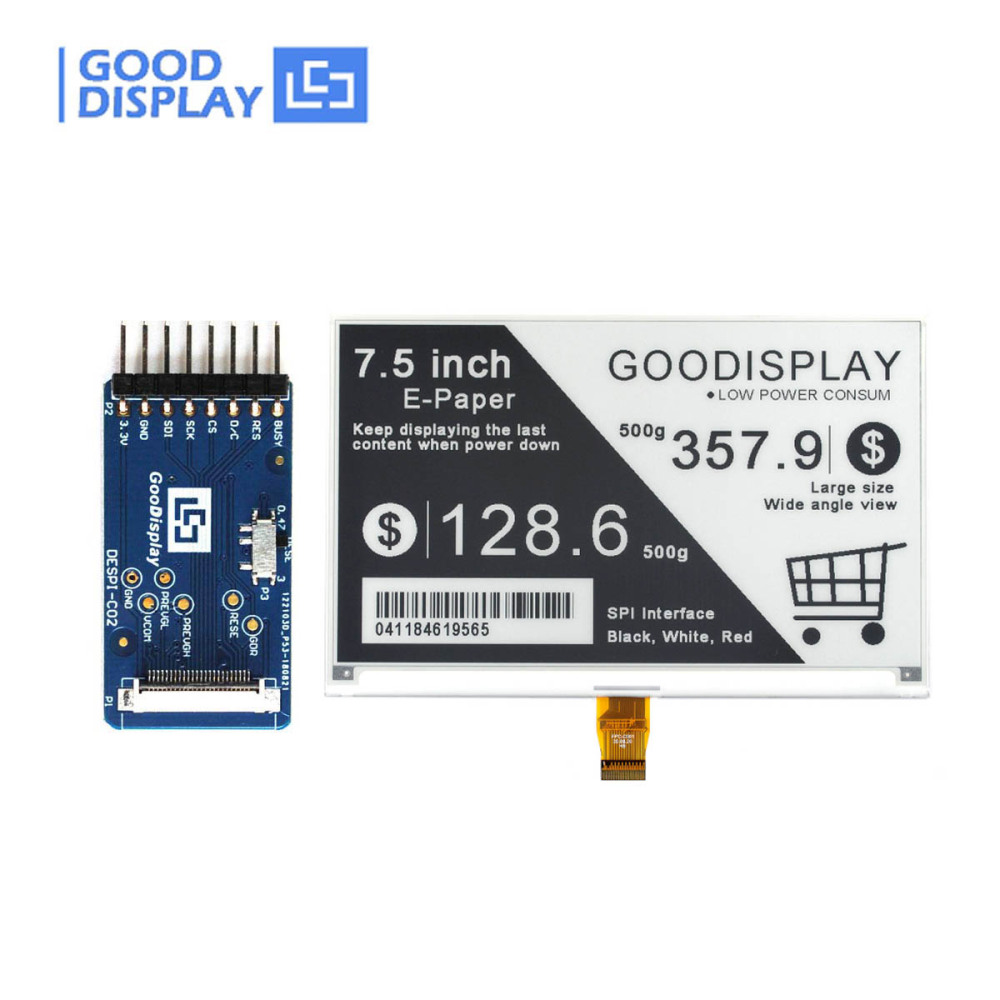

1) 7.5 inch large e-ink screen SPI electronic paper display, GDEY075T7 * 1pc
2) FPC Connector * 1pc
3) Connector board DESPI-C02 * 1pc
+ +







 MAIN PARAMETERS




PART NUMBER

GDEY075T7

SIZE

7.5 inch

TYPE

Dot Matrix

IC

UC8179

RESOLUTION

800x480

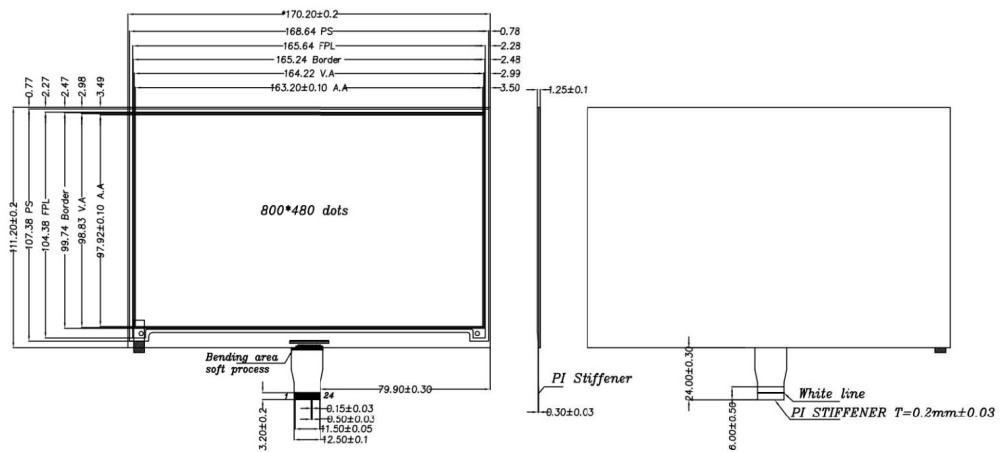

OUTLINE SIZE(mm)

170.2x111.2x1.25

ACTIVE SIZE(mm)

163.2x97.72

PIXEL PITCH(mm)

0.204x0.204

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

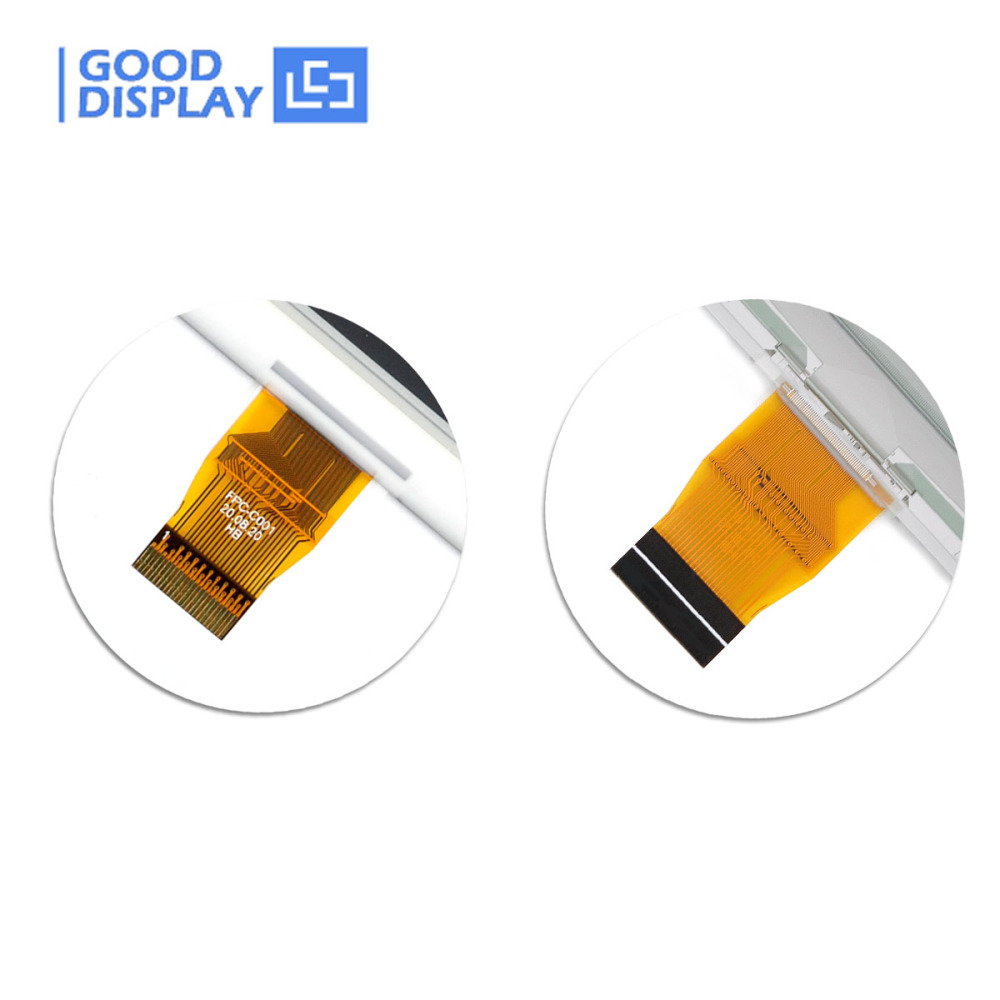

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

4

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165






PART NUMBER

DESPI-C02

PLATFORM

STM32

FUNCTION

Connection E-paper Display with Drive Board

OUTSIDE DIMENSION

41x22mm

INTERFACE

SPI

POWER INPUT

DC3.3V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃








☆ 7.5 INCH E-PAPER DISPLAY




Part Number

Color

IC Resolution

Features

Refresh Time

GDEY075T7

BW

UC8179

800x480

4 Grayscale

3s

GDEY075Z08

BWR

UC8179

800x480

Red

12s









 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com


PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
