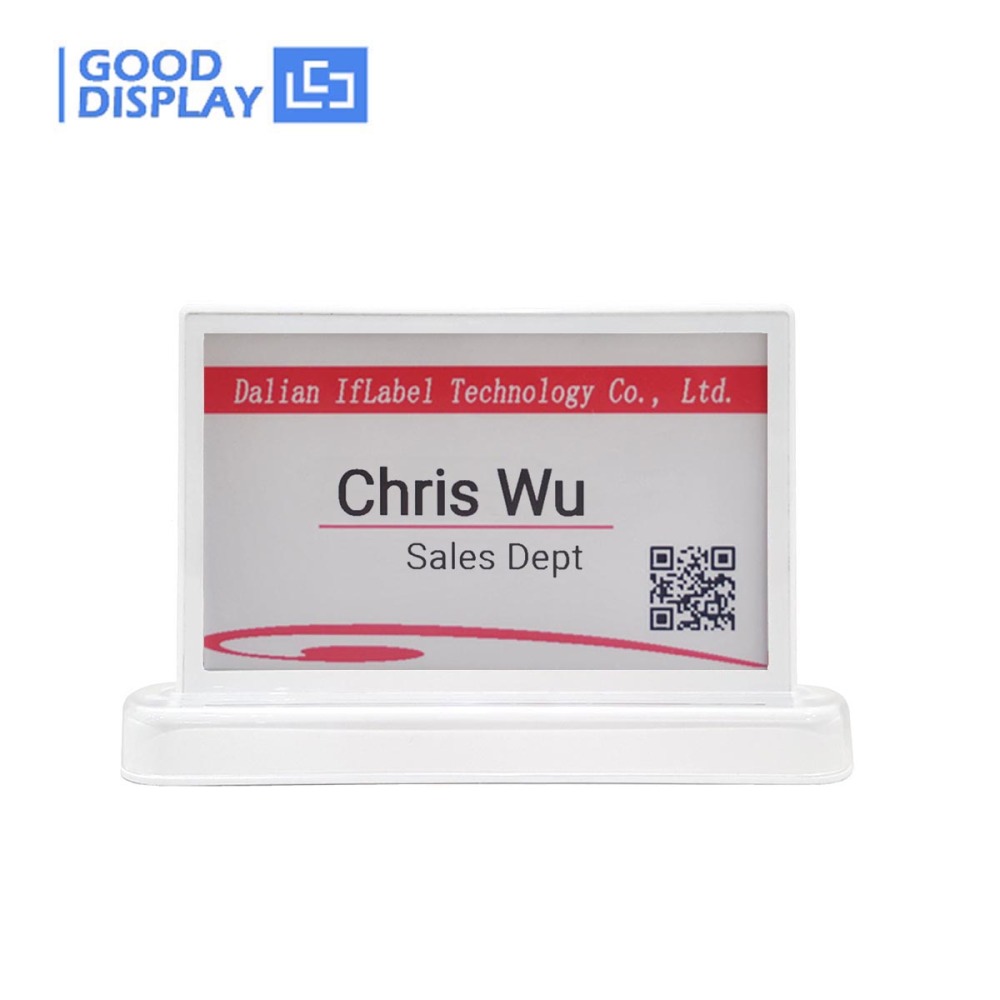

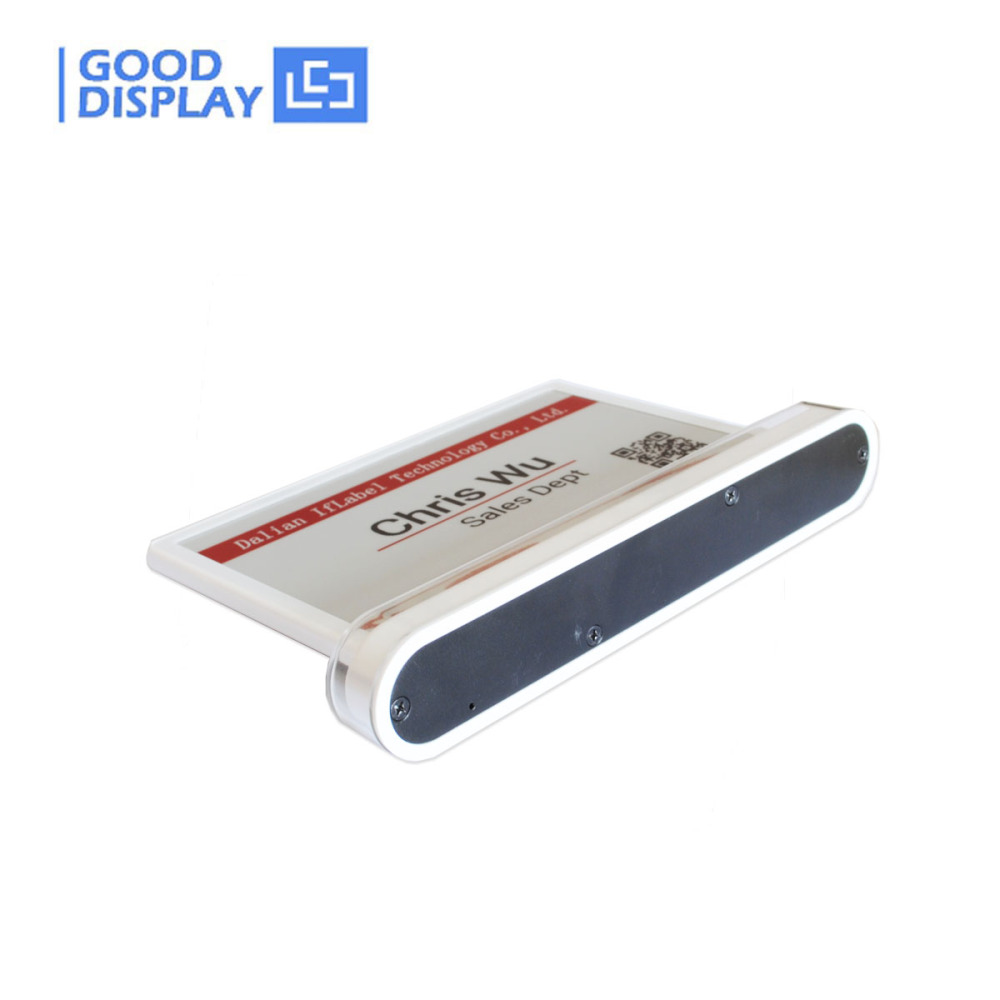

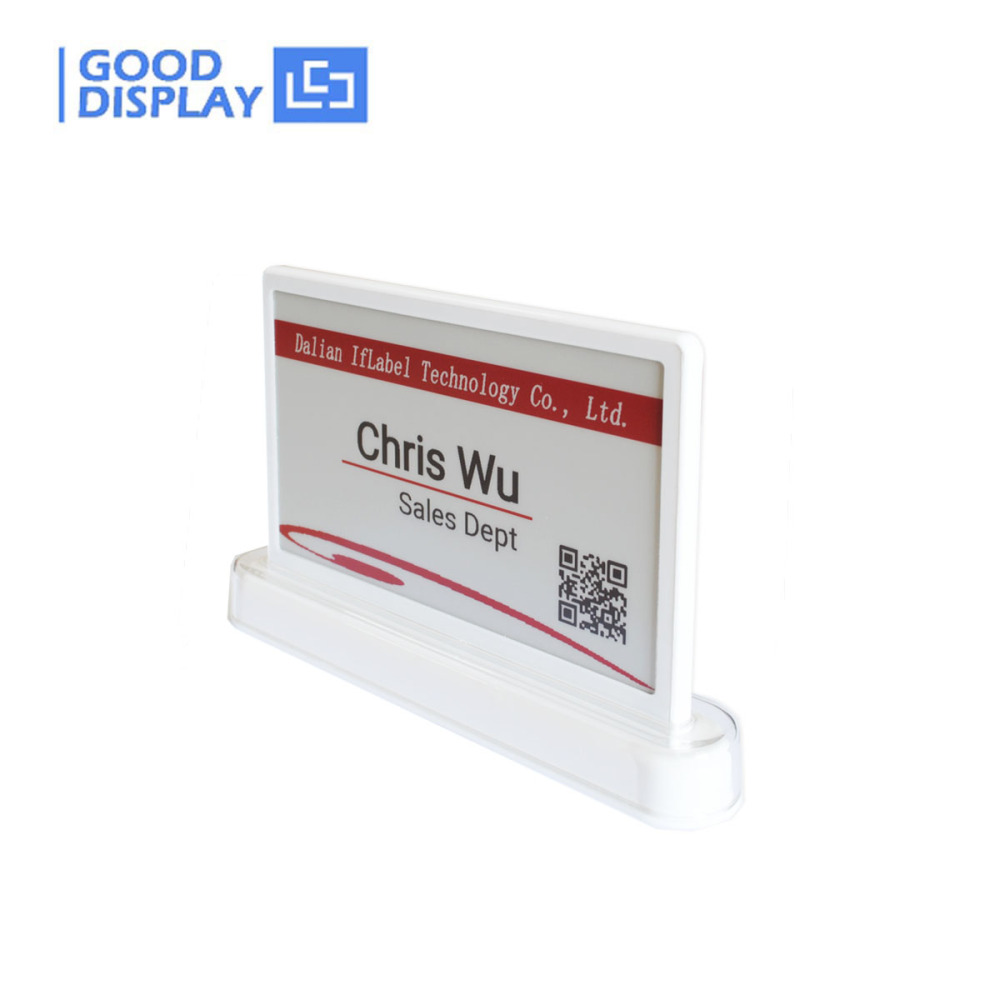

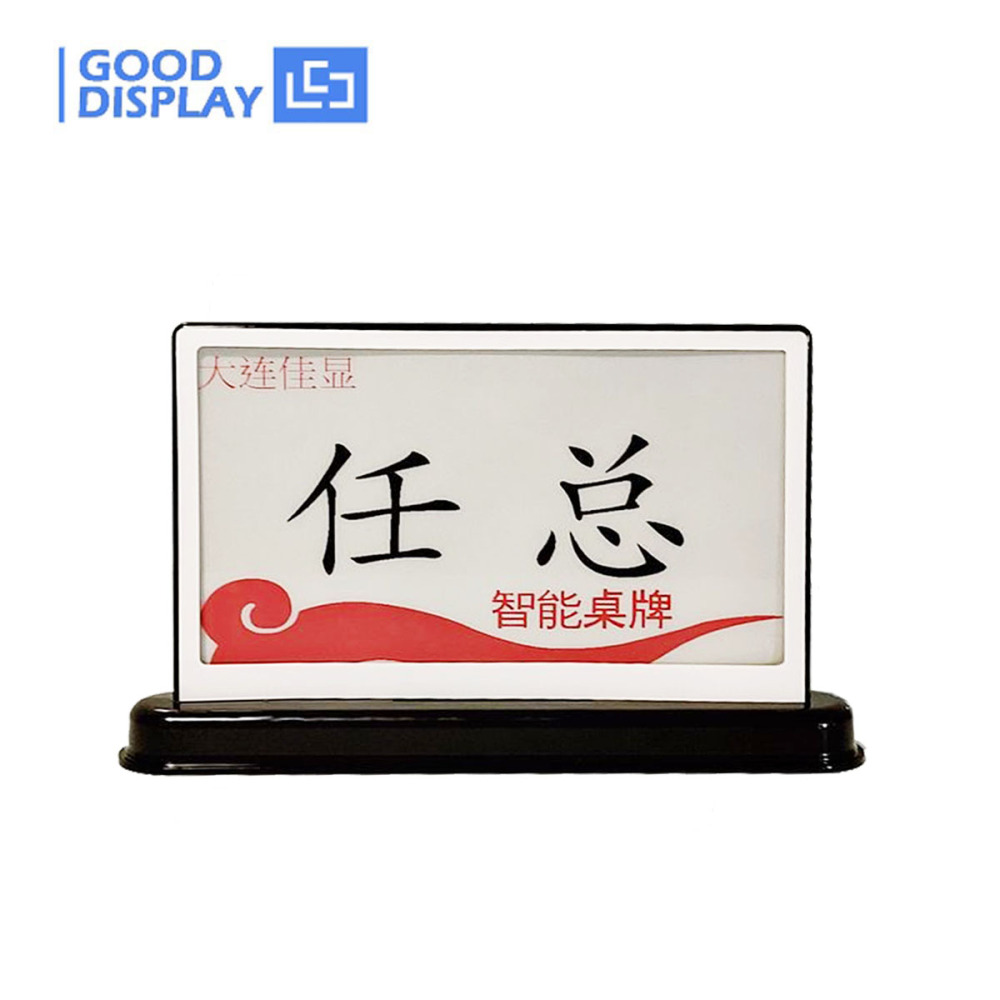

7.5 inch E-nameplate electronic meeting system wireless Bluetooth NFC e-paper display
SKU: GDIF075B
(0)
5 Sold
$205.00$0.00
Electronic nameplate has the characteristics of environmental protection, energy saving, convenient operation, wide practical range and controlled by PC or mobile. Simple interface and Simple operating. Support Bluetooth and NFC.
GDIF075B uses the electronic e ink display as the display to replace the traditional paper or LCD nameplate, high-tech appearance design and energy-saving display solution, combined with the Bluetooth network and mobile APP, provides users with more convenient conference work services.
The electronic nameplate has the characteristics of environmental protection, energy saving, convenient operation and wide practical range. This system can upload the EXCEL list to the server, and then change the contents of the nameplate in any conference room through the mobile APP. It is an efficient conference management technology change for the conference manager, which can replace the traditional paper printing reduces the workload of the venue, and it is the best choice for the information management of conference system.
· Environmental protection
· Energy saving
· Convenient operation
· Wide practical range
· Controlled by PC or mobile
· No base station required, support Android Phone 1)7.5 inch E-nameplate*1pc

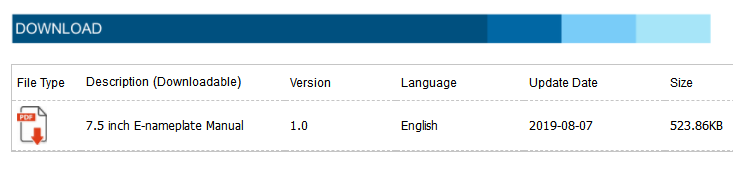

2) Manual*1pc.(Please advise email ID along with order,so that we can send them.)
Model
GDIF075B
Screen
7.5 inch three color e-paper display(black, white and red)
View Area
161.0×96.0 mm
Resolution
800×480
DPI
125
Max Grayscale
2
Outline Size
209.2×133.9×35.2 mm
Structure
Upright double-sided horizontal screen display, with base integrated
Process
White high-gloss ABS, base covered with transparent acrylic
Weight
250±5g
Operating Temp.
0℃ ~ 35℃
Storage Temp.
-25℃ ~ 60℃
Battery life

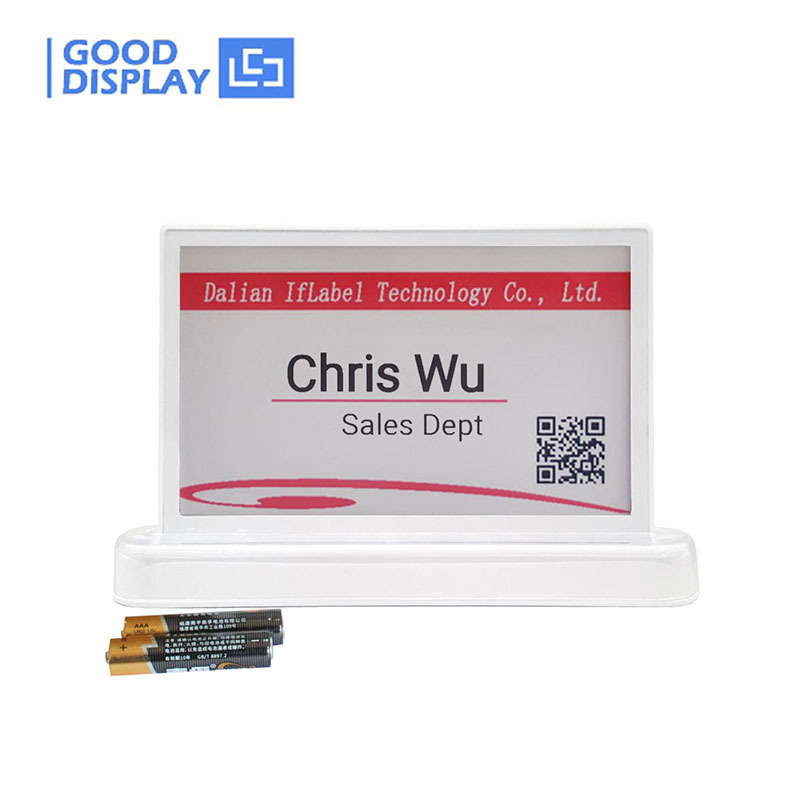

More than 6 months , AAA battery x 2
Power consumption
Operating current for refreshing is 30mA, standby current below 0.1mA
Mapping mode 1
Through the NFC in the center of the display
Mapping mode 2
Through Bluetooth on your phone
Operating system
Only supports Android system phone, does not support Apple phone

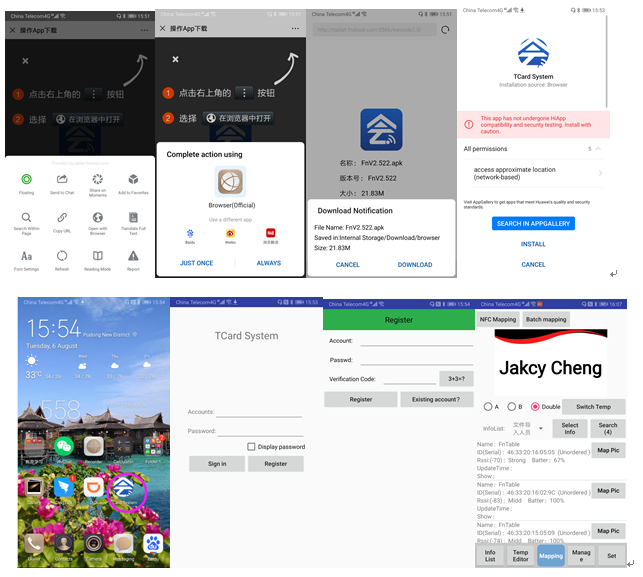

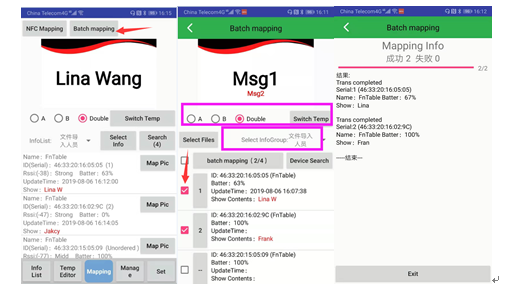

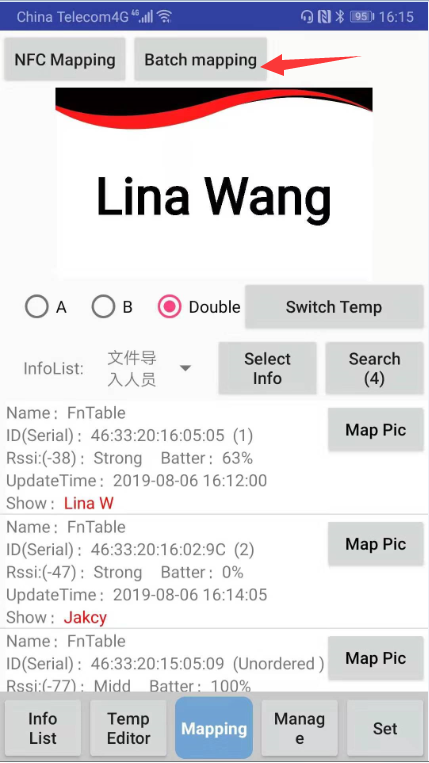

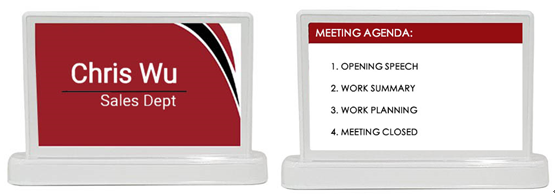

1, Scan the QR code(Getting it from the manual below, please), follow the prompts to download, install and register the APP(only supports Android system and does not support the IOS) 2, Simple interface and Simple operating 3, Support Bluetooth and NFC transmission 4, Support Batch mapping 5, Support single-sided/double-sided display, can show the name of the participants and the meeting agenda.
