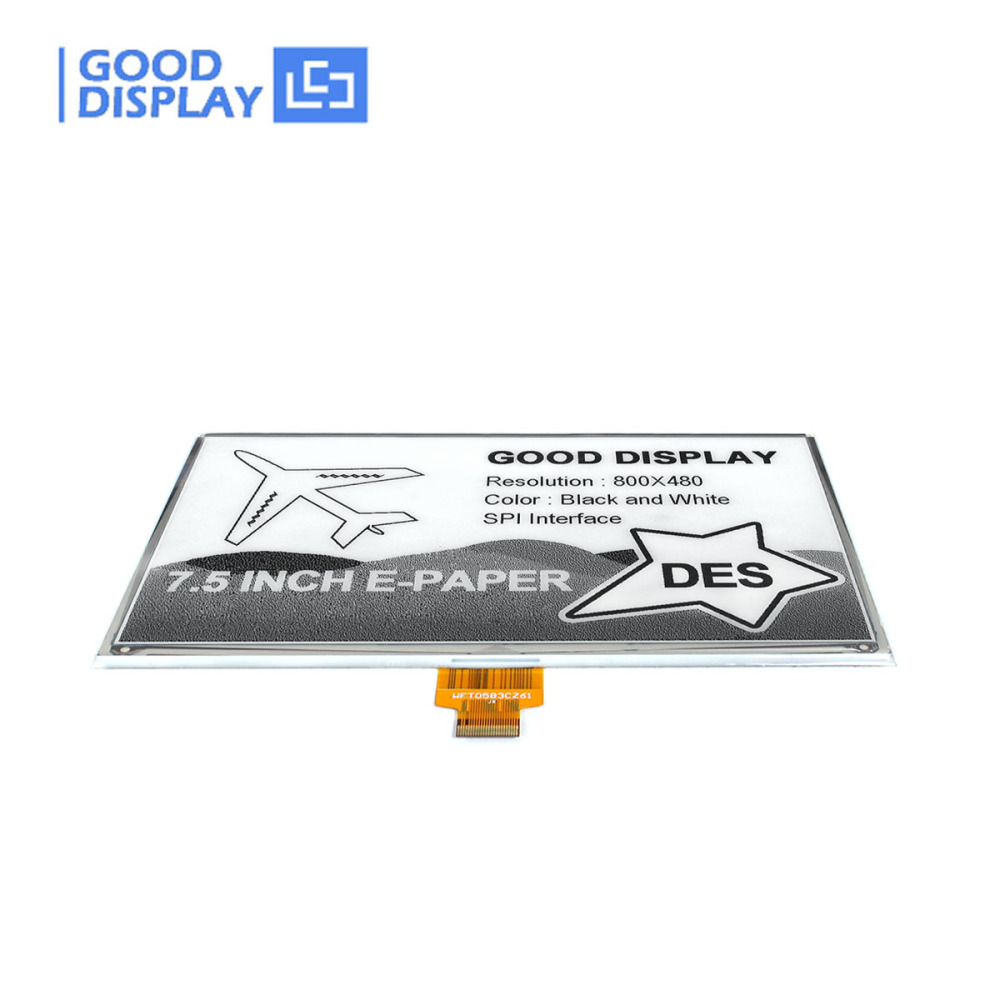

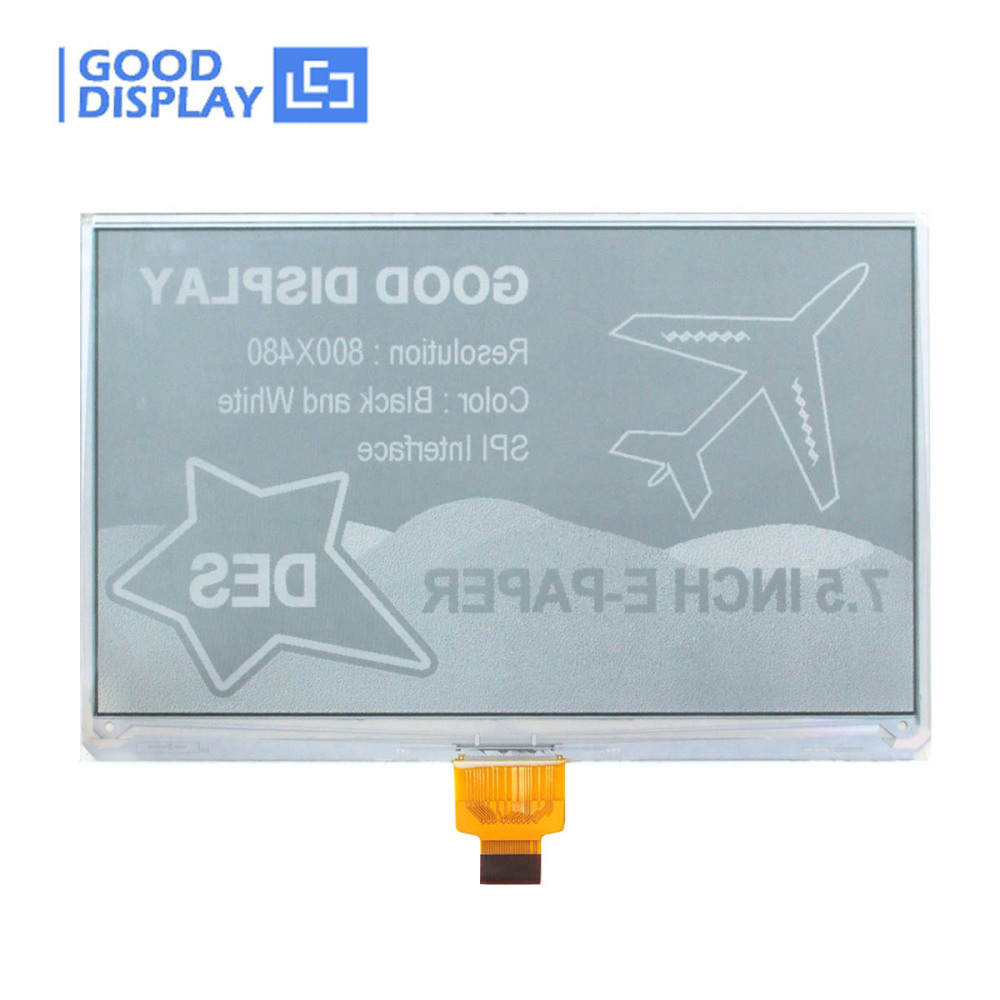

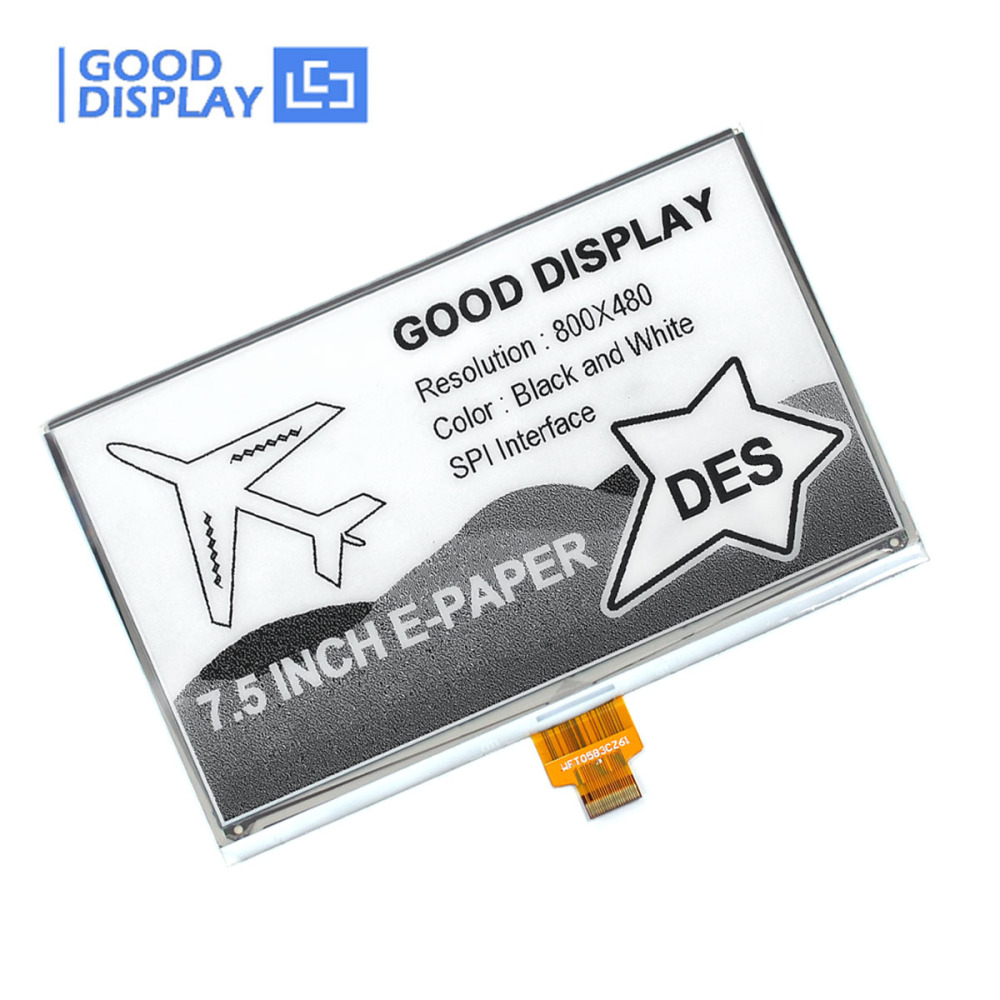

7.5 inch DES epaper display panel low operating temperature, GDEW075M10

DES 7.5 inch e-paper display, 800X480 resolution, 24 pins FPC, SPI interface, wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments, suitable for outdoor equipment. Its IC Driver is UC8179.
Price:
USD
$49.00
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a DES (what is DES?)  7.5 inch epaper screen with 800x480 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This 7.5 inch DES e-ink display GDEW075M10 breaks the limitations of traditional epaper screen on the working environment, apply to more projects.


We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Contrast Ratio is higher than normal e-paper display.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  It can be used under sunlight (UV proof), so it is suitable for outdoor equipment.

●  Wide operating temperature range: -20℃~60℃ (Normal epaper screen: 0~50℃, Normal color eepaper screen: 0℃~40℃, low temperature epaper screen:-20℃~25℃).

●  Development platform available STM32 ArduinoRaspberry Pi / ESP8266 / ESP32







 THE ABOVE PRICE INCLUDE



1) 7.5 inch DES epaper display panel low operating temperature, GDEW075M10 * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS




PART NUMBER

GDEW075M10

SIZE

7.5 inch

TECHNOLOGY

DES

IC

UC8179

RESOLUTION

800x480

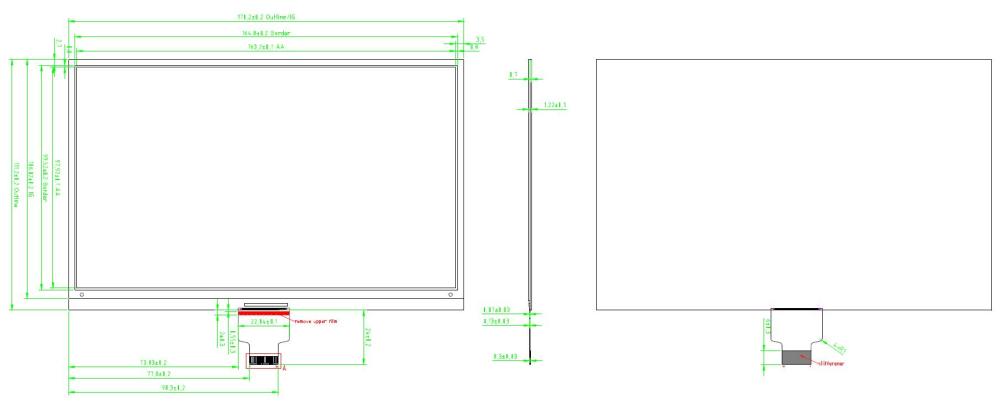

OUTLINE SIZE(mm)

170.2x111.2x1.22

ACTIVE SIZE(mm)

163.2x97.72

PIXEL PITCH(mm)

0.205x0.204

OPERATING TEMP.

-20℃~60℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165









☆ OTHER PRODUCTS




Part Number

Color

Resolution

Features

Refresh Time

GDEY075T7

BW

800x480

UC8179

3s

GDEW075M10

BW

800x480

UC8179, DES

3s

GDEM075Z08

BWR

800x480

UC8179, Colorful(Red)

17s

GDEY075Z08

BWR

800x480

UC8179, Colorful(Red)

12s










 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com






 SPECIFICATION DOWNLOAD




1)  GDEW075M10 Specification
2)  IC Driver UC8179 Datasheet
3)  GDEW075M10 STM32 Sample Code




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDE043A2 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A2-T(With Touch Panel) 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDE043A3 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDE060F3 6.0'' BW 16 1024x758 90.581x122.368 1 0℃~50℃   Parallel
GDEM075Z08 7.5'' BWR 2 800x480 163.2x97.92 17 0℃~40℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
