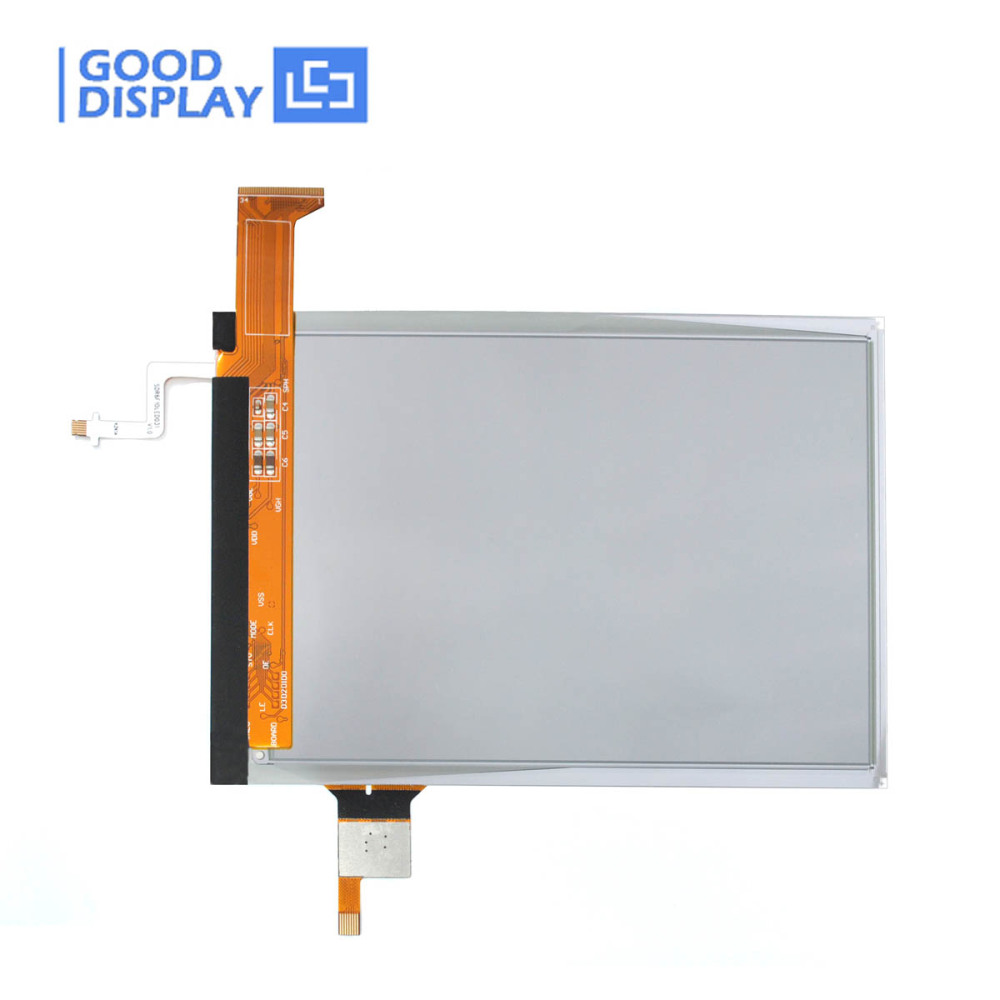

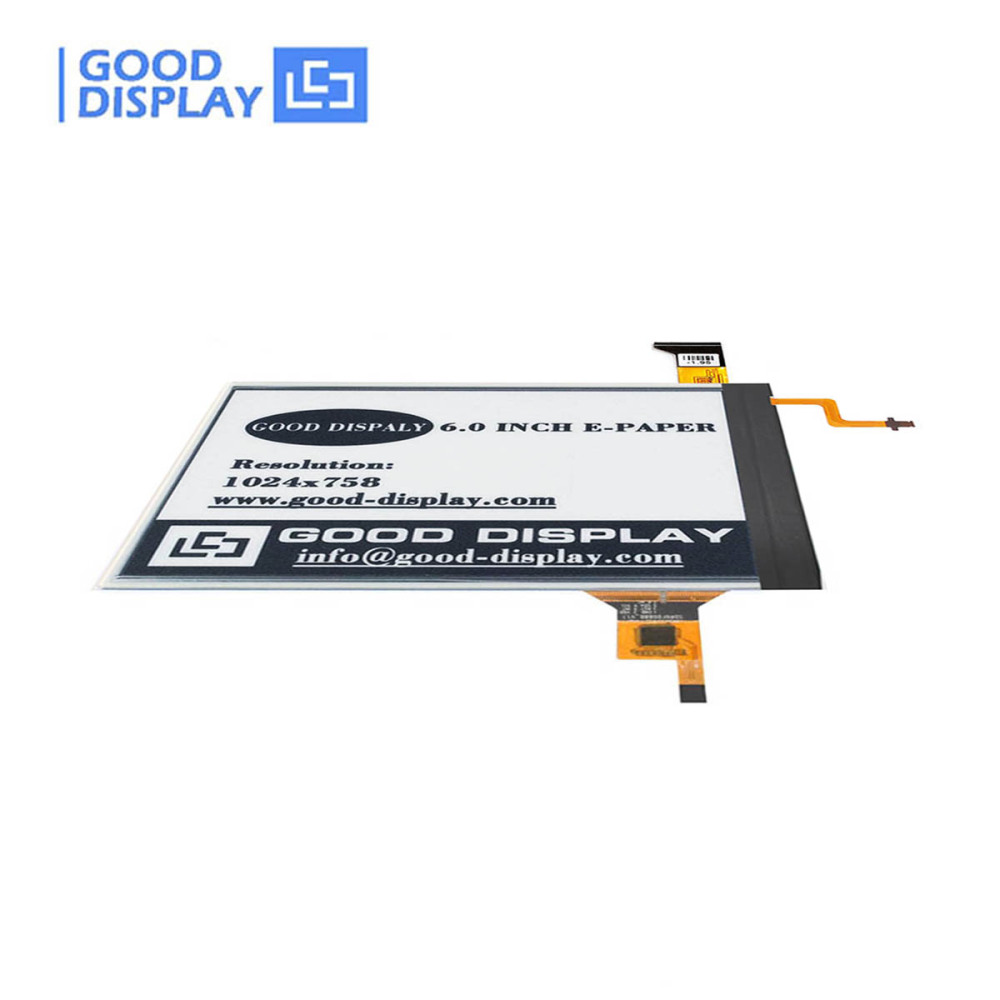

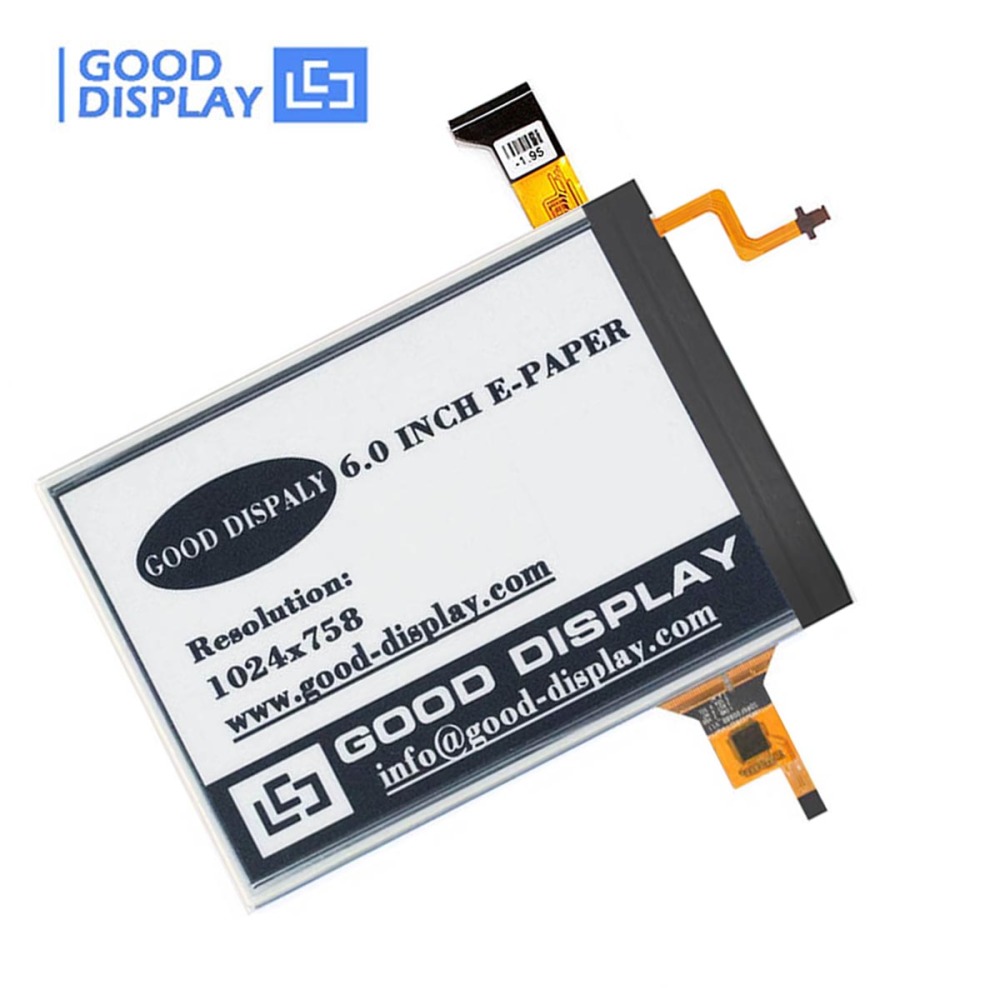

6.0 inch parallel epaper display module partial refresh, with front-light backlit and touch screen, GDE060F3-FT01

This is a parallel 6.0 inch epaper display module, with front-light backlit and touch screen, support partial refresh, with 1024x758 resolution, 34 pins FPC connection, support 16 grayscale. The refresh time is 1s.
Price:
USD
$60.00
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews(1)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION



This is a 6 inch e paper display panel with touch panel, 1024x758 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.  Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 6 inch e-paper display GDE060F3-FT01 is an ideal choice for applications such as shelf label, industrial instrument, ebook reader and so on.



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  Support Partial Refresh. The partial refresh rate is 1s/frame

●  Low power consumption, basically power is only required for refreshing

●  Development platform available DESTM32







 THE ABOVE PRICE INCLUDE



1) 6.0 inch parallel epaper display partial refresh with front-light backlit and touch screen * 1pc

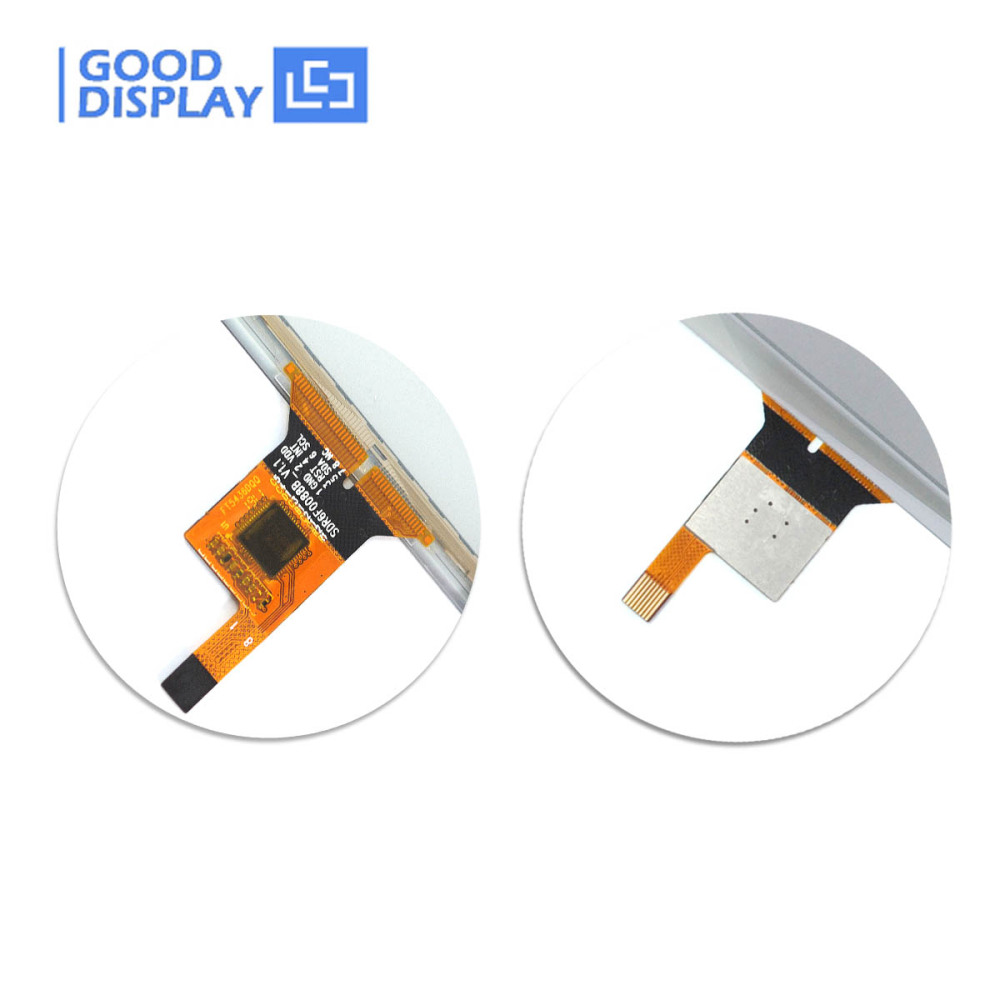

2) FPC Connector for EPD* 1pc
3) FPC Connector for touch panel * 1pc
4) FPC Connector for frontlight * 1pc






☆ MAIN PARAMETERS






PART NUMBER

GDE060F3-FT01

SIZE

6 inch

TYPE

Dot Matrix

RESOLUTION

1024x758

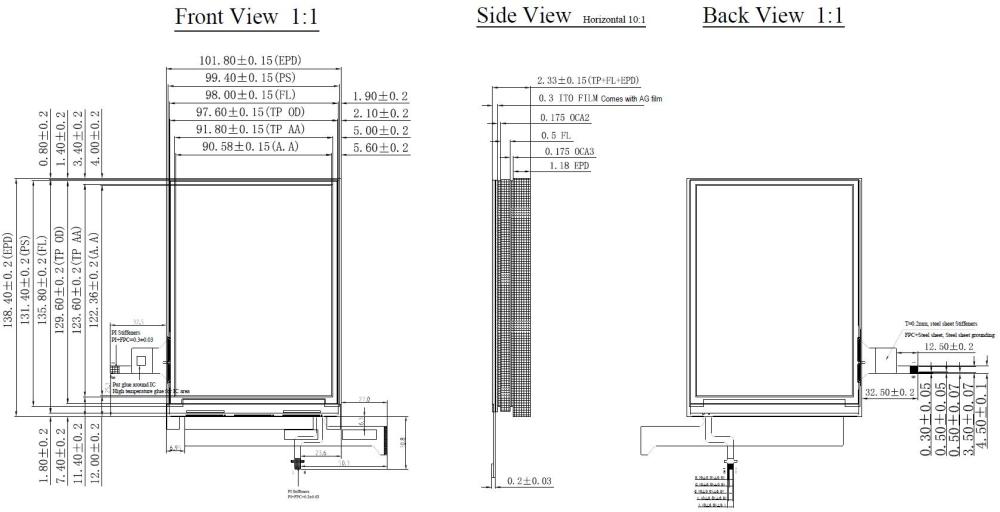

OUTLINE SIZE(mm)

138.4x101.8x2.33

PIXEL PITCH(mm)

0.1195x0.1195

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-20℃~70℃

NUMBER OF CHANNELS

22

MAX GRAYSCALE

16

COLOR

Black,White

INTERFACE

Parallel

FULL REFRESH(s)

1

PARTIAL REFRESH(s) 1

TOUCH IC

FT5436

OPERATING VOLTAGE

2.8~3.6V

TRANSMITTANCE ≥83%










 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com





PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
