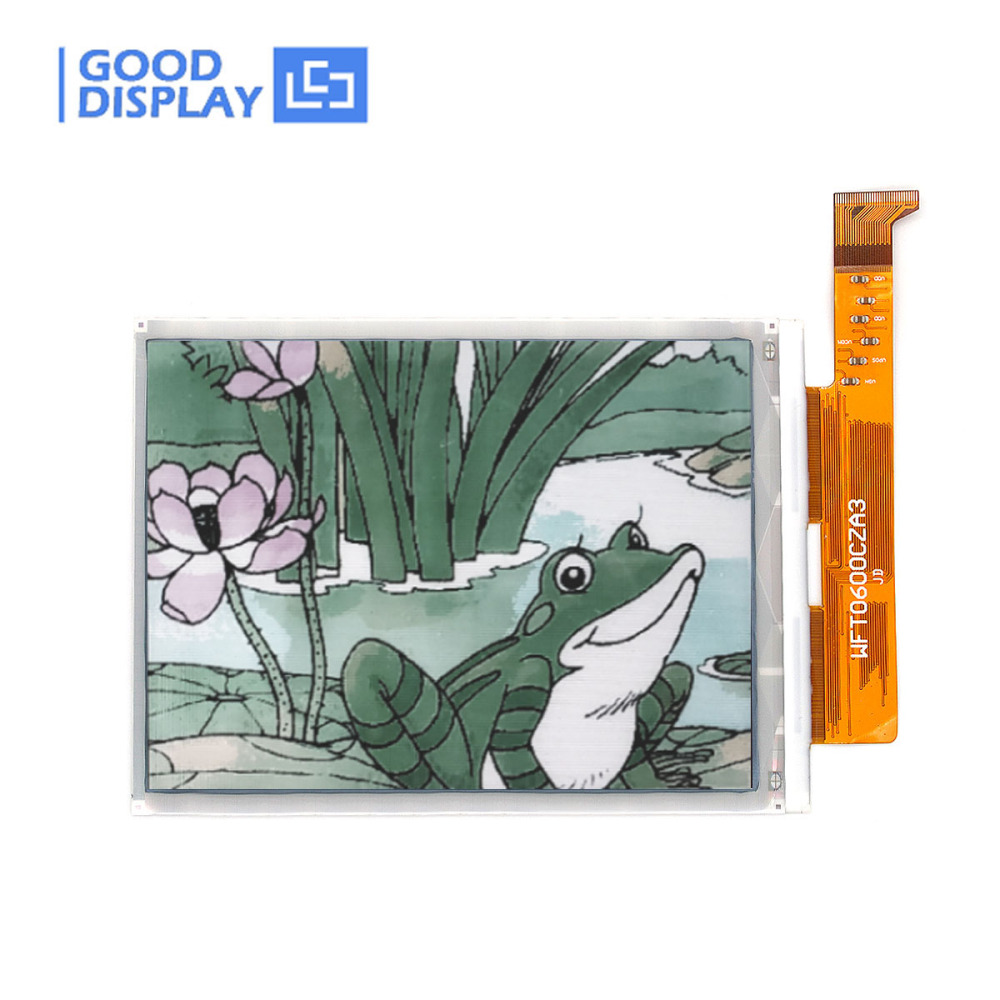

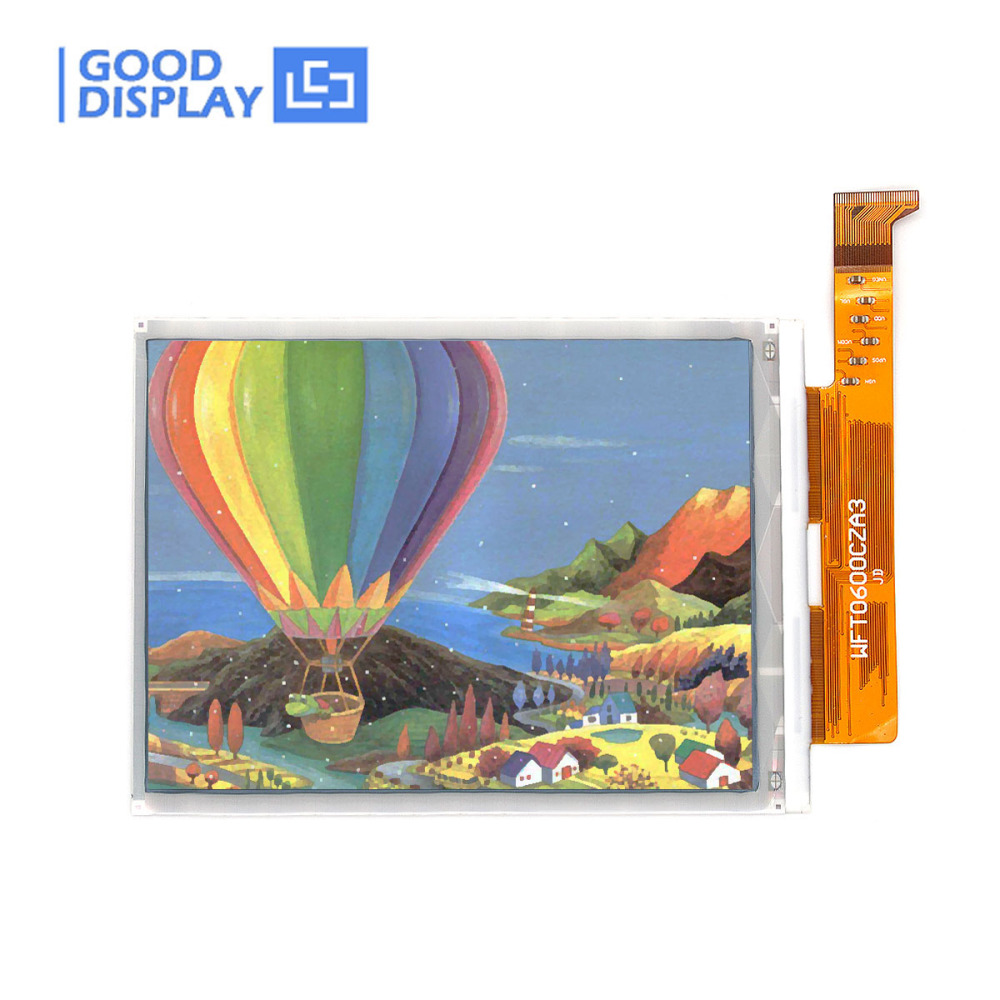

6.0 inch DES full color e-paper display panel parallel interface, wide working temperature, GDEW060C01

DES 6.0 inch full color e-paper display, 1072X1448 resolution, 34 pins, parallel interface, support max 16 Grayscale, Wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments, IC Driver is Double JD79632.
Price:
USD
$45.00
    Please select the information you wantX
Quantity:
-
+
(0 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com


This is a DES (what is DES?) 6.0 inch full color e-paper display with 1072X1448 resolution, 34 pins FPC connection, optional FPC connector, communicating via parallel interface, support max 16 Grayscale, Wide working temperature range: -20℃~60℃. It can be used in sunlight and cold environments, so it is suitable for outdoor equipment. Its IC Driver is Double JD79632.

In view of so many advantages: full color(64), ultra low power consumption, near 180 degree view angle, high contrast, better display effect, wide working temperature, GDEW060C01 is a very good choice for applications like smart home application, E-book, outdoor equipment.


1)6.0''e ink GDEW060C01 *1pc

Full color(64)
It is manufactured using a new process: DES, DES series products have the following characteristics:
* High contrast, better display effect, can be used in sunlight
*Wide working temperature range: -20℃~60℃, can be used in cold environments
(operating temp. of E-ink technology epaper is:  2-color: 0~50℃, 3-color: 0~40℃, low temp.: -25℃~25℃)
We think you can learn more from this contrast video between DES technology epaper and E-ink technology epaper:




1072X1448 resolution
Parallel interface, 34 pins FPC connection
Support max 16 Grayscale

Part Number GDEW060C01
Size 6 inch
Type DES
IC Double JD79632
Resolution 1072x1448

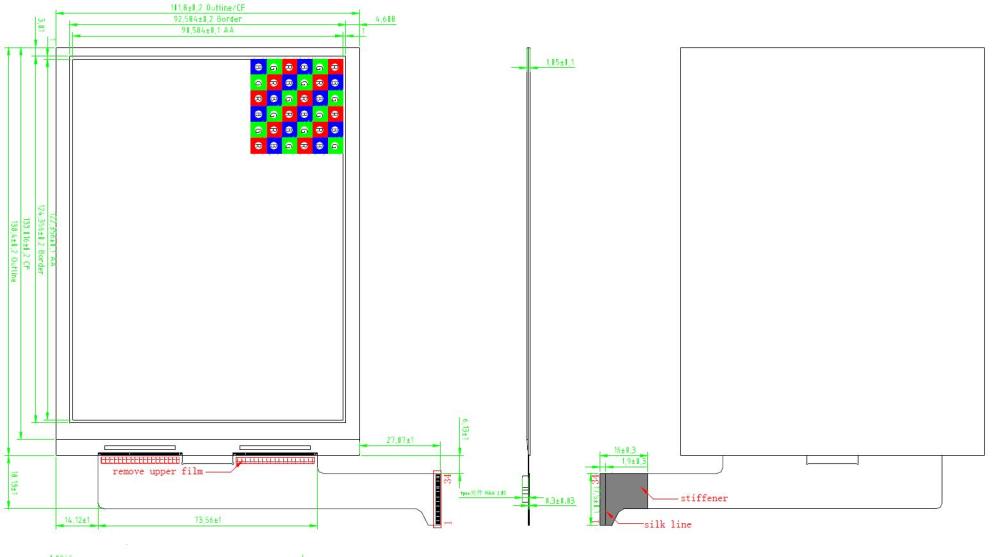

Outline Size(mm) 101.8x138.4x1.05
Active Size(mm) 90.584x122.356
Pixel Pitch(mm) 0.0845x0.0845
Operating Temp. -20℃~60℃
Storage Temp. -25℃~75℃
Max Grayscale 16
Feature Color
Power consumption of the refresh(mW) 285
Standby power consumption Pc(mW) 1.3
Time of refresh(s) 1
Interface Parallel
Connector 34 Pin FPC


DES series(Wide Working Temperature Range -20℃~60℃, Can Be Used In Sunlight And Cold Environments)

Part Number

Size/Color

Refresh Time

Feature

GDEW0154M10

1.54 inch/BW

3S (full refresh)

IC UC8151D, Resolution 152x152

GDEW0213M21

2.13 inch/BW

3S (full refresh)

IC UC8151D, Resolution 212x104

GDEW026M01

2.6 inch/BW

3S (full refresh)

IC UC8151D, Resolution 296x152

GDEW029M06

2.9 inch/BW

3S (full refresh)

IC UC8151D, Resolution 296x128

GDEW042M01

4.2 inch/BW

3S (full refresh)

IC UC8176, Resolution 400x300

GDEW0583M09

5.83 inch/BW

3S (full refresh)

IC UC8179, Resolution 648x400

GDEW060C01

6.0 inch/Full Color

1S (full refresh)

Full color, IC Double JD79632, Parallel interface, 16 Grayscale, Resolution 1072x1448

GDEW075M10 7.5 inch/BW 3S (full refresh) IC UC8179, Resolution 800x400

GDEW078C01

7.8 inch/Full Color

1S (full refresh)

Full color, Parallel interface, 16 Grayscale, Resolution 1872x1404


https://www.good-display.com/product/365.html
