☆ INTRODUCTION

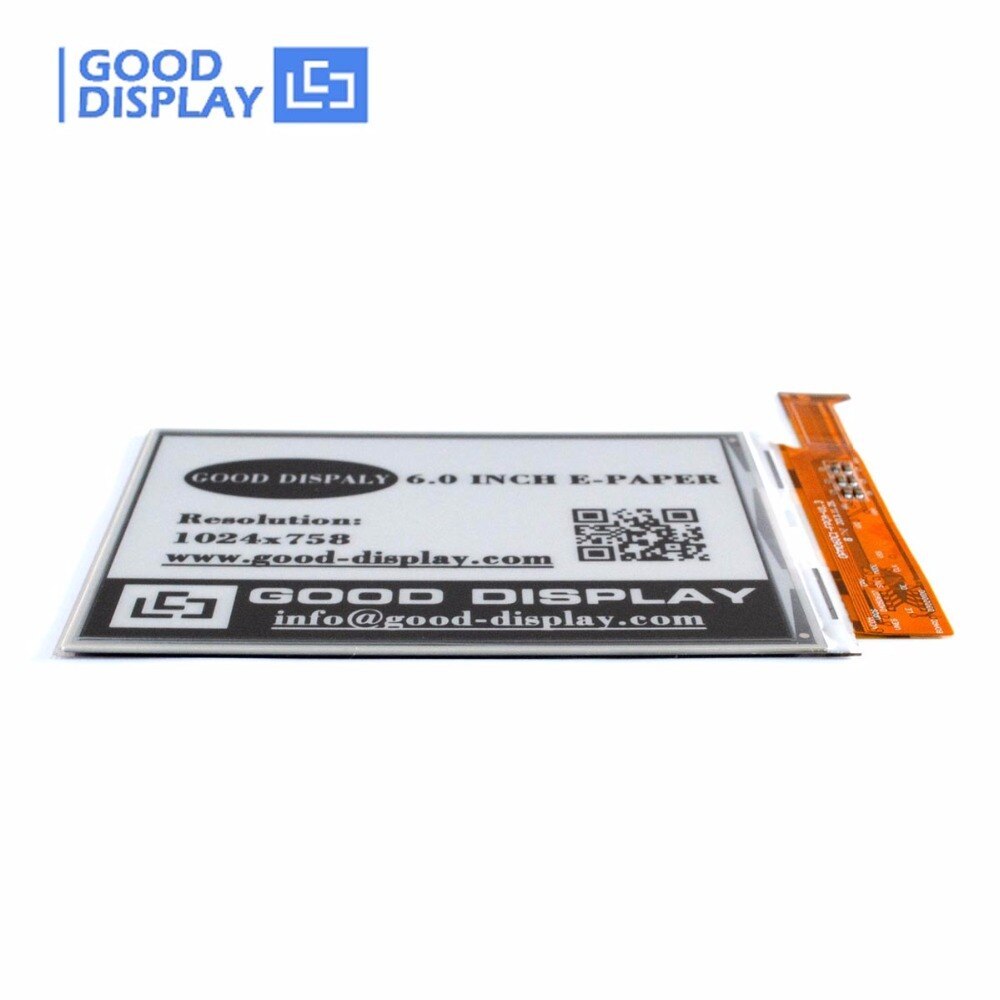

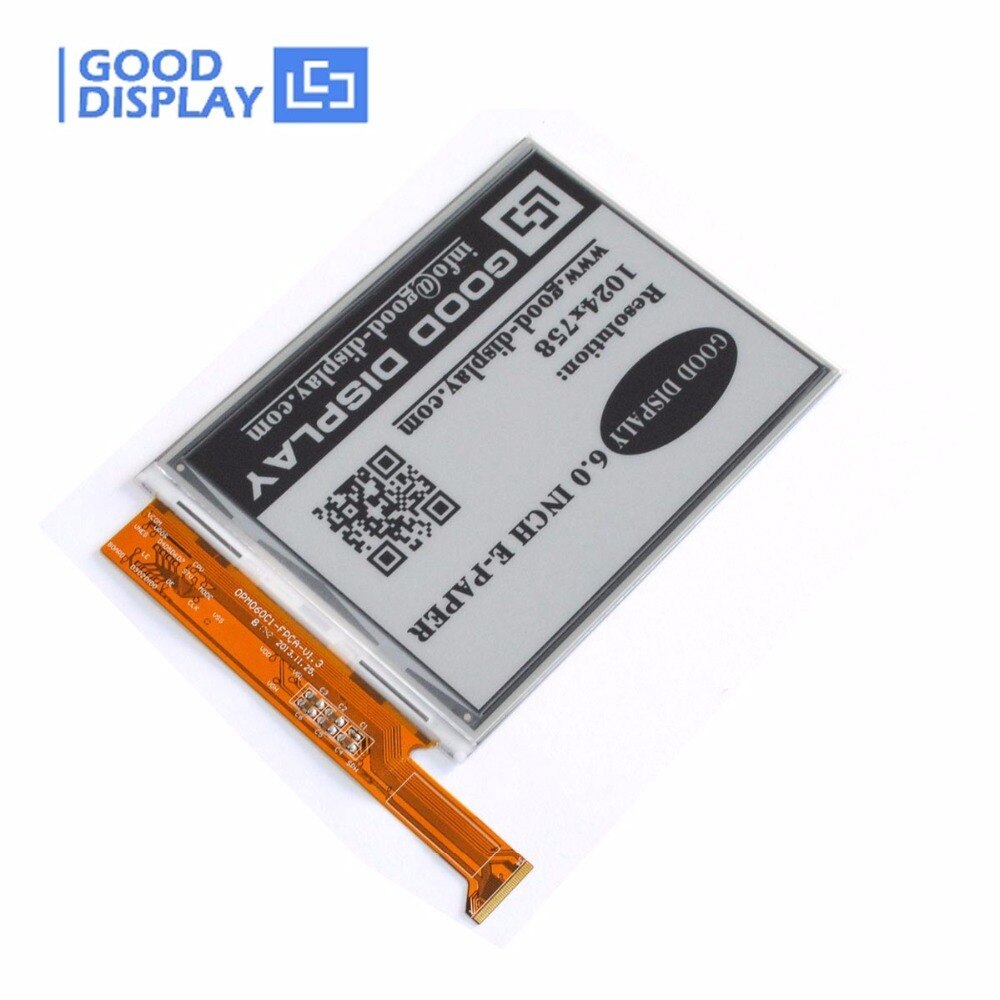

Name: 6 inch 1024*758 High-resolution EPD display Large size parallel epaper screen GDE060F3
Brand: GOOD DISPLAY
SKU: GDE060F3
Price: 48.40 USD
Availability: OutOfStock

This is a 6 inch e paper display panel with 1024x758 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 6 inch e-paper display GDE060F3 is an ideal choice for applications such as shelf label, industrial instrument, ebook reader and so on.

We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

Use our free e-paper software to prepare your bitmap image for this display.

☆ FEATURE

● Black and white monochrome is easy to read

● Versatile. Use in portrait or landscape format

● Bistable. (Will continue to display with no power source)

● Support Partial Refresh. The partial refresh rate is 1s/frame

● Low power consumption, basically power is only required for refreshin

● Development platform available STM32

☆ THE ABOVE PRICE INCLUDE

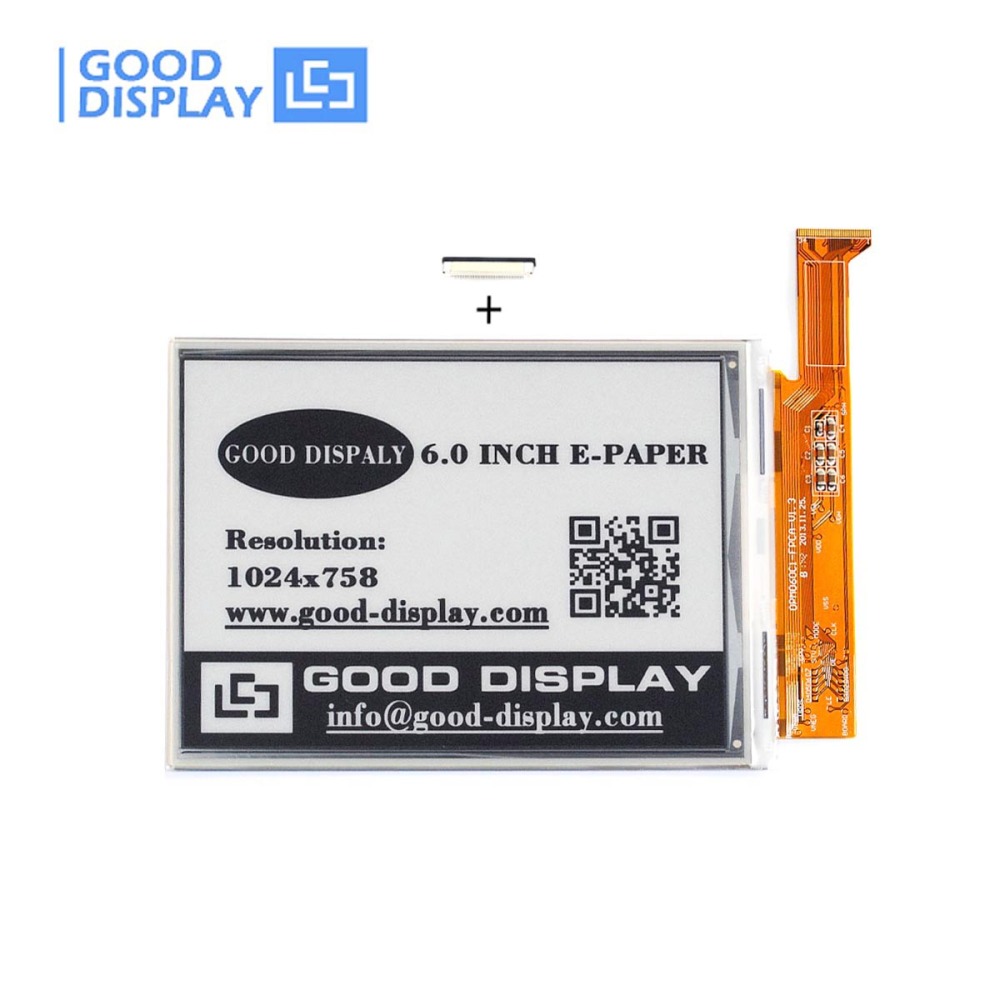

1) 6 inch 1024*758 High-resolution EPD display Large size parallel epaper screen * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)

☆ MAIN PARAMETERS

PART NUMBER	GDE060F3
SIZE	6 inch
TYPE	Dot Matrix
RESOLUTION	1024x758

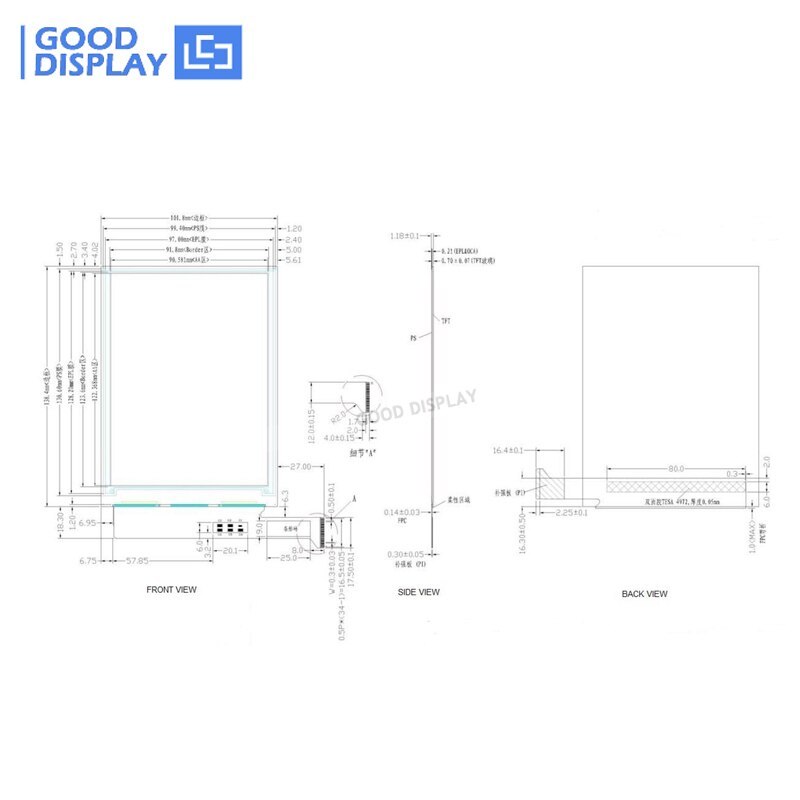

OUTLINE SIZE(mm)	138.4x101.8x1.18
ACTIVE SIZE(mm)	122.368x90.581
PIXEL PITCH(mm)	0.1195x0.1195
OPERATING TEMP.	0℃~50℃
STORAGE TEMP.	-20℃~70℃
CONSTRAST RADIO	8:1
MAX GRAYSCALE	16
COLOR	Black,White
INTERFACE	Parallel
FULL REFRESH(s)	1
PARTIAL REFRESH(s)	1
POWER CONSUMPTION OF THE REFRESH(mW)	600
STANDBY POWER CONSUMPTION (mW)	0.4

☆ OTHER PRODUCTS

Part Number	Color	Resolution	Feature	Refresh time
GDE060B3	B/W	800x600	Partial refresh, 16 grayscale	1s
GDE060F3	B/W	1024x758	Partial refresh, 16 grayscale	1s
GDE060F3-FT01	B/W	1024x758	Front-light and touch screen, Partial refresh, 16 grayscale	1s

☆ ABOUT US

Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com

☆ SPECIFICATION DOWNLOAD

1)  GDE060F3 Specification
2)  GDE060F3 Bitmap Conversion
3)  GDE060F3 Sample Code
4)  GDE060F3 Partial Refresh Code

PART NUMBER	SIZE	COLOR	GREY SCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	FLEXIBLE	INTERFACE
GDEW0102T4	1.02''	BW	2	128x80	21.76x14	3	0℃~50℃	√		SPI
GDEW0102I3F	1.02''	BW	2	128x80	21.76x14	3	0℃~50℃	√	√	SPI
GDEW0154M10	1.54''	BW	2	152x152	27.512x27.512	3	-20℃~60℃			SPI
GDEH0154D67	1.54''	BW	4	200x200	27x27	2	0℃~50℃	√		SPI
GDEW0154M09	1.54''	BW	2	200x200	27.6x27.6	0.82	0℃~50℃	√		SPI
GDEW0154T8D	1.54''	BW	4	152x152	27.51x27.51	3	0℃~50℃	√		SPI
GDEH0154Z90	1.54''	BWR	2	200x200	27x27	15	0℃~40℃			SPI
GDEW0213M21	2.13''	BW	2	212x104	48.548x23.712	3	-20℃~60℃			SPI
GDEW0213I5FD	2.13''	BW	4	212x104	48.55x23.71	3	0℃~50℃	√	√	SPI
GDEM0213B74	2.13''	BW	4	250x122	48.55x23.7	3	0℃~50℃			SPI
GDEM0213U23	2.13''	BWR	2	250x122	23.67x48.50	-	0℃~25℃			SPI
GDEM0213D23	2.13''	BW	2	250x122	23.67x48.50	-	0℃~25℃			SPI
GDEW0213V7LT	2.13''	BW	2	212x104	48.55x23.71	3	-25℃~10℃	√		SPI
GDEY0213Z98	2.13''	BWR	2	250x122	48.55x23.7046	14	0℃~40℃			SPI
GDEW0213T5D	2.13''	BW	4	212x104	48.55x23.71	3	0℃~50℃	√		SPI
GDEW0213T5D-FL01(With Frontlight)	2.13''	BW	4	212x104	48.55x23.71	3	0℃~50℃	√		SPI
GDEW026T0D	2.6''	BW	4	296x152	60.09x30.7	3	0℃~50℃	√		SPI
GDEW027W3	2.7''	BW	4	264x176	57.288x38.192	3	0℃~50℃	√		SPI
GDEW027W3-T(With Touch Panel)	2.7''	BW	4	264x176	57.288x38.192	3	0℃~50℃	√		SPI
GDEM029E97	2.9''	BW	2	296x128	66.9x29.06	3	0℃~50℃			SPI
GDEH029Z13	2.9''	BWR	2	296x128	66.9x29.06	15	0℃~40℃			SPI
GDEM029T94	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√		SPI
GDEY029T94	2.9''	BW	4	296x128	66.896x29.056	3	0℃~50℃	√		SPI
GDEW029M06	2.9''	BW	2	296x128	66.896x29.056	3	-20℃~60℃			SPI
GDEW029I6FD	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√	√	SPI
GDEW029T5D	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√		SPI
GDEW029T5D-FL02(With Frontlight)	2.9''	BW	4	296x128	66.9x29.06	3	0℃~50℃	√		SPI
GDEH037Z01	3.71''	BWR	2	416x240	81.54x47.04	16	0℃~40℃			SPI
GDEW0371W7	3.71''	BW	2	416x240	81.536x47.04	4	0℃~50℃			SPI

PART NUMBER	SIZE	COLOR	GREY SCALE	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	OPERATING TEMP.	PARTIAL REFRESH	FLEXIBLE	INTERFACE
GDEW042C37	4.2''	BWY	2	400x300	84.8x63.6	28	0℃~40℃			SPI
GDEW042T2	4.2''	BW	4	400x300	84.8x63.6	3	0℃~50℃			SPI
GDE043A2	4.3''	BW	16	800x600	88x66	1	0℃~50℃	√		Parallel
GDE043A2-T(With Touch Panel)	4.3''	BW	16	800x600	88x66	1	0℃~50℃	√		Parallel
GDE043A3	4.3''	BW	16	800x600	88x66	1	0℃~50℃	√		Parallel
GDEW0583C64	5.83''	BWY	2	600x448	118.80x88.26	25	0℃~40℃			SPI
GDEW0583T8	5.83''	BW	2	648x480	119.232x88.32	4	0℃~50℃			SPI
GDEW0583Z83	5.83''	BWR	2	648x480	119.232x88.32	12	0℃~40℃			SPI
GDE060F3	6.0''	BW	16	1024x758	90.581x122.368	1	0℃~50℃	√		Parallel
GDEM075Z08	7.5''	BWR	2	800x480	163.2x97.92	17	0℃~40℃			SPI
GDEH116T91	11.6''	BW	2	960x640	244.512x163.008	5	0℃~50℃			SPI
GDEH116Z91	11.6''	BWR	2	960x640	244.512x163.008	30	0℃~35℃			SPI
