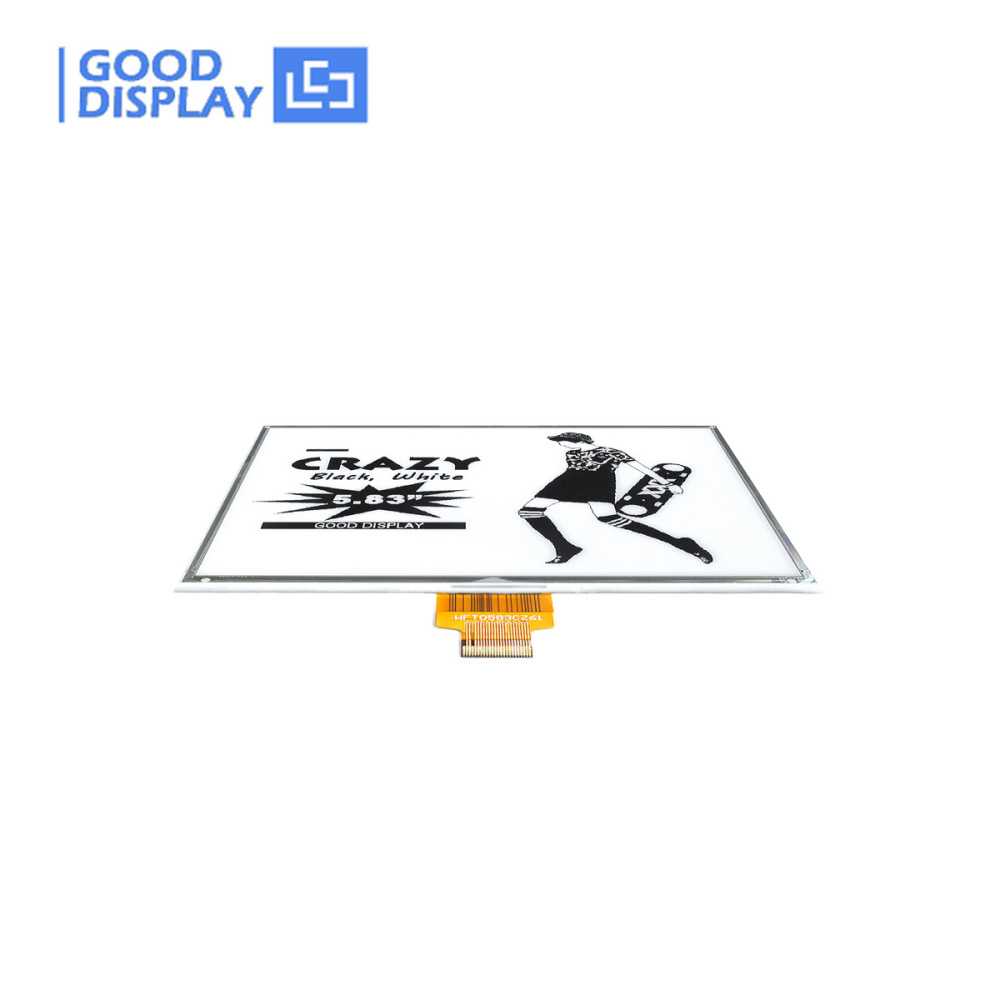

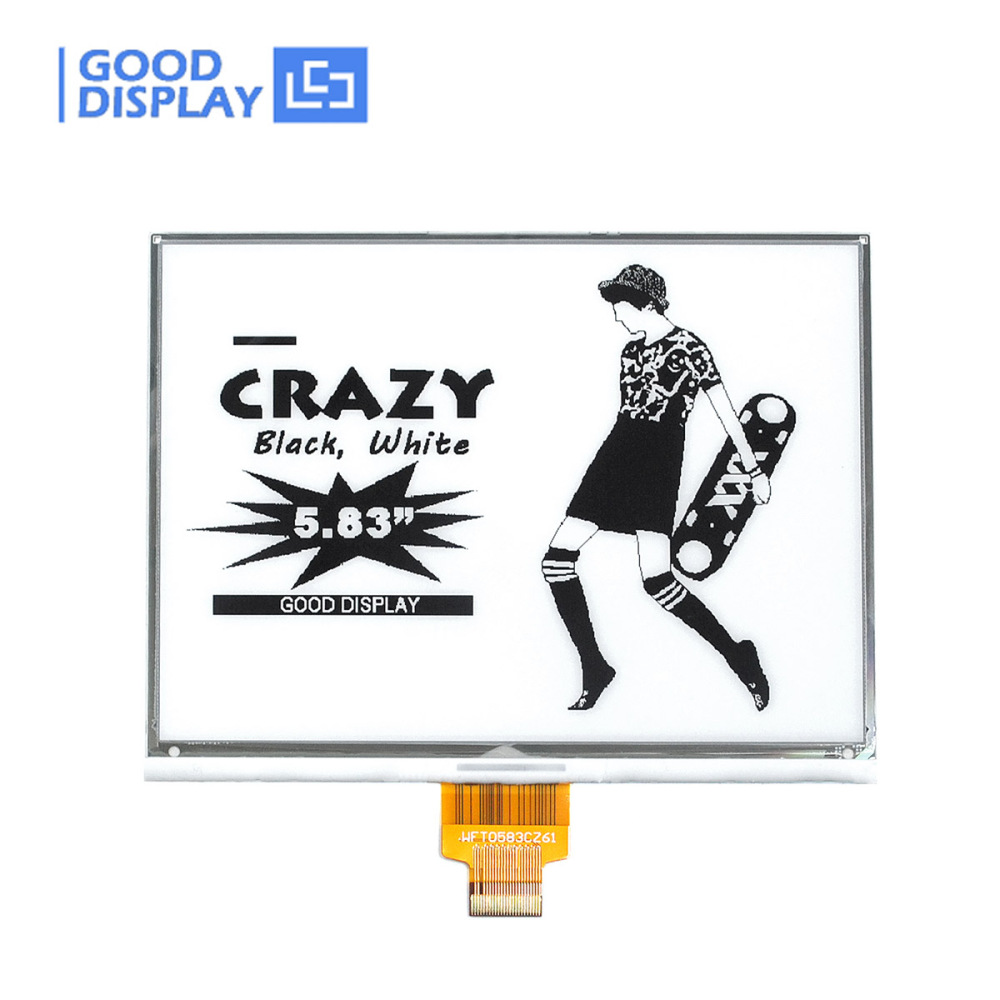

5.83 inch DES epaper screen module extra wide operating temperature, GDEW0583M09

DES 5.83 inch e-paper display, 648X480 resolution, 24 pins, SPI interface, wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments, suitable for outdoor equipment. Its IC Driver is UC8179.
Price:
USD
$39.82
    Please select the information you wantX
  • 规格:
    EPD
    EPD with adapter board
    EPD with demo kit
Quantity:
-
+
(0 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com


This is a DES (

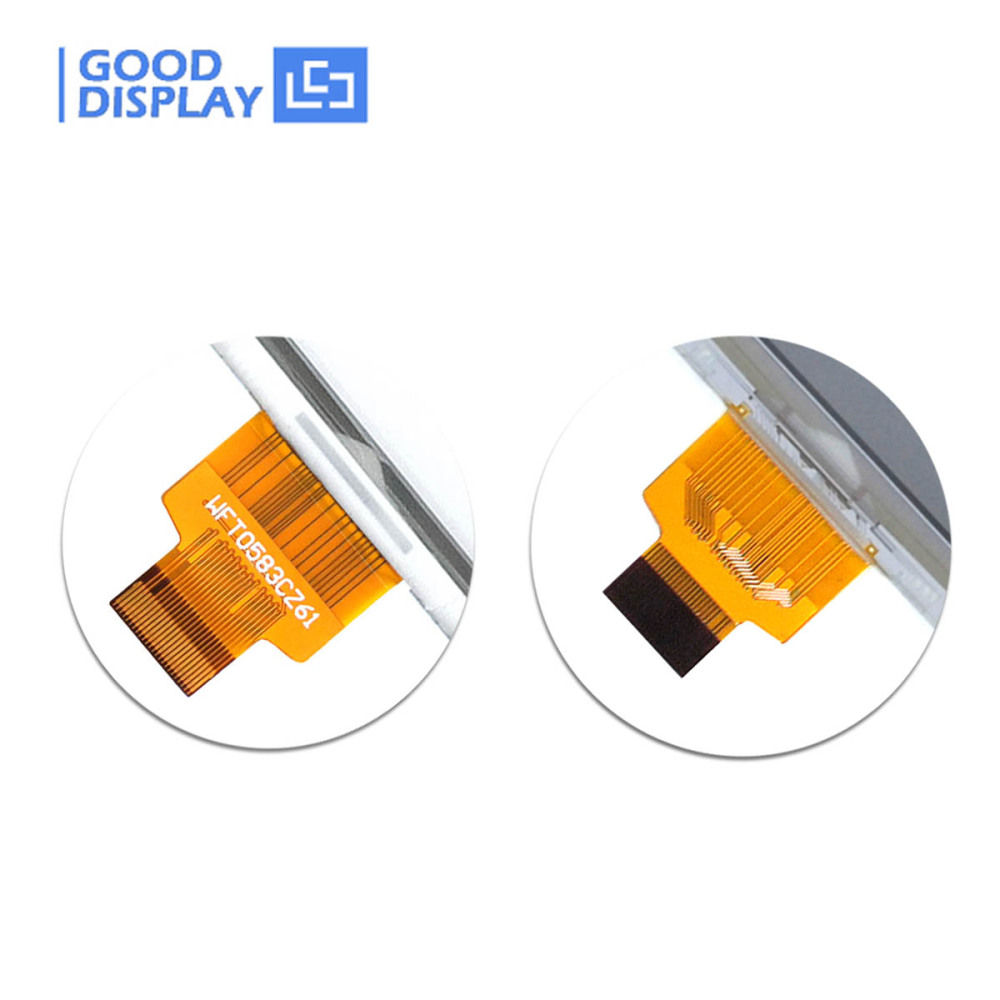

what is DES?) 5.83 inch e-paper display with 648X480 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface.  It has wide working temperature range: -20℃~60℃. It can be used in sunlight and cold environments, so it is suitable for outdoor equipment. Its IC Driver is UC8179.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, used in sunlight, wide working temperature, GDEW0583M09 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards, outdoor equipment. Also it can be used in cold environment.

1)5.83''e ink GDEW0583M09 *1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.

It is manufactured using a new process: DES, DES series products have the following characteristics:
* High contrast, better display effect, can be used in sunlight
*Wide working temperature range: -20℃~60℃, can be used in cold environments
(operating temp. of E-ink technology epaper is:  2-color: 0~50℃, 3-color: 0~40℃, low temp.: -25℃~25℃)
We think you can learn more from this contrast video between DES technology epaper and E-ink technology epaper:




Support 4 Grayscale
The I2C signal master interface to read built-in temperature sensor.

Development platform available STM32 / Arduino Raspberry Pi / ESP8266 / ESP32


Part Number GDEW0583M09
Size 5.83 inch
IC UC8179
Technology DES
Resolution 648x480

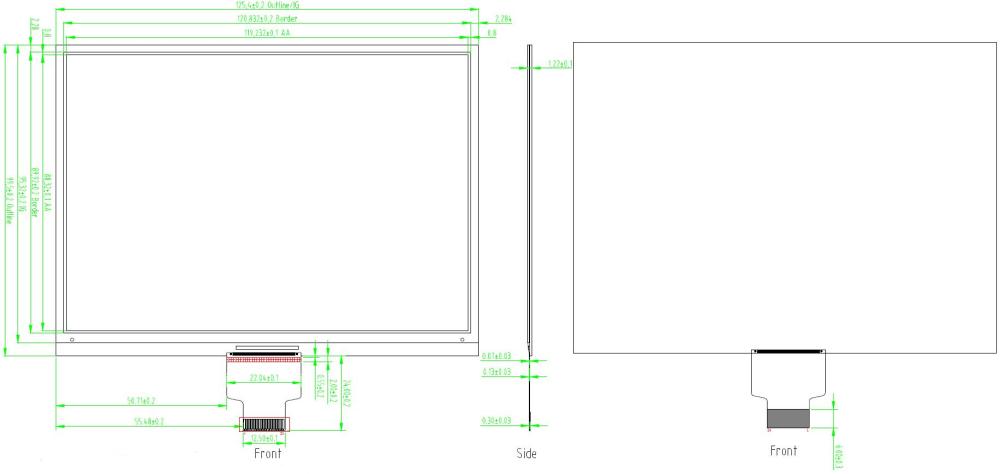

Outline Size(mm) 125.40x99.5x1.22
Active Size(mm) 119.232x88.32
Pixel Pitch(mm) 0.184x0.184
Operating Temp. -20℃~60℃
Storage Temp. -25℃~70℃
Max Grayscale 2
Color Black, white
Interface SPI
Time of refresh(s) 3
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165



https://www.good-display.com/product/367.html



DES series(Wide Working Temperature Range -20℃~60℃, Can Be Used In Sunlight And Cold Environments)

Part Number

Size/Color

Refresh Time

Feature

GDEW0154M10

1.54 inch/BW

3S (full refresh)

IC UC8151D, Resolution 152x152

GDEW0213M21

2.13 inch/BW

3S (full refresh)

IC UC8151D, Resolution 212x104

GDEW026M01

2.6 inch/BW

3S (full refresh)

IC UC8151D, Resolution 296x152

GDEW029M06

2.9 inch/BW

3S (full refresh)

IC UC8151D, Resolution 296x128

GDEW042M01

4.2 inch/BW

3S (full refresh)

IC UC8176, Resolution 400x300

GDEW0583M09

5.83 inch/BW

3S (full refresh)

IC UC8179, Resolution 648x400

GDEW060C01

6.0 inch/Full Color

1S (full refresh)

Full color, IC Double JD79632, Parallel interface, 16 Grayscale, Resolution 1072x1448

GDEW075M10 7.5 inch/BW 3S (full refresh) IC UC8179, Resolution 800x400

GDEW078C01

7.8 inch/Full Color

1S (full refresh)

Full color, Parallel interface, 16 Grayscale, Resolution 1872x1404
