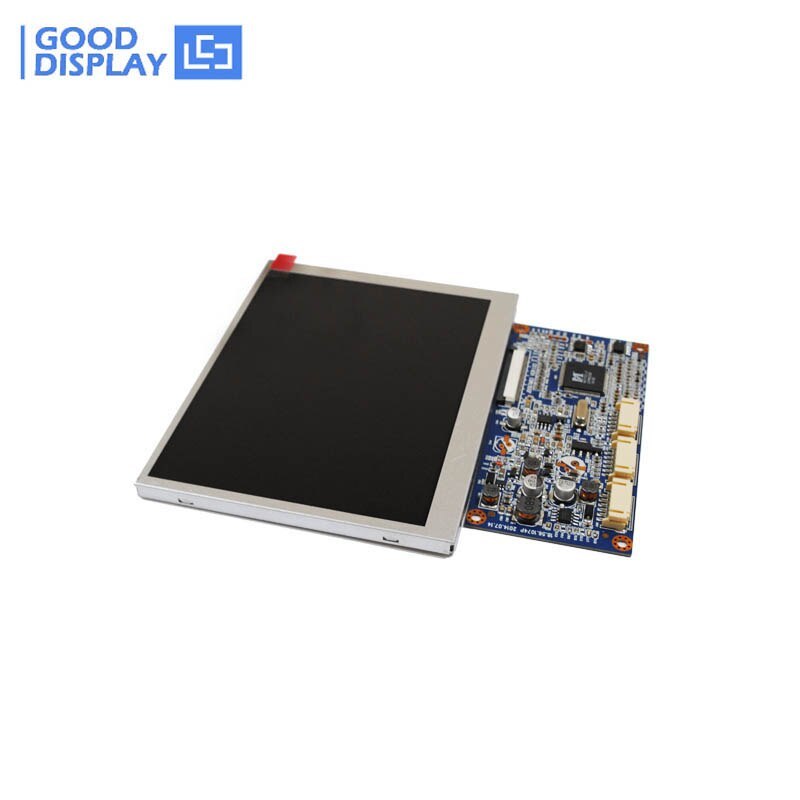

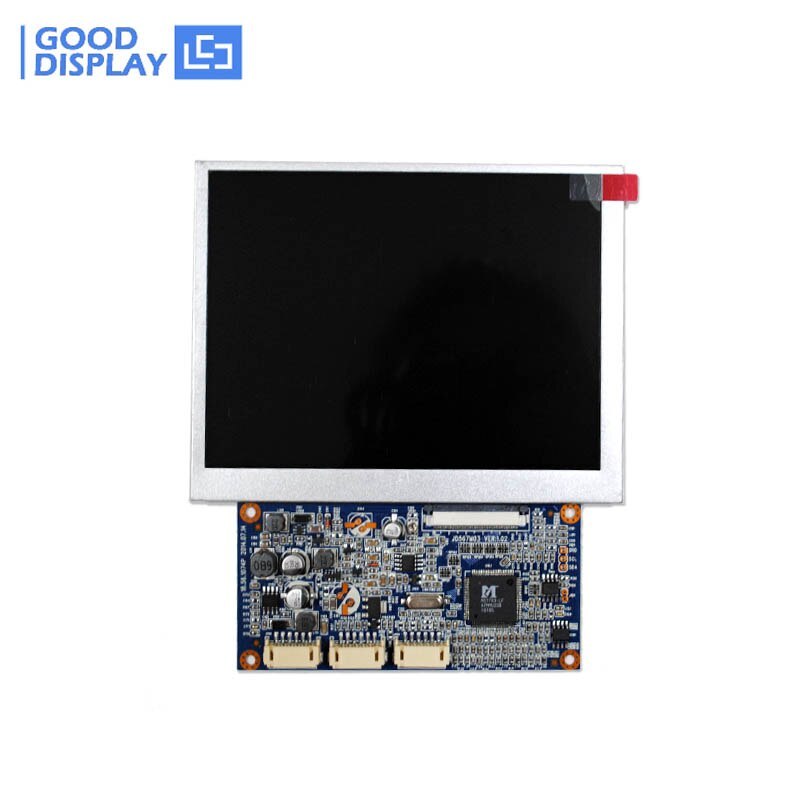

5.6 inch LCD with VGA Video signal input AD board TFT display

GDN-D567AT-GTI056TN52
5.6 inch color TFT-LCD module display, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Price:
USD
$55.54
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




5.6 inch color TFT-LCD module display, 640x480 dots, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.


Relevant manual about this product on our official website (www.good-display.com), contact us please.




☆ FEATURE




● 640x480 resolutio
● Video&VGA driver board
● Viewing Angle 50°/70°/70°/70°(L/R/U/D)
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 5.6 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable






☆ THE ABOVE PRICE INCLUDE



1) 5.6'' 640x480 TFT LCD Panel *1pc
2) DC12V power input AD Board with VGA,Video interface *1pc
3) Cable with VGA terminal *1pc
4) Cable with Keypad terminal *1pc
5) Cable with Power input & Video input terminal *1pc




☆ MAIN PARAMETERS






PART NUMBER

GDN-D567AT-GTI056TN52

SIZE

5.6''(4:3)

RESOLUTION

640*480

BRIGHTNESS

200cd/m2

WORKING VOLTAGE

DC12V(Typ.) (Min.9V, Max.15V)

VIEWING ANGLE(U/D/L/R)

50/70/70/70

CONTRAST RATIO

500

SIGNAL INPUT

VGA,VIDEO

OUTSIDE DIMENSION OF LCD PANEL(mm)

126.5(W)*100.0(H)*5.7(D)

ACTIVE AREA OF LCD PANEL(mm)

112.896(W)*84.672(H)

STRUCTURAL DIMENSION OF PCBA(mm)

102.0(W)*50.0(H)*7.9(D)

BACKLIGHT

LED

OPERATING TEMP.

-10C~+60C

STORAGE TEMP.

-20C~+70C




☆ PRECAUTIONS




1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.

2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.

3. Due to this product is electronic product, please notice prevent static.

4. The TFT-LCD Panel is a glasswork, place carefully ,broken for fear.

5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.






☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com









 SPECIFICATION DOWNLOAD




1)  GDN-D567AT-GTI056TN52 Specification
