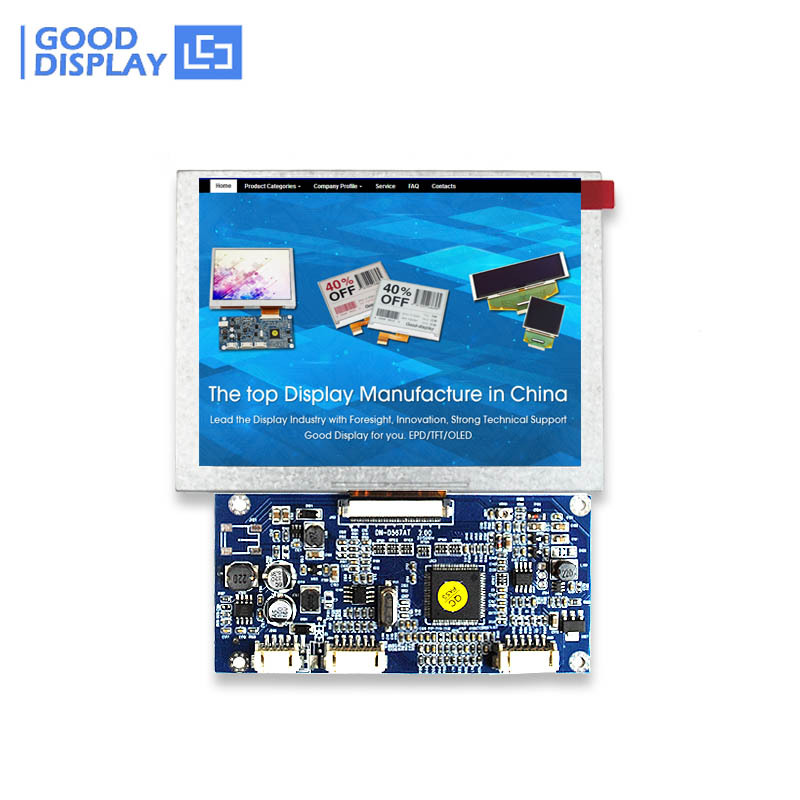

5 inch TFT LCD USB port VGA,Video input Digital display panel

GDN-D567AT-GTI050NA-08C-RM
640x480 dots, 5.0 inch color TFT-LCD module display, video&VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Price:
USD
$53.35
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews(2)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




5.0 inch color 640x480 TFT-LCD module display, video&VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.


Relevant manual about this product on our official website (www.good-display.com), contact us please.




☆ FEATURE




●  640x480 resolution

●  Video&VGA driver board

●  Viewing Angle 50°/70°/70°/70°(L/R/U/D)

●  Operating temperature -10℃~60℃

●  Optional touch screen

●  Optional 5.0 inch 4-wire resistive touch panel with USB driver board and cable

●  Optional capacitive touch panel with USB controller board and cable

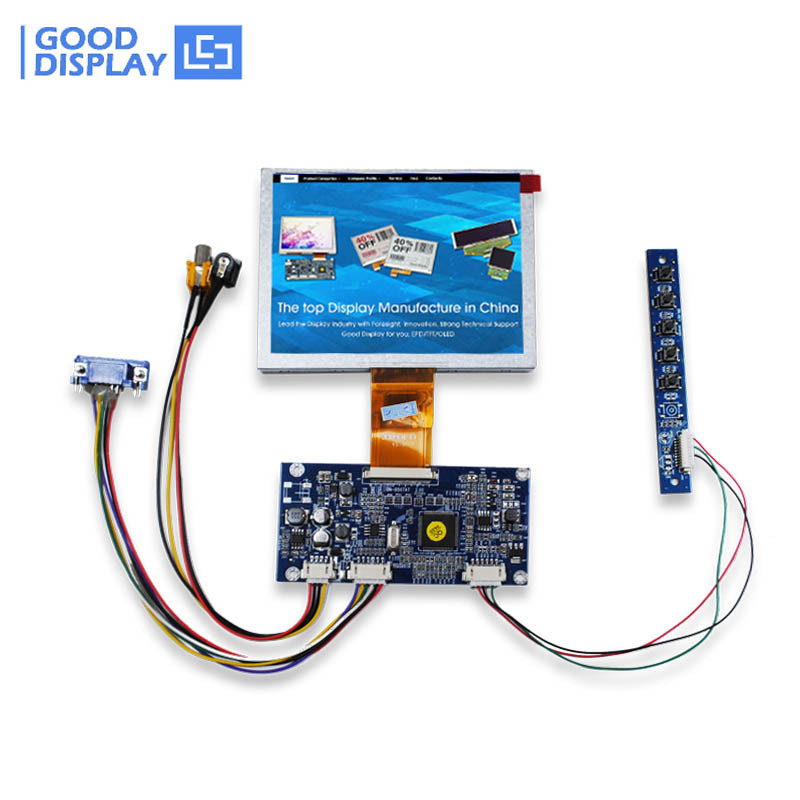

☆ THE ABOVE PRICE INCLUDE



1) 5 inch lcd display *1
2) 12V Power input AD Board support VGA and Video input *1
3) Power & Video input cable with terminal *1

4) Keyboard cable with terminal *1

5) VGA cable with terminal *1





☆ MAIN PARAMETERS




PART NUMBER GDN-D567AT-GTI050NA-08C
SIZE 5.0''(4:3)
RESOLUTION 640*480
BRIGHTNESS 250cd/m2
WORKING VOLTAGE DC12V(Typ.) (Min.9V, Max.15V)
VIEWING ANGLE(U/D/L/R) 50/70/70/70
SIGNAL INPUT VGA,VIDEO
OUTSIDE DIMENSION OF LCD PANEL(mm) 117.65(W)*88.43(H)*5.7(D)
ACTIVE AREA OF LCD PANEL(mm) 101.57(W)*76.18(H)
STRUCTURAL DIMENSION OF PCBA(mm) 105.0(W)*50.0(H)*7.8(D)
BACKLIGHT LED
OPERATING TEMP. -10C~+60C
STORAGE TEMP. -20C~+70C






☆ PRECAUTIONS




1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.

2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.

3. Due to this product is electronic product, please notice prevent static.

4. The TFT-LCD Panel is a glasswork, place carefully ,broken for fear.

5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.






☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com







 SPECIFICATION DOWNLOAD




1)  GDN-D567AT-GTI050NA-08C Specification
