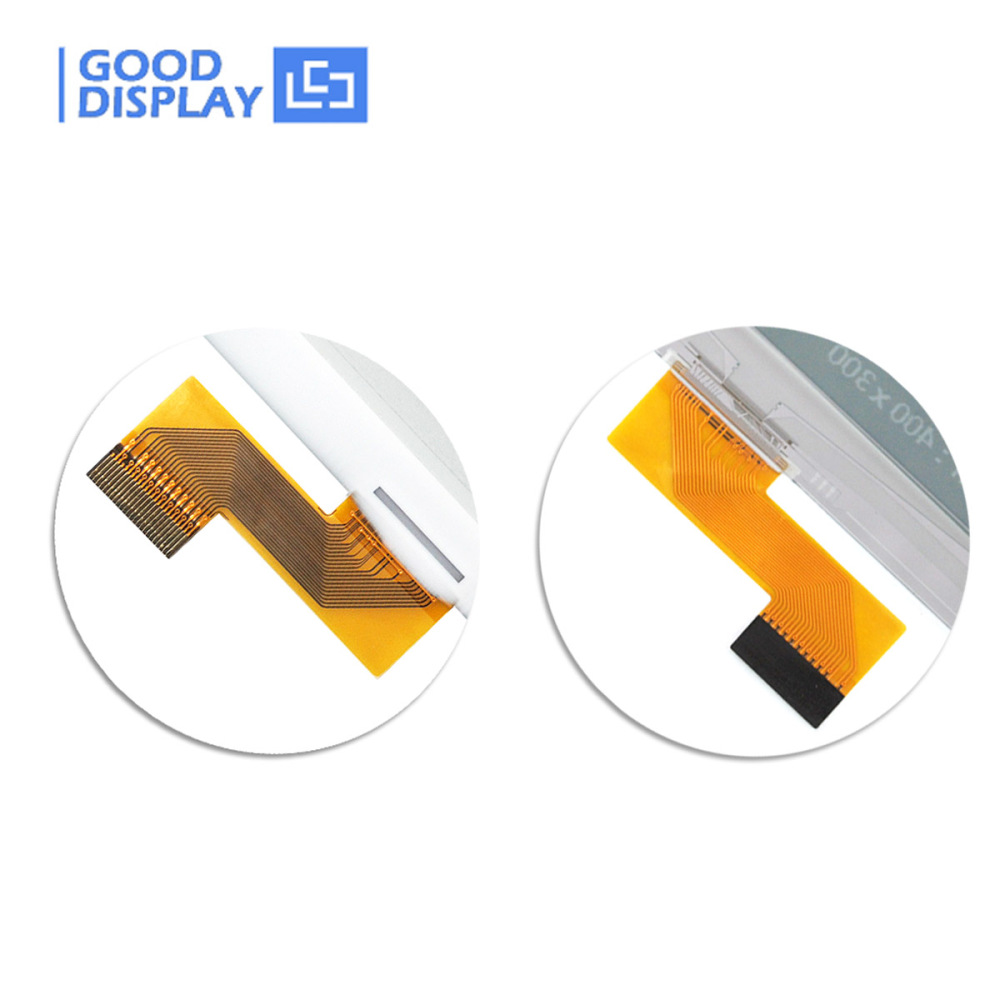

4.2 inch SPI e-paper display 400x300 resolution SSD1683 e-ink module, GDEY042T91

This is a 4.2 inch e-ink display Good Display e-paper screen with 400x300 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$46.68
Quantity:
-
+
(30 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com



☆ INTRODUCTION




This is a set of epaper STM32 development kit DESPI-L(C02) WITH 4.2 inch e-ink display Good Display e-paper screen with 400x300 resolution, SPI interface, and the display is capable to display images with black and white content. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.  Your image holds indefinitely without power – put up your image, then shut down the power.


This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.


We could provide front light, touch screen and other accessories for you.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.







 THE ABOVE PRICE INCLUDE



1) 4.2 inch e-paper display Morochrome SPI e-ink for digital price tags * 1pc

2) Driving board DESPI-M02L *1pc

3) Connector board DESPI-C02 *1pc

4) USB port cable *1pc

5) FPC Connector * 1pc







 MAIN PARAMETERS




PART NUMBER

GDEY042T91



SIZE

4.2 inch

STORAGE TEMP. -25℃~70℃

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

IC

SSD1683

MAX GRAYSCALE 2

RESOLUTION

400x300 (DPI:120)

COLOR Black,White

OUTLINE SIZE(mm)

91x77x1.2

INTERFACE SPI

ACTIVE SIZE(mm)

84.8x63.6

FULL REFRESH(s) 3

PIXEL PITCH(mm)

0.212x0.212

POWER CONSUMPTION OF THE REFRESH(mW) 18.48

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.0165






PART NUMBER DESPI-L(C02)
PLATFORM STM32
FUNCTION Drive E-paper Display
OUTSIDE DIMENSION 90x60mm (DESPI-M02L)
41x22mm (DESPI-C02)
POWER INTERFACE Type-C
POWER INPUT DC5V
FEATURE Support fully refresh, fast refresh and partial refresh
GRAY SCALE LEVEL Max 16 Grayscale
OPERATING TEMP. -20~70℃
EXAMPLE CODE Available
RESERVED FUNCTION Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection
MAIN FUNCTION Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development







 FEATURE




●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Color Optional. We also have other color for you to choose.








 DETAIL







 4.2 INCH E-PAEPR DISPLAY




Part Number

Color

IC

Features

Refresh Time
GDEW042T2 B/W UC8176 Fast Refresh, 4 Grayscale 3s

GDEQ042Z21

B/W/R

UC8276 Red

19s

GDEW042C37 B/W/Y UC8176 Yellow 28s









 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




 SPECIFICATION DOWNLOAD



1. Product Specification & Sample Code of GDEY042T91
1)  GDEY042T91 Specification
2)  GDEY042T91 Picture Production and Bitmap Conversion
3)  GDEY042T91 STM32 Sample Code
4)  GDEY042T91 Arduino Sample Code
5)  GDEY042T91 ESP8266 Sample Code
6)  GDEY042T91 ESP32 Sample Code


2. E-paper Display IC Datasheet
1)  IC Driver SSD1683 Datasheet


3. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual




4. The STM32 Platform relevant download information is as follows:
①  Image to EPD Instruction Manual
②  Host Computer Software
③  Slave Computer Program


5. Relevant information of DESPI-L(C02)
①  DESPI-L(02) Specification
②  DESPI-C02 Specification
③  DESPI-M02L-SCH
④  DESPI-C02-SCH






PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
