3.71 Inch E-Paper E-ink Screen Module SPI With Epaper HAT, GDEW0371W7+DESPI-C02

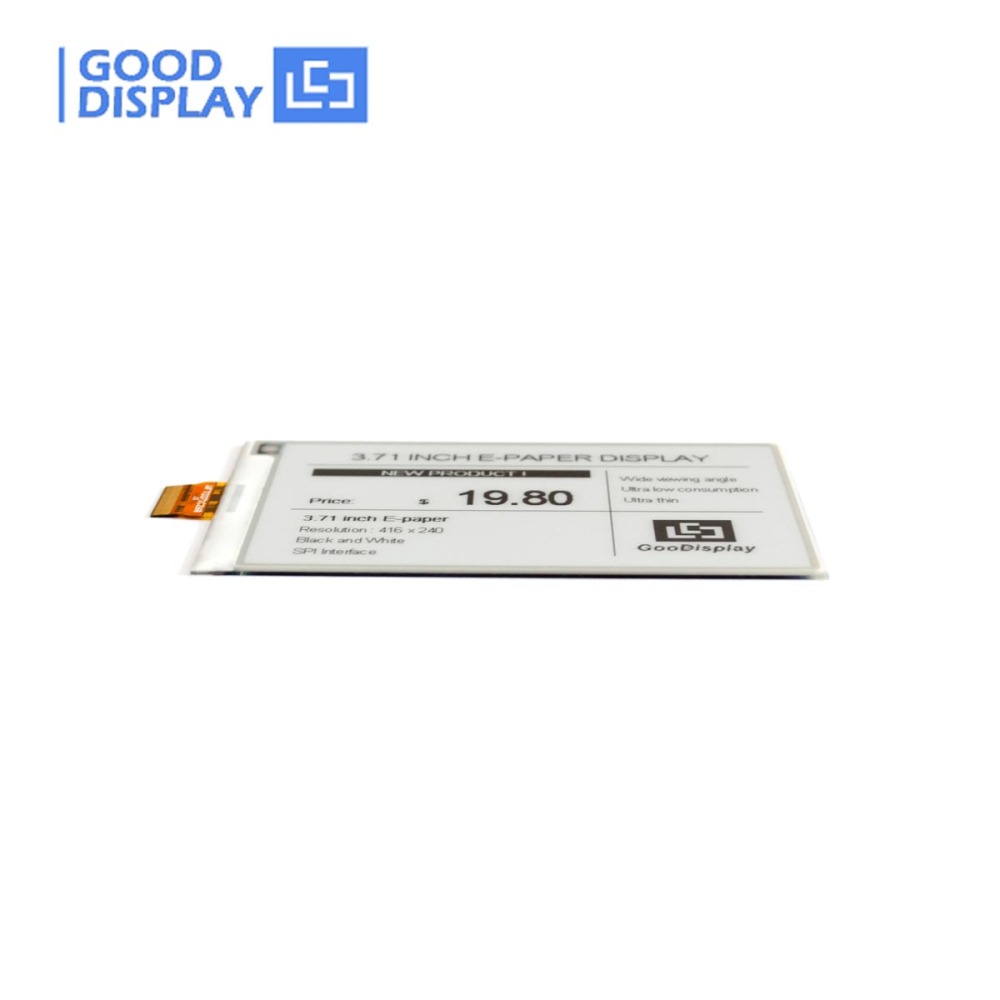

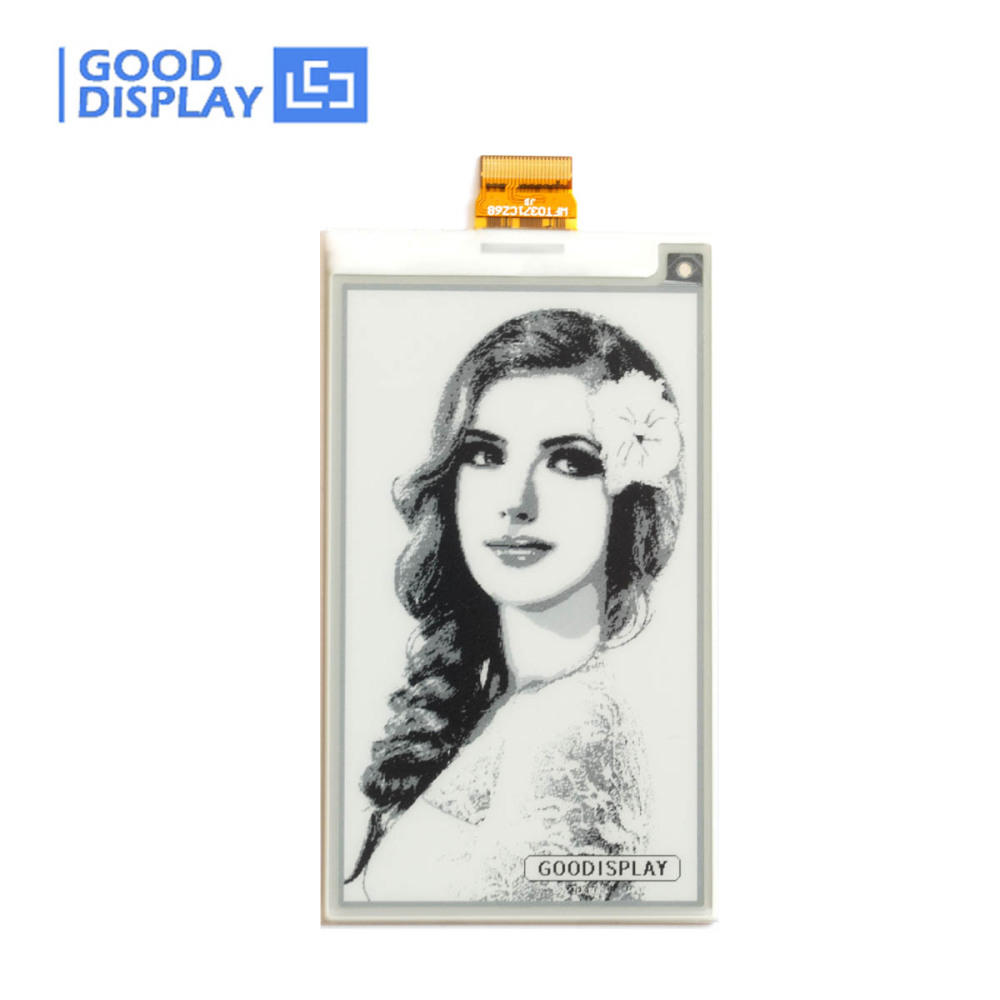

This is a E-ink HAT E-paper connection board with 3.71 inch E-Paper Display E-ink Screen, 416x240 resolution, SPI interface, and the display is capable to display images with black and white content.
Price:
USD
$22.69
  • 规格:
    With adapter board
    EPD

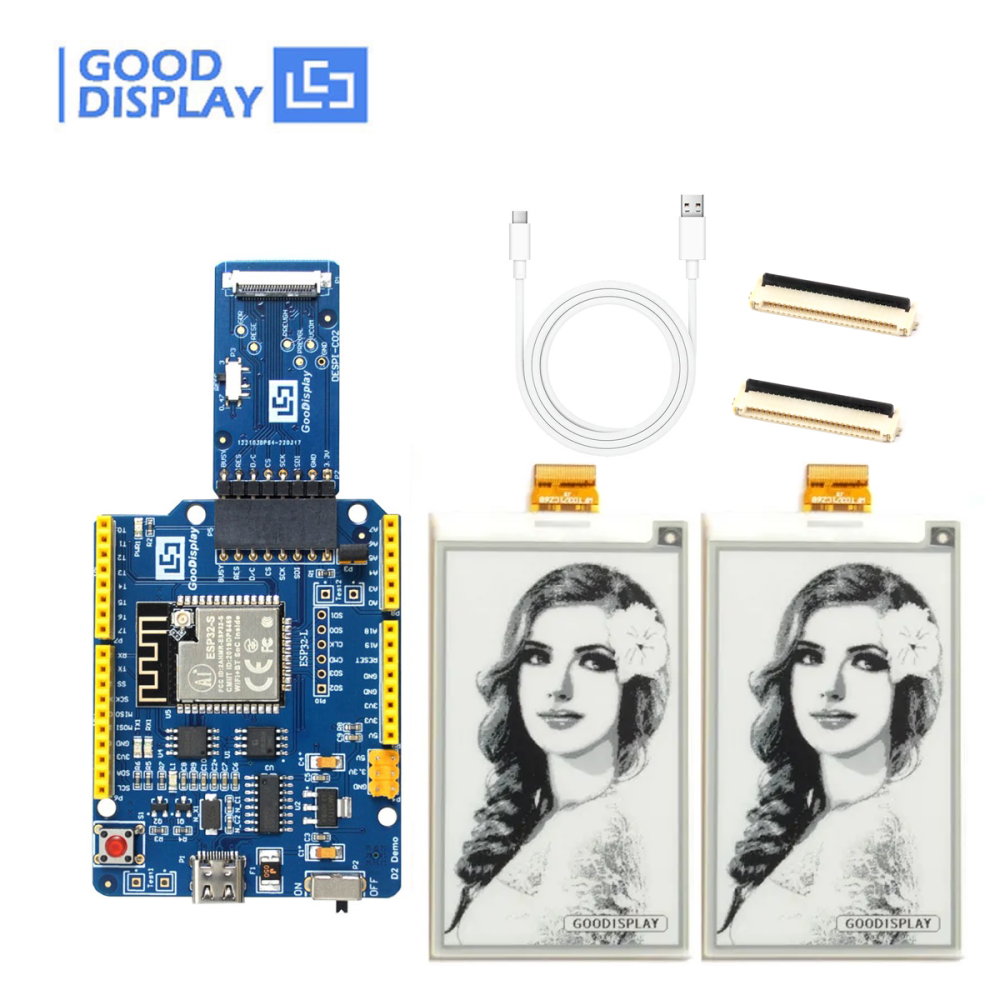

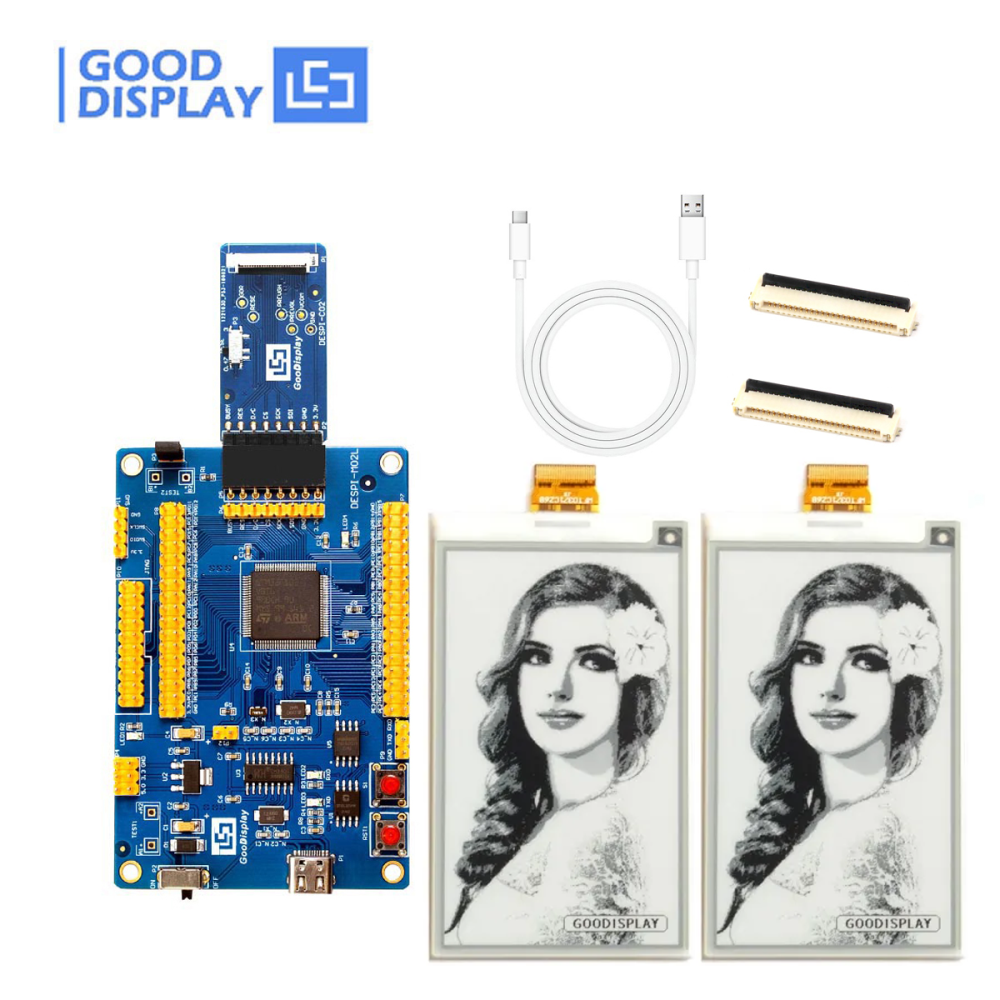

    With demo kit
Quantity:
-
+
(600 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




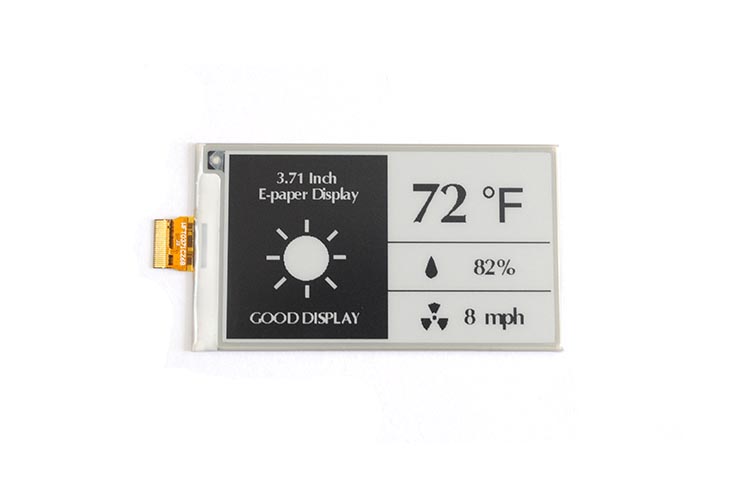

This is a E-ink HAT E-paper connection board with 3.71 inch E-Paper Display E-ink Screen, 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This eink display GDEW0371W7 is perfect for low power devices powered by solar or batteries.

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.







☆ THE ABOVE PRICE INCLUDE

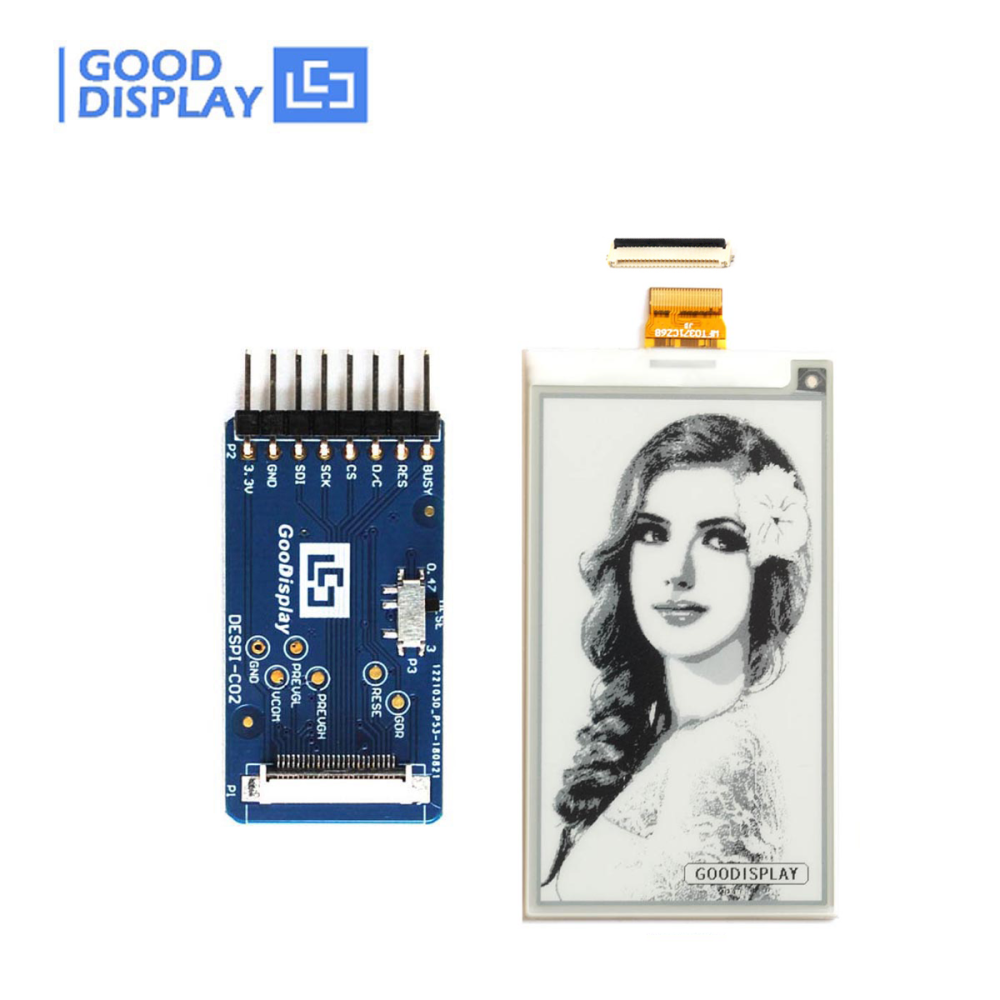

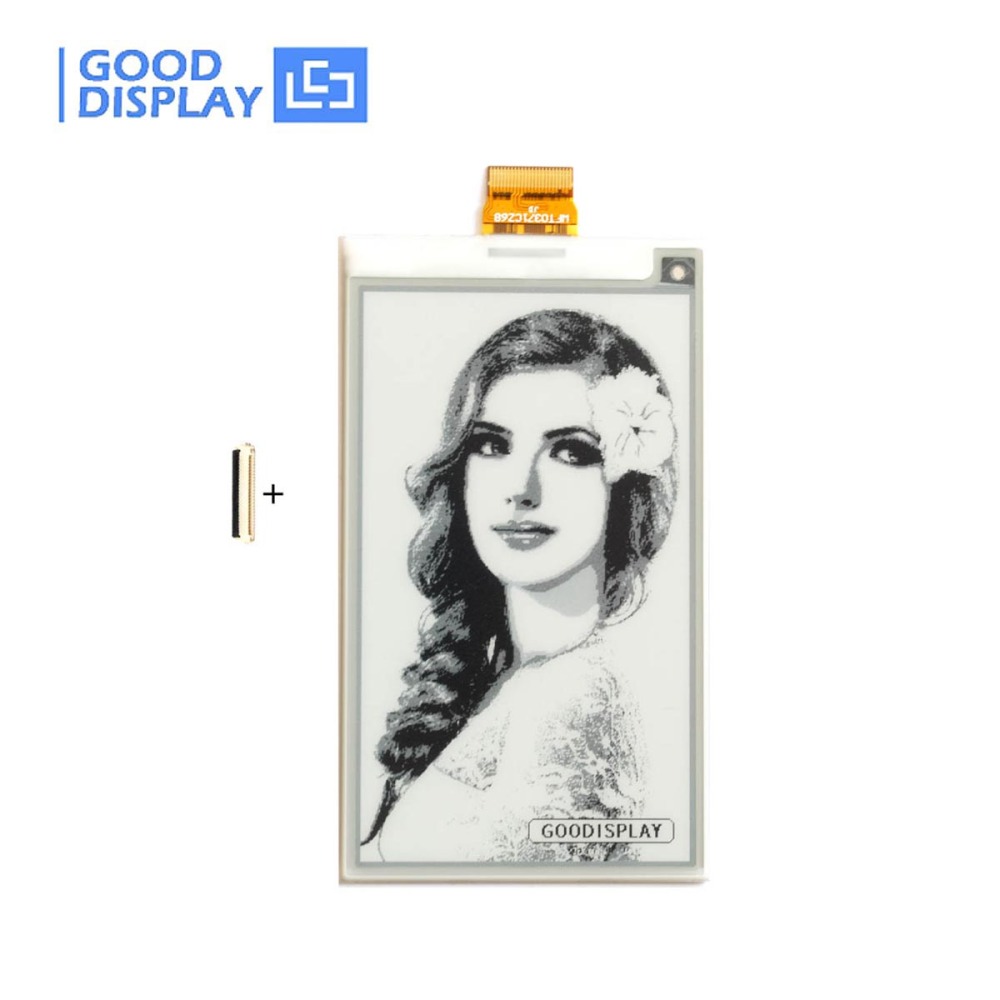

1) 3.71 inch e-paper display black and white 4 Grayscale e-ink screen module * 1pc

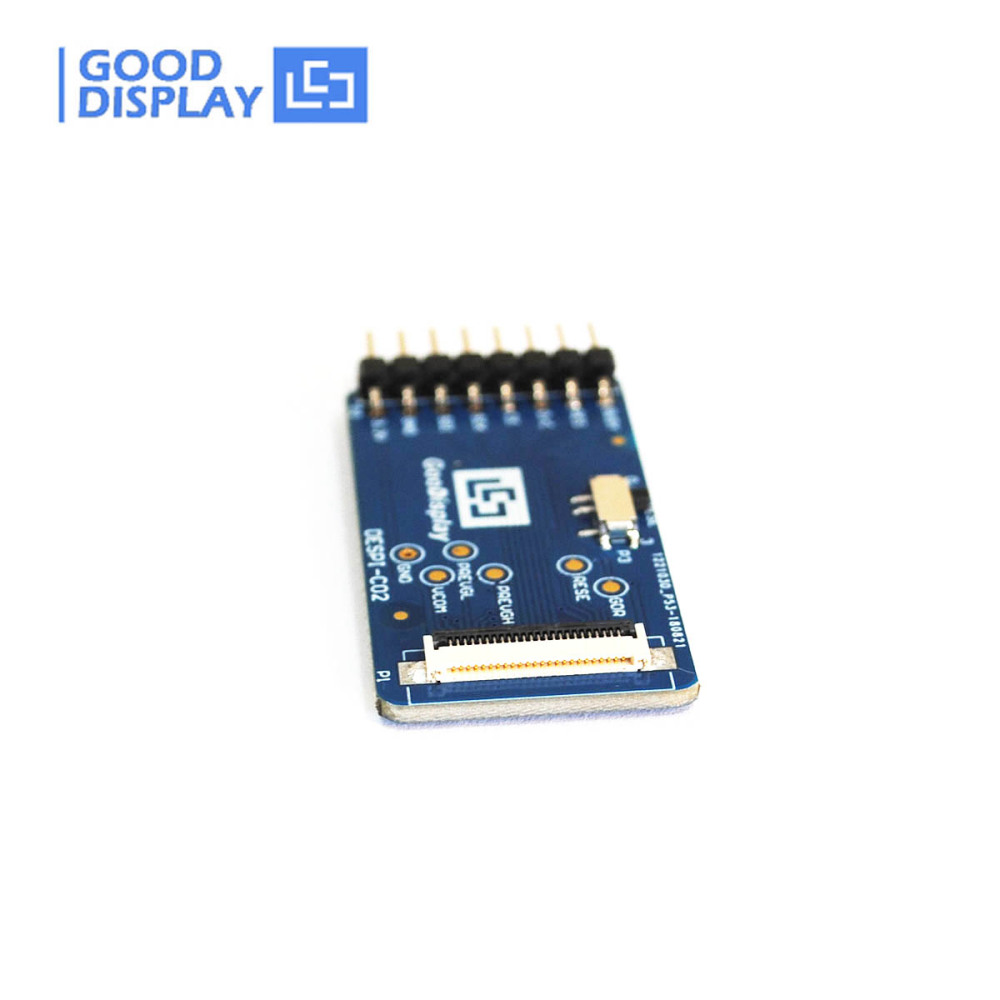

2) Connector board DESPI-C02 * 1pc

3) FPC Connector * 1pc







☆ MAIN PARAMETERS




PART NUMBER

GDEW0371W7



SIZE

3.71 inch

STORAGE TEMP. -25℃~70℃

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

IC

UC8171

MAX GRAYSCALE 4

RESOLUTION

416x240

COLOR Black,White

OUTLINE SIZE(mm)

92.99x53x1.18

INTERFACE SPI

ACTIVE SIZE(mm)

81.536x47.04

FULL REFRESH(s) 4

PIXEL PITCH(mm)

0.196x0.196

POWER CONSUMPTION OF THE REFRESH(mW) 26.4

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.09







PART NUMBER

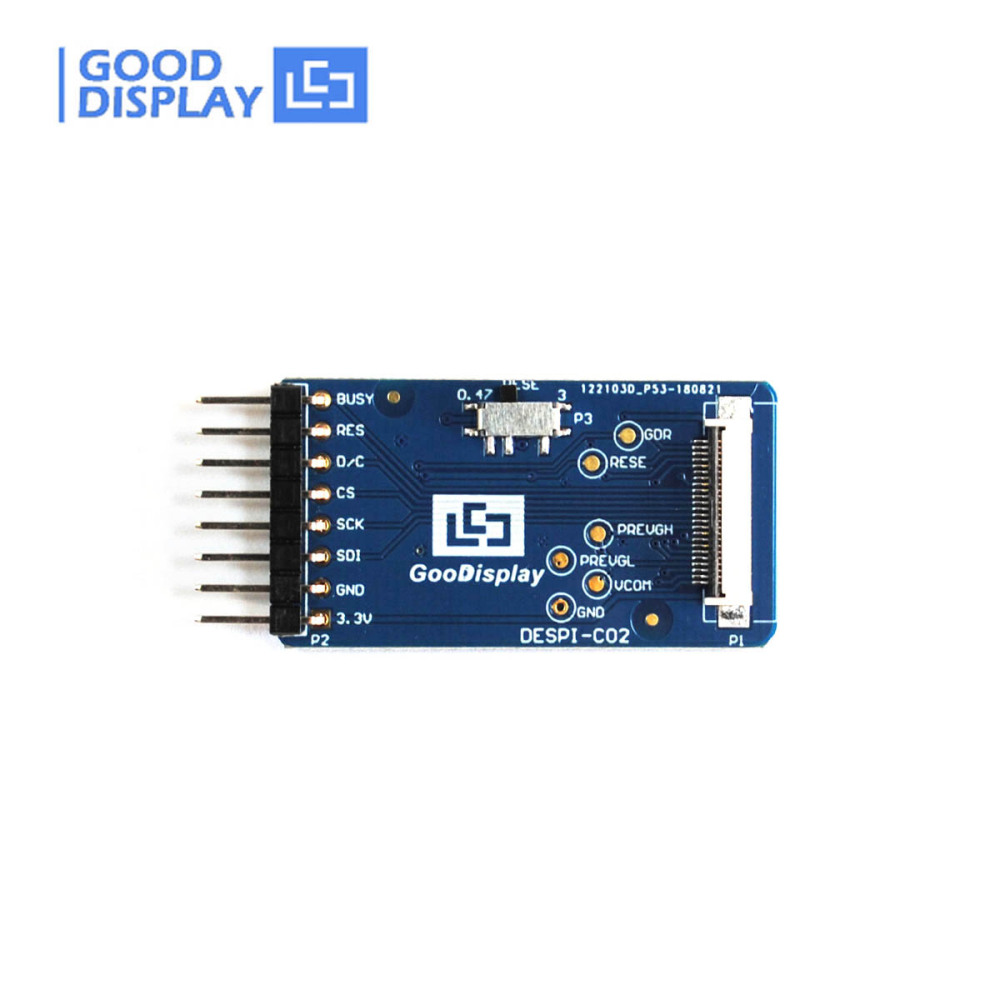

DESPI-C02

PLATFORM

STM32

FUNCTION

Connection E-paper Display with Drive Board

OUTSIDE DIMENSION

41x22mm

INTERFACE

SPI

POWER INPUT

DC3.3V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃








☆ FEATURE




●  Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoESP8266 / ESP32








☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




 SPECIFICATION DOWNLOAD




1. Product Specification & Sample Code
1)  GDEW0371W7 Specification
2)  GDEW0371W7 Bitmap Conversion
3)  GDEW0371W7 STM32 Sample Code
4)  GDEW0371W7 Arduino Sample Code
5)  GDEW0371W7 ESP8266 Sample Code
6)  GDEW0371W7 ESP32 Sample Code
7)  GDEW0371W7 Raspberry Pi Pico Sample Code


2. E-paper Display IC Datasheet
1)  IC Driver UC8171 Datasheet


3. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual






4. Relevant information of DESPI-L(C02)
1)  DESPI-L(02) Specification
2)  DESPI-C02 Specification
3)  DESPI-C02-SCH
4)  DESPI-M02L-SCH
