☆ INTRODUCTION
This is a e-paper display e-ink screen, 3.71 inch, with 416x240 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0371W7 is perfect for low power devices powered by solar or batteries.

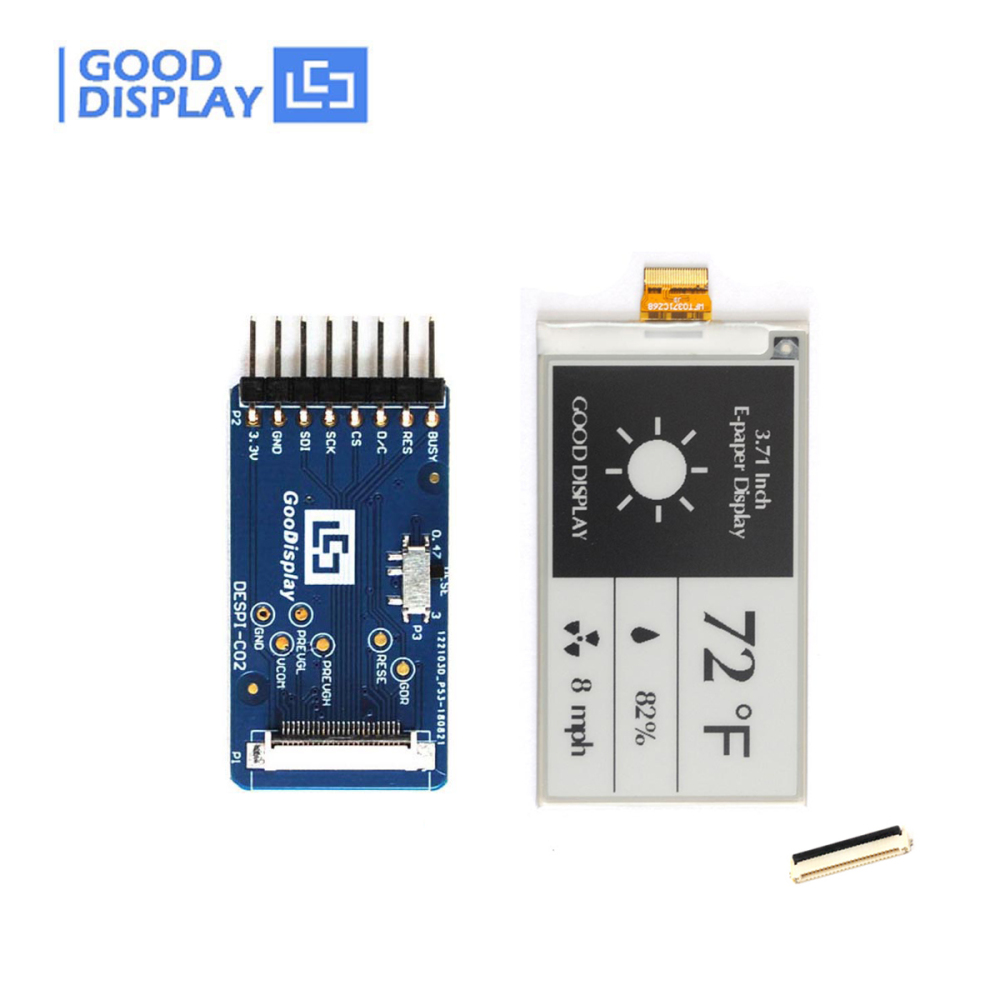

We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ THE ABOVE PRICE INCLUDE

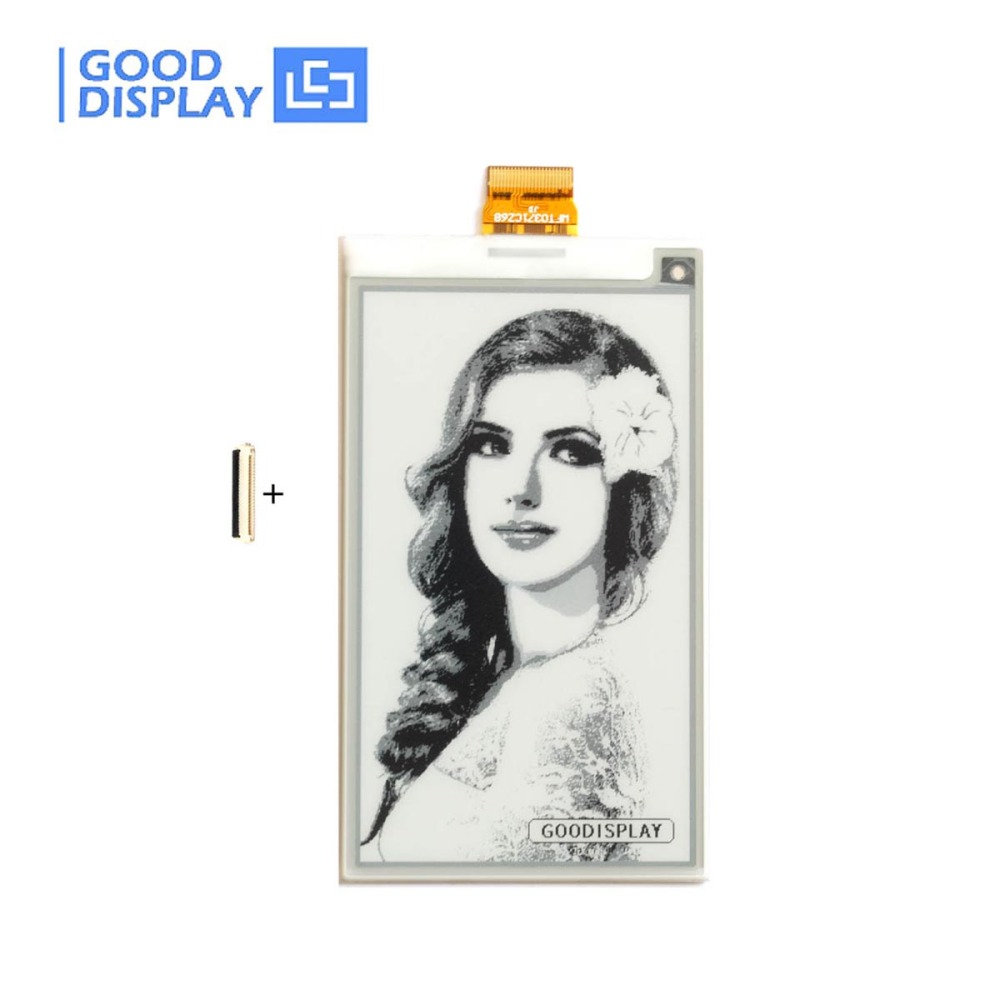

1) 3.71 inch e-paper display black and white 4 Grayscale e-ink screen module * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0371W7
|
|
|
SIZE
|
3.71 inch
|
STORAGE TEMP. |
-25℃~70℃ |
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
IC
|
UC8171
|
MAX GRAYSCALE |
4 |
|
RESOLUTION
|
416x240
|
COLOR |
Black,White |
|

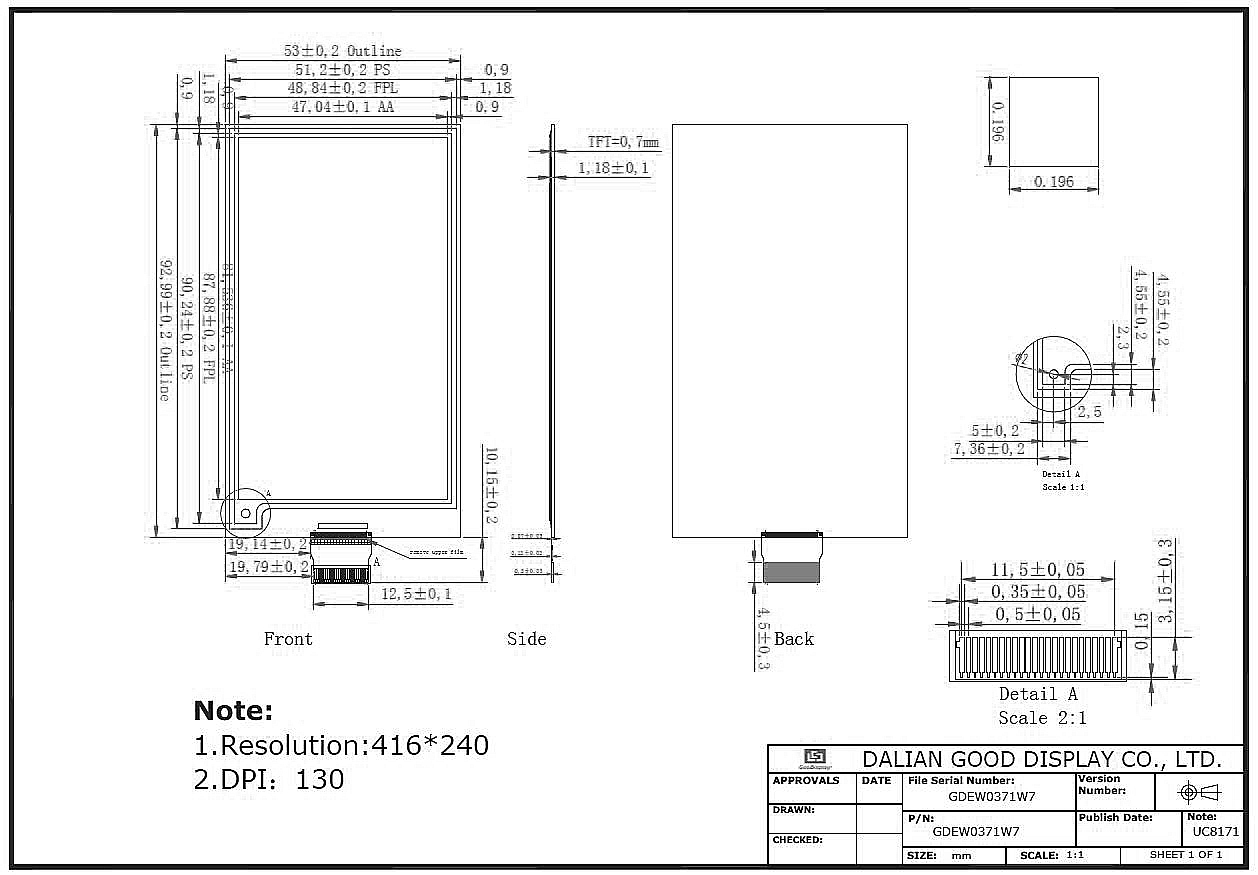

OUTLINE SIZE(mm)
|
92.99x53x1.18
|
INTERFACE |
SPI |
|
ACTIVE SIZE(mm)
|
81.536x47.04
|
FULL REFRESH(s) |
4 |
|
PIXEL PITCH(mm)
|
0.196x0.196
|
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
|
OPERATING TEMP.
|
0℃~50℃
|
STANDBY POWER CONSUMPTION (mW) |
0.09 |
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ DETAILS

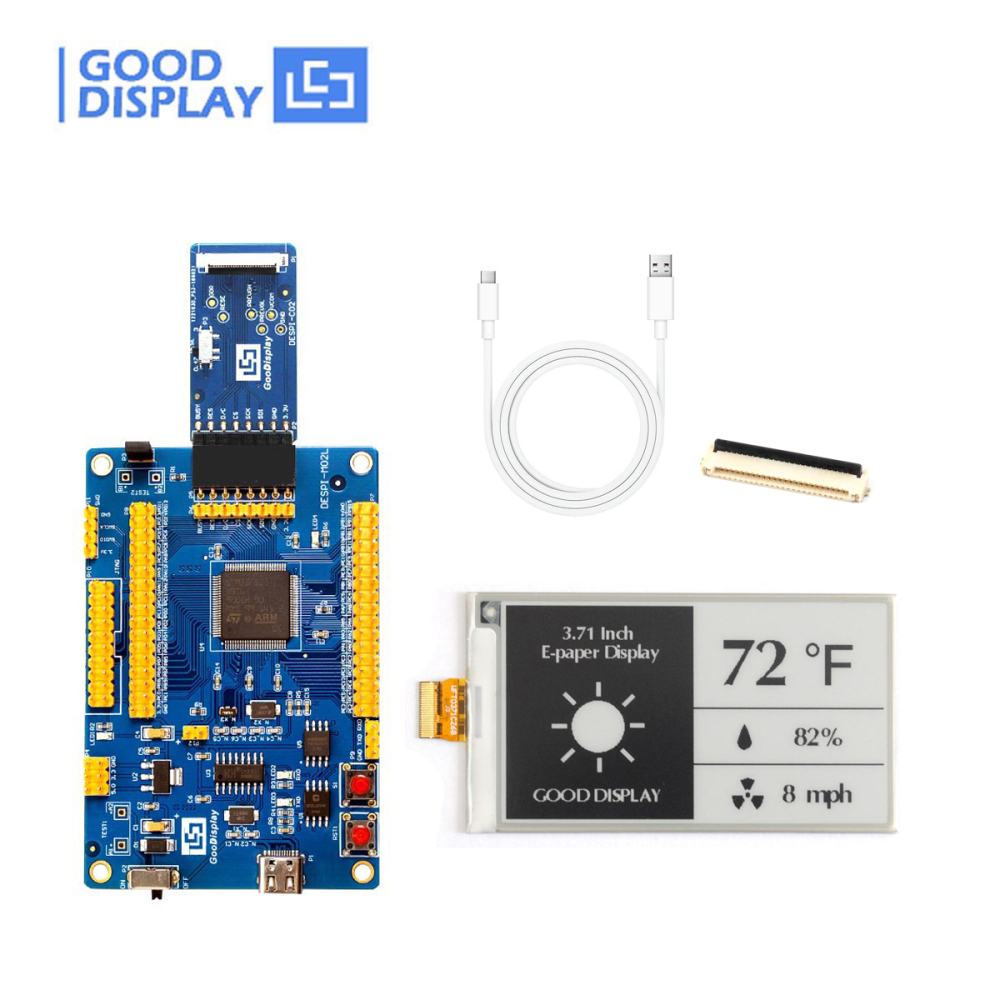

☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
