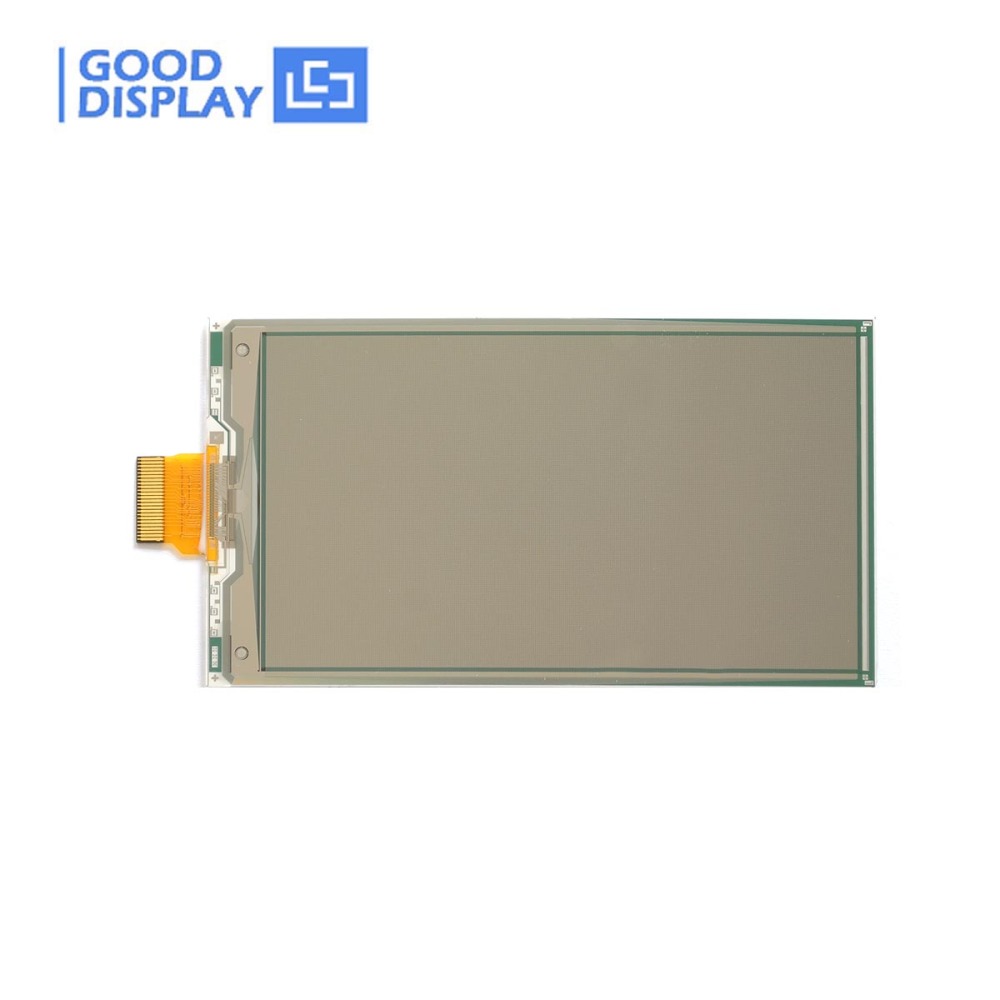

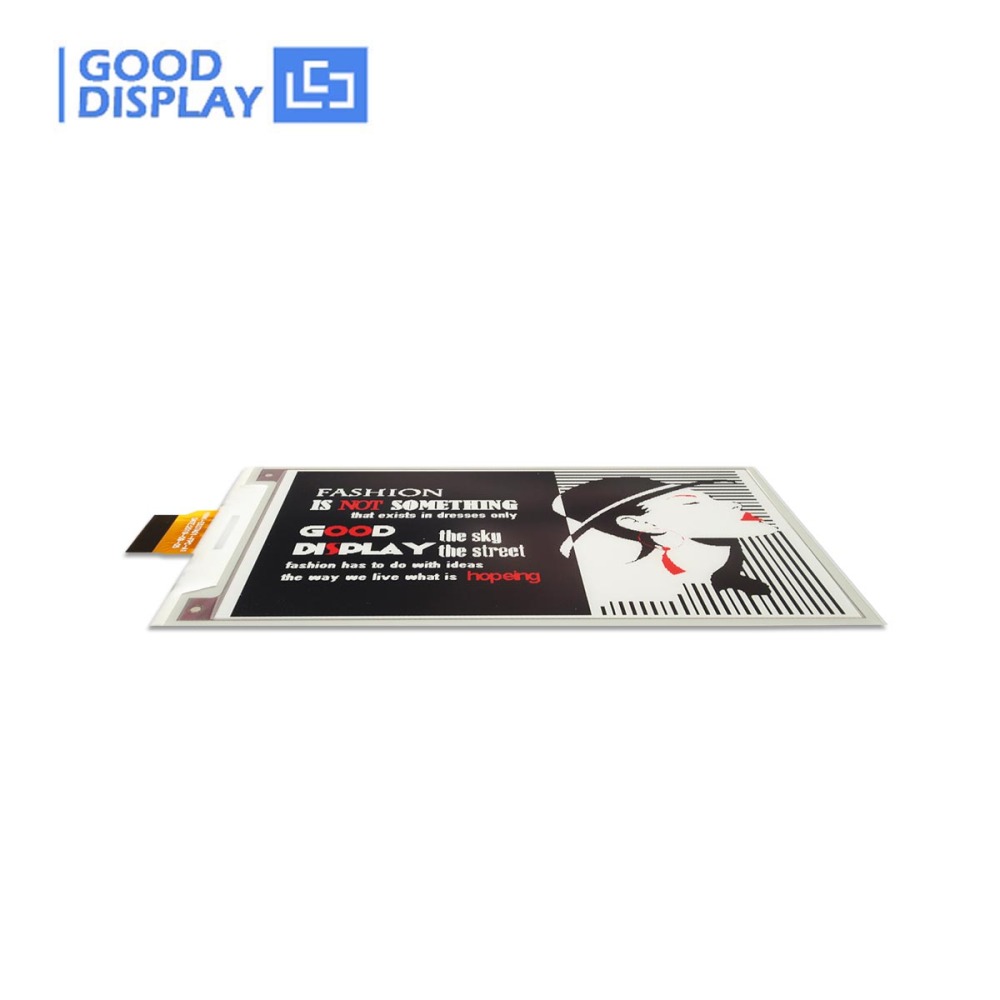

3.71 inch color e-ink display red e-paper screen module GDEH037Z01

GDEH037Z01
Color 3.7 inch e-paper display with 416x240 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports black, white and red.
Sold:16
Price:
USD
$16.17
  • 规格:
    EPD
    With adapter board
    With demo kit
Quantity:
-
+
(11 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION

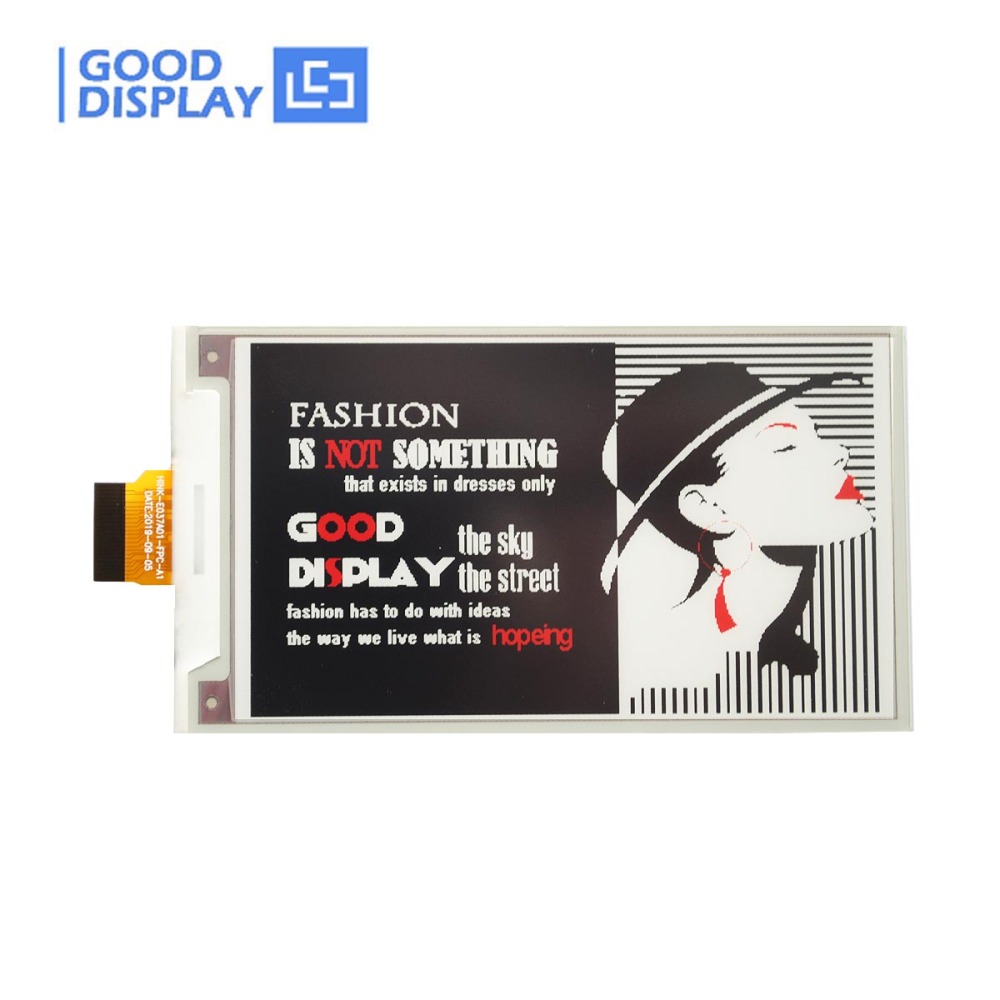

This is a 3.7 inch color e-paper display with 416x240 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0371Z80 is perfect for low power devices powered by solar or batteries.


We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.




 FEATURE




●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32







 THE ABOVE PRICE INCLUDE



1) 3.71 inch color e-ink display red e-paper screen module * 1pc

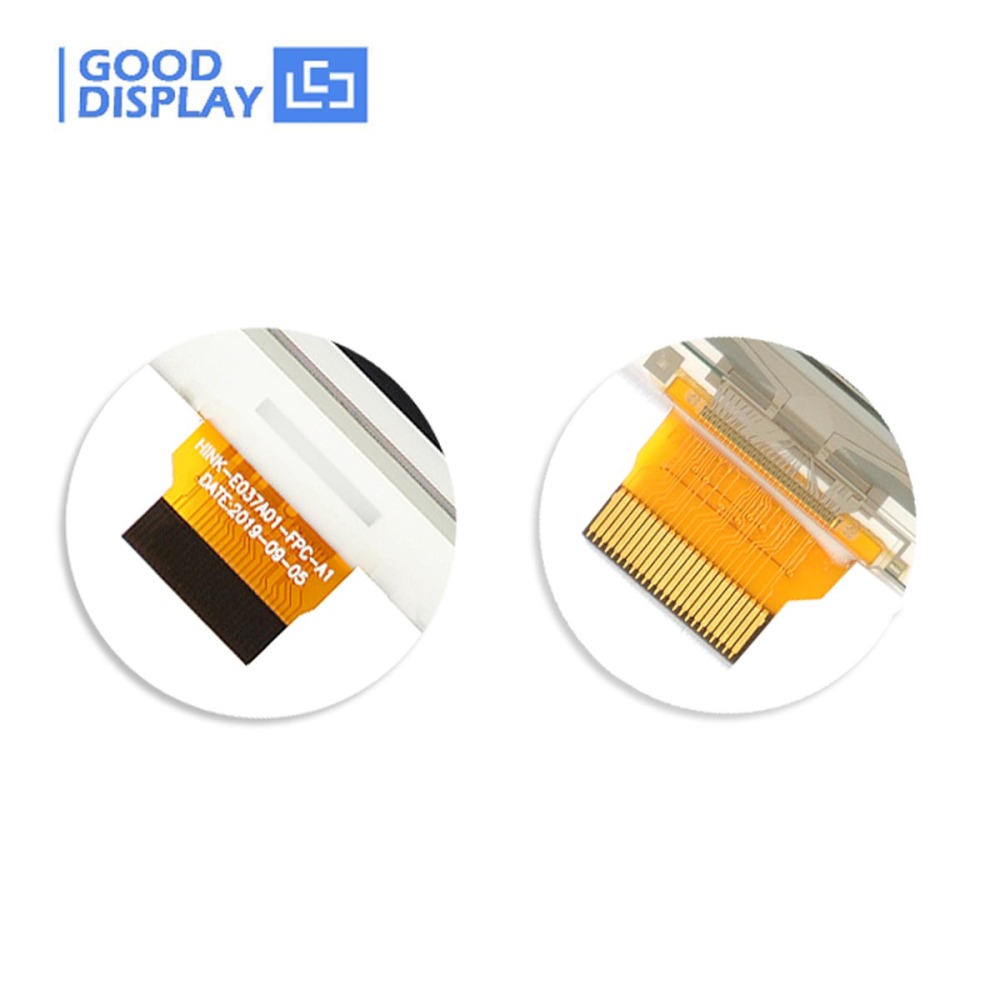

2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS





PART NUMBER

GDEH037Z01

SIZE

3.7 inch

TYPE

Dot Matrix

IC

UC8171

RESOLUTION

416x240

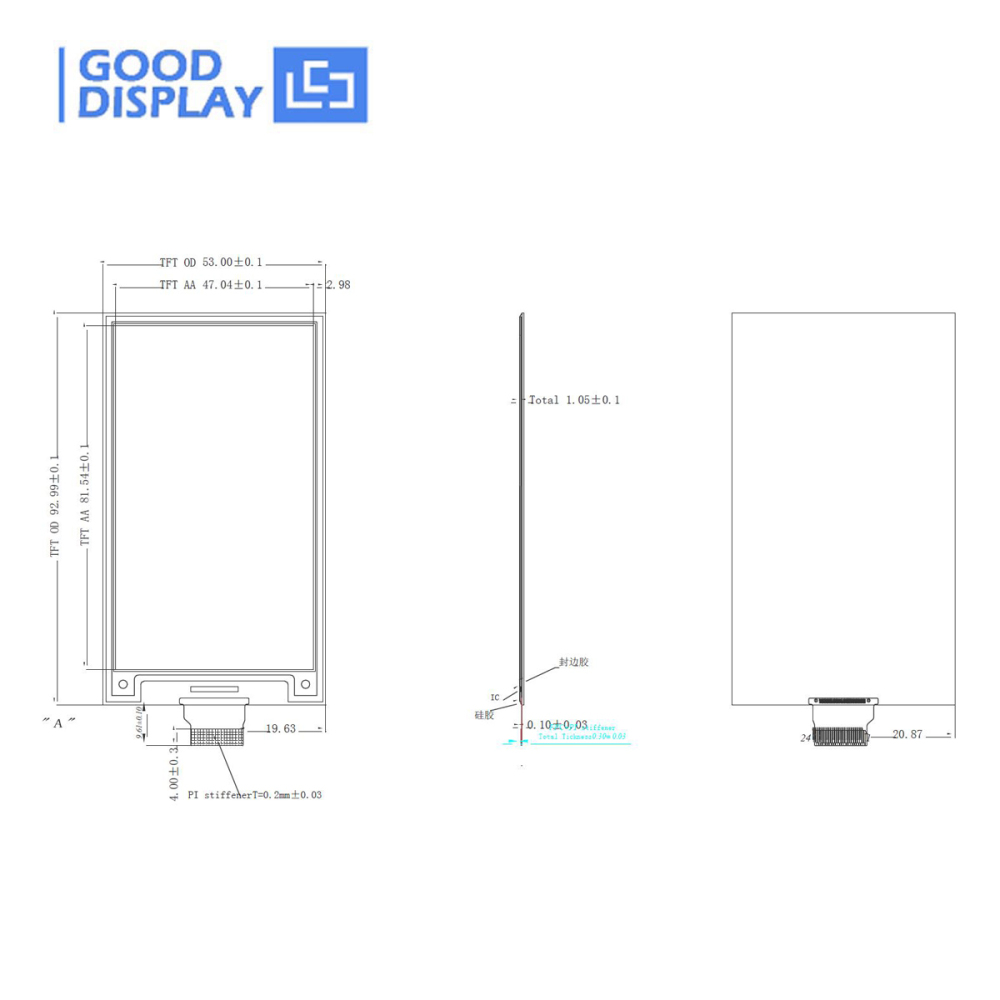

OUTLINE SIZE(mm)

92.99x53x1.05

ACTIVE SIZE(mm)

81.54x47.04

PIXEL PITCH(mm)

0.203x0.202

OPERATING TEMP.

0℃~40℃

STORAGE TEMP.

-25℃~60℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black, White, Red

INTERFACE

SPI

FULL REFRESH(s)

16

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.09




 SPECIFICATION DOWNLOAD




1)  GDEH037Z01 Specification
2)  IC Driver UC8171 Datasheet
3)  GDEH037Z01 STM32 Sample Code
