☆ INTRODUCTION

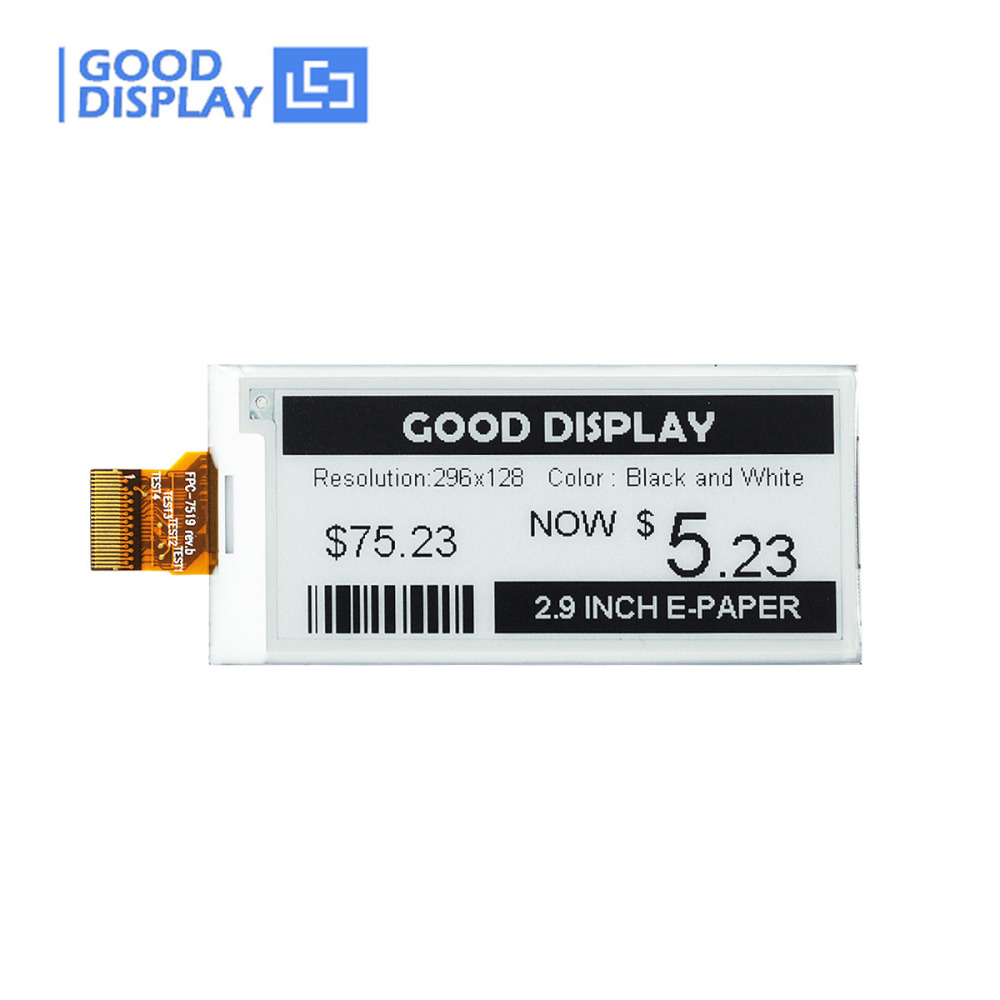

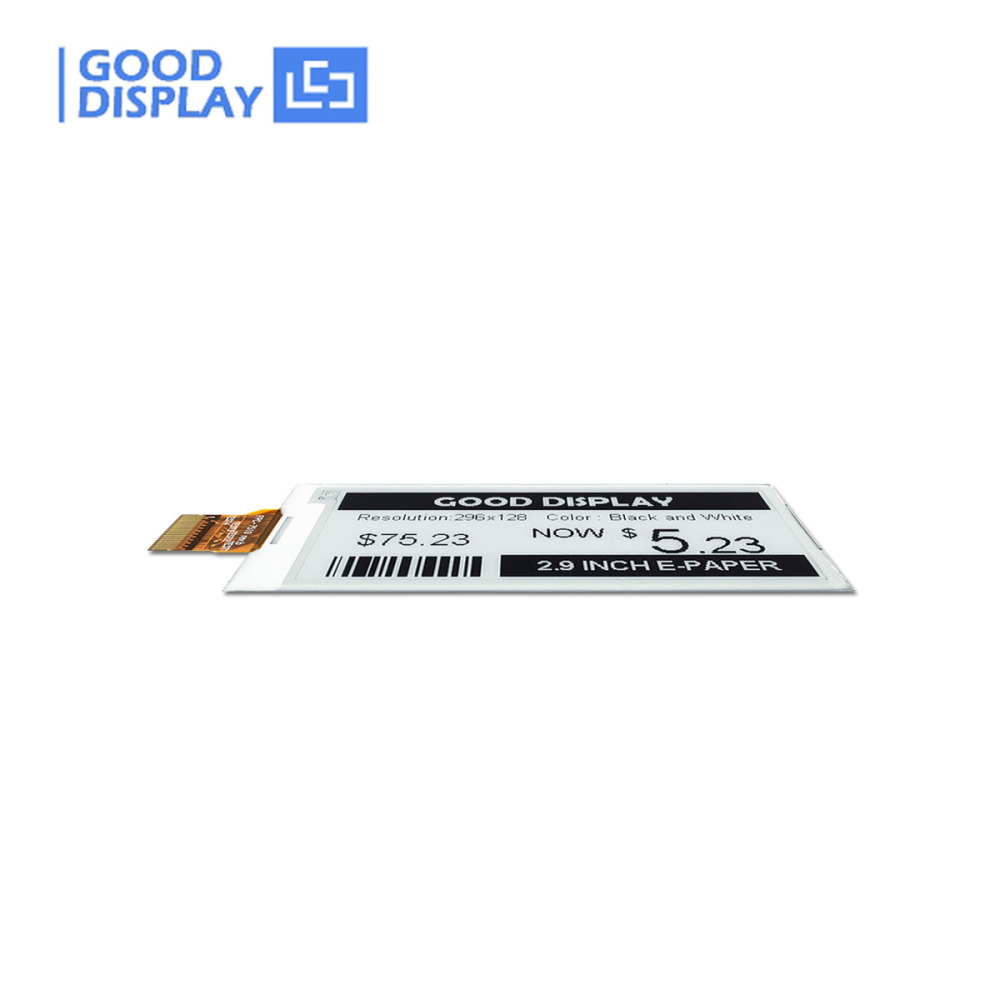

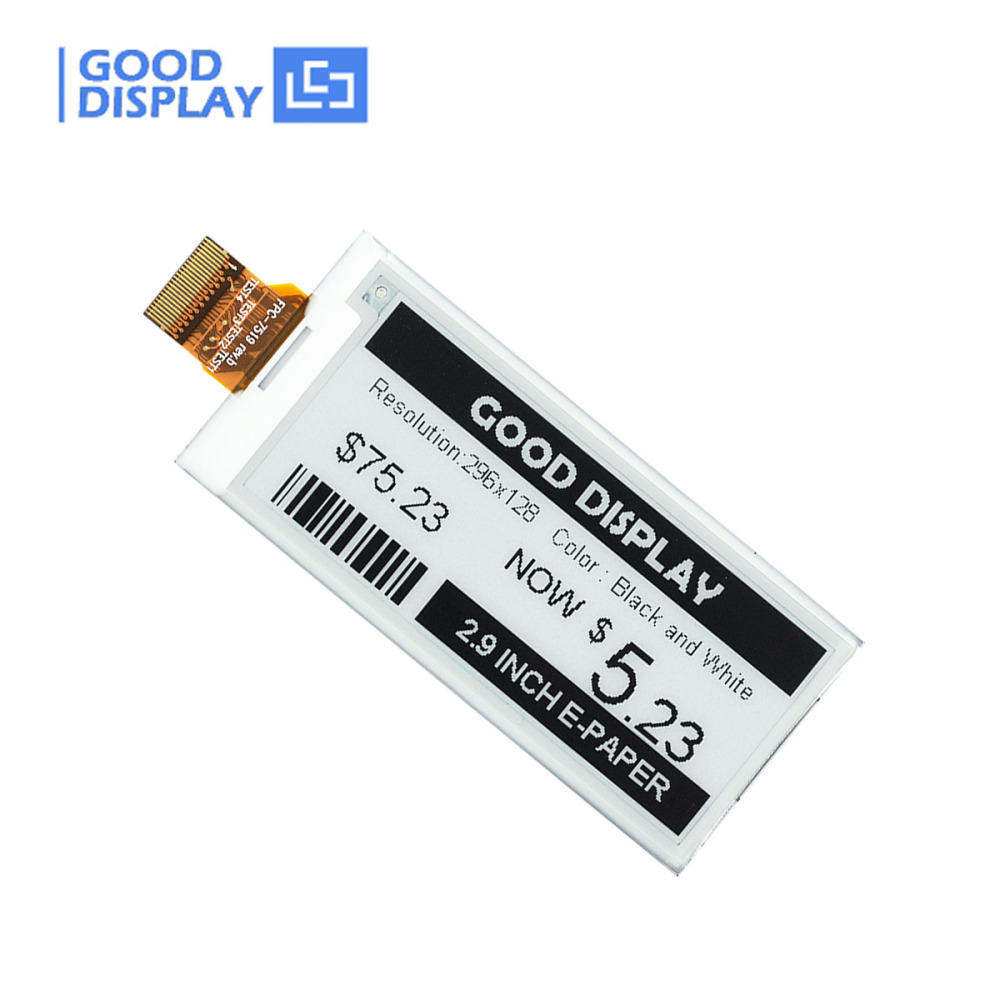

This is a 2.9 inch e-paper screen with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM029T94 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
● Support 4 Grayscale
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● Support partial refresh. The partial refresh rate is 0.3s/frame
● Compared with other 2.9 inch electornic paper displays, the power consumption is lower

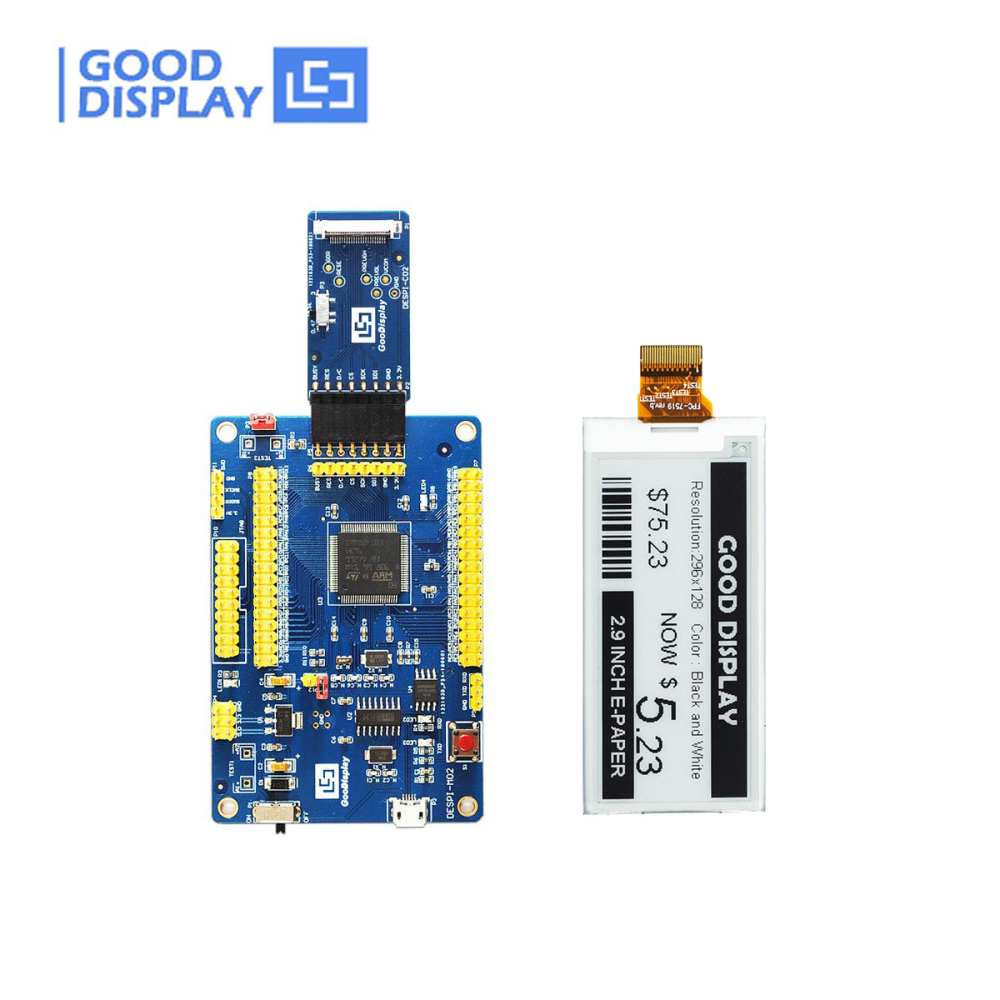

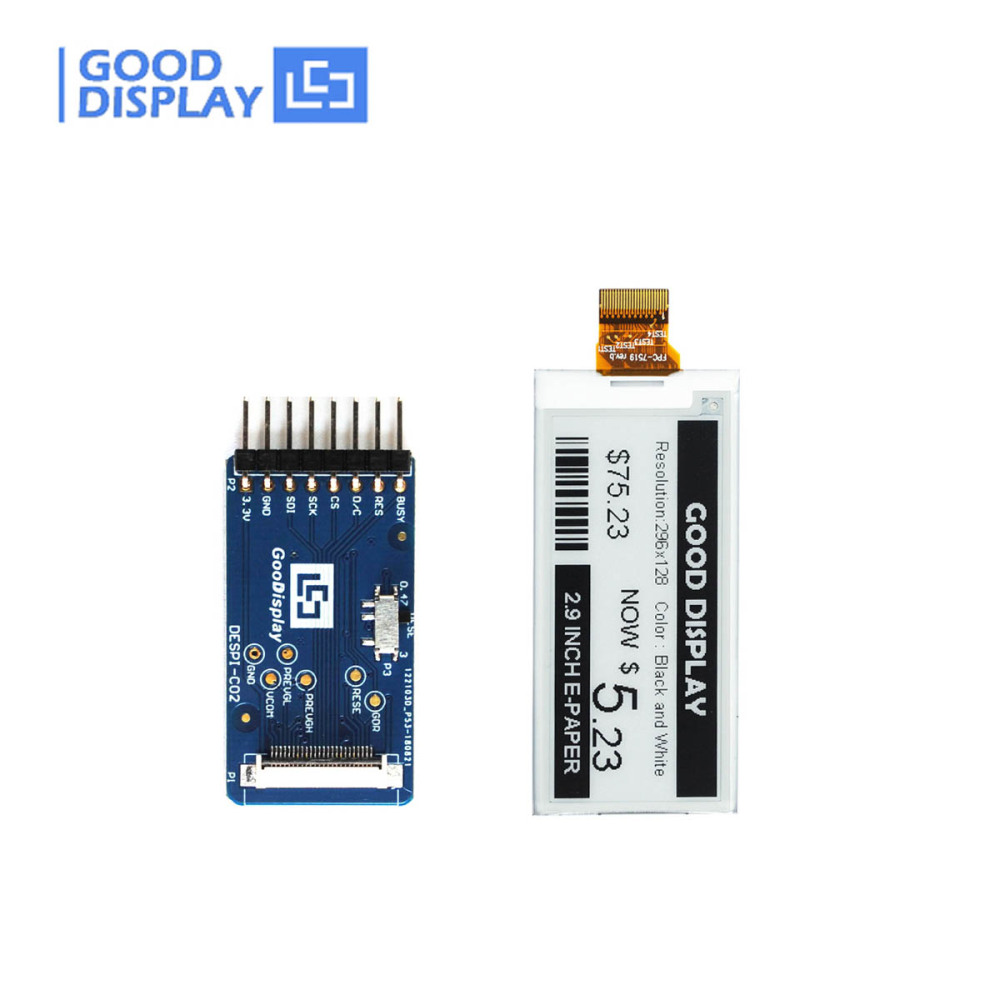

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
|
PART NUMBER |
GDEM029T94 |
|
SIZE |
2.9 inch |
|
TYPE |
Dot Matrix |
|
IC |
SSD1680 |
|
RESOLUTION |
296x128 |
|
OUTLINE SIZE(mm) |
79x36.7x1.2 |
|
ACTIVE SIZE(mm) |
66.9x29.06 |
|
PIXEL PITCH(mm) |
0.227x0.226 |
|
OPERATING TEMP. |
0℃~50℃ |
|
STORAGE TEMP. |
-25℃~70℃ |
|
CONNECTOR |

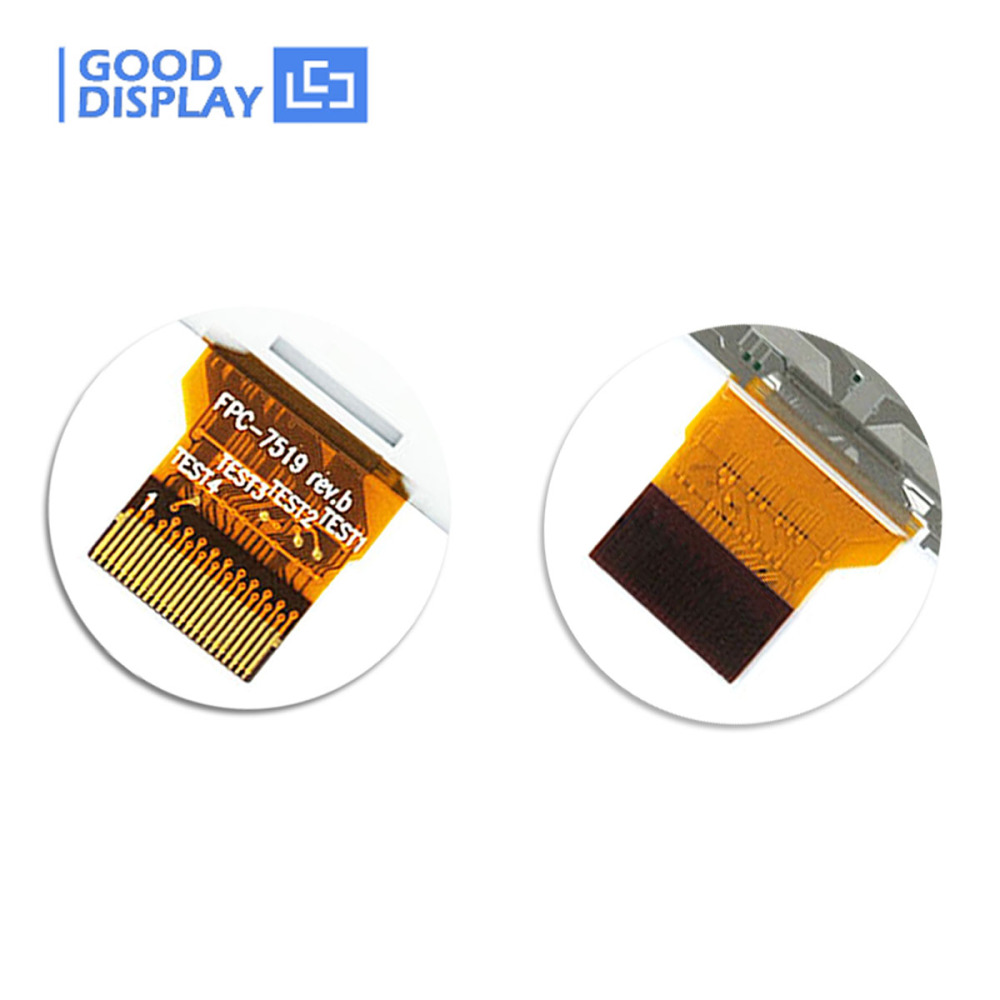

24 Pin FPC |
|
MAX GRAYSCALE |
4 |
|
COLOR |
Black,White |
|
INTERFACE |
SPI |
|
FULL REFRESH(s) |
3 |
|
PARTIAL REFRESH RATE(s) |
0.3 |
|
POWER CONSUMPTION OF THE REFRESH(mW) |
9 |
|
STANDBY POWER CONSUMPTION (mW) |
0.0033 |
1) GDEM029T94 Specification
2) GDEM029T94 Bitmap Conversion
3) IC Driver SSD1680
4) GDEM029T94 STM32 Sample Code
5) GDEM029T94 Arduino Sample Code
6) GDEM029T94 ESP8266 Sample Code
7) GDEM029T94 ESP32 Sample Code
☆ OTHER PRODUCTS
|
Part Number |
Color |
Features |
Refresh Time |
| GDEM029T94 | B/W | Partial refresh, 4 Grayscale | 3S |
| GDEY029T94 | B/W | Partial refresh, 4 Grayscale | 3S |
| GDEW029M06 | B/W | DES,Wide working temperature range,can be used in sunlight and cold environments, Partial refresh | 3S |
| GDEM029E97 |
B/W |
SPI interface |
-- |
|
B/W |
Fast refresh, Partial refresh, 4 Grayscale |
0.82S(fast refresh) |
|
|
B/W |
Ultra-low temperature |
3S |
|
| GDEW029I6FD |
B/W |
Flexible, Partial refresh, 4 Grayscale |
3S |
| GDEH029Z92 | B/W/R | Three colors | 13S |
| GDEH029Z13 | B/W/R | Three colors | 15S |
