2.8inch OLED Modules 256x64 Graphic Display screen, GDO0280B

GDO0280B is the graphic OLED display module made of 256x64 individual,blue OLED pixels,diagonal is only 2.8 inch.The controller ic SSD1322.
Price:
USD
$19.48
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




GDO0280B is the graphic OLED display module made of 256x64 individual,blue OLED pixels,diagonal is only 2.8 inch.The controller ic SSD1322, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire serial interface.

Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




●  Self-luminous, no backlight is required.
●  Ultra low power consumption.
●  Wide operating temperature: -30℃~85℃






 THE ABOVE PRICE INCLUDE



1) 2.8inch OLED Modules 256x64 Graphic Display screen * 1pc




 MAIN PARAMETERS




PART NUMBER GDO0280B
DIAGONAL SIZE 2.8"
DISPLAY MODE Passive Matrix
DISPLAY COLOR Blue

DRIVE Duty



NUMBER OF PIXELS 256x64
INTERFACE SPI
Driver IC SSD1322

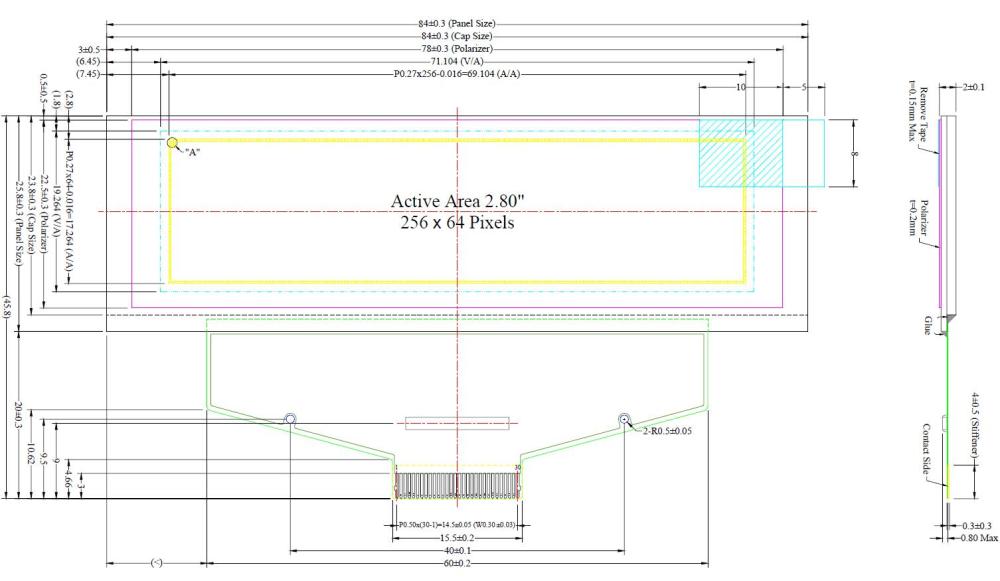

OUTLINE DIMENSION(mm) 84.00x25.80x2.00
ACTIVE AREA(mm) 69.104x17.264
VIEW ANGLE 80/80/80/80
OPERATING TEMP. -30℃~85℃
STORAGE TEMP. -40℃~90℃

POWER SUPPLY

2.8V
