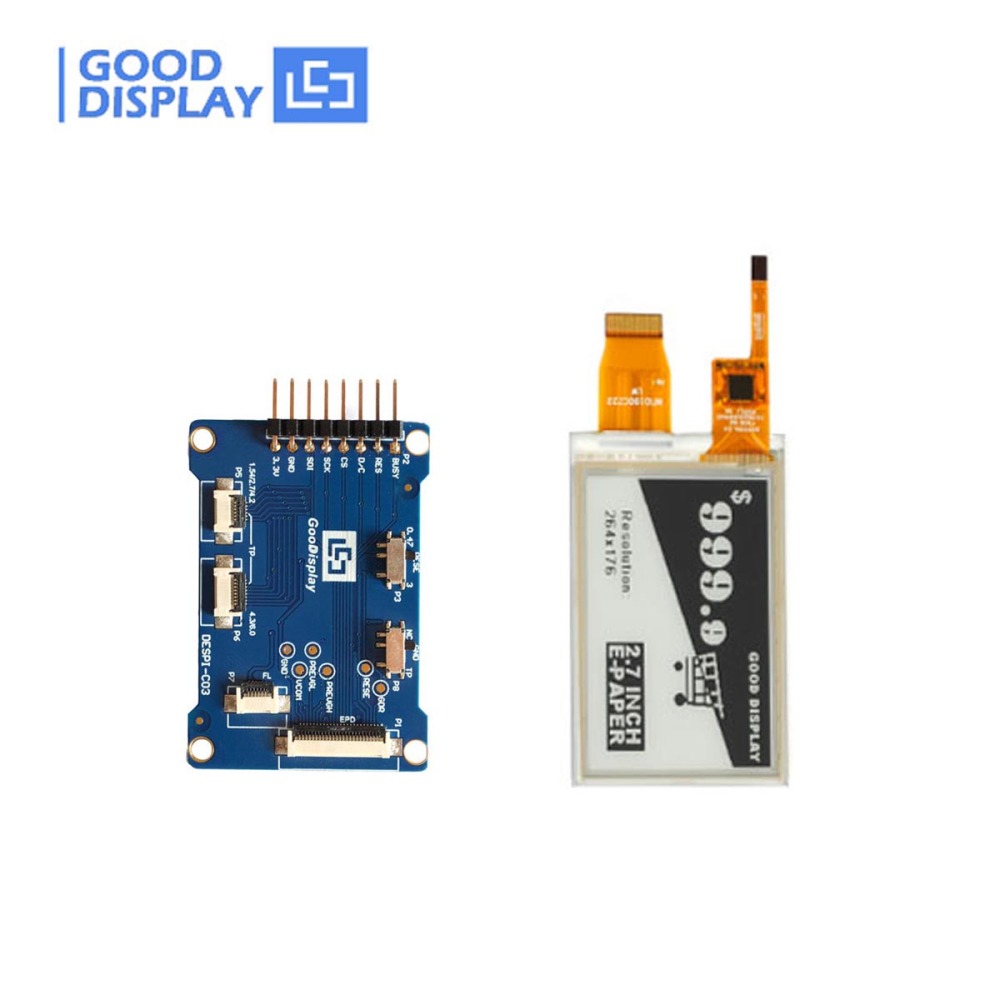

2.7 inch e-ink screen module touch screen panel 4 Grayscale with Demo HAT Connector board

GDEW027W3-T+DESPI-C03
2.7 inch E ink E paper display with touch screen, 264*176 resolution, 24 pins FPC connection, optional FPC connector, 4 Grayscale, SPI interface, with COG package,  supports black, white. HAT connect board.
Price:
USD
$21.58
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews(3)


Any questions, please feel free to contact me, my email is: clara@good-display.com

This is a set of demo kit with a 2.7 inch 264x176 e-ink Epaper display panel 4 Grayscale with touch panel and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. It communicates via SPI interface and IC driver with partial refresh. It's IC Driver is EK79652.

This HAT connection board DESPI-C03 is aim to help to learn how to use the E-paper Display easier, has an interface for touch panel and a power supply for frontlight. Support STM32 , Arduino , Raspberry Pi , and so on.

Partial refresh
4 Grayscale
With touch screen
Front light(optional)
Come with helpful development resources and manual (STM32 platform )
Development platform available STM32 / Arduino Raspberry Pi / ESP8266 / ESP32
1. 2.7 inch e-ink display panel with touch panel *1pc
2. E-paper matched FPC Connector*1pc
3. Touch screen matched FPC Connector*1pc
4. Connector board DESPI-C03  *1pc
5. Helpful resources and manual(sent via email or download link) *1pc

Part Number

GDEW027W3-T

Type

Dot Matrix

IC EK79652

Resolution

264*176(DPI:117)

Outline Size(mm)

70.42*45.8*1.3

Actve Size(mm)

57.288*38.192

Pixel Pitch(mm)

0.217*0.217

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black, White

Max Grayscale

4

Time of refresh(s) 3
Time of partial refresh(s) 0.3
Power consumption of the e-paper only(mW) 26.4
Power consumption of the touch screen(mW) 14.3


Part Number

DESPI-C03

Platform

STM32, Arduino, Raspberry Pi and so on

Function

Connection E-paper Display with DESPI-M02

Outside Dimension

52x36mm

Interface

USB Interface

Power Input

DC3.3V

Feature

Fully and Partial refresh

Operating Temp

-20~70℃

Part Number

Color

Resolution

Features

Refresh Time

GDEW027W3

 B/W

264*176

Partial refresh, 4 Grayscale, Frontight/Touch screen(optional)

3S

GDEW027W3-T

     B/W

264*176

Partial refresh, touch screen, 4 Grayscale, Frontight/Touch screen(optional)

3S

GDEH027Z70 B/W/R 264*176 Three colors, Frontight/Touch screen(optional) 16S


E-paper demo kit drive board with multifunction connection adapter board DESPI-V3.0


http://www.e-paper-display.com/products_detail/productId=406.html


Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!! my email is: clara@good-display.com




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
