☆ INTRODUCTION
This is a epaper module consist of E-ink HAT DESPI-C03, DESPI-C02 and 2.7 inch small capacitive touch screen e-ink display GDEY027T91-T01, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027T91-T01 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE

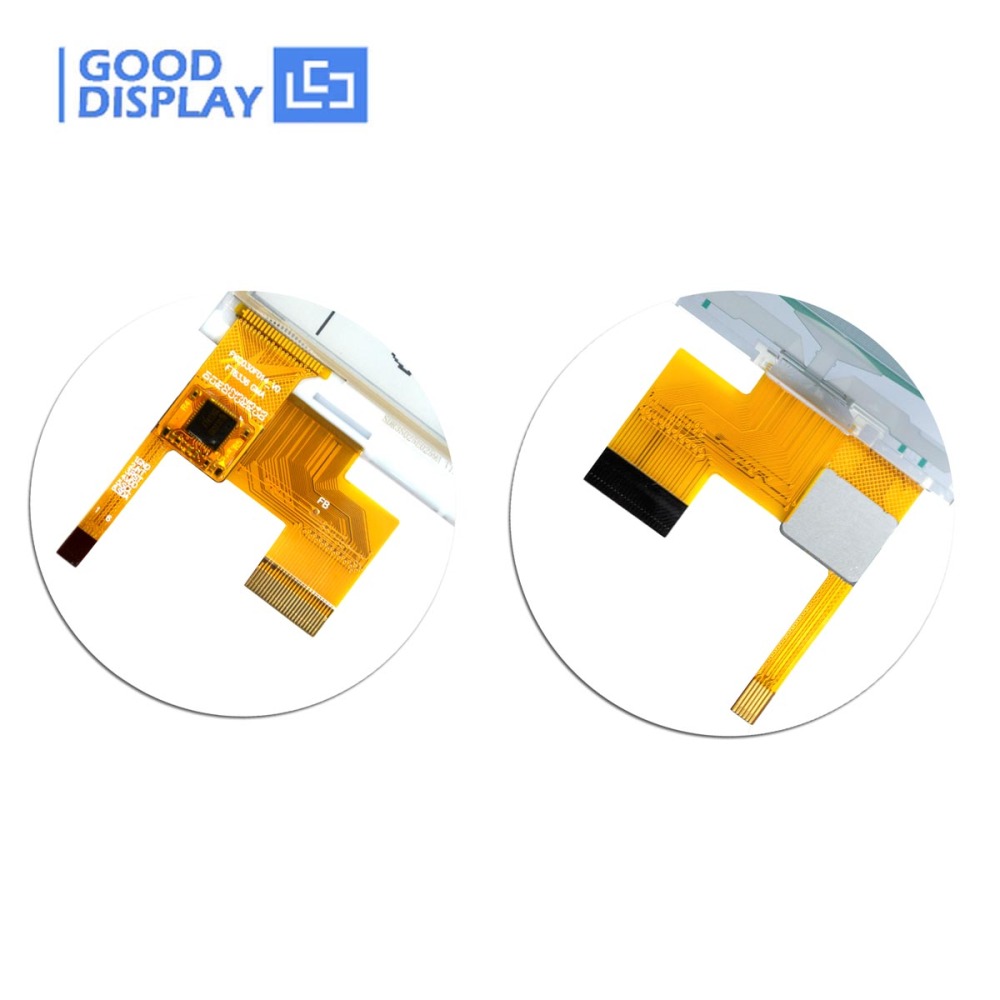

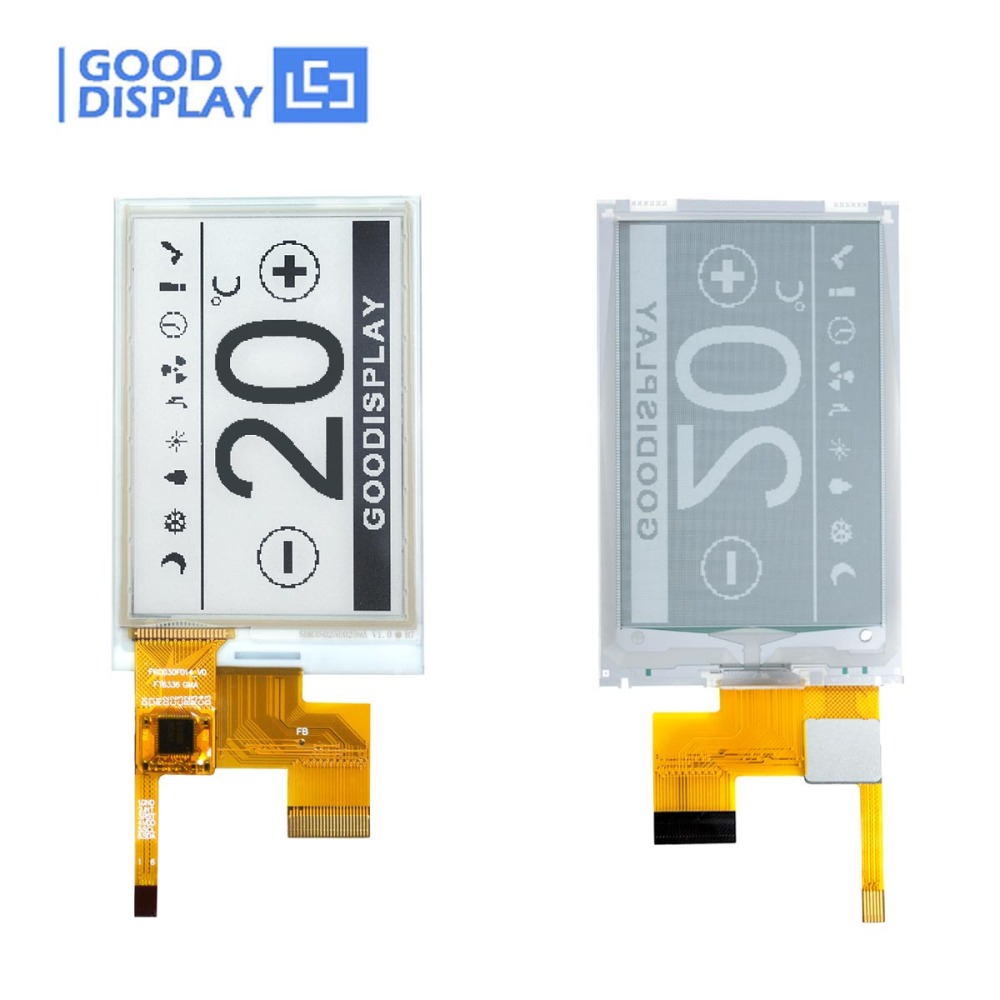

1) 2.7 inch epaper eink display touch screen * 1pc

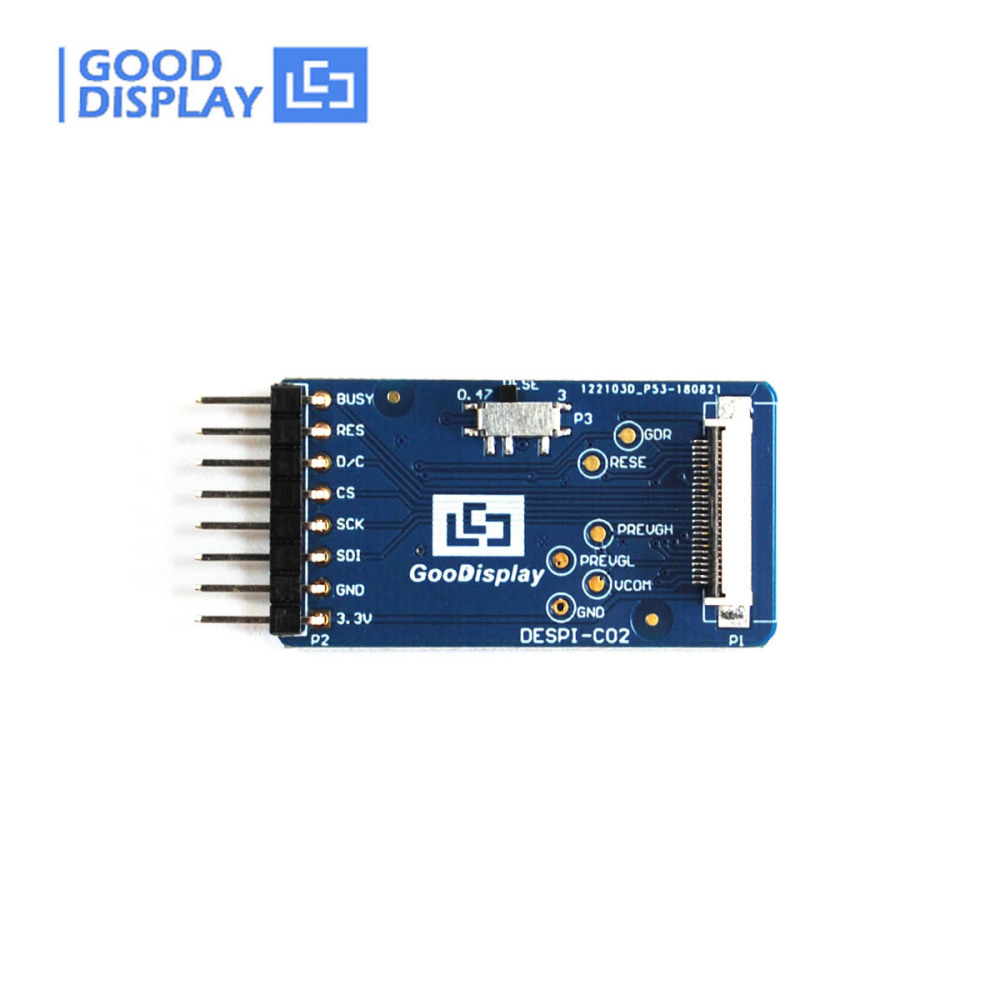

2) Connector board for EPD DESPI-C02 * 1pc

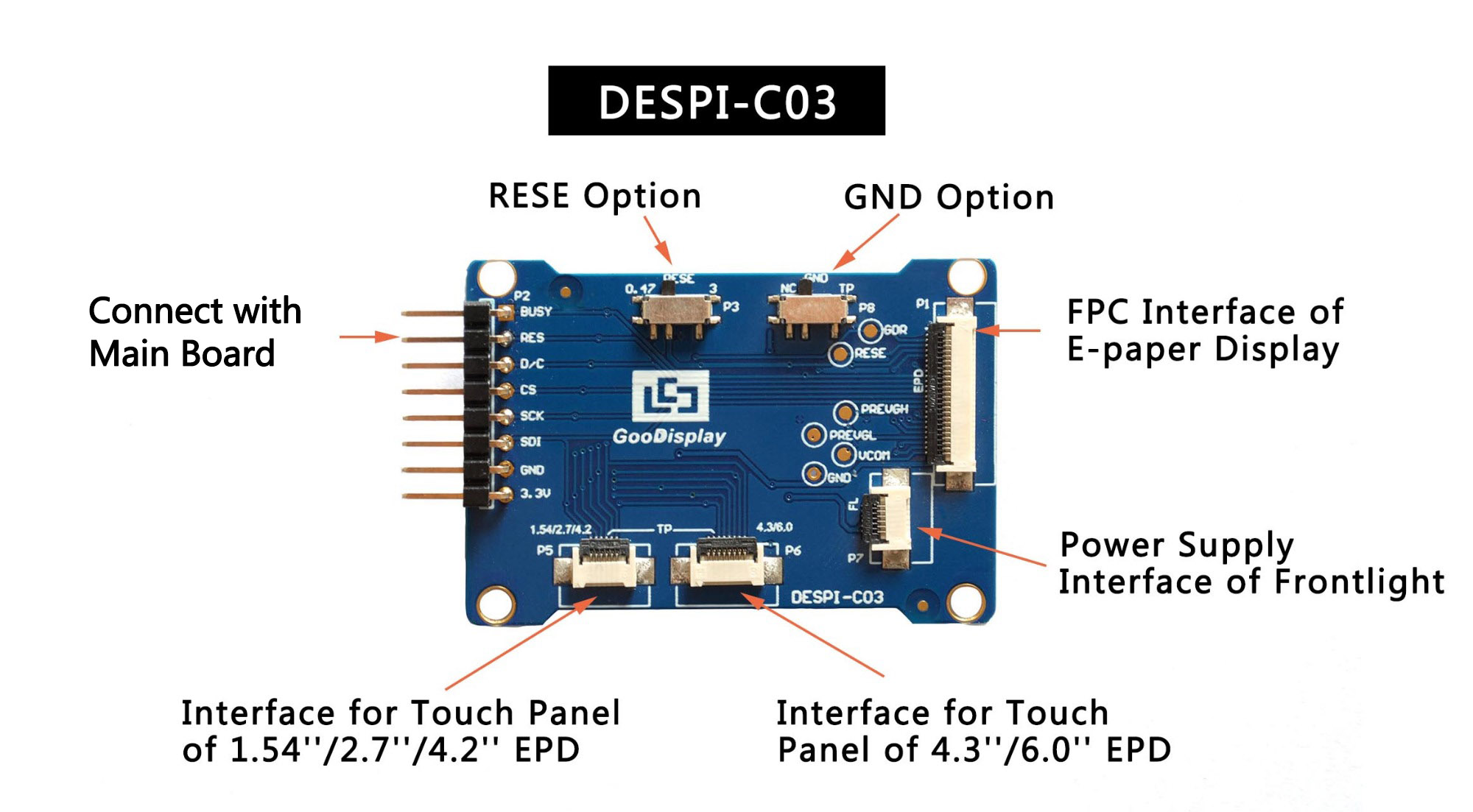

3) Connector board for touch panel DESPI-C03 * 1pc
4) FPC Connector for EPD * 1pc
5) FPC Connector for touch panel * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY027T91-T01
|
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
SIZE
|
2.7 inch
|
MAX GRAYSCALE |
4 |
|
IC
|
SSD1680
|
COLOR |
Black,White |
|
RESOLUTION
|
264x176
|
INTERFACE |
SPI |
|
OUTLINE SIZE(mm)
|
70.42x45.8x1.23
|
FULL REFRESH(s) |
3 |
|
ACTIVE SIZE(mm)
|
57.29x38.19
|
FAST REFRESH(s) |
1.5 |
|
PIXEL PITCH(mm)
|
0.217x0.217
|
PARTIAL REFRESH TIME(s) |
0.42 |
|
OPERATING TEMP.
|
0℃~50℃
|
POWER CONSUMPTION OF THE REFRESH(mW) |
9 |
|
STORAGE TEMP.
|
-25℃~70℃
|
STANDBY POWER CONSUMPTION (mW) |
0.003 |
|
OPERATING VOLTAGE(V)
|
3.3
|
TOUCH SCREEN INTERFACE
|
IIC
|
|
TOUCH SCREEN CURRENT(mA)
|
5
|
|
|
|
PART NUMBER
|
DESPI-C02
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Connection E-paper Display with Drive Board
|
|
OUTSIDE DIMENSION
|
41x22mm
|
|
INTERFACE
|
SPI
|
|
POWER INPUT
|
DC3.3V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
|
PART NUMBER
|
DESPI-C03
|
|
PLATFORM
|
STM32, Arduino, Raspberry Pi and so on
|
|
FUNCION
|
Connection E-paper Display with DESPI-M02
|
|
OUTSIDE DIMENSION
|
52x36mm
|
|
INTERFACE
|
USB Interface
|
|
POWER INPUT
|
DC3.3V
|
|
FEATURE
|
Fully and Partial refresh
|
|
OPERATING TEMP.
|
-20~70℃
|
☆ DRAWING
☆ FEATURE
● Support 4 Grayscale
● Support 1.5s fast refresh
● With capacitive touch screen
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.42s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
