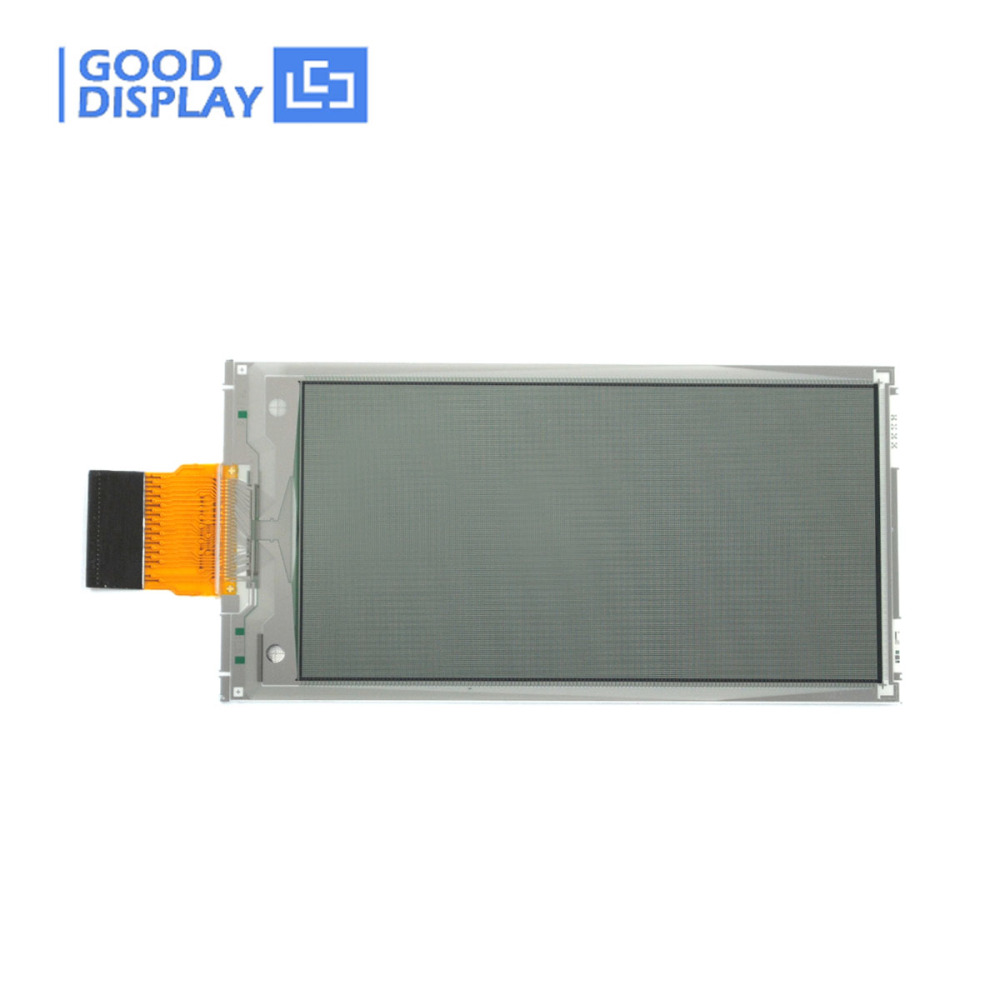

2.66 inch colorful red e-ink display screen module, GDEM0266Z90

This is a color 2.66 inch e-ink display with 152x296 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface. The refresh time is 14s. The I2C signal master interface to read built-in temperature sensor. Its IC is SSD16
Price:
USD
$7.00
    Please select the information you wantX
  • 规格:
    EPD
    With adapter board
    With demo kit
Quantity:
-
+
(125 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com




This is a color 2.66 inch e-ink display with 152x296 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface. The refresh time is 14s. The I2C signal master interface to read built-in temperature sensor. Its IC is SSD1680.

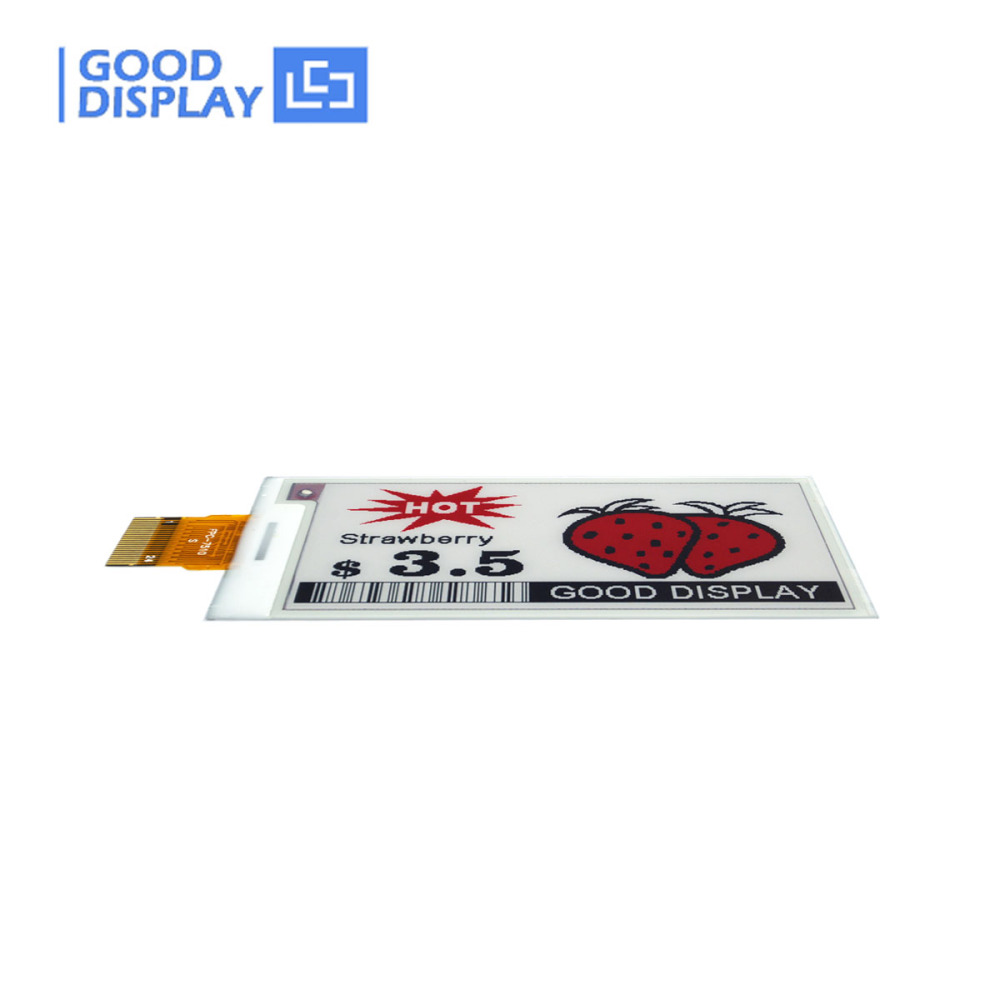

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEM0266Z90 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.


*Note: All of 3-color epaper doesn't support partial refresh


1)color 2.66 inch 152x296 e-ink display * 1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.

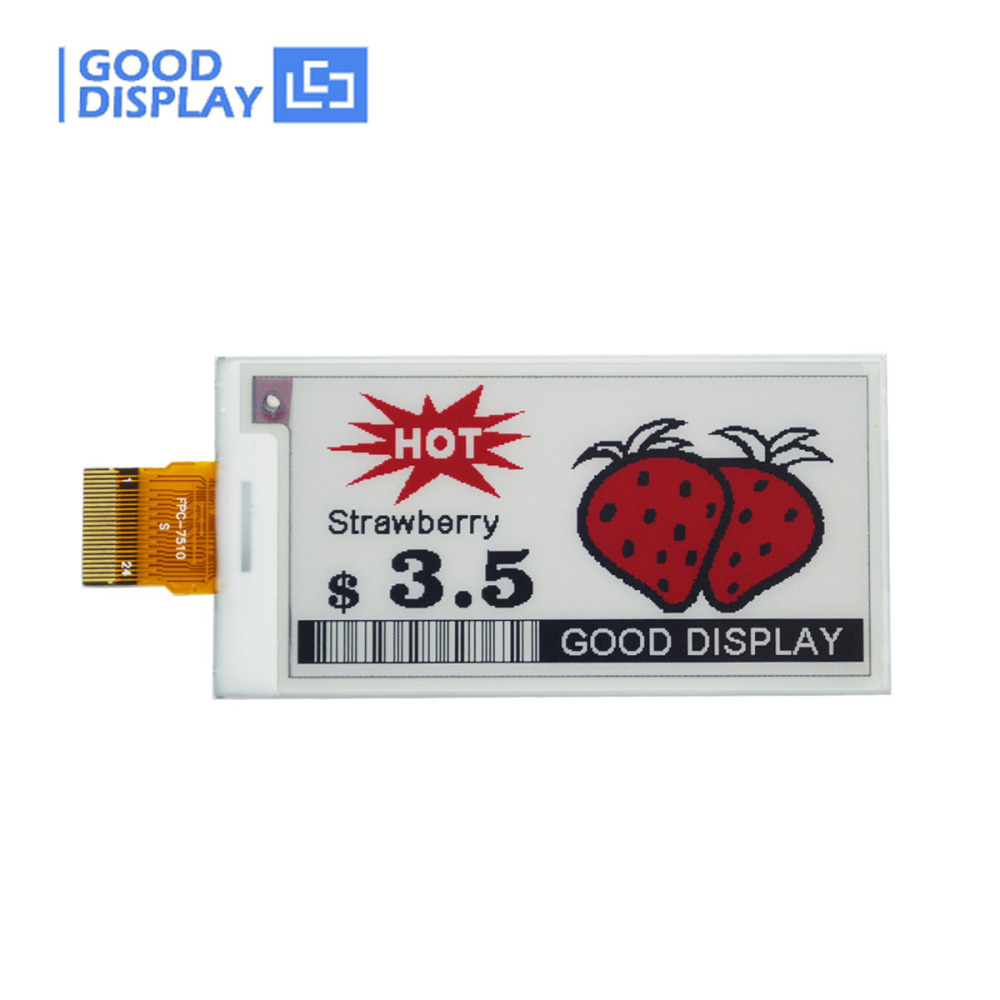

Three colors, black, white and red
The refresh time is 14s.
152x296 resolution
Come with helpful development resources and manual
The I2C signal master interface to read built-in temperature sensor.
Development platform available
STM32 / Arduino Raspberry Pi / ESP8266

Part Number GDEM0266Z90
Size 2.66 inch
IC SSD1680
Type Dot Matrix
Resolution 152(H)×296(V)

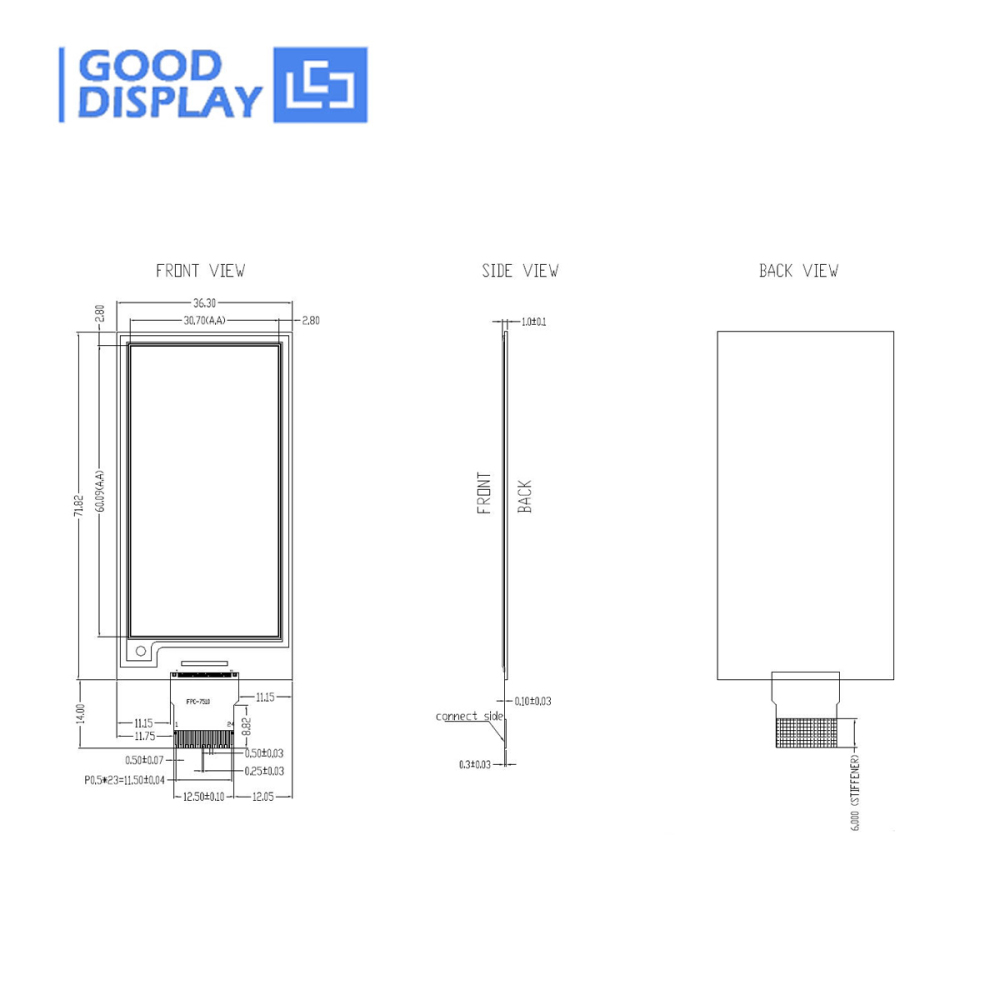

Outline Size(mm) 36.304x71.820x1.0
Active Size(mm) 30.704x60.088
Pixel Pitch(mm) 0.202x0.203
Operating Temp. 0℃~40℃
Storage Temp. -25℃~40℃

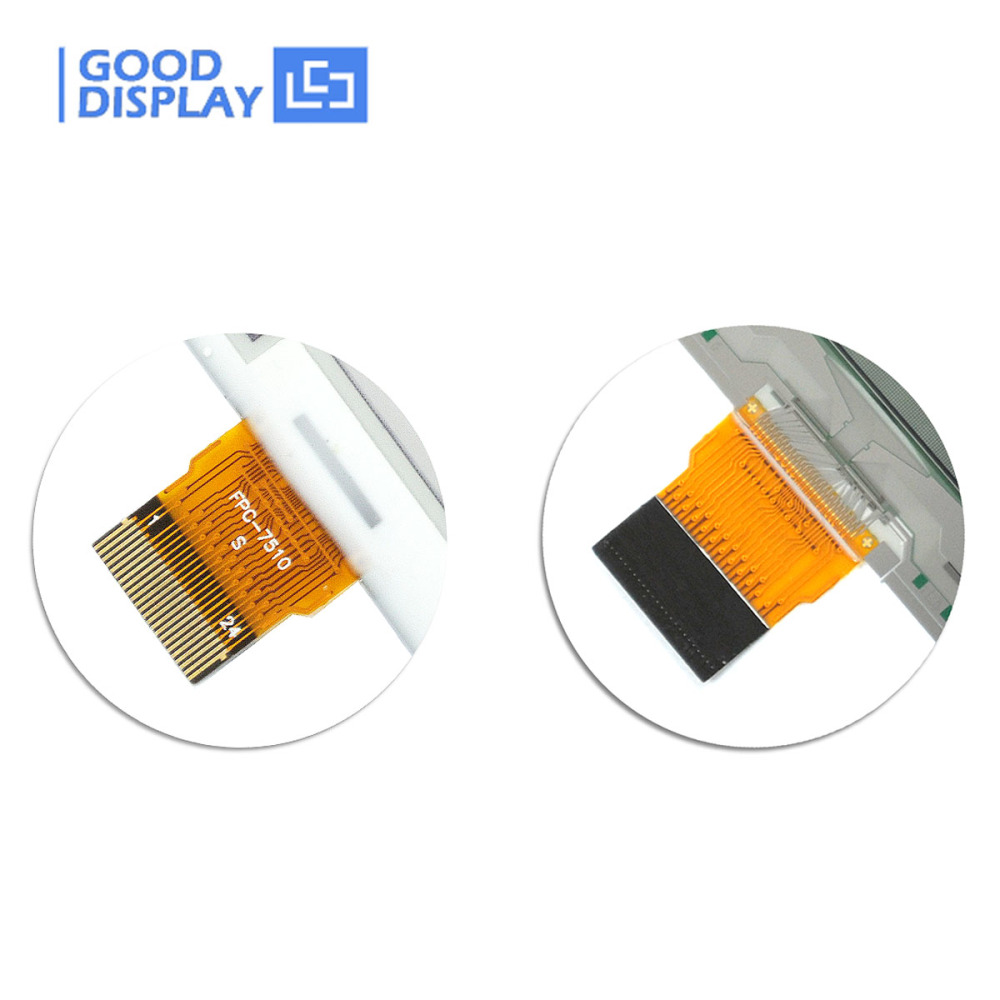

Connector 24PIN
Color Black, White and Red
Interface SPI
Power consumption of the refresh(mW) 12.6
Standby power consumption Pc(mW) 0.003
Time of refresh(s) 14


http://www.good-display.com/product/342.html
