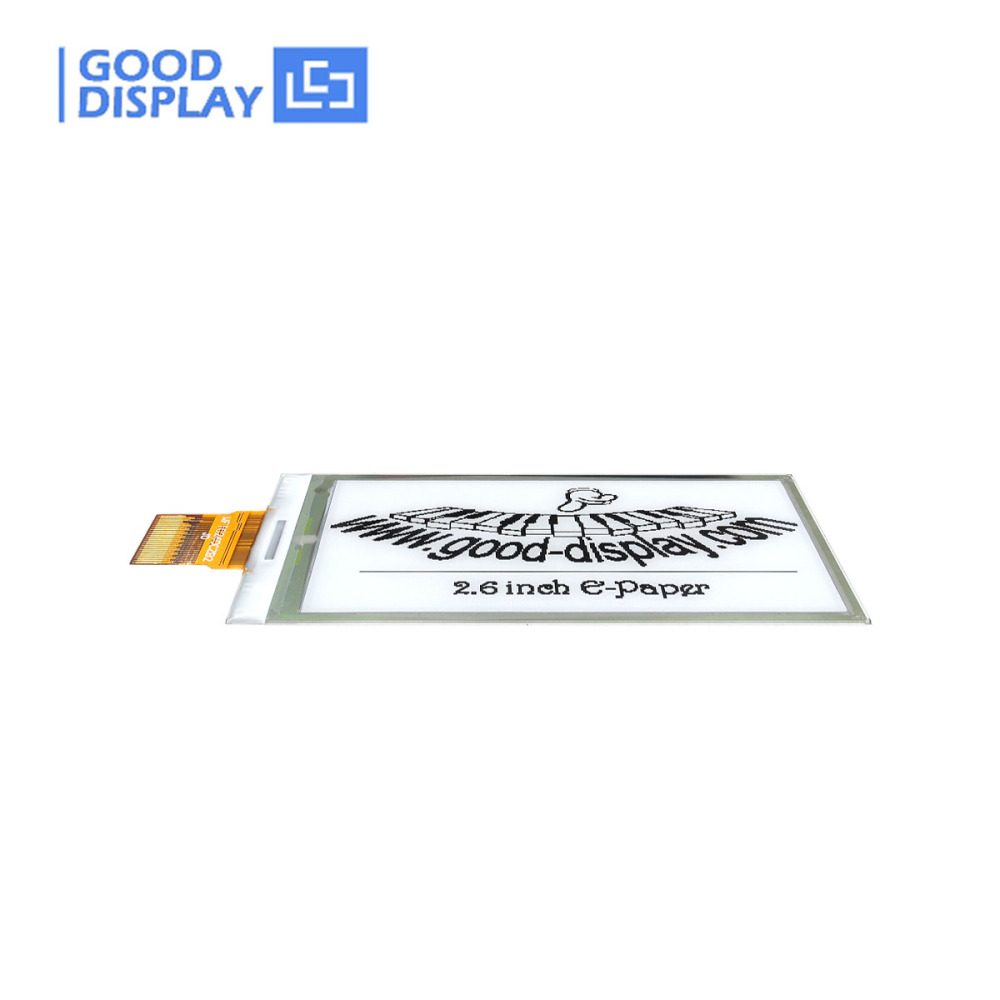

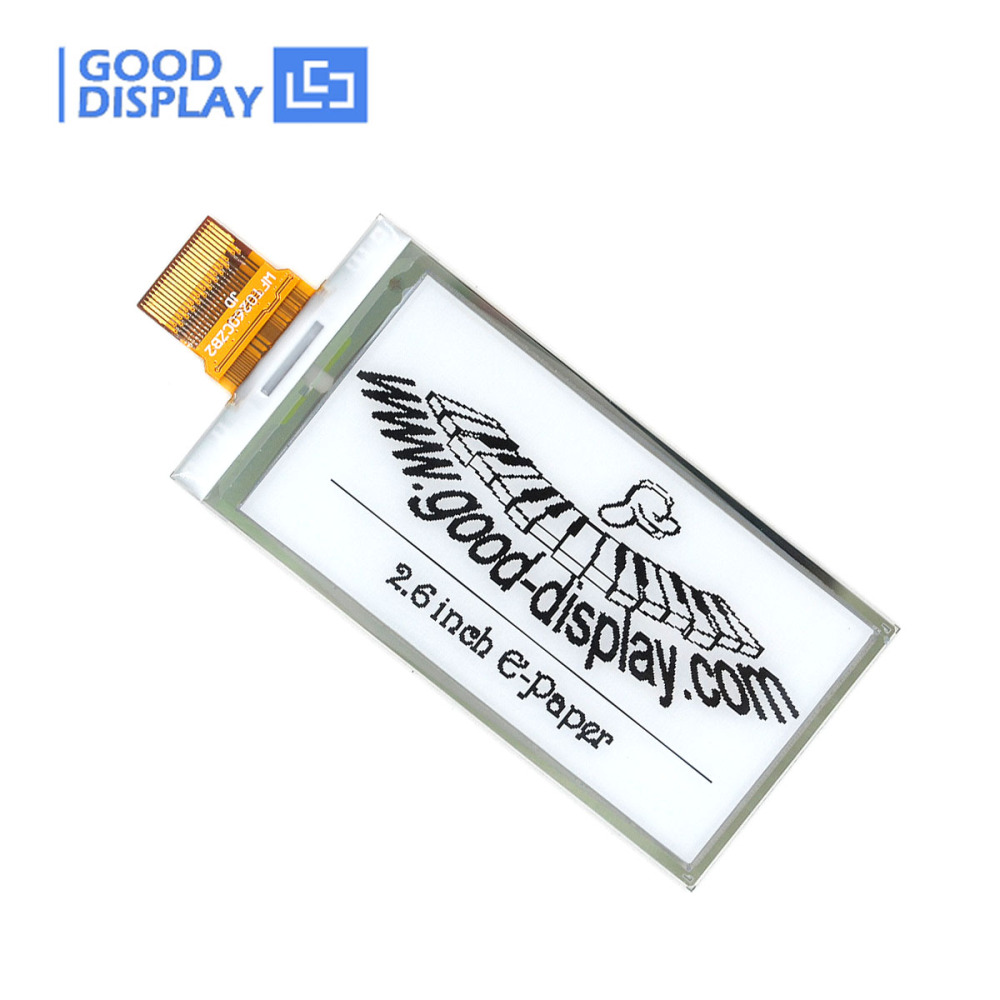

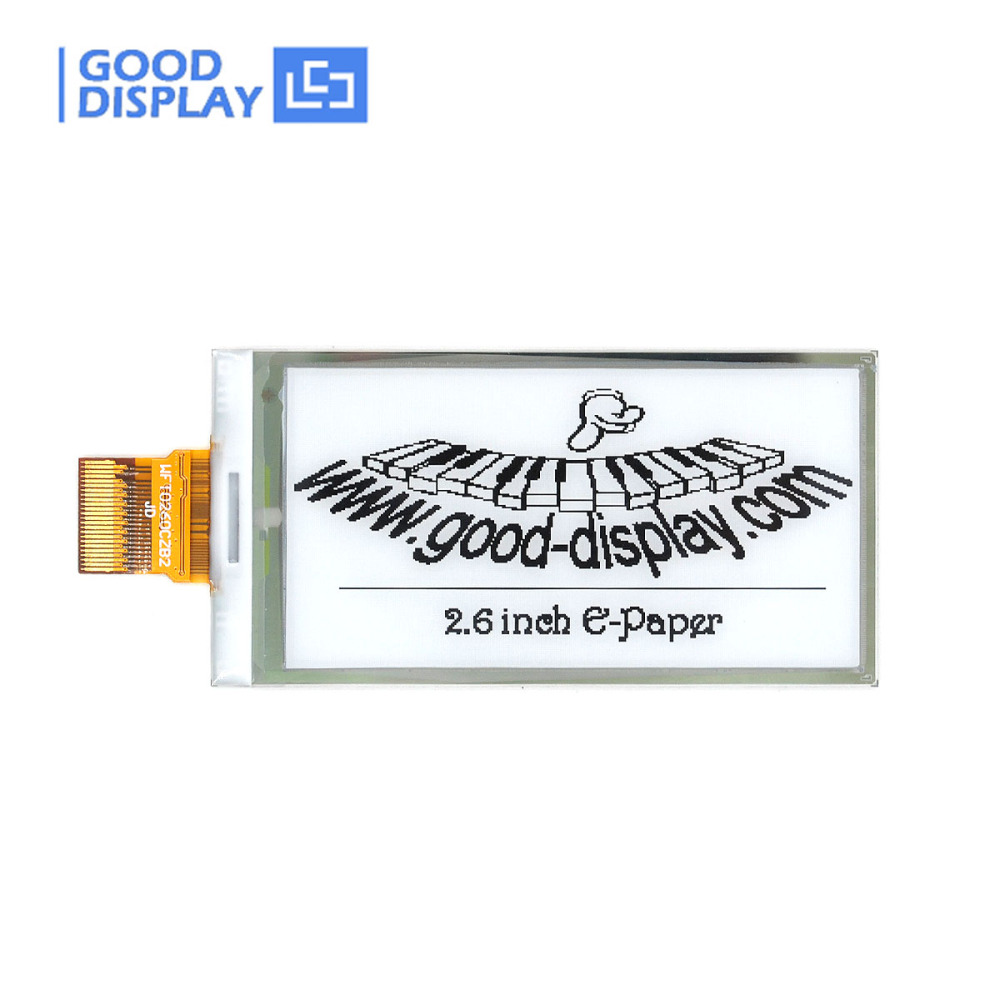

This is a DES (what is DES?) 2.6 inch e-paper display with 296X152 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel. It has wide working temperature range: -20℃~60℃. It can be used in sunlight and cold environments, so it is suitable for outdoor equipment. Its IC Driver is UC8151D.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, used in sunlight, wide working temperature, GDEW026M01 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards, outdoor equipment. Also it can be used in cold environment.
1)2.6''e ink GDEW026M01 *1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.
It is manufactured using a new process: DES, DES series products have the following characteristics:
* High contrast, better display effect, can be used in sunlight
*Wide working temperature range: -20℃~60℃, can be used in cold environments
(operating temp. of E-ink technology epaper is: 2-color: 0~50℃, 3-color: 0~40℃, low temp.: -25℃~25℃)
We think you can learn more from this contrast video between DES technology epaper and E-ink technology epaper:
The I2C signal master interface to read built-in temperature sensor.
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266 / ESP32
| Part Number | GDEW026M01 |
| Size | 2.6 inch |
| IC | UC8151D |
| Type | DES |
| Resolution | 296x152 |

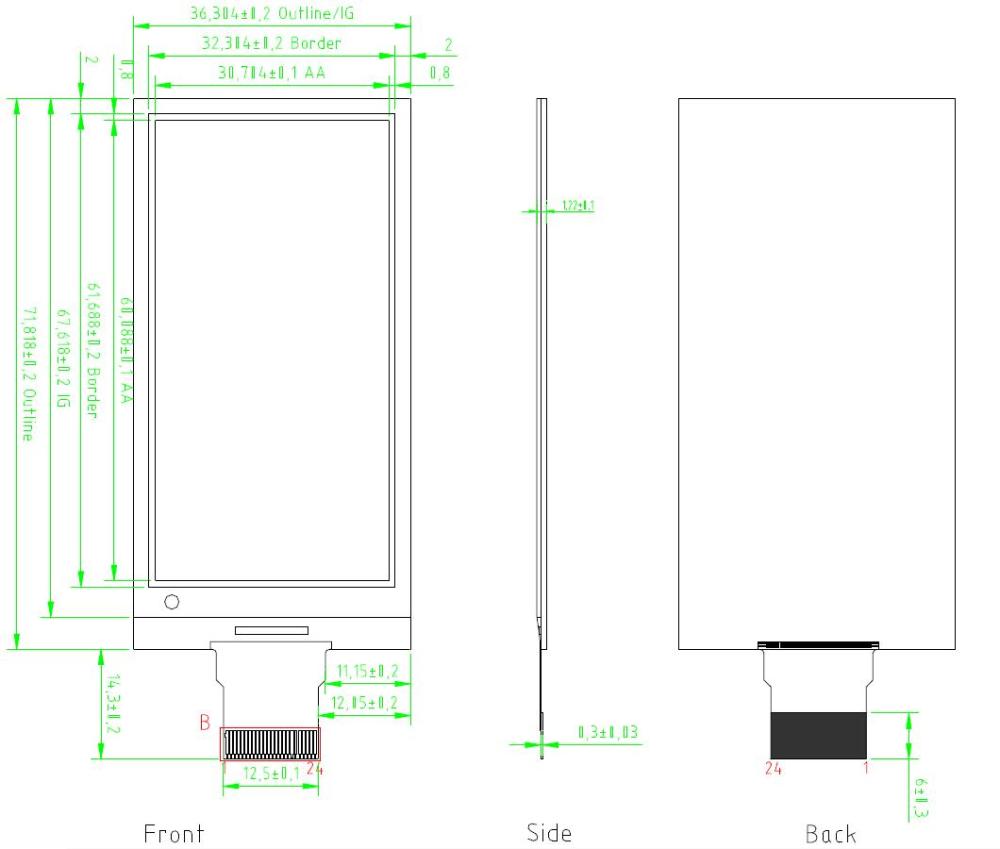

| Outline Size(mm) | 71.818x36.304x1.22 |
| Active Size(mm) | 60.088x30.704 |
| Pixel Pitch(mm) | 0.203x0.202 |
| Operating Temp. | -20℃~60℃ |
| Storage Temp. | -25℃~70℃ |
| Connector | 24 Pin FPC |
| Color | Black, White |
| Max Grayscale | 2 |
| Power consumption of the refresh(mW) | 18 |
| Standby power consumption Pc(mW) | 0.0165 |
| Time of refresh(s) | 3 |
| Interface | SPI |
|
Part Number |
Size/Color |
Refresh Time |
Feature |
|
1.54 inch/BW |
3S (full refresh) |
IC UC8151D, Resolution 152x152 |
|
|
2.13 inch/BW |
3S (full refresh) |
IC UC8151D, Resolution 212x104 |
|
|
2.6 inch/BW |
3S (full refresh) |
IC UC8151D, Resolution 296x152 |
|
|
2.9 inch/BW |
3S (full refresh) |
IC UC8151D, Resolution 296x128 |
|
|
4.2 inch/BW |
3S (full refresh) |
IC UC8176, Resolution 400x300 |
|
|
5.83 inch/BW |
3S (full refresh) |
IC UC8179, Resolution 648x400 |
|
|
6.0 inch/Full Color |
1S (full refresh) |
Full color, IC Double JD79632, Parallel interface, 16 Grayscale, Resolution 1072x1448 |
|
| GDEW075M10 | 7.5 inch/BW | 3S (full refresh) | IC UC8179, Resolution 800x400 |
|
7.8 inch/Full Color |
1S (full refresh) |
Full color, Parallel interface, 16 Grayscale, Resolution 1872x1404 |
