☆ INTRODUCTION

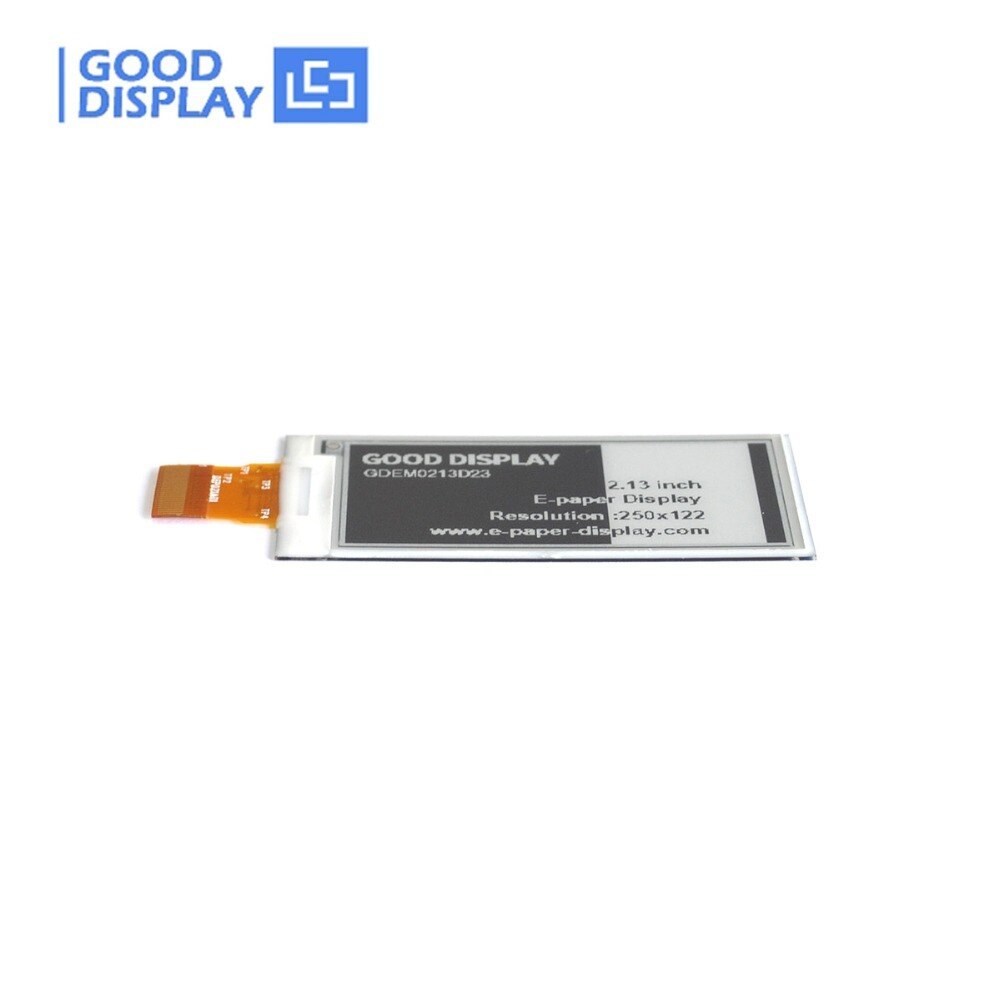

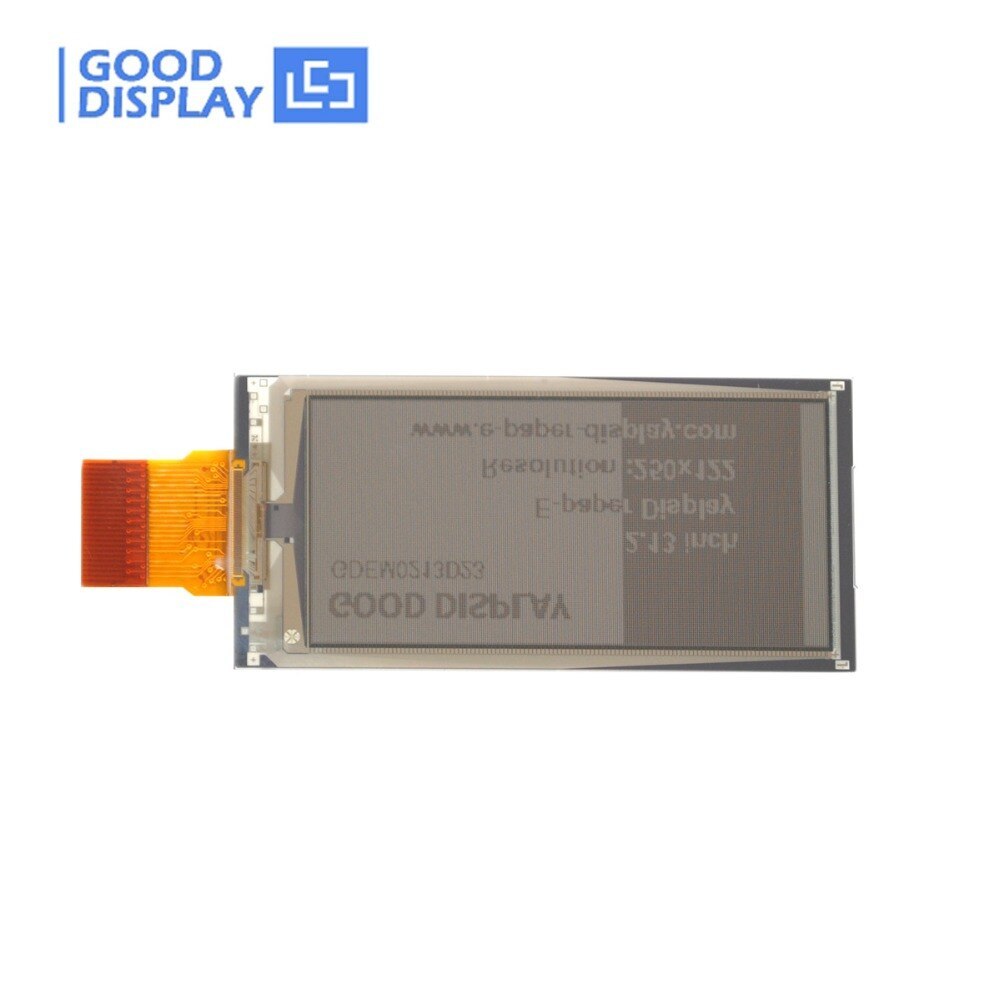

This is a 2.13 inch e-paper screen with 250x122 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0213D23 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor

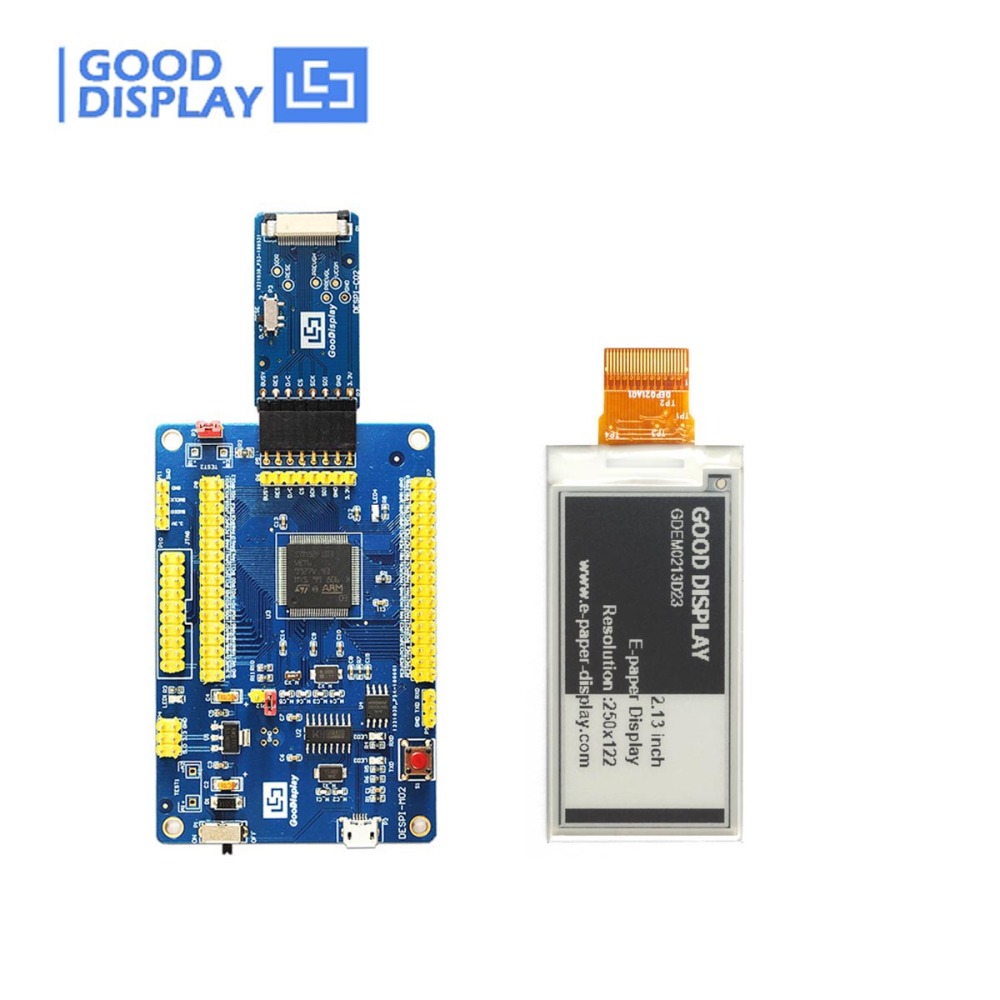

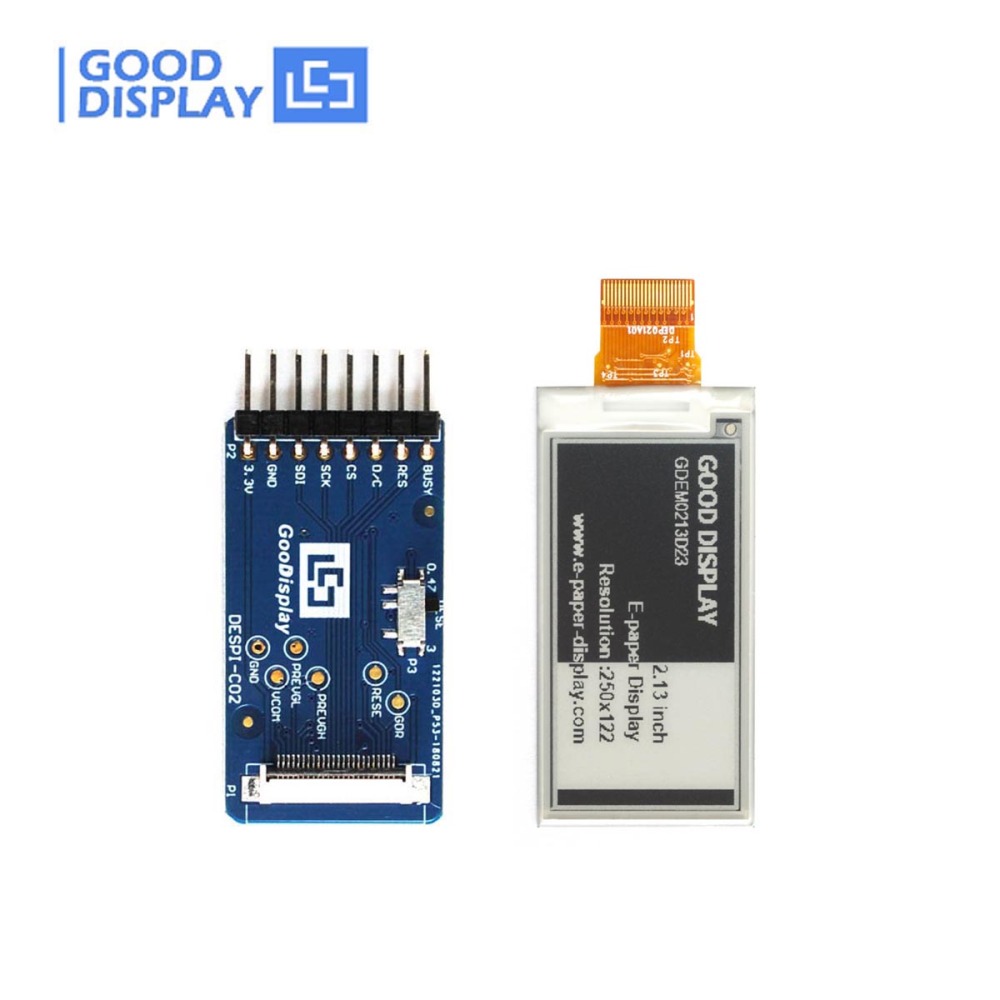

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE

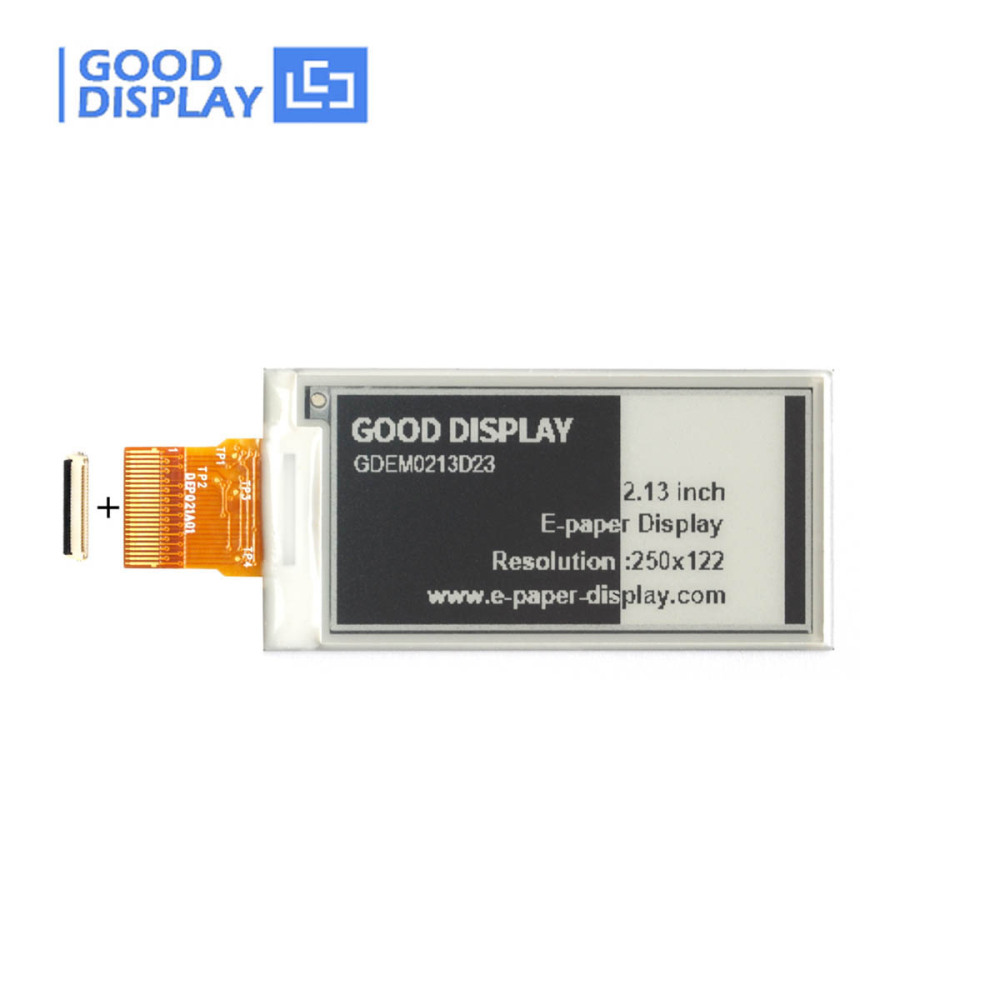

1) 2.13 inch Black and white EPD e-paper display screen GDEM0213D23 * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEM0213D23
|
|
TYPE
|
Dot Matrix
|
|
RESOLUTION
|
250x122
|
|

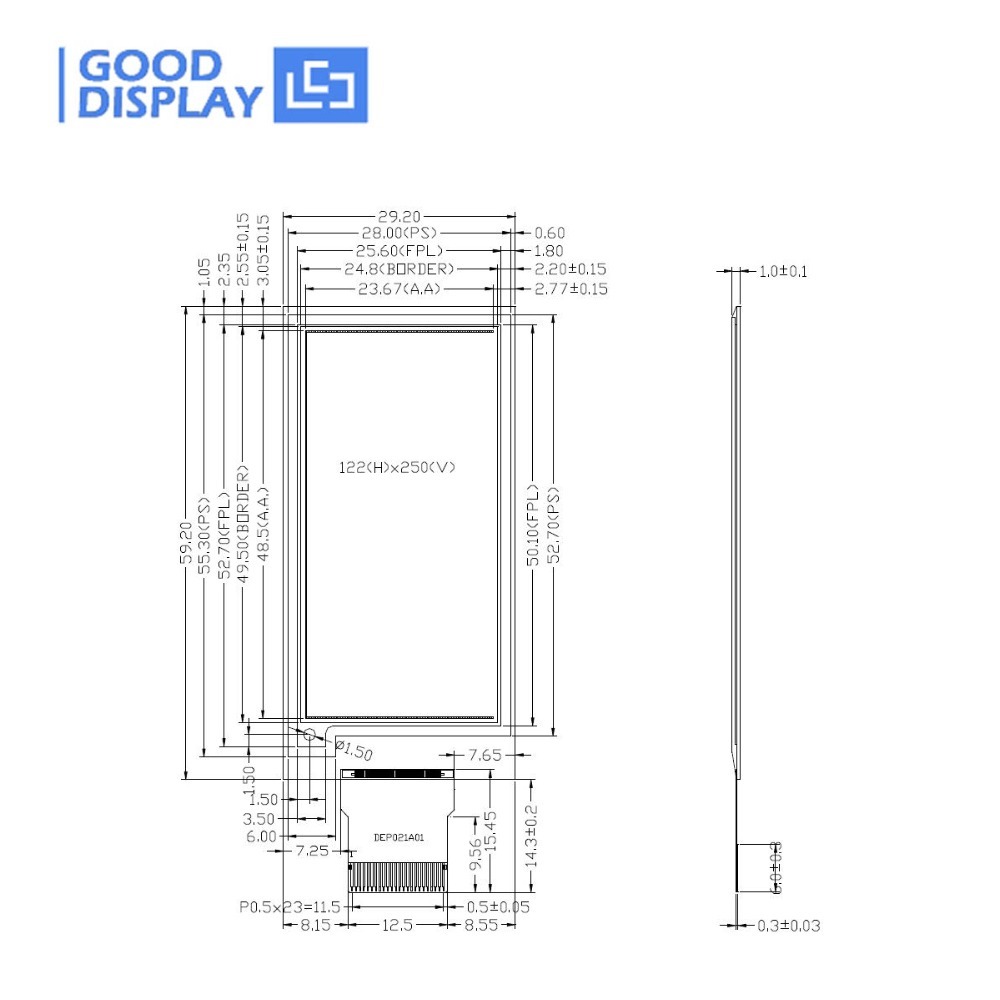

OUTLINE SIZE(mm)
|
29.2x59.2x1.05
|
|
ACTIVE SIZE(mm)
|
23.67x48.50
|
|
PIXEL PITCH(mm)
|
0.194x0.194
|
|
OPRATING TEMP.
|
0℃~25℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|

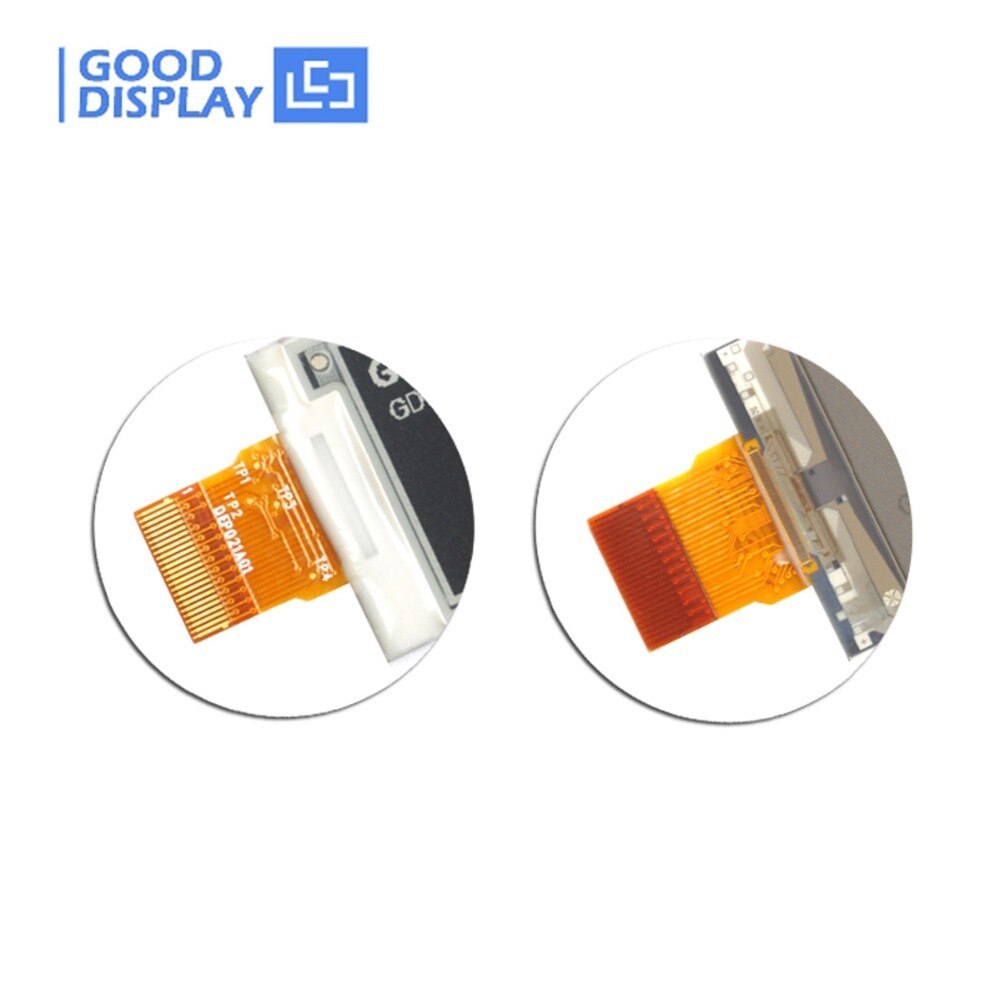

CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
2
|
|
COLOR
|
Black,White
|
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
Resolution |
Features
|
Refresh Time |
| GDEW0213M21 |
BW |
212x104 |
UC8151D, DES, High contrast |
3s |
| GDEW0213T5D |
BW |
212x104 |
UC8151D, Partial Refresh, 4 Grayscale |
3s |
| GDEW0213I5FD |
BW |
212x104 |
UC8151D, Flexible, Partial Refresh |
3s |
| GDEM0213B74 |
BW |
250x122 |
SSD1680, Partial Refresh |
3s |
| GDEM0213D23 |
BW |
250x122 |
High Resolution |
- |
| GDEW0213V7LT |
BW |
212x104 |
UC8151D, -25℃~10℃, Partial Refresh |
3s |
| GDEM0213U23 |
BWR |
250x122 |
Colorful(Red) |
- |
| GDEY0213Z98 |
BWR |
250x122 |
SSD1680, Colorful(Red) |
14s |
| GDEH0213Z19 |
BWR |
212x104 |
UC8151D, Colorful(Red) |
15s |
