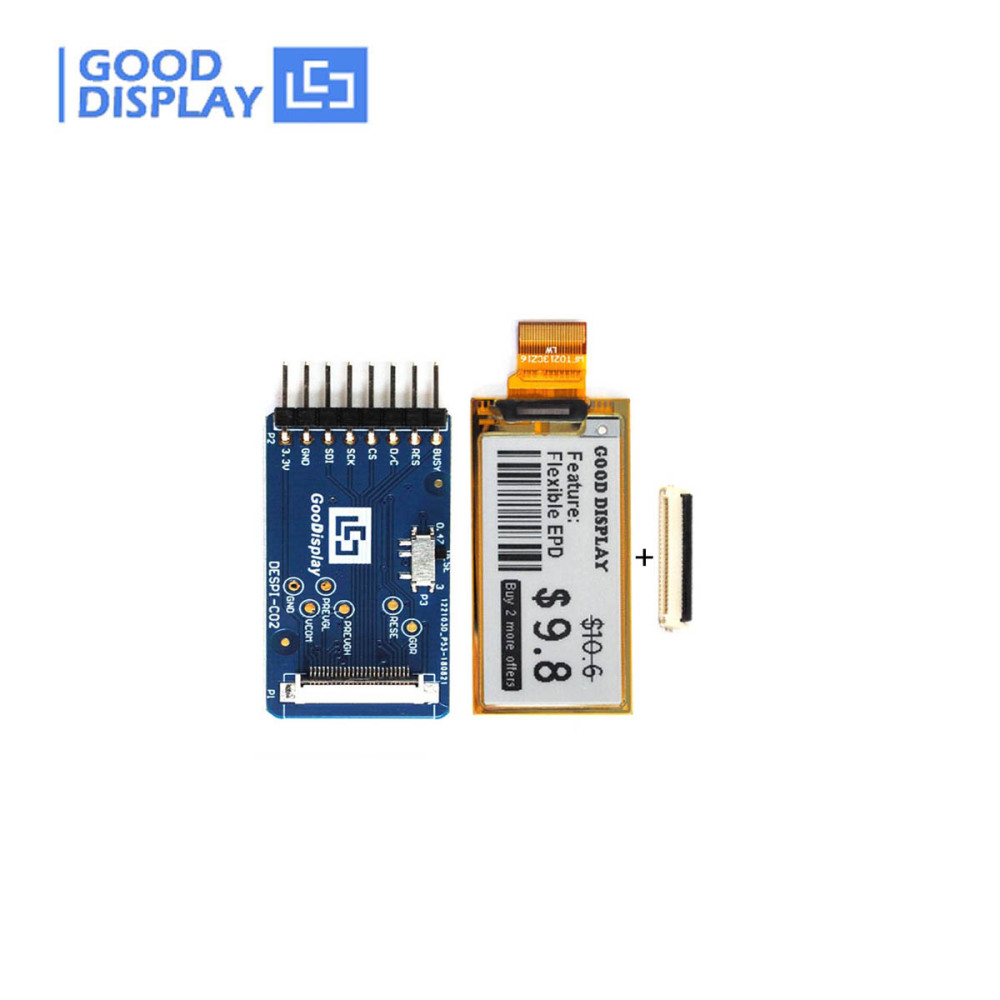

2.13 inch 212*104 flexible ultra-thin partial refresh 4 Grayscale e-paper module with HAT connector board

GDEW0213I5F+DESPI-C02
2.13 inch 212*104 flexible ultra-thin 4 Grayscale E ink Epaper display panel and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. With HAT connect board.
Price:
USD
$14.77
Quantity:
-
+
(191 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION

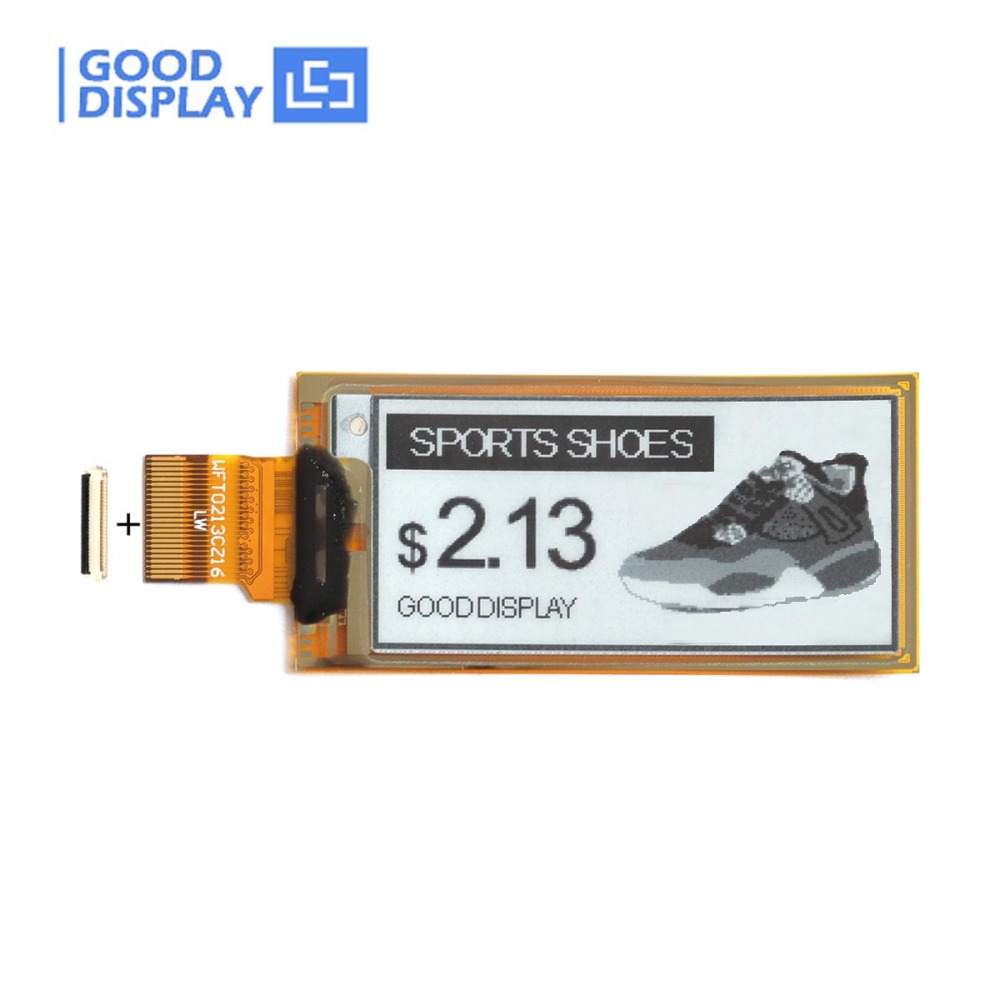

This is a set of EPAPER HAT with 2.13 inch flexible e-paper display use the flexible substrate as base plate, with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0213I5F is perfect for low power devices powered by solar or batteries.

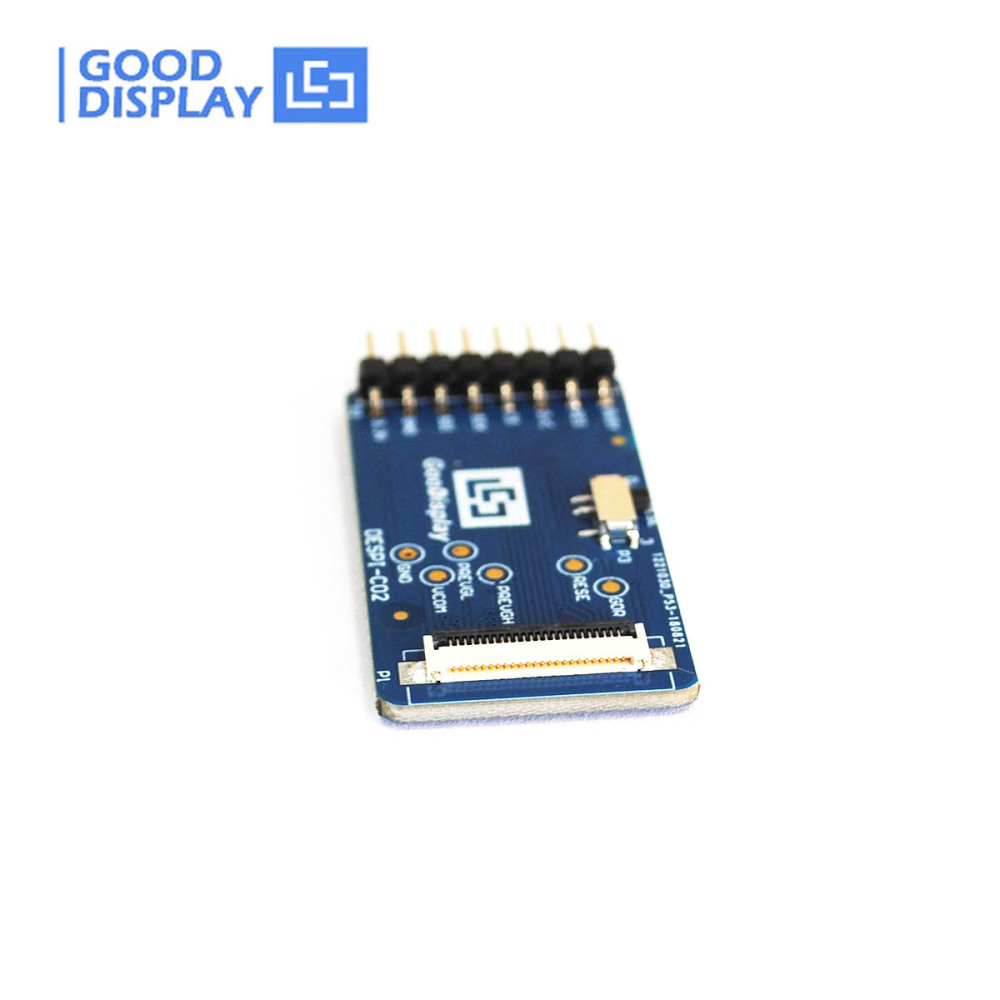

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Support 4 Grayscale

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports small bending because its flexible feature

●  It supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoESP8266 / ESP32







 THE ABOVE PRICE INCLUDE



1) 2.13 inch e-paper display flexible ultra-thin partial refresh 4 Grayscale eink screen * 1pc
2) FPC Connector * 1pc
3) Connector board DESPI-C02 * 1pc
4) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS




PART NUMBER

GDEW0213I5F

TYPE

Dot Matrix

SIZE

2.13 inch

IC

UC8151C

RESOLUTION

212x104

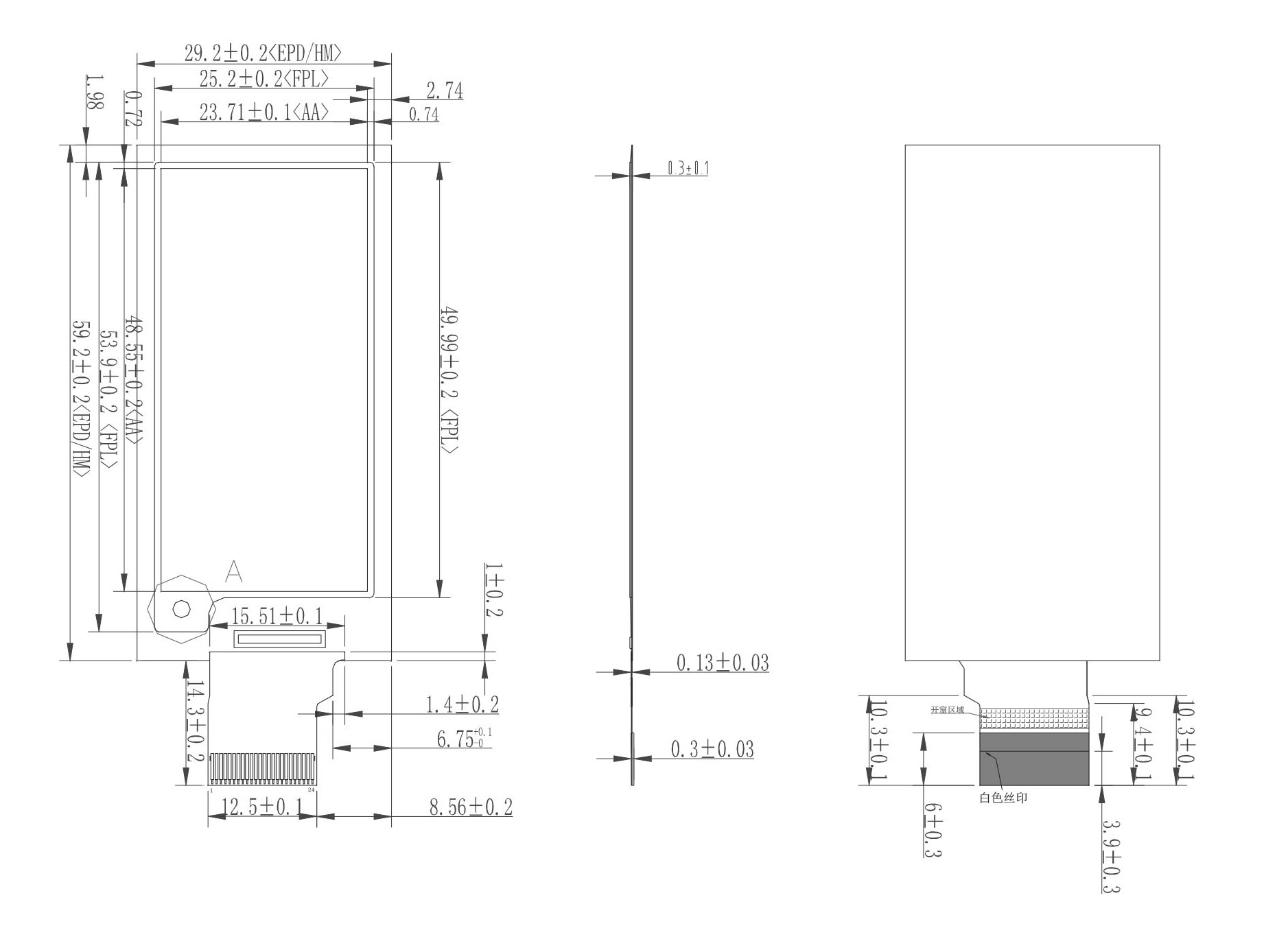

OUTLINE SIZE(mm)

59.2x29.2x0.3

ACTIVE SIZE(mm)

48.55x23.71

PIXEL PITCH(mm)

0.229x0.228

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

4

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

PARTIAL REFRESH TIME(s)

0.3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165

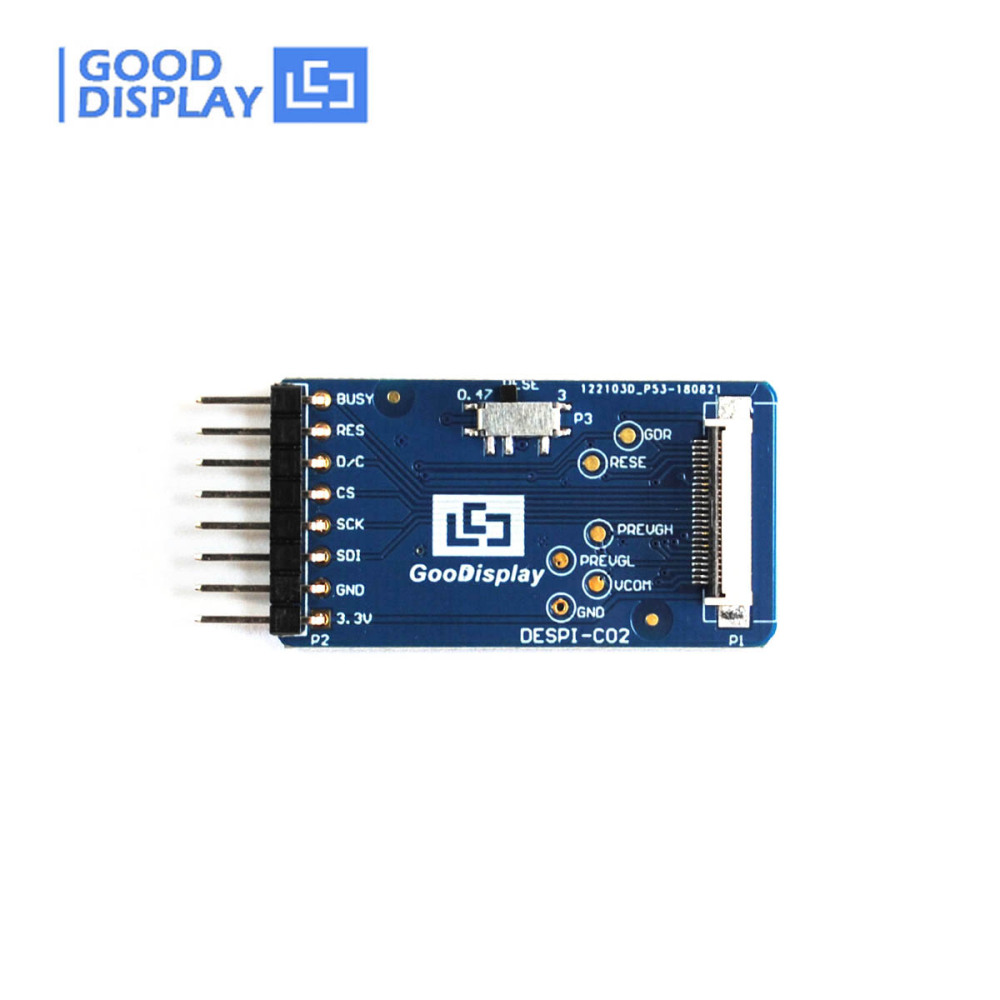

PART NUMBER

DESPI-C02

PLATFORM

STM32

FUNCTION

Connection E-paper Display with Drive Board

OUTSIDE DIMENSION

41x22mm

INTERFACE

SPI

POWER INPUT

DC3.3V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃










 OTHER REFERENCES



International Shipping & Delivery FAQs>>
Payment Methods>>
Shipping & Returns>>








☆ OTHER PRODUCTS




Part Number Color Resolution

Feature

Full refresh time

GDEY0213B74 B/W 250x122 Partial refresh, 4 Grayscale 3s
GDEW0213M21 B/W 212x104 DES,wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments, Partial refresh 3s
GDEW0213T5D B/W 212x104 Fast refesh, Partial refresh, 4 Grayscale 0.82s(fast refresh)
GDEW0213I5F B/W 212x104 Flexible, Partial refresh, 4 Grayscale 3s
GDEH0213D30LT B/W 212x104 Low temperature 3s
GDEW0213V7LT B/W 212x104 Low temperature 3s
GDEM0213D23 B/W 250x122 SPI interface --
GDEH0213Z98 B/W/R 250x122 Three colors 13s
GDEH0213Z19 B/W/R 212x104 Three colors 15s
GDEM0213U23 B/W/R 250x122 Three colors --
