2.13 inch e-paper display partial refresh 4 Grayscale with demo kit drive board

GDEW0213T5D+DESPI

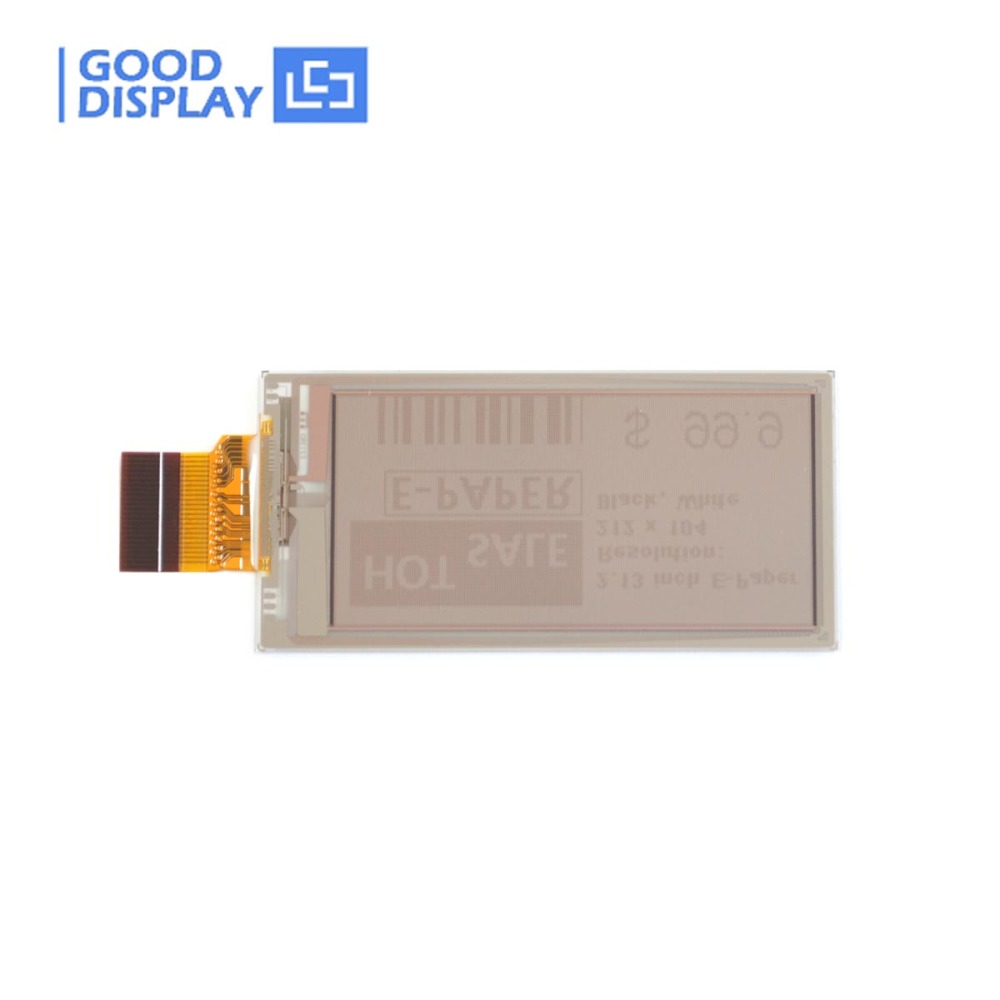

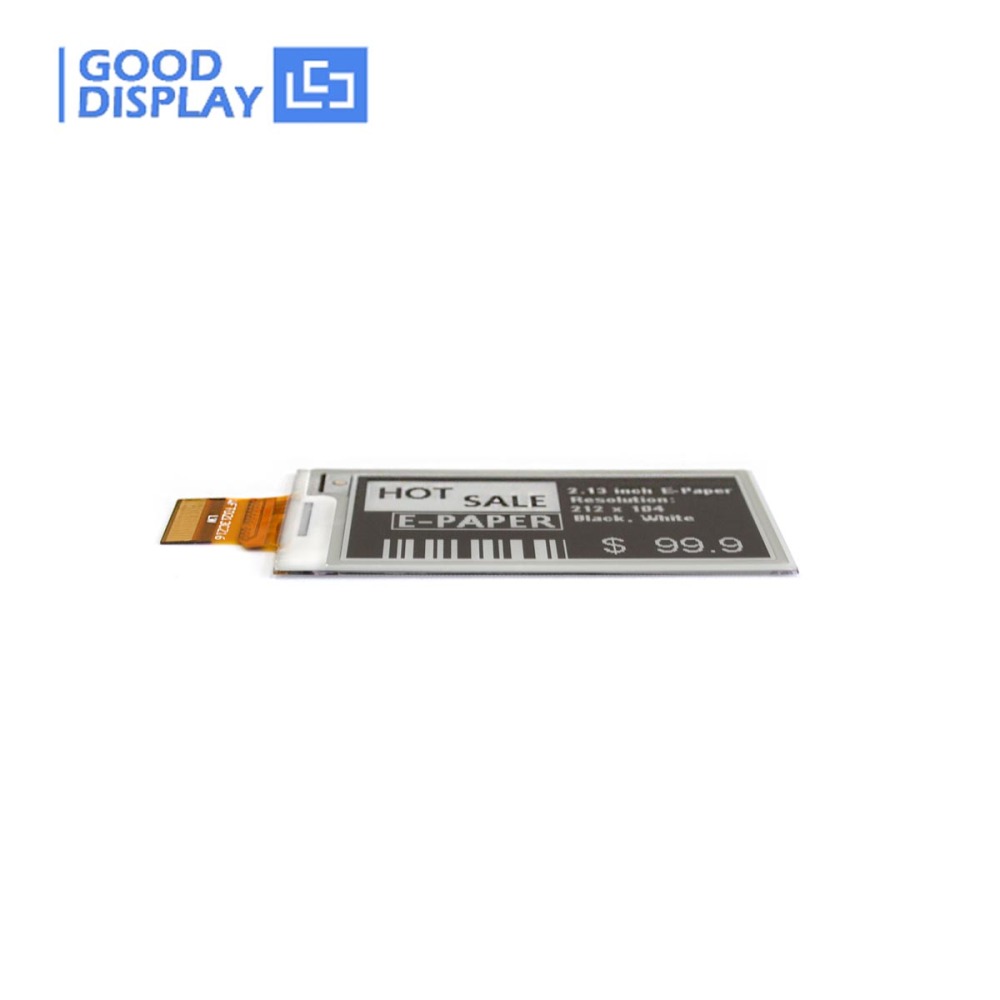

This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, 4 Grayscale,  supports black and white. With demo kit, drive board.
Price:
USD
$34.99
Quantity:
-
+
(100 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This is a set of development kit with 2.13 inch e-paper screen with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0213T5D is perfect for low power devices powered by solar or batteries.

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Support 4 Grayscale

●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor







 THE ABOVE PRICE INCLUDE

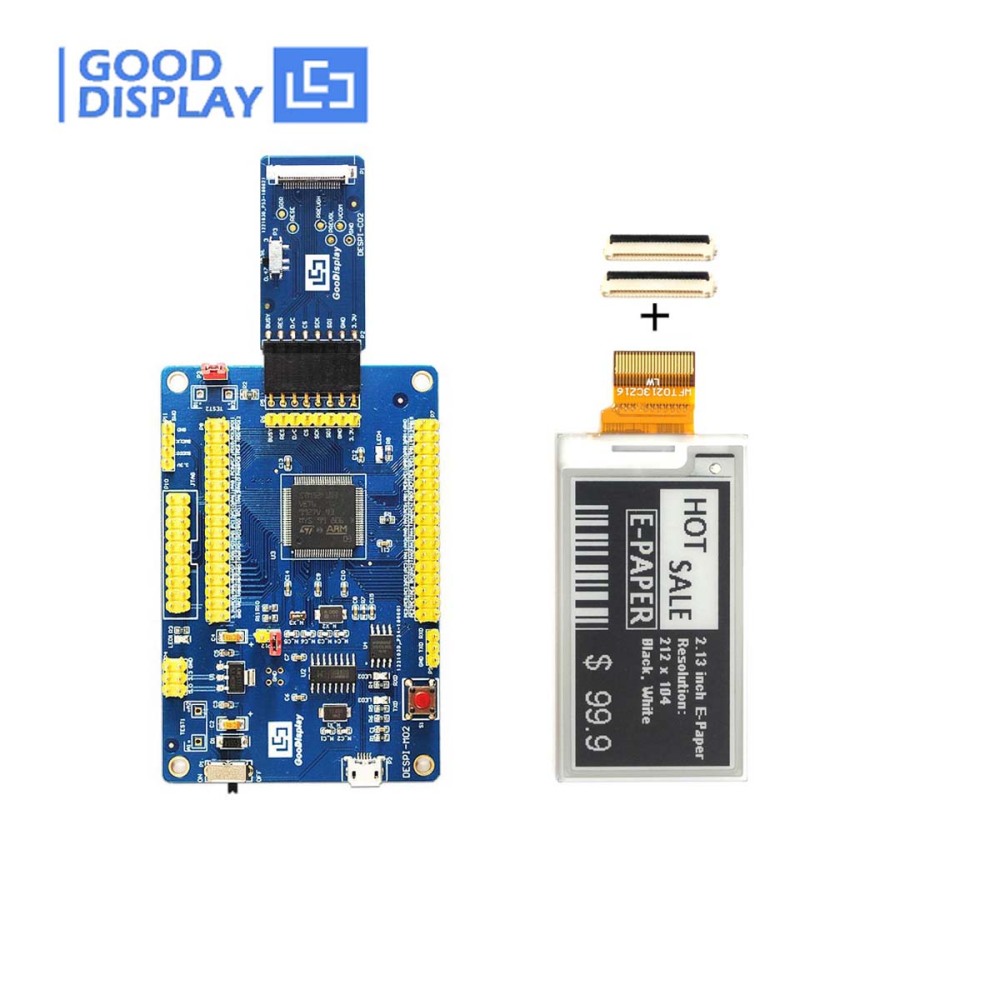

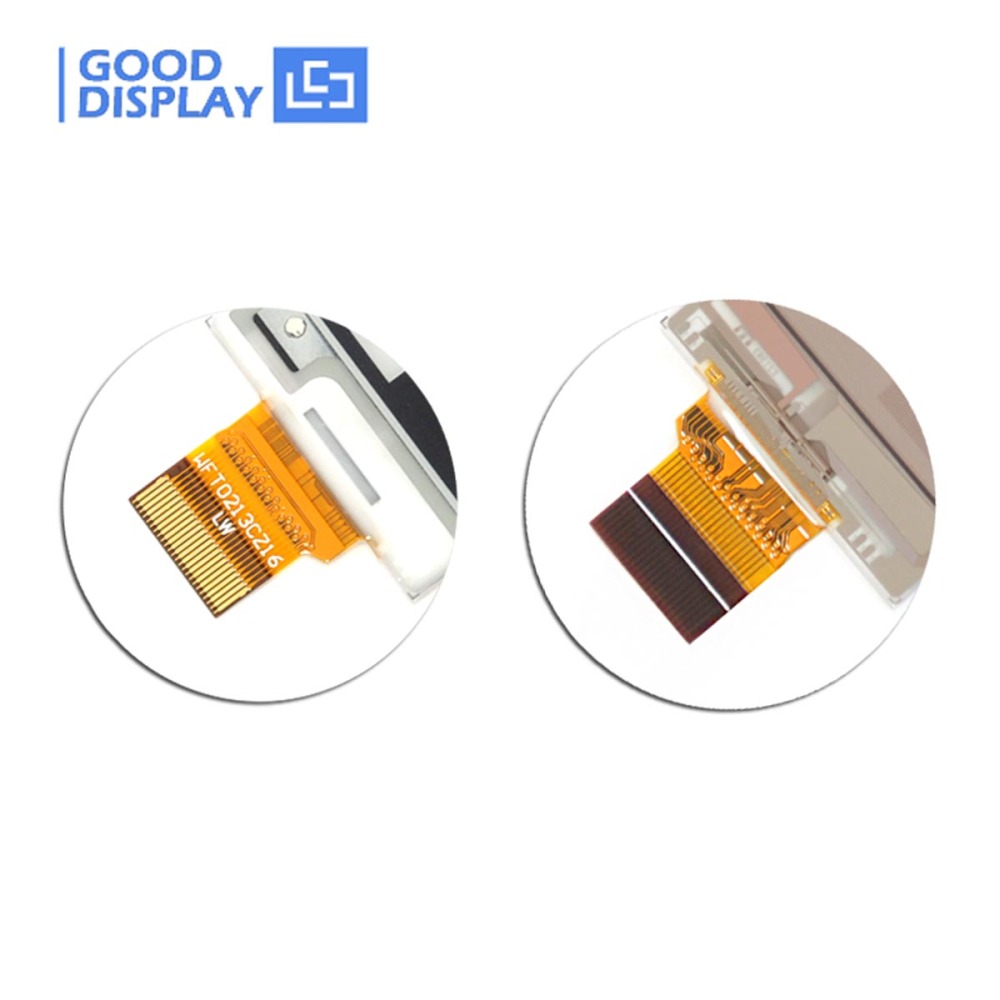

1) 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D  * 1pc
2) FPC Connector * 1pc

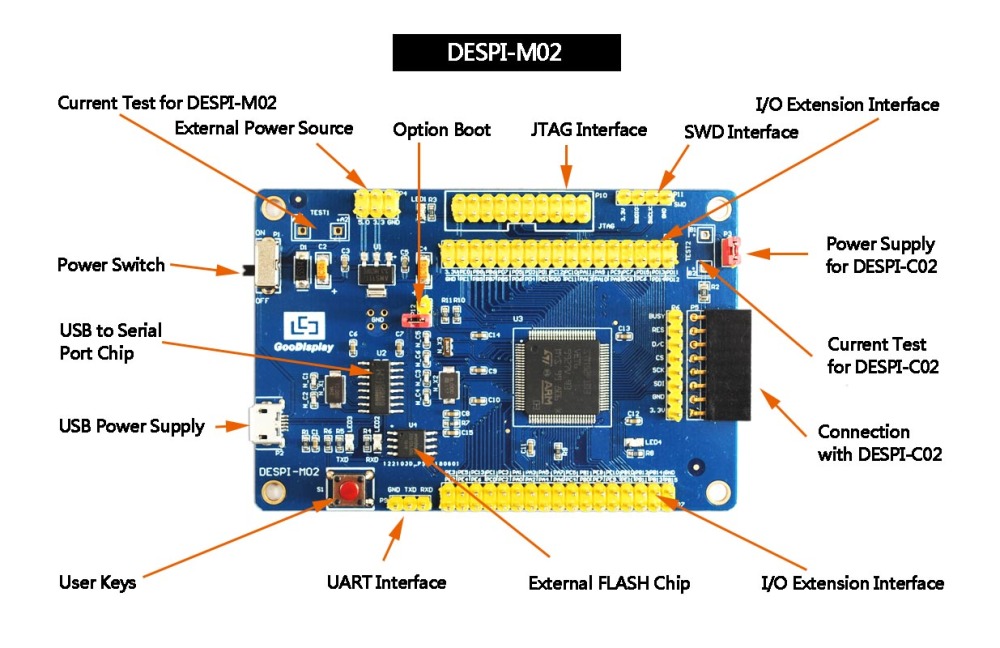

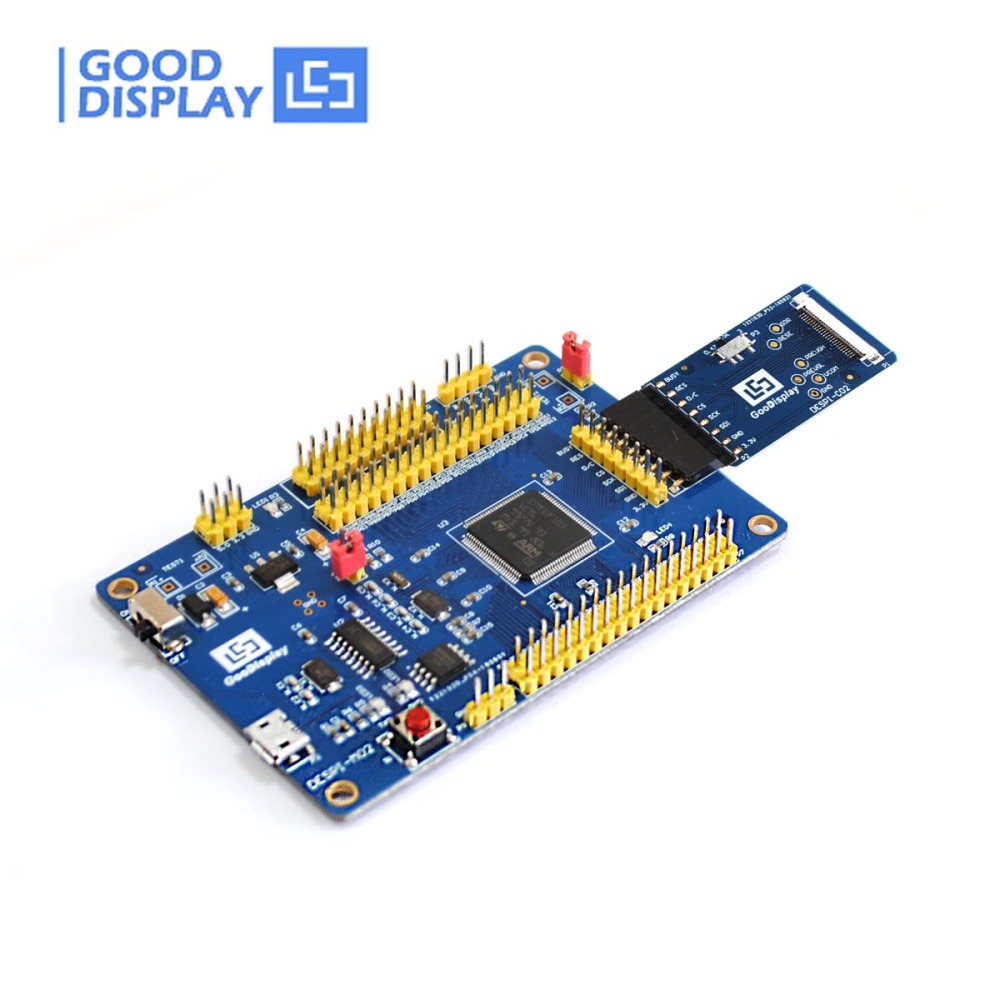

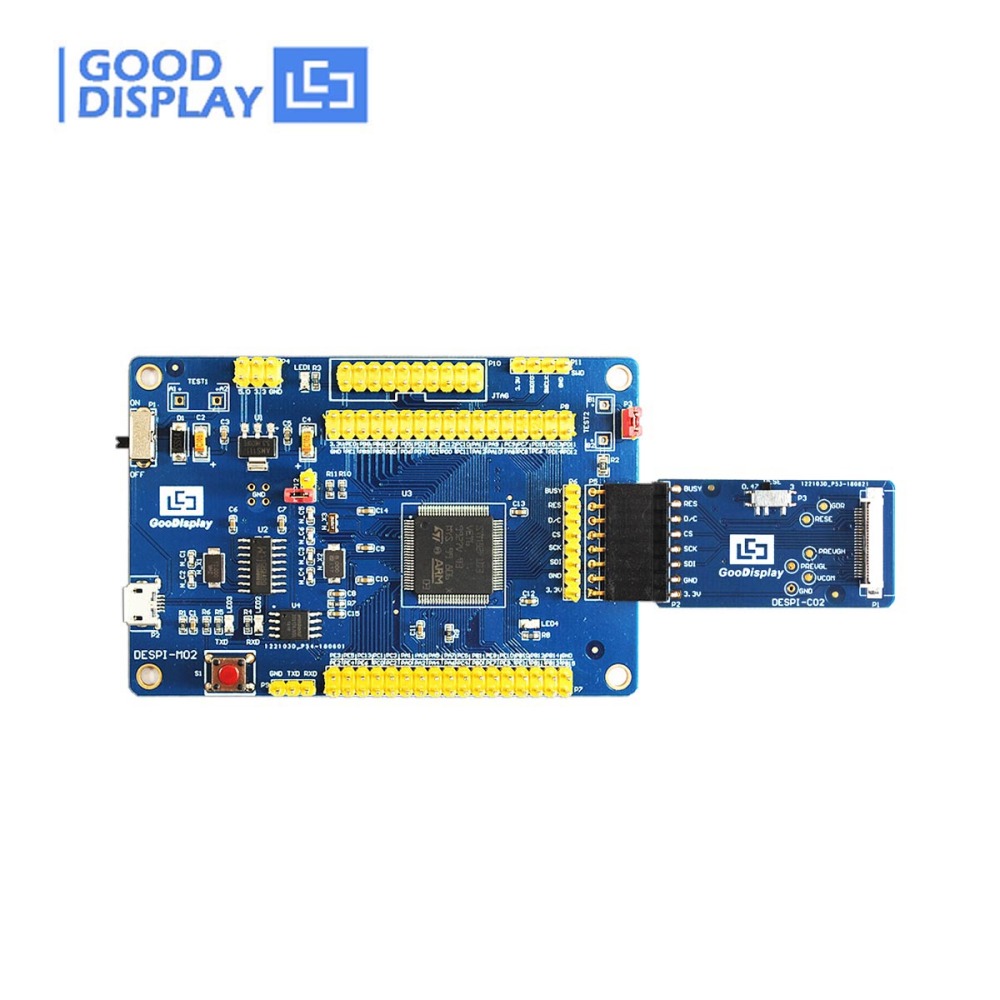

3) Driving board DESPI-M02 *1pc

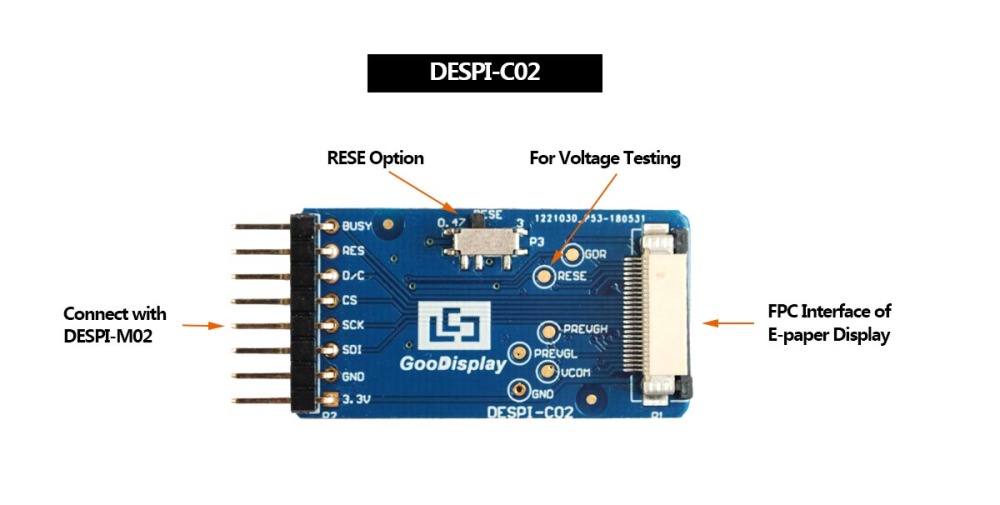

4) Connector board DESPI-C02 *1pc
5) USB port cable *1pc

6) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)







 MAIN PARAMETERS




PART NUMBER

GDEW0213T5D

TYPE

Dot Matrix

SIZE

2.13 inch

IC

UC8151D

RESOLUTION

212x104

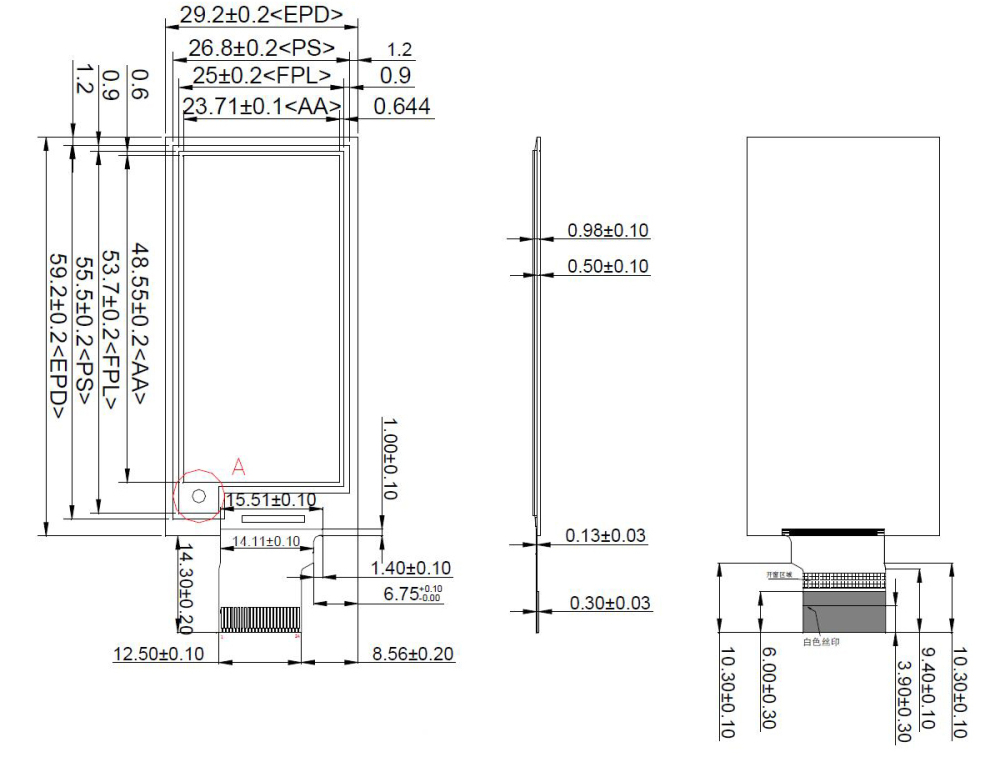

OUTLINE SIZE(mm)

59.2x29.2x0.98

ACTIVE SIZE(mm)

48.55x23.71

PIXEL PITCH(mm)

0.229x0.228

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

4

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

PARTIAL REFRESH TIME(s)

0.3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165






PART NUMBER

DESPI

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90x60mm(DESPI-M02)

41x22mm(DESPI-C02)

INTERFACE

USB

POWER INPUT

DC5V

FEATURE

Fully and Partial Refresh

OPERATING TEMP.

-20℃~70℃

RECOMMENDED

Keil 4





 SPECIFICATION DOWNLOAD




1)  GDEW0213T5D Specification
2)  IC Driver UC8151D Datasheet
3)  IC UC8151C to IC UC8151D Instructions
4)  GDEW0213T5D STM32 Sample Code
5)  GDEW0213T5D Raspberry Pi Pico Sample Code






 OTHER REFERENCES



International Shipping & Delivery FAQs>>
Payment Methods>>
Shipping & Returns>>
