☆ INTRODUCTION

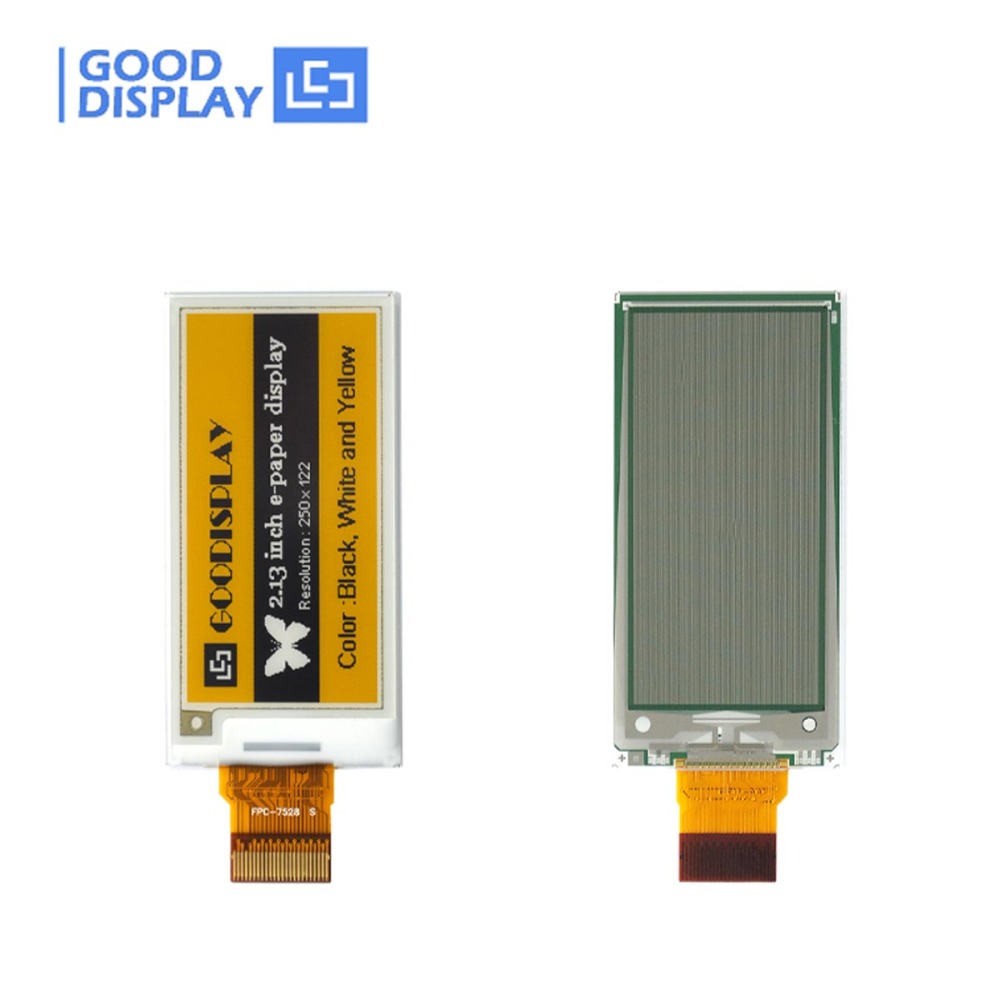

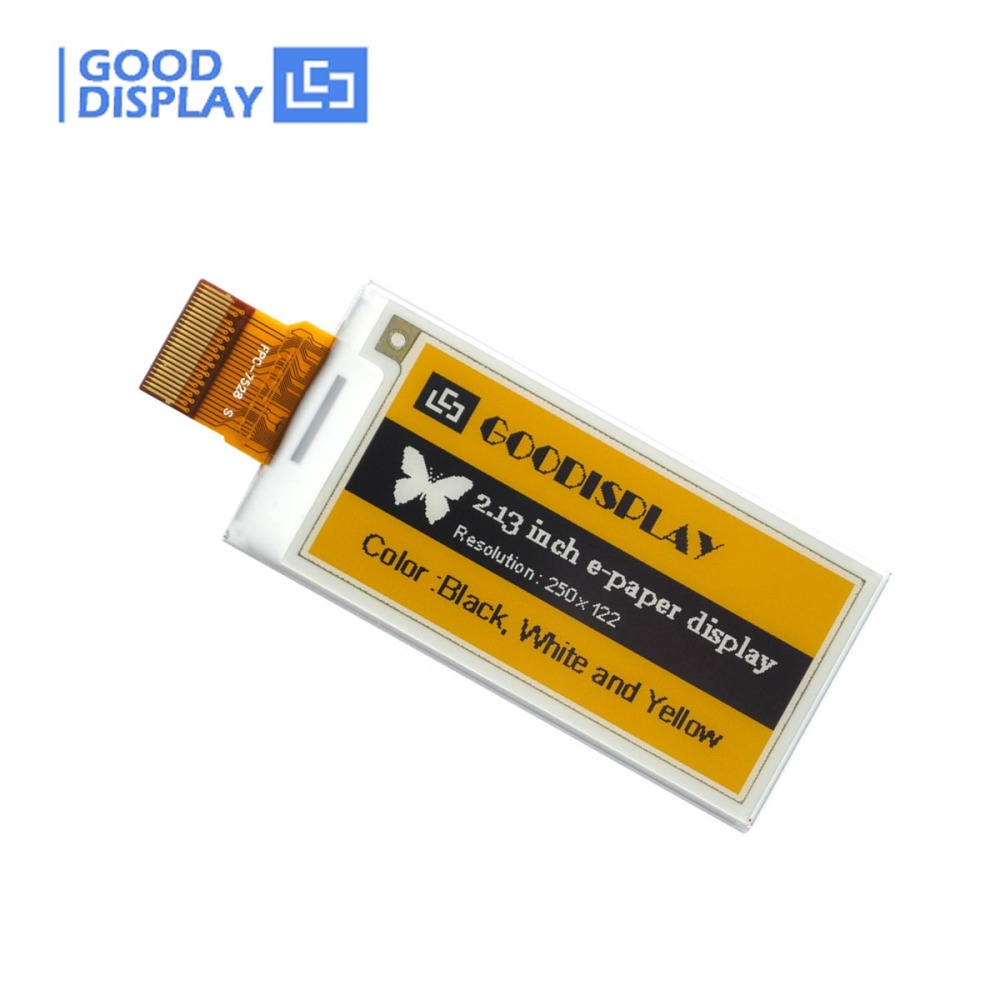

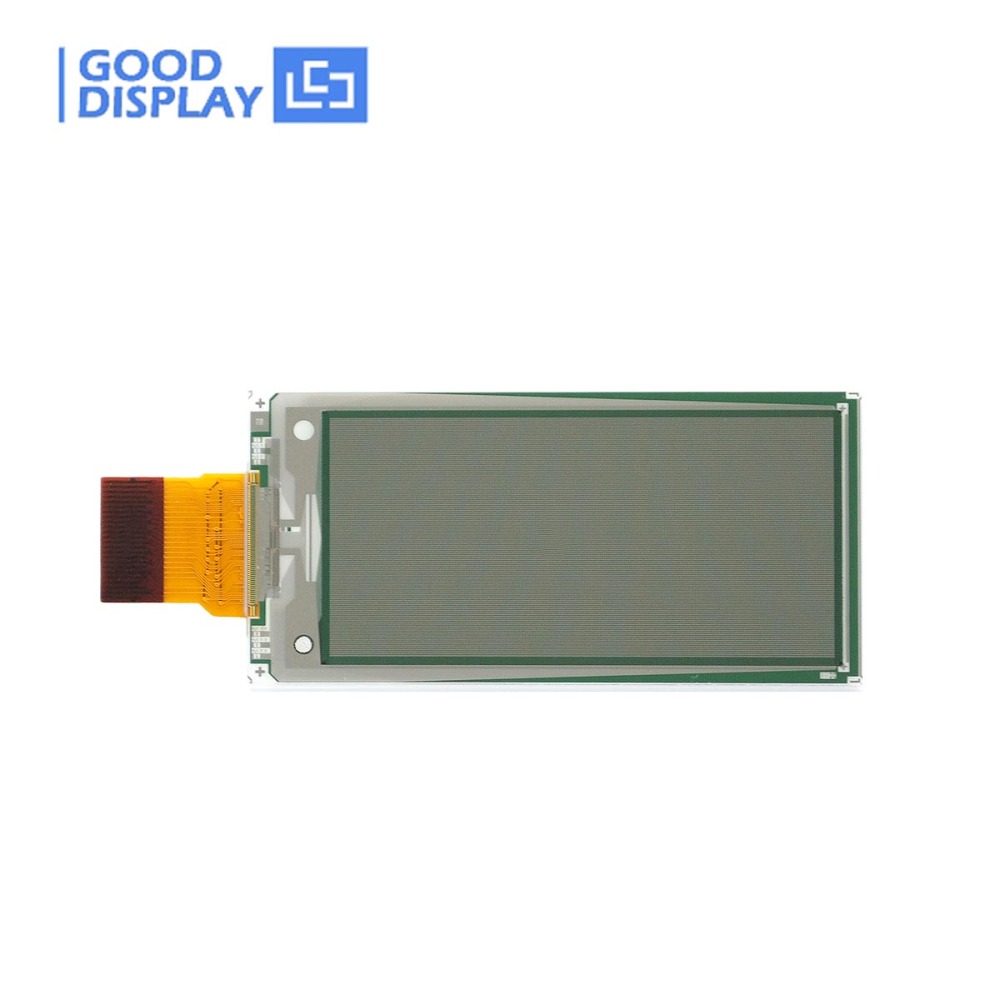

This is a 2.13 inch tri-color e-ink screen with 250x122 resolution, SPI interface, and the display is capable to display images with black, white and yellow content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDM0213C90 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates
☆ THE ABOVE PRICE INCLUDE
1) 2.13 inch e-paper-display 250x122 SSD1680 tri-color e-ink screen * 1pc

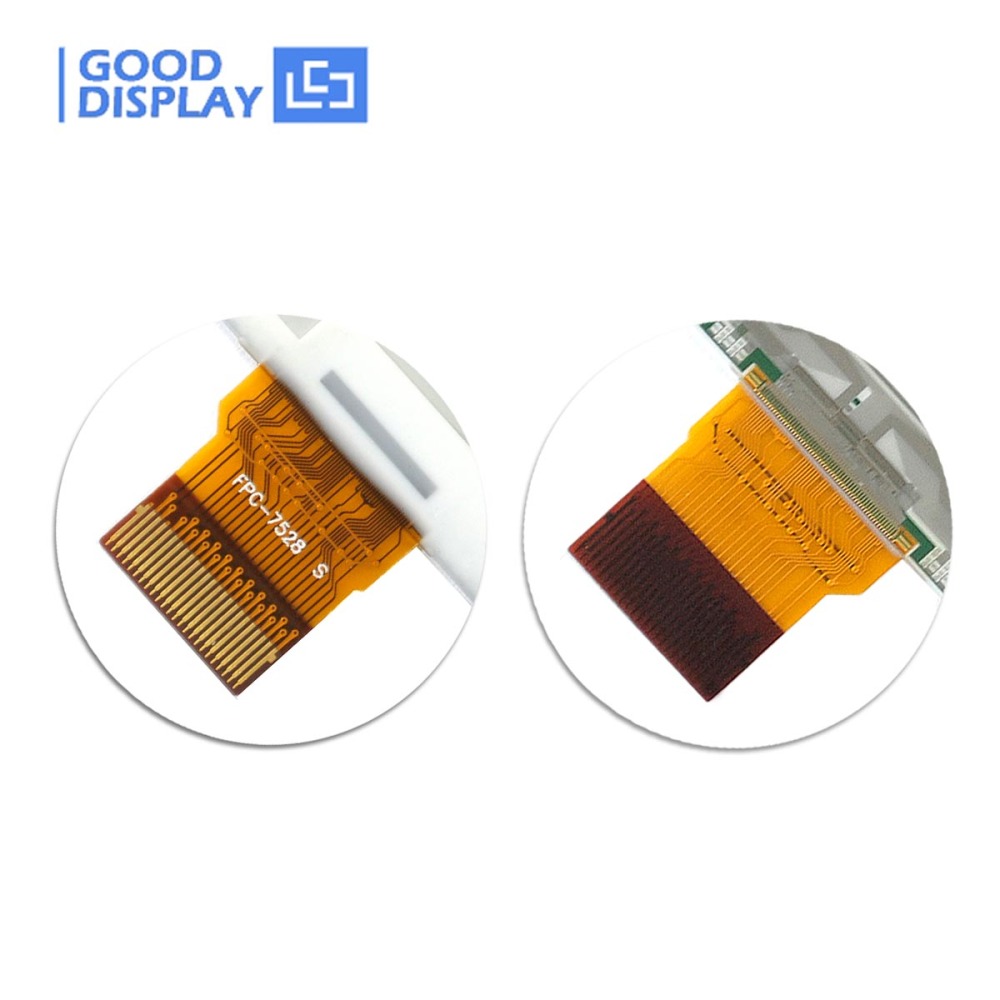

2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEM0213C90
|
|
|
TYPE
|
Dot Matrix
|
STORAGE TEMP. |
-25℃~40℃ |
|
SIZE
|
2.13 inch
|
CONNECTOR |
24 Pin FPC |
|
IC
|
SSD1680
|
MAX GRAYSCALE |
2 |
|
RESOLUTION
|
250x122
|
COLOR |
Black, White, Yellow |
|

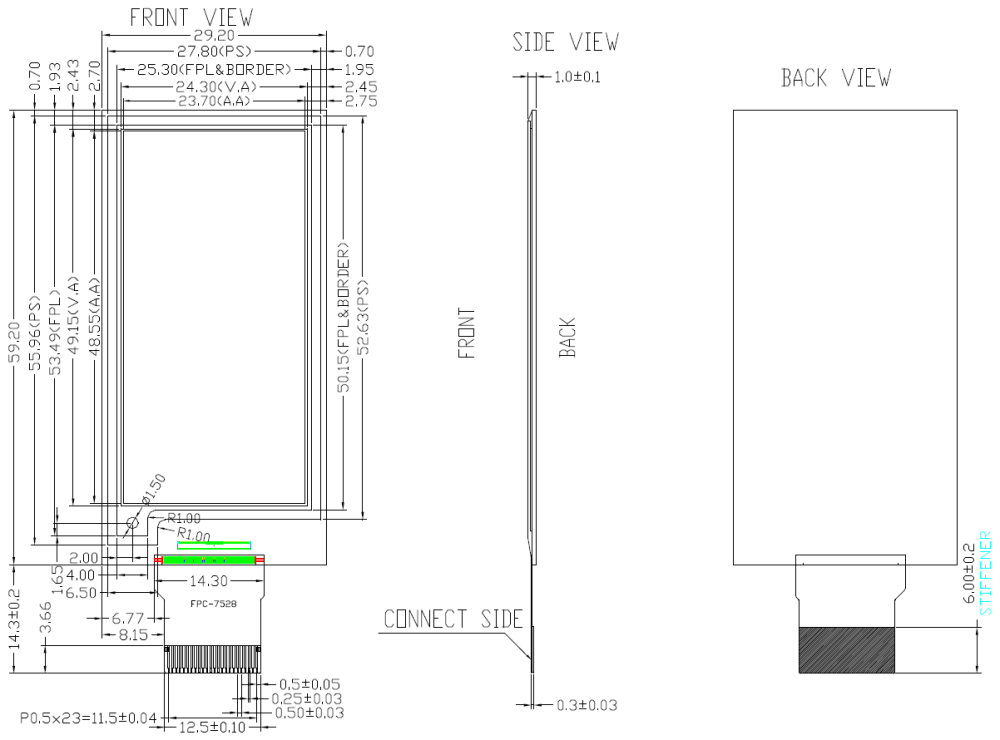

OUTLINE SIZE(mm)
|
59.2x29.2x1.0
|
INTERFACE |
SPI |
|
ACTIVE SIZE(mm)
|
48.55x23.70
|
FULL REFRESH(s) |
30 |
|
PIXEL PITCH(mm)
|
0.1942x0.1942
|
POWER CONSUMPTION OF THE REFRESH(mW) |
9 |
|
OPERATING TEMP.
|
0℃~40℃
|
STANDBY POWER CONSUMPTION (mW) |
0.003 |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and yellow. Compared with monochrome electronic paper display, it is more beautiful
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
