2.13'' Epaper Color Eink with NFC Refresh Board, GDEY0213Z98

DENFC-M01 can help developers complete projects that need NFC communication to drive e-paper display GDEW029T5D faster and more smoothly.
Price:
USD
$22.82
Quantity:
-
+
(199 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews



☆ INTRODUCTION

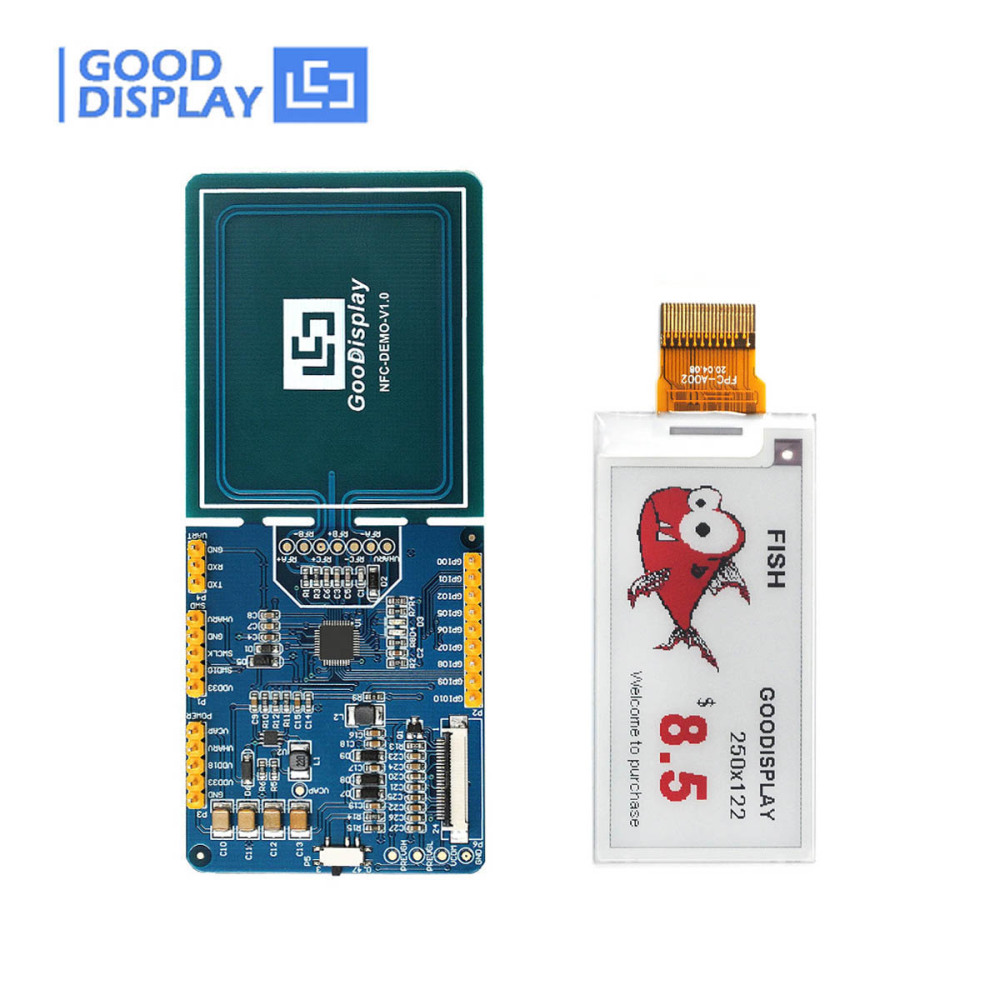

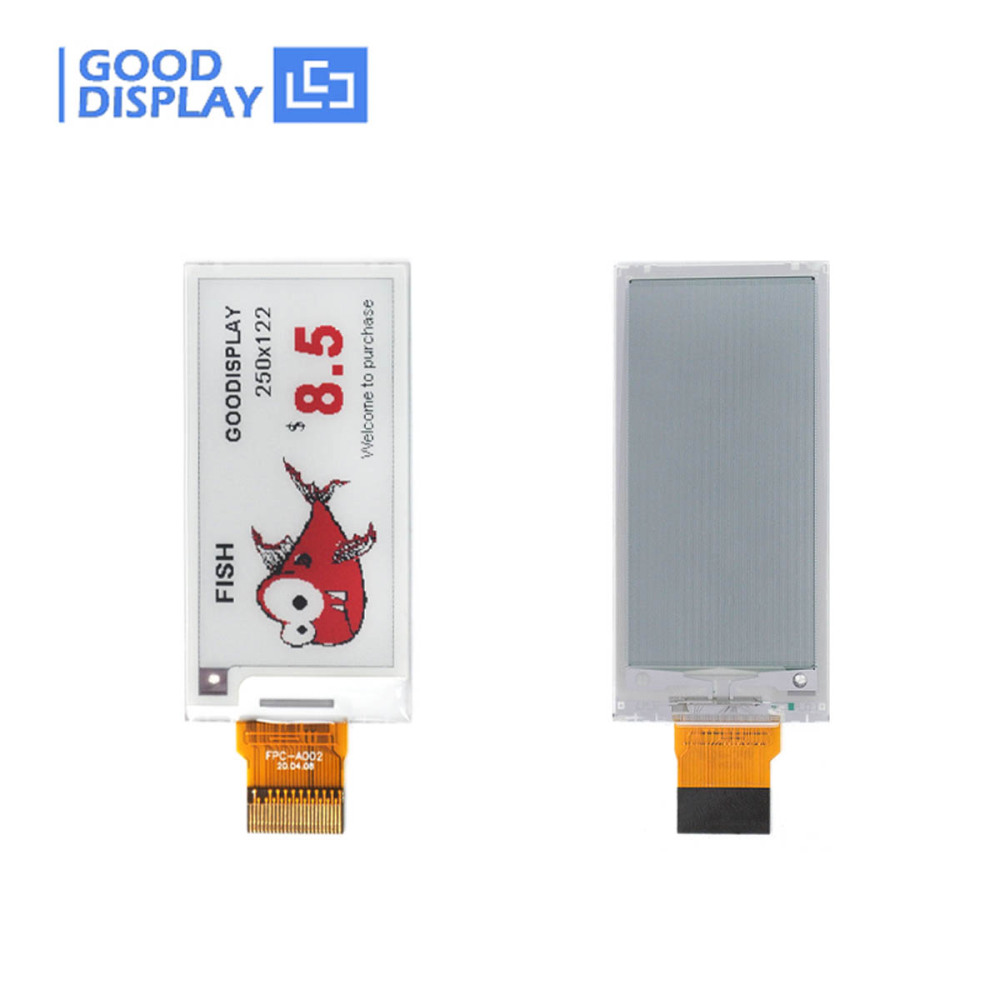

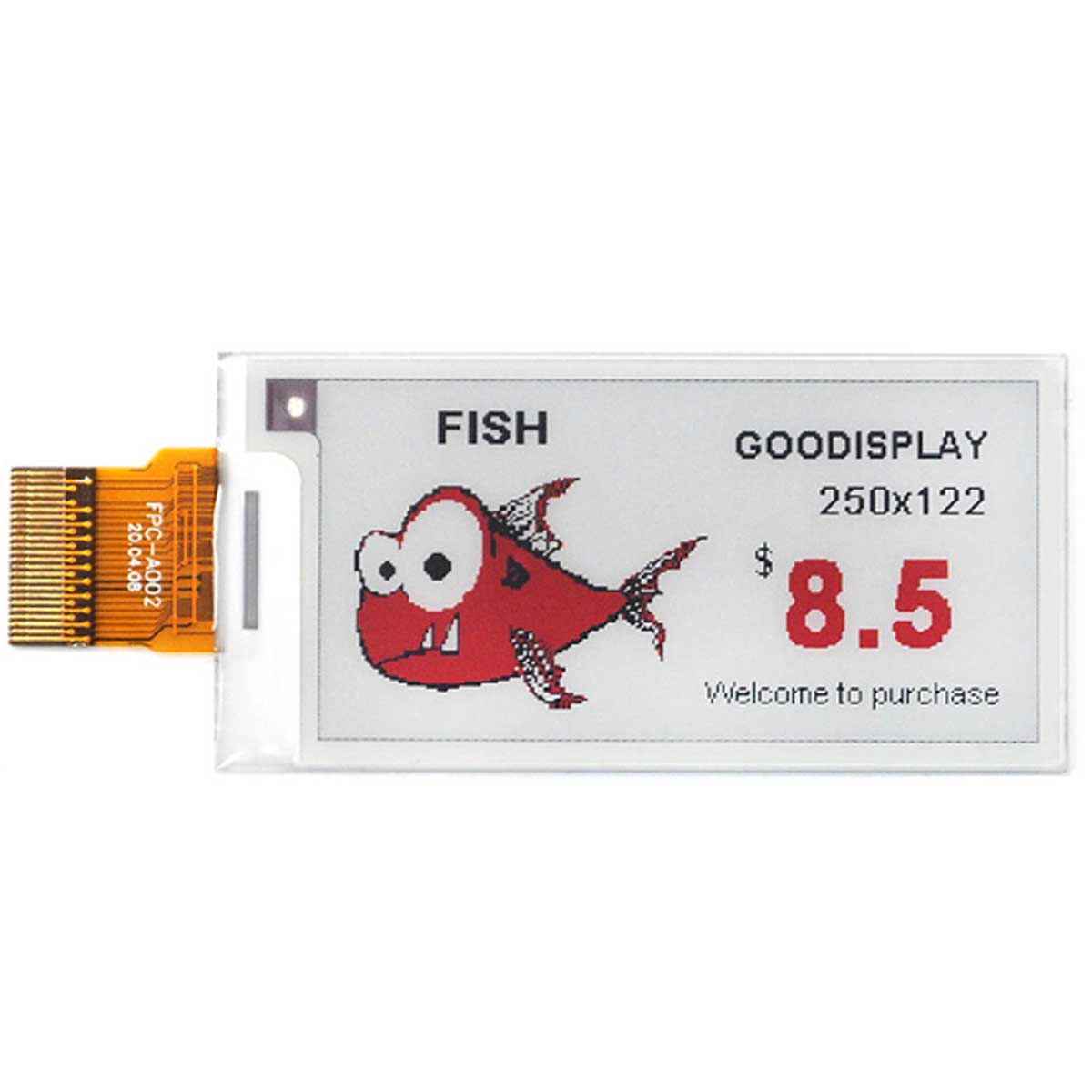

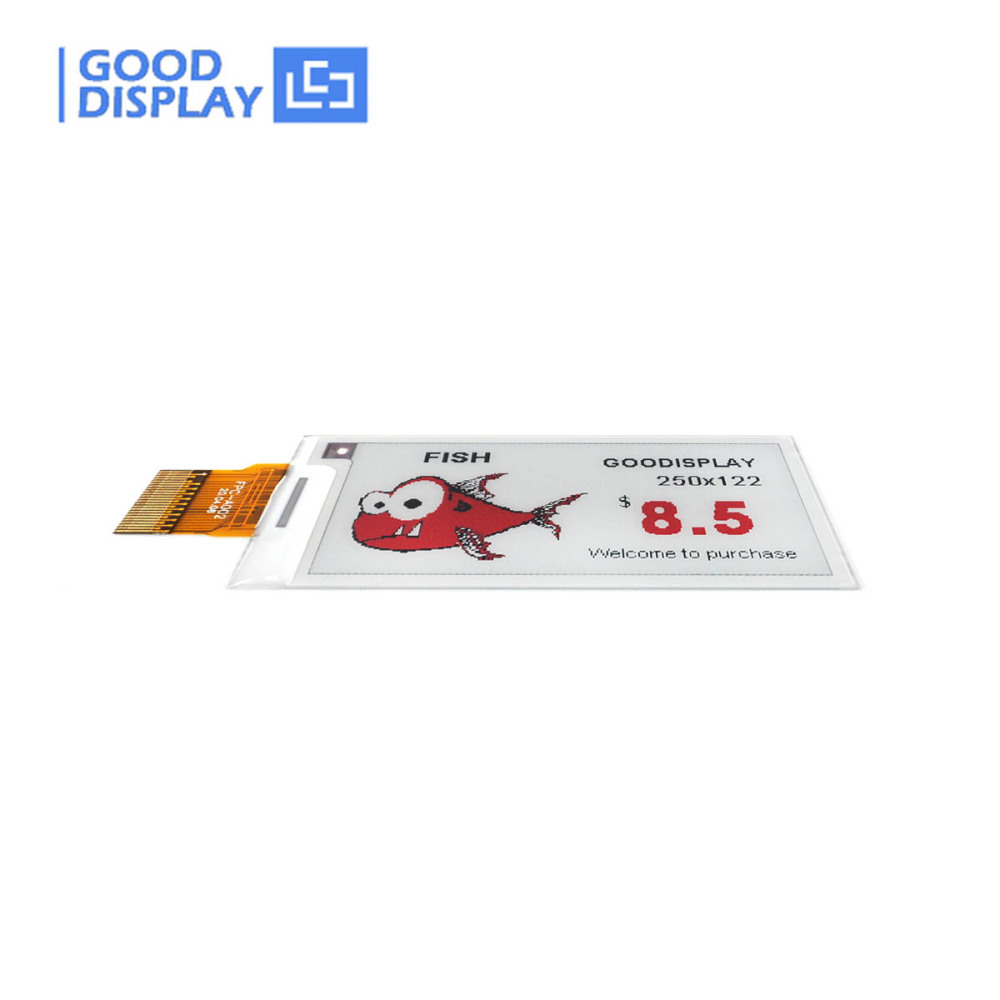

This is a set of Eink NFC Driving Board DENFC-M01 with 2.13 inch color e-ink display, 250x122 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDEY0213Z98 is perfect for low power devices powered by solar or batteries.

DENFC-M01 is a passive NFC demo development board integrated with ISO14443A tag interface. This demo supports efficient NFC energy harvesting. When combined with mobile phones with NFC function, DENFC-M01 can collect up to 300MW power. Such a high acquisition of power can not only support DENFC-M01 running at full speed in passive mode but also can supply power for external devices such as image sensor and e-paper display.


We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array


* Note1: Its Software can only be applied to Android phones. We recommend contacting us before making a purchase to verify compatibility with your specific phone model.

* Note2: This e-ink display module DOES NOT support partial updates.





☆ THE ABOVE PRICE INCLUDE

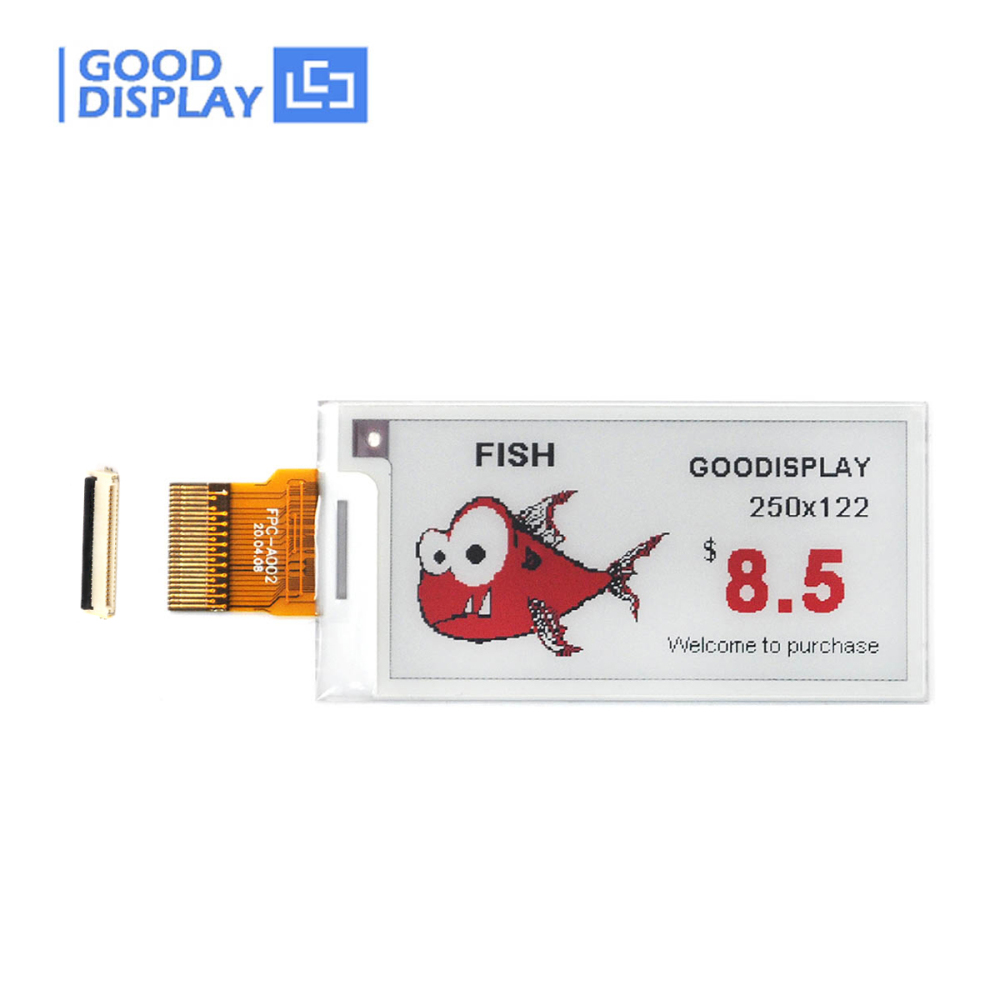

1) 2.13 inch color eink 250x122 HD raspberry pi e-paper display , GDEY0213Z98 * 1pc

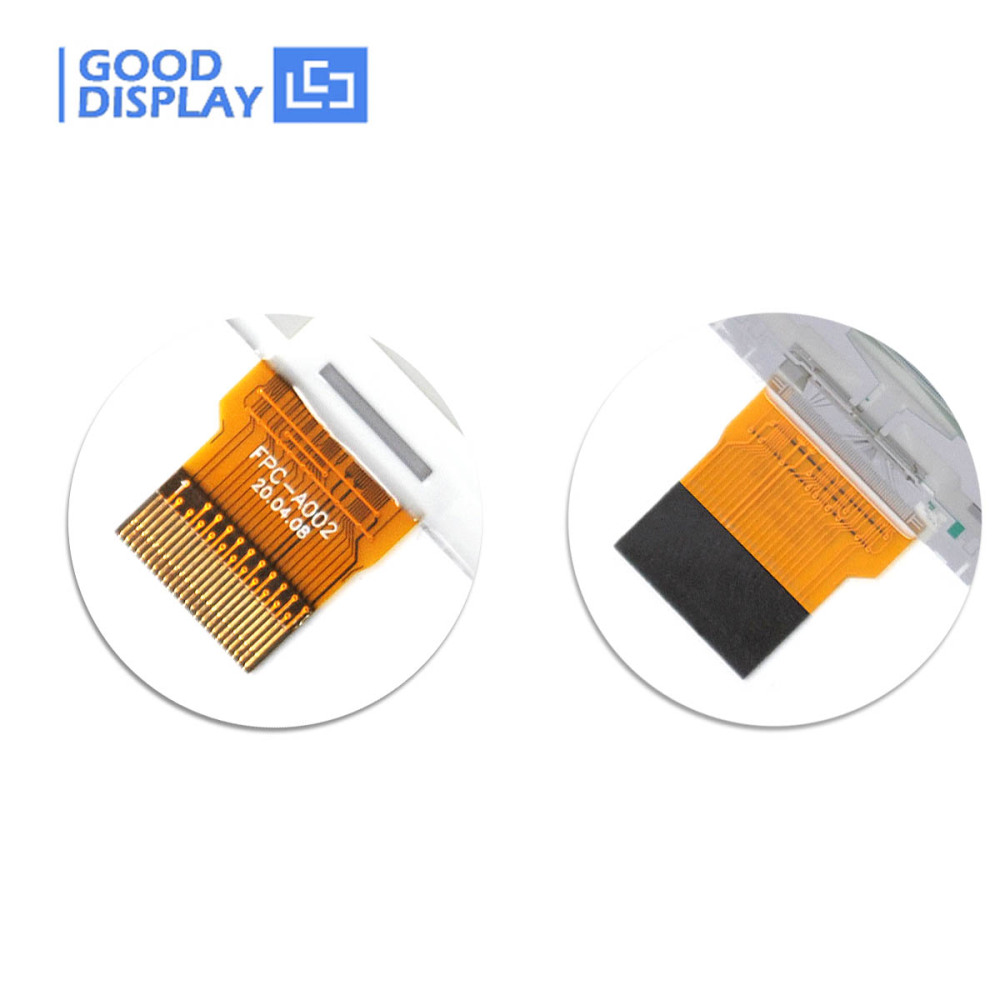

2) FPC Connector * 1pc
3) E ink Display NFC Board, DENFC-M01

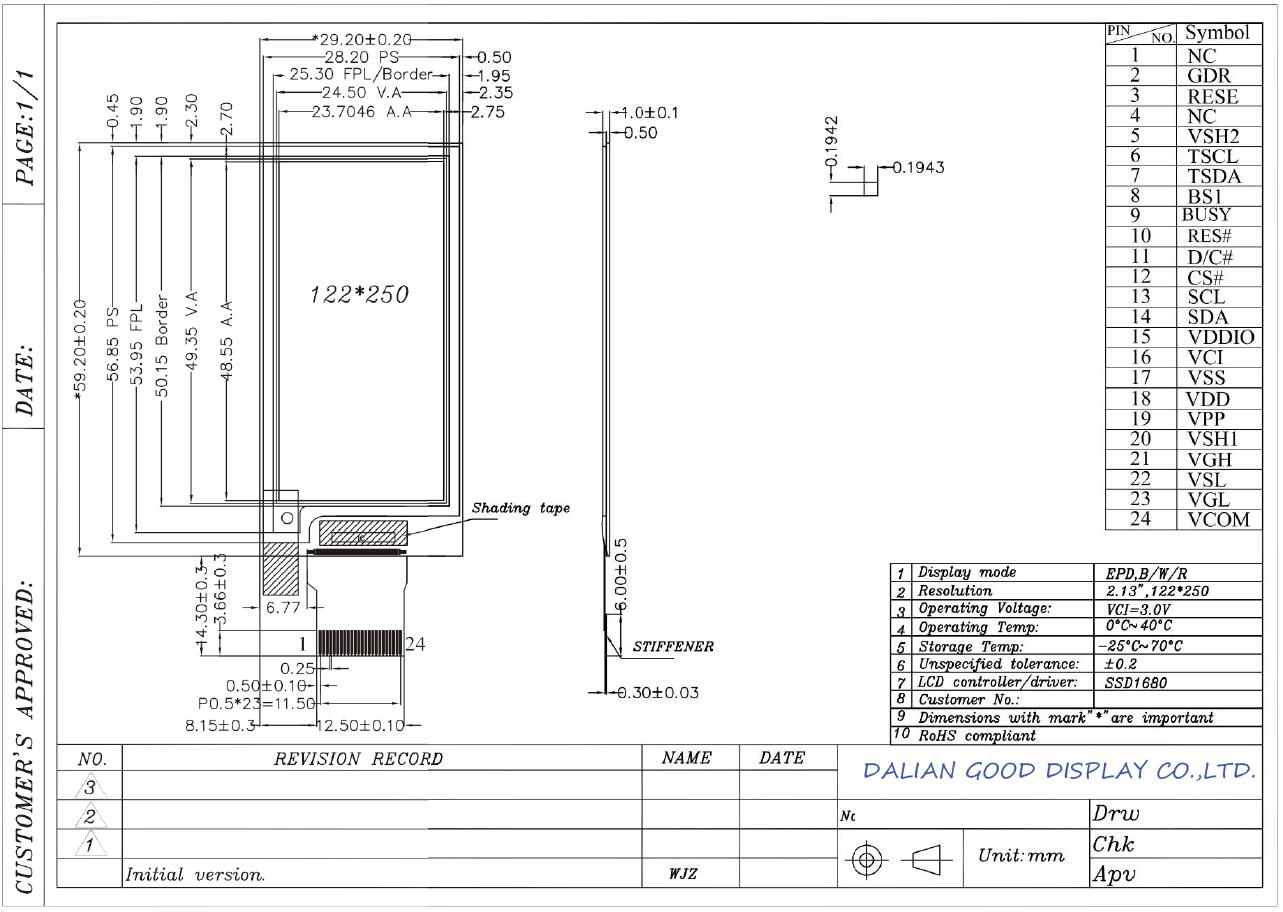

☆ MAIN PARAMETERS




PART NUMBER

GDEY0213Z98

TYPE

Dot Matrix

STORAGE TEMP. -25℃~70℃

SIZE

2.13 inch

CONNECTOR 24 Pin FPC

IC

SSD1680

MAX GRAYSCALE 2

RESOLUTION

250x122

COLOR Black, White, Red

OUTLINE SIZE(mm)

59.2x29.2x1.0

INTERFACE SPI

ACTIVE SIZE(mm)

48.55x23.7046

FULL REFRESH(s) 22
PARTIAL REFRESH(s) 1.8 FAST REFRESH(s) 16

PIXEL PITCH(mm)

0.1943x0.1942

POWER CONSUMPTION OF THE REFRESH(mW) 5.4

OPERATING TEMP.

0℃~40℃

STANDBY POWER CONSUMPTION (mW) 0.003

PART NUMBER DENFC-M01
PLATFORM Keil OUTSIDE DIMENSION(mm) 105x45
POWER INTERFACE Direct current power supply or NFC power for mobile phones OPERATING TEMP. -20~70℃
SAMPLE CODE Available (please contact sales)
MAIN FUNCTION Learn to drive e-paper display;
Test and evaluate e-paper display;
For secondary development.
ADDITIONAL FUNCTION NFC communication indication,data transmission indication.



☆ FEATURE




●  Versatile. Use in portrait or landscape format
●  Bistable. (Will continue to display with no power source)
●  I2C Signal Master Interface to read external temperature sensor
●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful




☆ DETAILS









☆ APP DOWNLOAD





Please scan the QR code with your browser




☆ RELATED INFORMATION DOWNLOAD



● GDEY0213Z98 Specification

● IC Driver SSD1680 Datasheet

● GDEY0213Z98 Picture Production and Bitmap Conversion

● GDEY0213Z98 STM32 Sample Code

● GDEY0213Z98 ESP32 Sample Code

● GDEY0213Z98 ESP8266 Sample Code

● GDEY0213Z98 Arduino Sample Code

● DENFC-M01 Specification

● NFC-DEMO Board-APP

● NFC-DEMO_SCH

● How to choose EPD



☆ WE ALSO SUGGEST...




Fast Refresh 1.5s 2.13 inch 250x122 Raspberry Pi EPD supports Electronic Epaper price tag, GDEY0213B74

2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01

2.13 inch UC8151D e-paper display flexible ultra-thin partial refresh 4 Grayscale eink screen module GDEW0213I5FD

2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D



E-ink Display 2.13 Epaper Partial Refresh SPI HDMI 250x122 EPD Screen, GDEQ0213B74

2.13 inch Tri-color red eink display SPI interface epaper screen module GDEM0213U23









☆ ABOUT US



Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDE043A3 4.3'' BW 16 800x600 88x66 1 0℃~50℃   Parallel
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDE060F3 6.0'' BW 16 1024x758 90.581x122.368 1 0℃~50℃   Parallel
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEP097TC2

9.7''

BW

16

1200x825

202.8x139.425

1

0℃~50℃



Parallel

GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
GDEY1248Z51 12.48'' BWR 2 1304x984 252.98x190.90 25 0℃~40℃     SPI
GDEP133UT3 13.3'' BW 16 1600x1200 270.4x202.8 1 -15℃~65℃     Parallel
