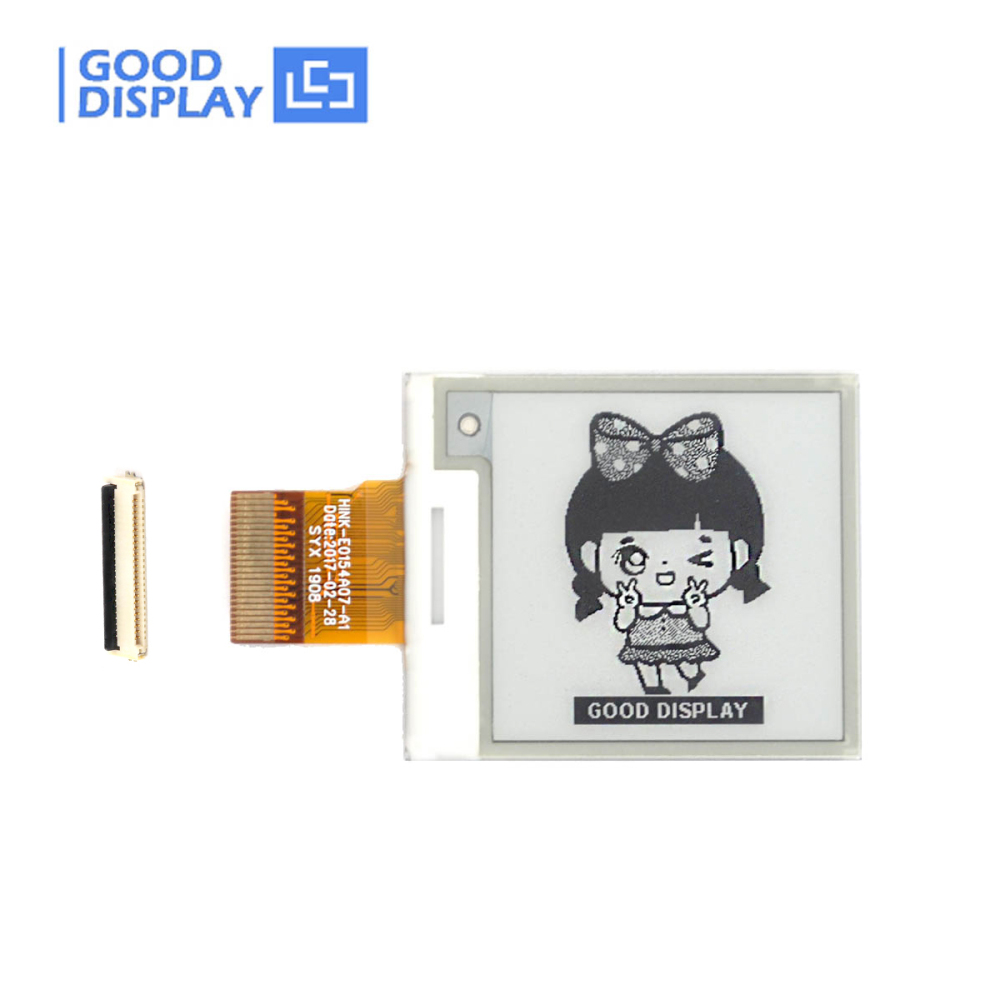

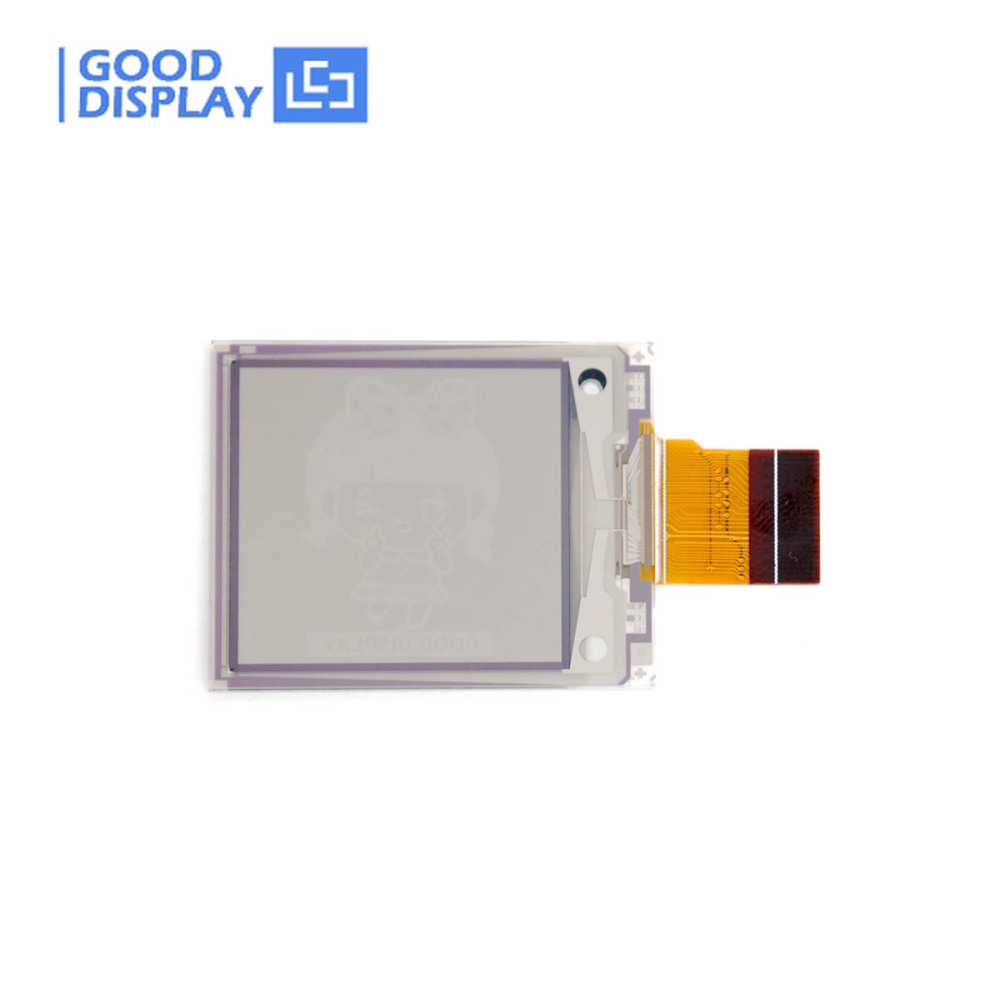

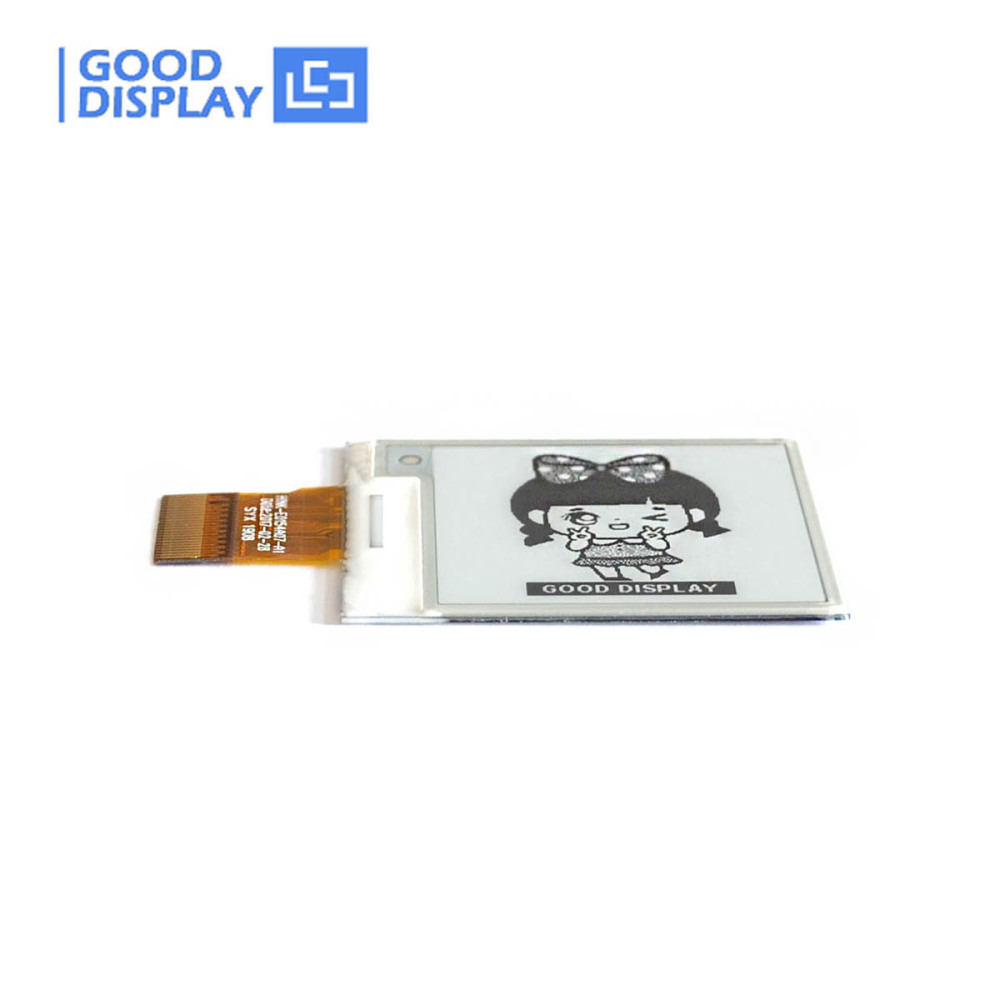

1.54 inch small eink display for support partial update E-paper screen module GDEH0154D67

GDEH0154D67
GDEH0154D67 is an Active Matrix Electrophoretic Display(AMEPD) , with interface and a reference system design. The 1.54'' active area contains 200×200pixels, supprot partial refresh.
6 Review(s) Sold:166
Price:
USD
$5.99
  • Product:
    EPD

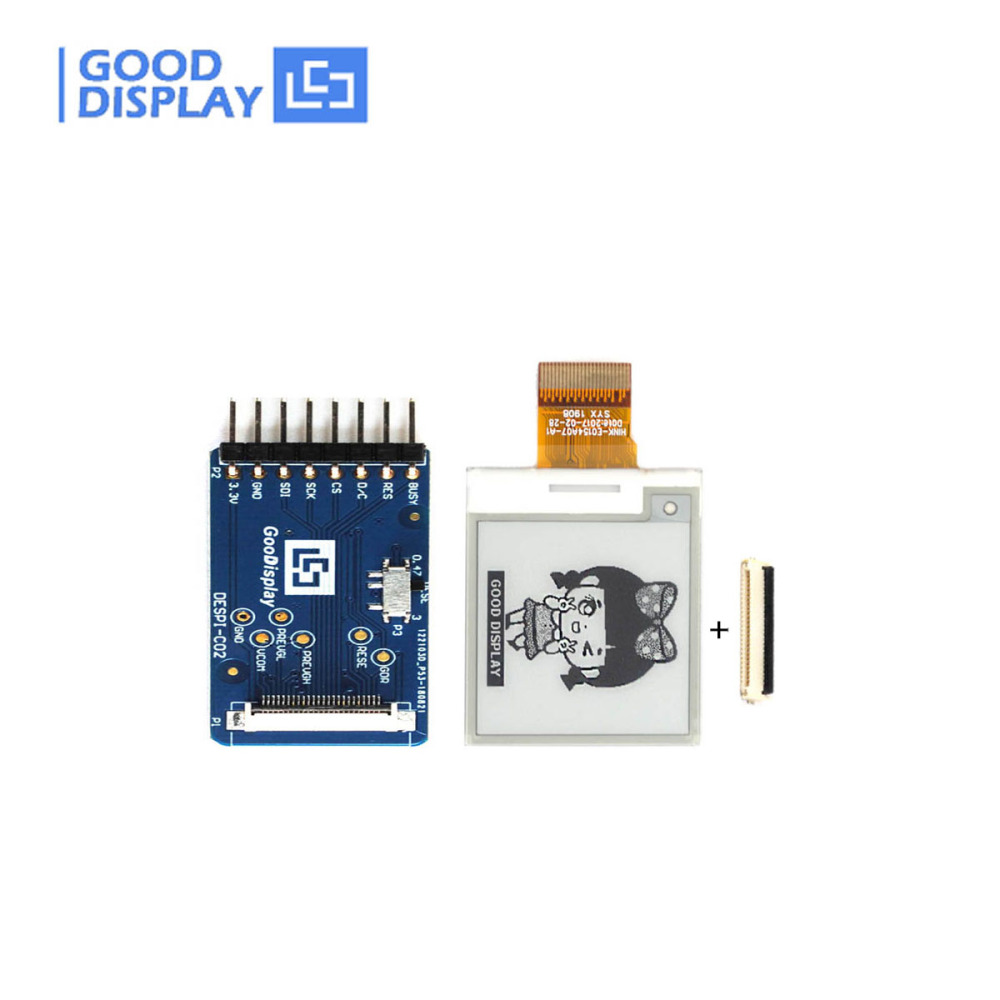

    EPD with adapter board DESPI-C02

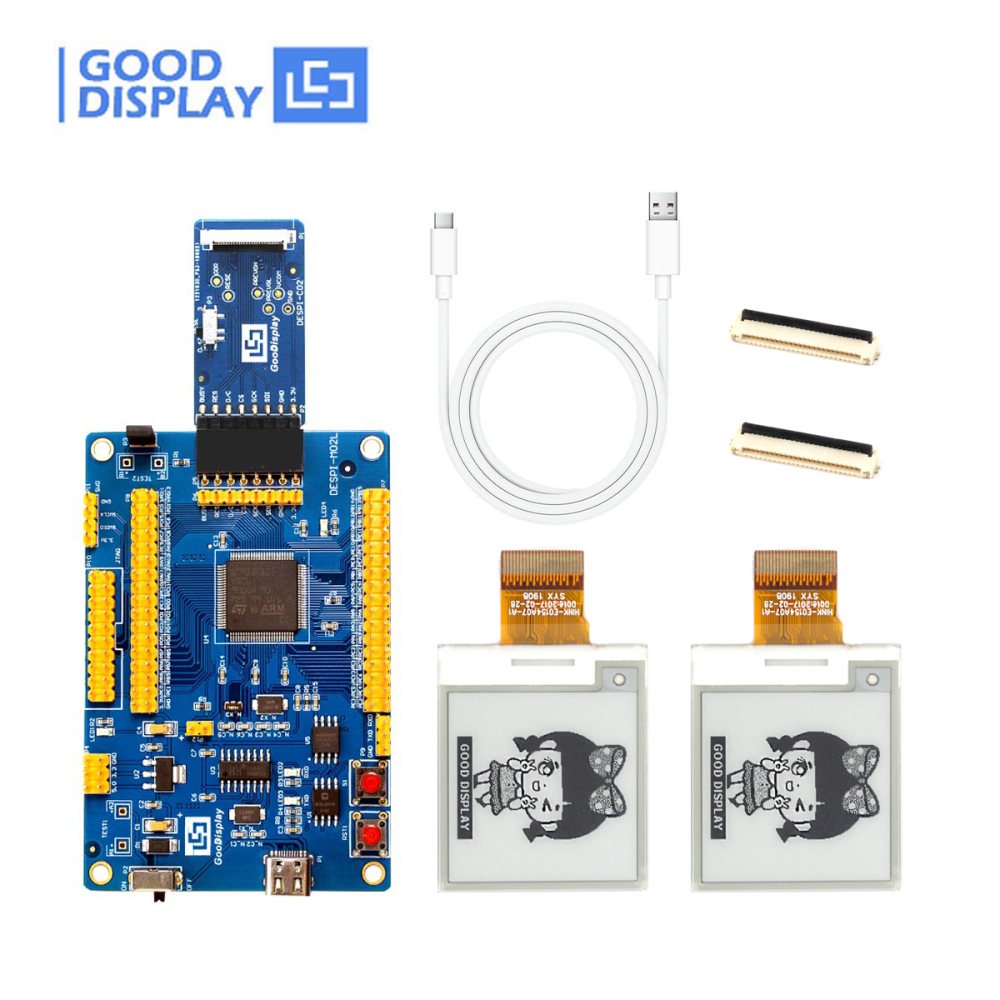

    EPD with demo kit DESPI-L(C02)
    EPD with demo kit DEArduino-L(C02)

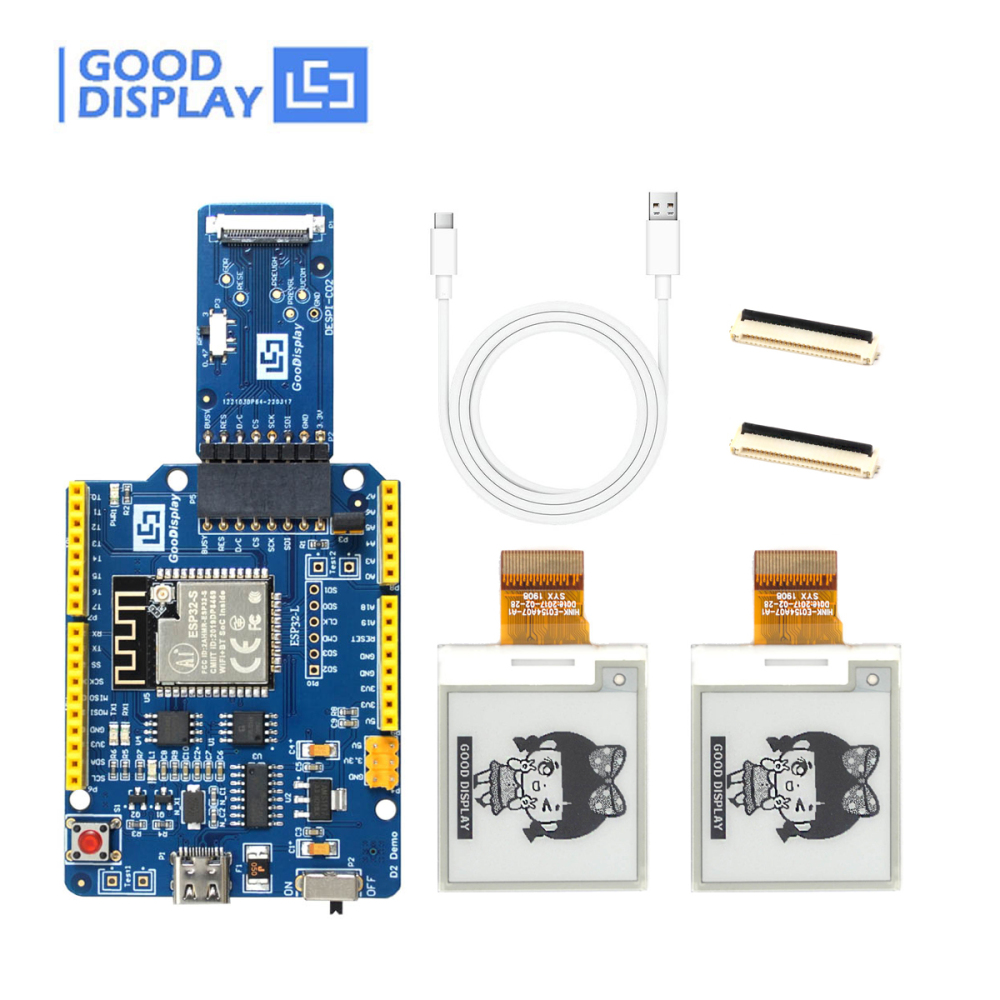

    EPD with demo kit ESP32-L(C02)

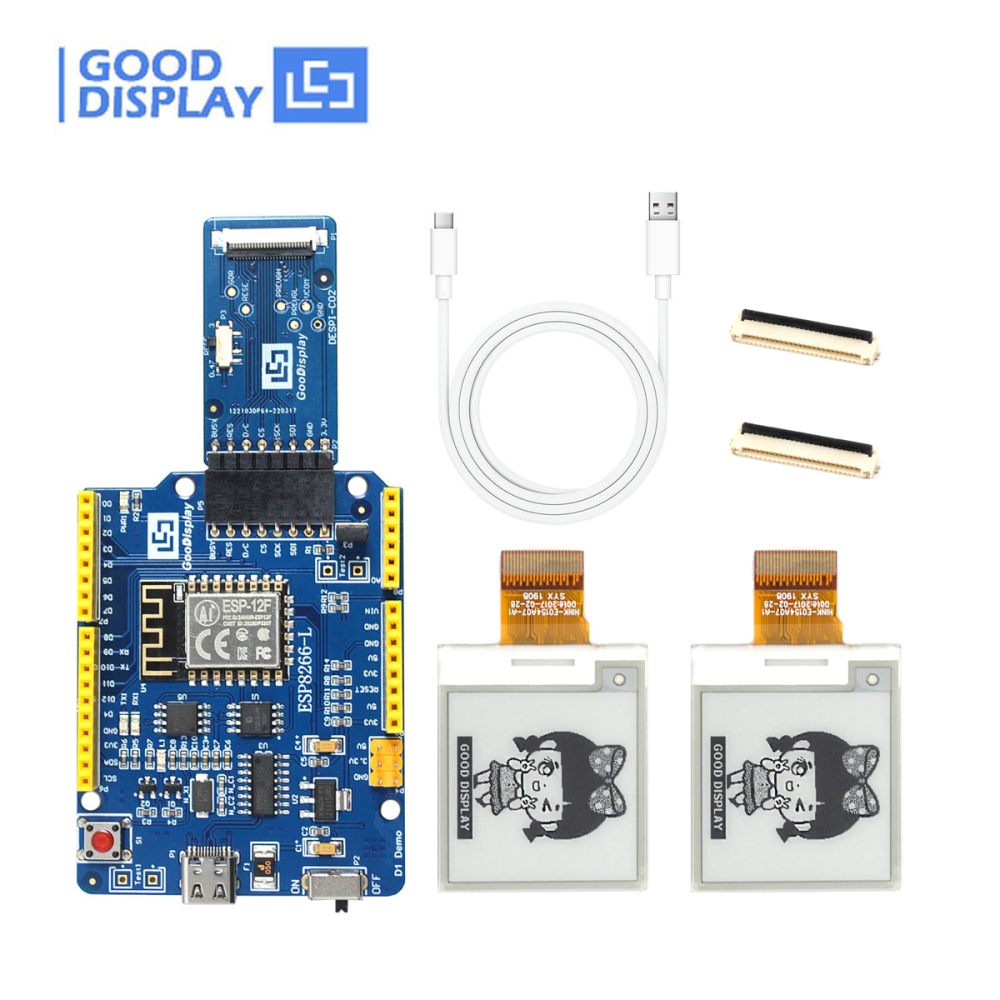

    EPD with demo kit ESP8266-L(C02)
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews(6)

TIPS: GDEY0154D67 is an upgraded version of GDEH0154D67. GDEH0154D67 has been discontinued. Please visit GDEY0154D67.


☆ INTRODUCTION



This is a small eink display, 1.54 inch, 200x200 resolution, SPI interface, and the eink display is capable to display images with black and white content. It supports 2s full refresh, and 0.26s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these eink modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This eink display GDEH0154D67 is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array



☆ THE ABOVE PRICE INCLUDE



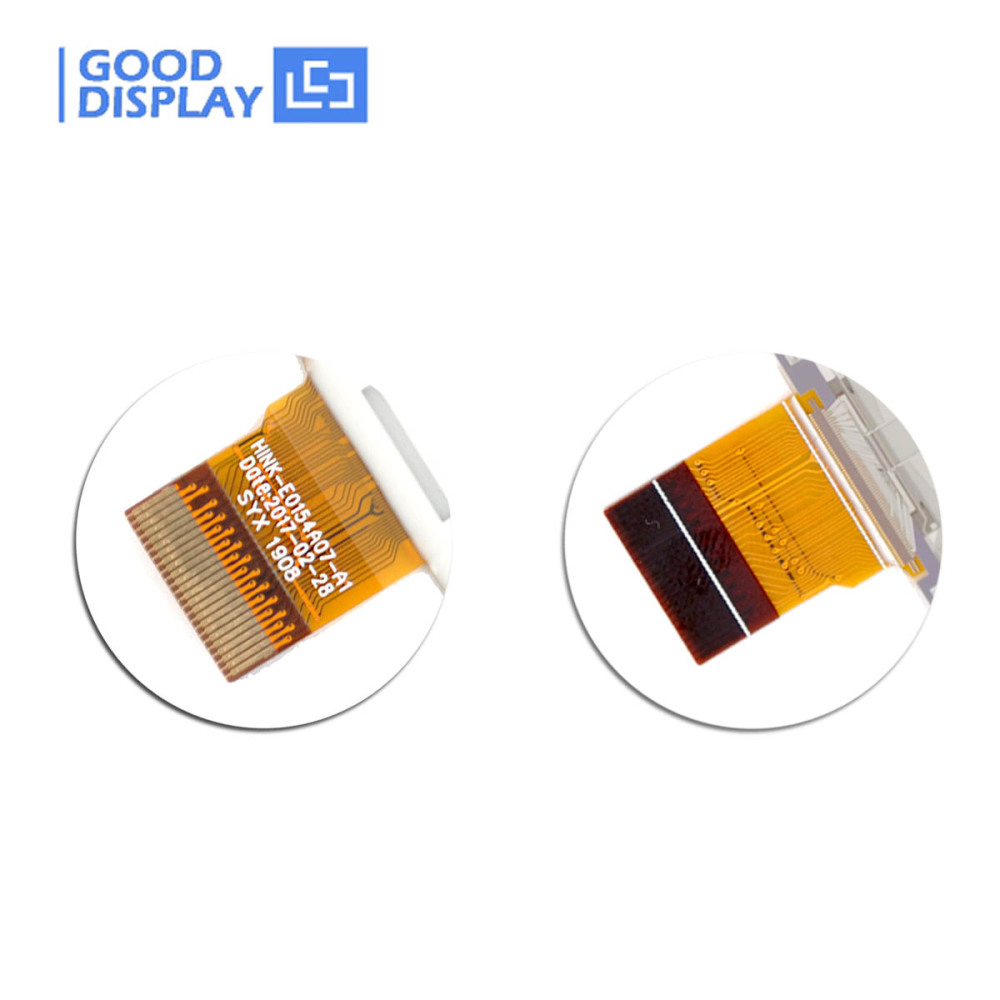

1) 1.54 inch small eink display for support partial update E-paper screen * 1pc
2) FPC Connector * 1pc



 MAIN PARAMETERS




PART NUMBER

GDEH0154D67



TYPE

Dot Matrix

CONNECTOR 24 Pin FPC

SIZE

1.54 inch

MAX GRAYSCALE 4

IC

SSD1681

COLOR Black,White

RESOLUTION

200x200

INTERFACE SPI

OUTLINE SIZE(mm)

31.8x37.32x1.05

FULL REFRESH(s) 2

ACTIVE SIZE(mm)

27x27

PARTIAL REFRESH TIME(s) 0.26

PIXEL PITCH(mm)

0.135x0.135

POWER CONSUMPTION OF THE REFRESH(mW) 4.95

OPERATING TEMP.

0℃~50℃

STANDBY POWER CONSUMPTION (mW) 0.006

STORAGE TEMP.

-25℃~60℃






 FEATURE




●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  It supports partial refresh, the refresh rate is 0.26s/frame.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Compared with other 1.54 inch electronic paper displays, the power consumption is lower.

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32
