☆ INTRODUCTION
This is a 1.54 inch flexible eink display which use the flexible substrate as base plate, with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEW0154I9FD is perfect for low power devices powered by solar or batteries.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ THE ABOVE PRICE INCLUDE

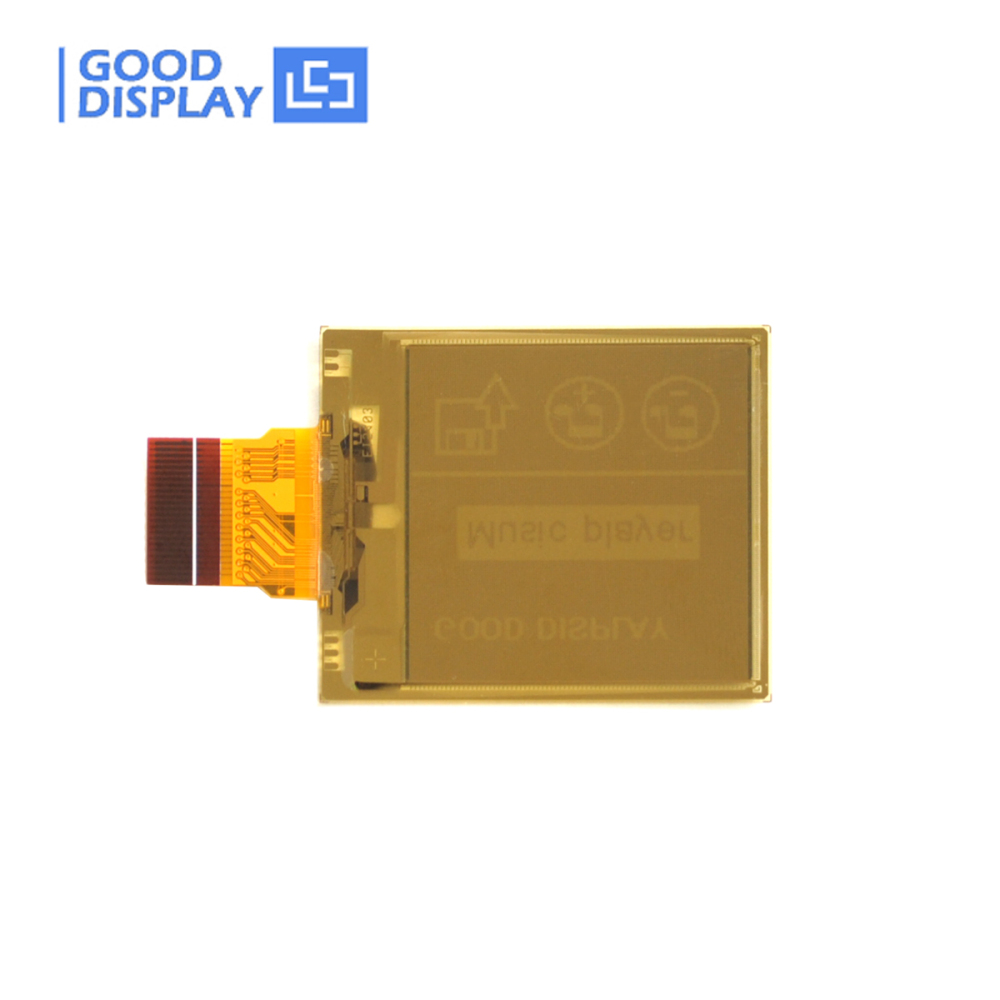

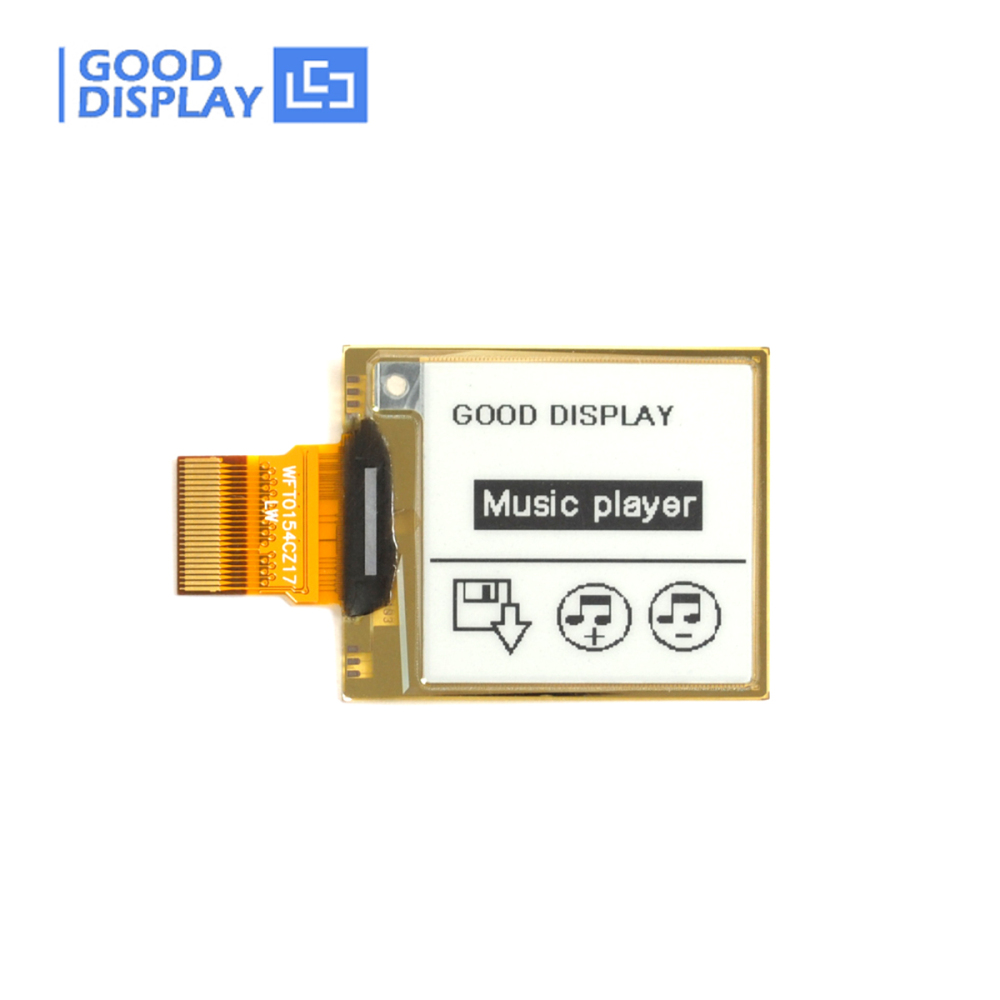

1) 1.54 inch partial refresh e-paper display panel 4 Grayscale * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0154I9FD
|
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |

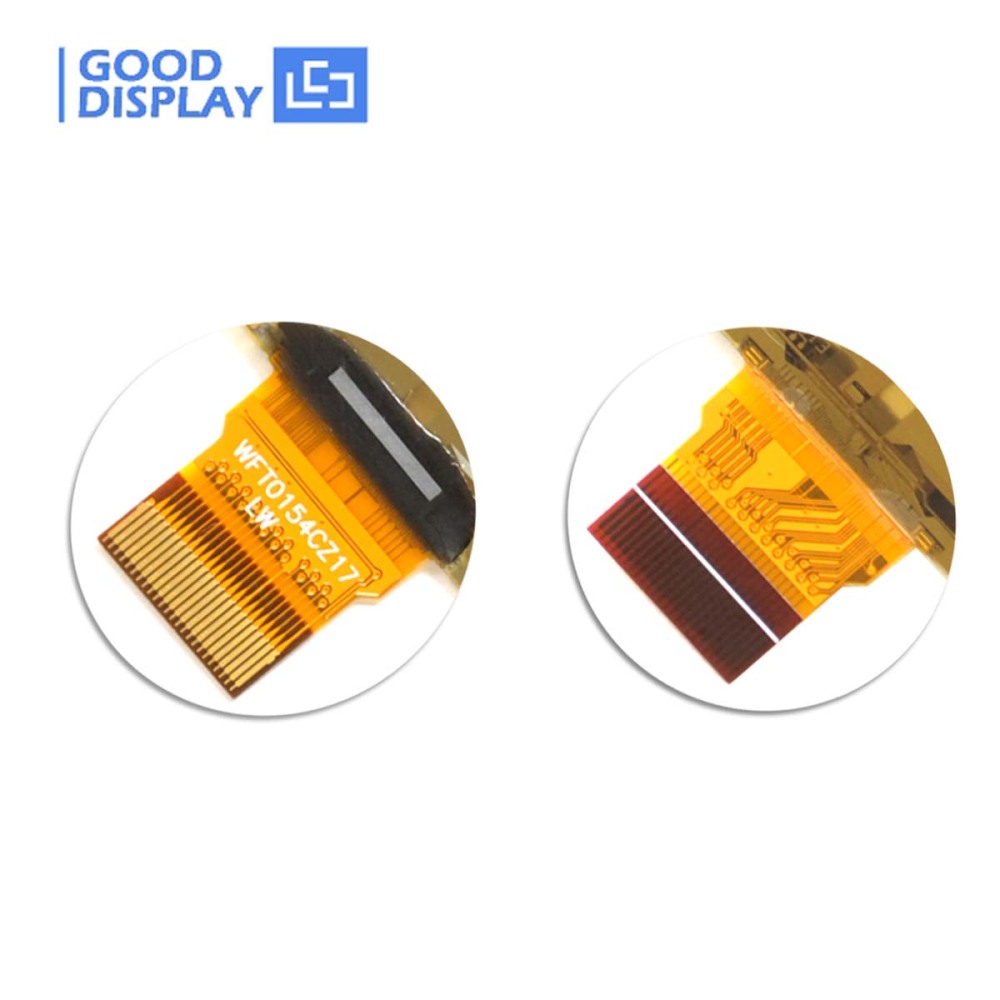

24 Pin FPC |
|
SIZE
|
1.54 inch
|
MAX GRAYSCALE |
4 |
|
IC
|
UC8151D
|
COLOR |
Black, White |
|
RESOLUTION
|
152x152
|
INTERFACE |
SPI |
|

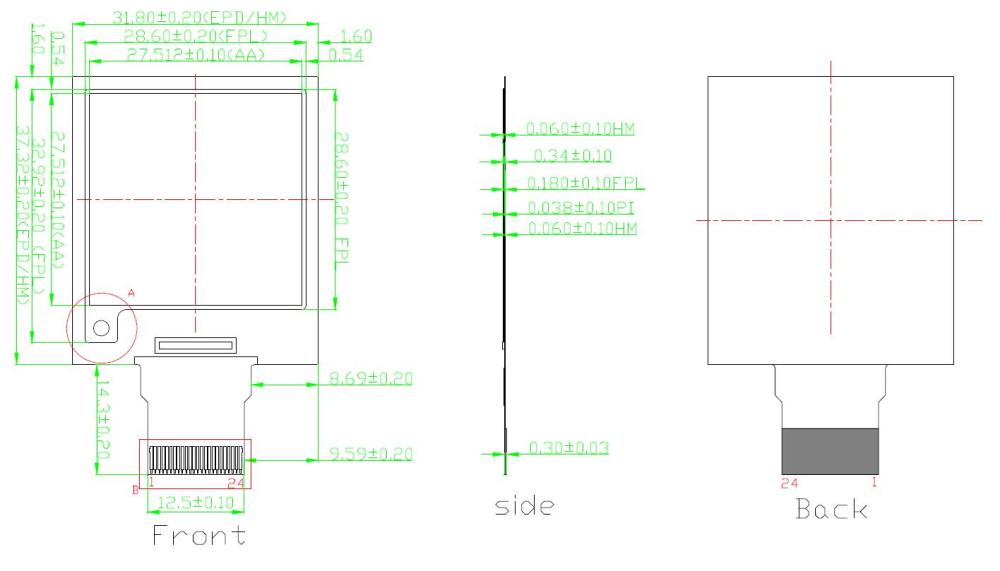

OUTLINE SIZE(mm)
|
31.8x37.32x0.34
|
FULL REFRESH(s) |
3 |
|
ACTIVE SIZE(mm)
|
27.51x27.51
|
PARTIAL REFRESH TIME(s) |
0.3 |
|
PIXEL PITCH(mm)
|
0.181x0.181
|
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
|
OPERATING TEMP.
|
0℃~50℃
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
|
STORAGE TEMP.
|
-25℃~70℃
|
|
|
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● Ultra-thin. It is thinner than the normal electronic paper display
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
