☆ INTRODUCTION

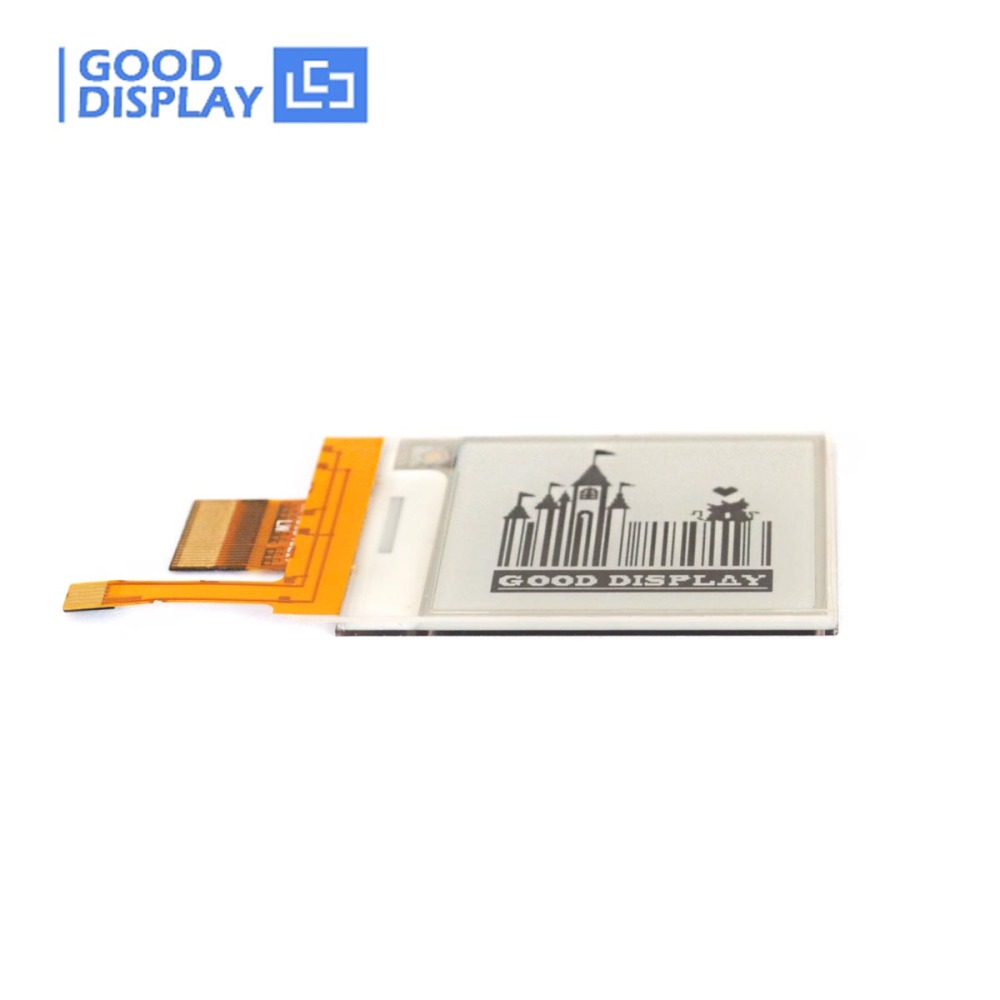

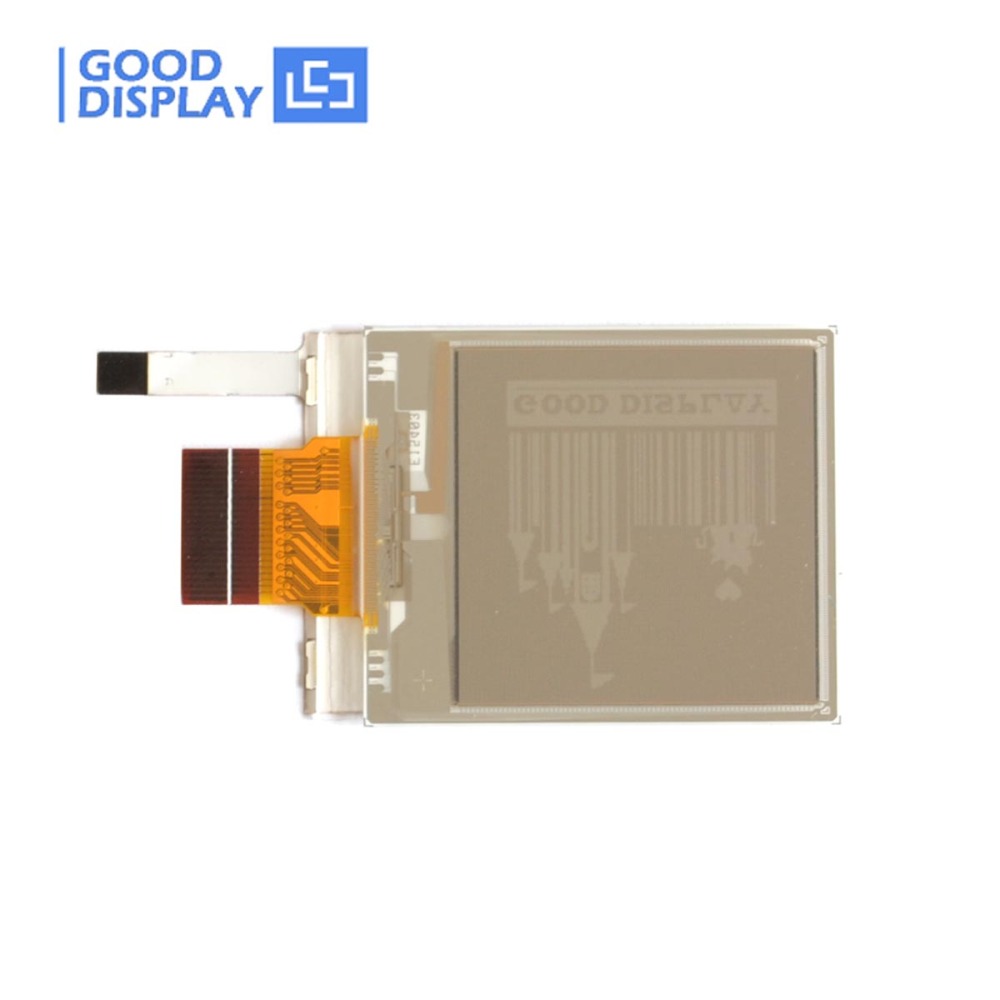

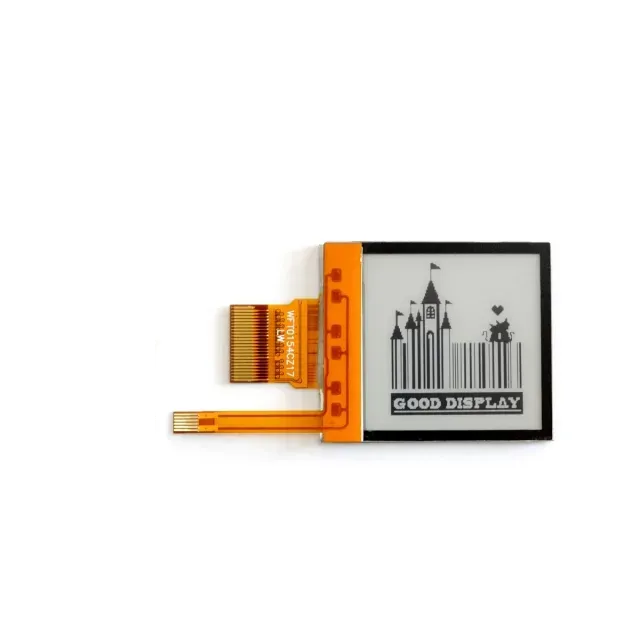

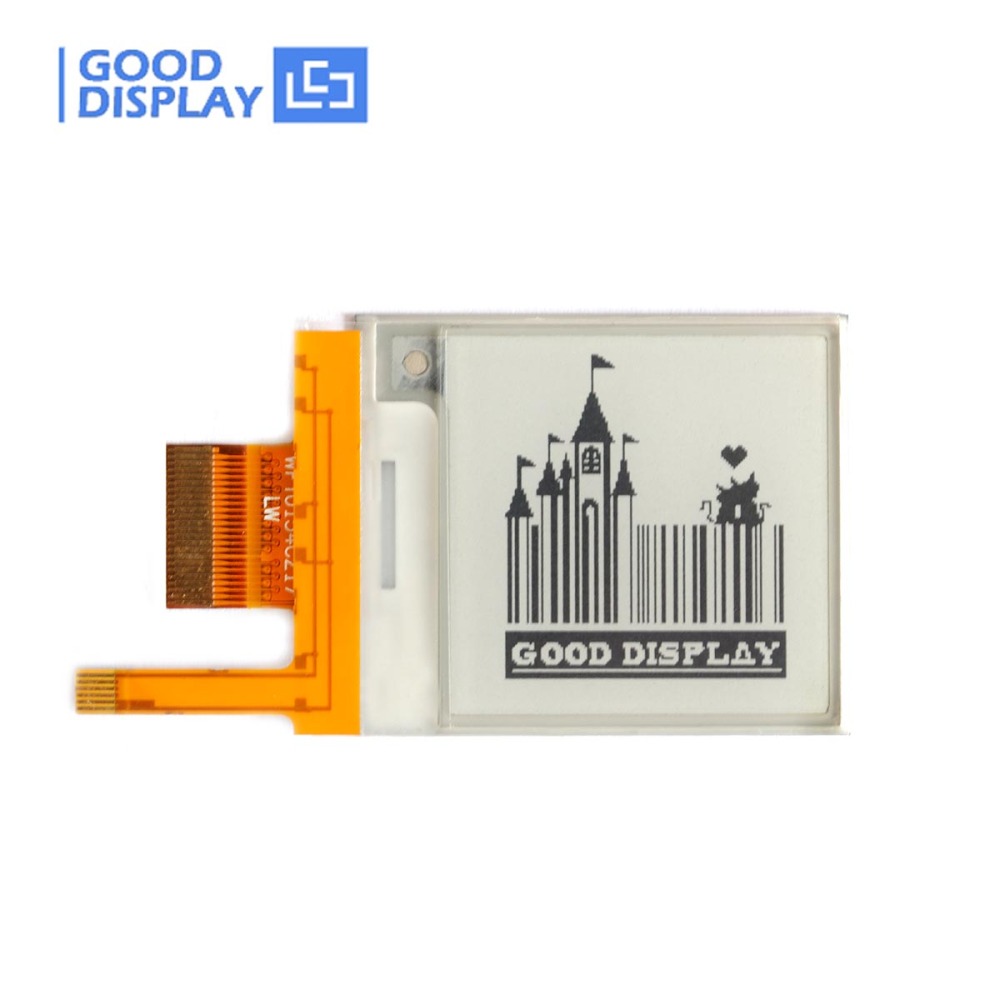

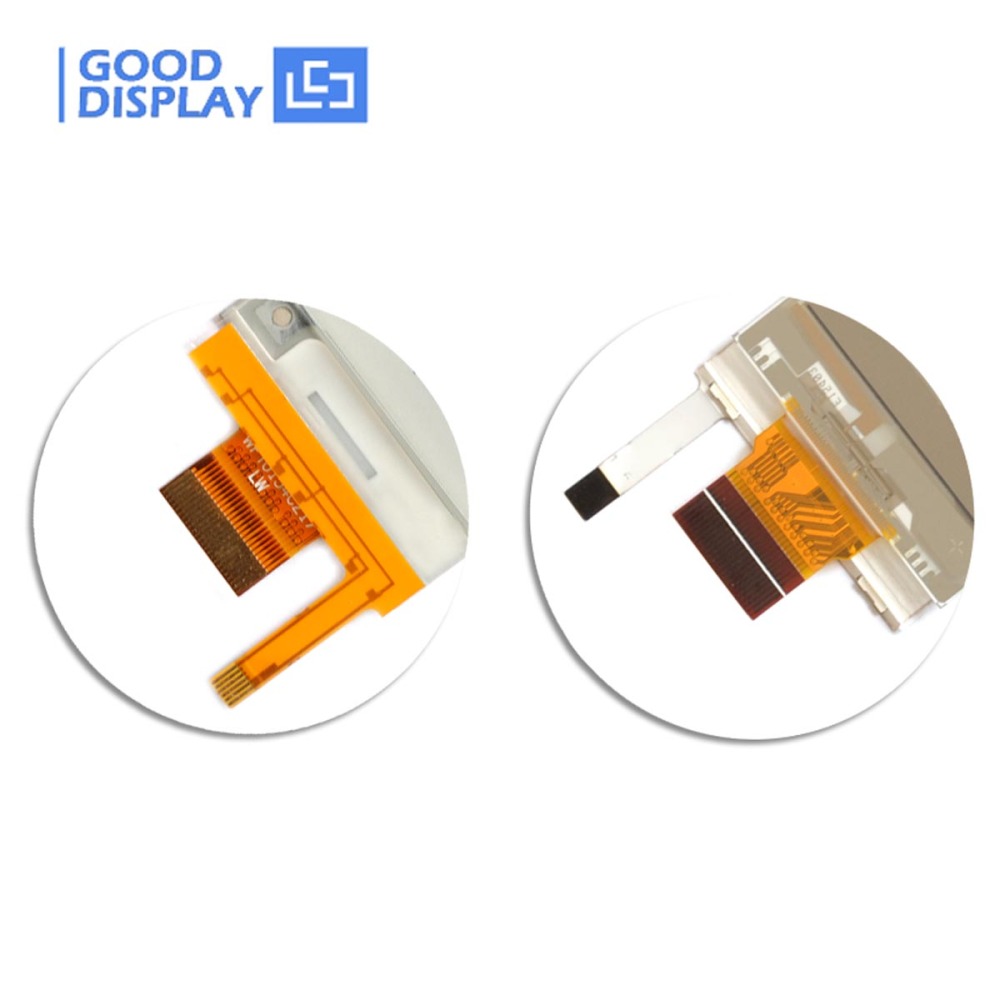

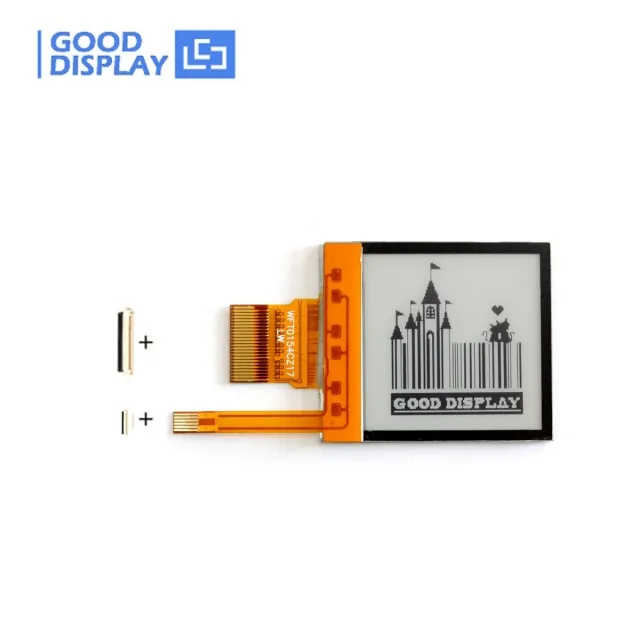

This is a 1.54 inch small e-ink display 4 Grayscale display panel with 6 pins FPC frontlight, 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEW0154T8-FL is perfect for low power devices powered by solar or batteries, and it can be used in dark environment.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
☆ MAIN PARAMETERS
| PART NUMBER |
GDEW0154T8-FL |
| TYPE |
Dot Matrix |
MAX GRAYSCALE |
4 |
| SIZE |
1.54 inch |
COLOR |
Black,White |
| IC |
UC8151C |
INTERFACE |
SPI |
| RESOLUTION |
152x152 |
FULL REFRESH(s) |
3 |
| ACTIVE SIZE(mm) |
27.51x27.51 |
PARTIAL REFRESH TIME(s) |
0.3 |
| PIXEL PITCH(mm) |
0.181x0.181 |
TIME OF FAST REFRESH(s) |
0.82 |
| OPERATING TEMP. |
0℃~50℃ |
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
| STORAGE TEMP. |
-25℃~70℃ |
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
| CONNECTOR |
24 Pin FPC |
|
|
☆ FEATURE
● Support 4 Grayscale
● Fast refresh (0.82s/frame)
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor

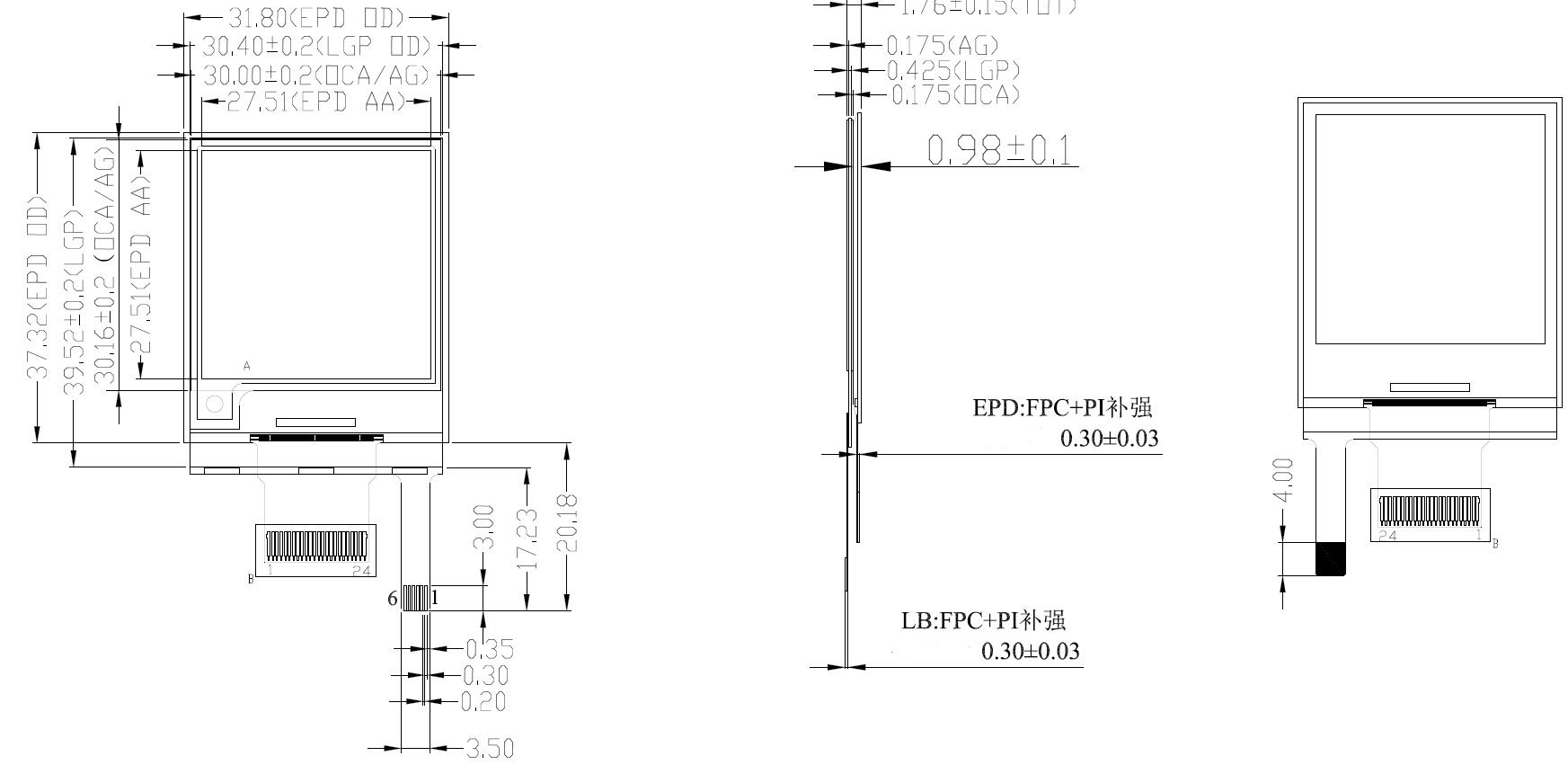

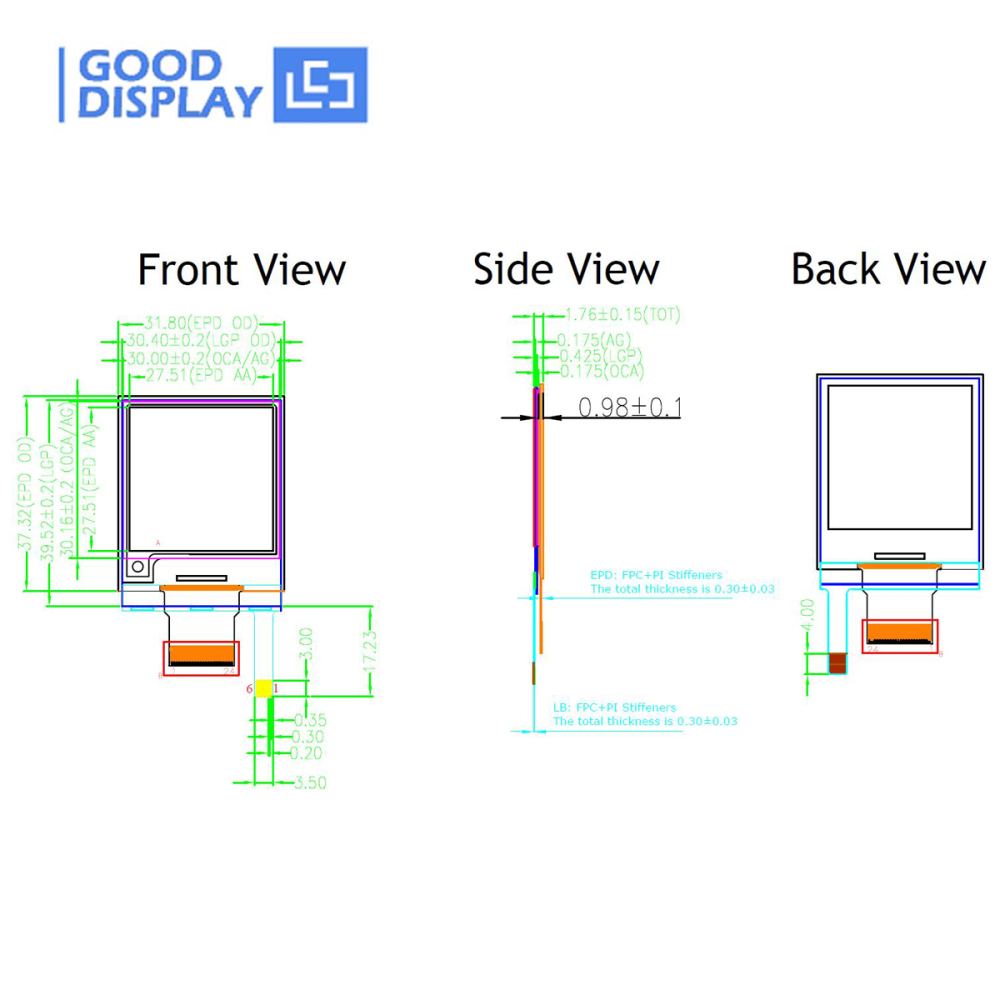

☆ DRAWING

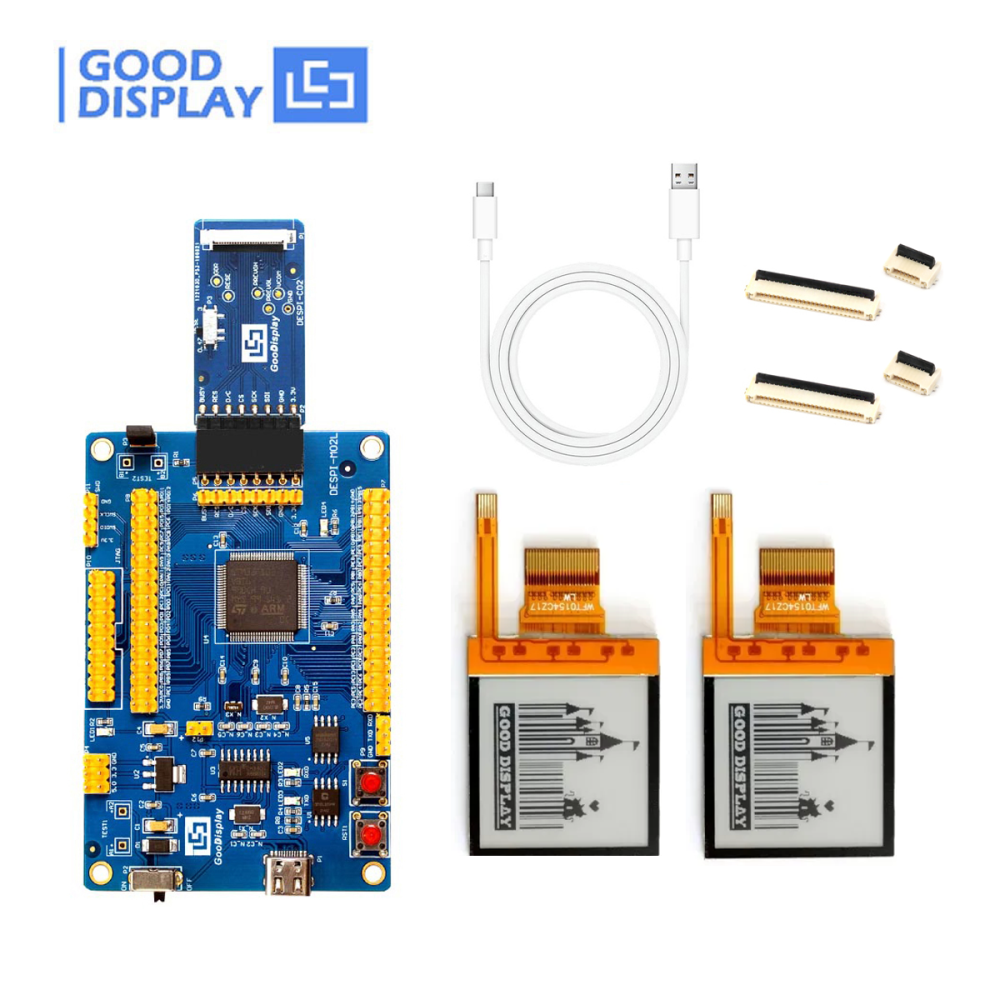

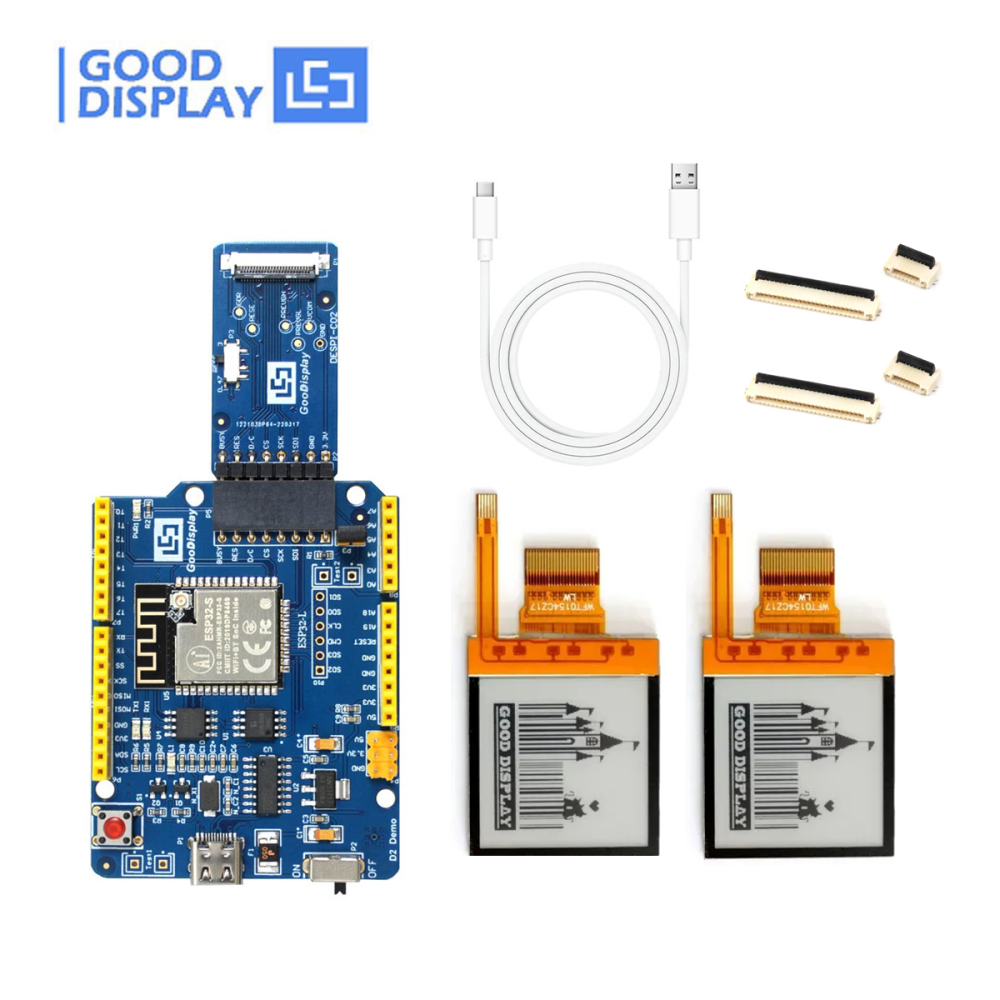

☆ MATCHED DEVELOPMENT KIT

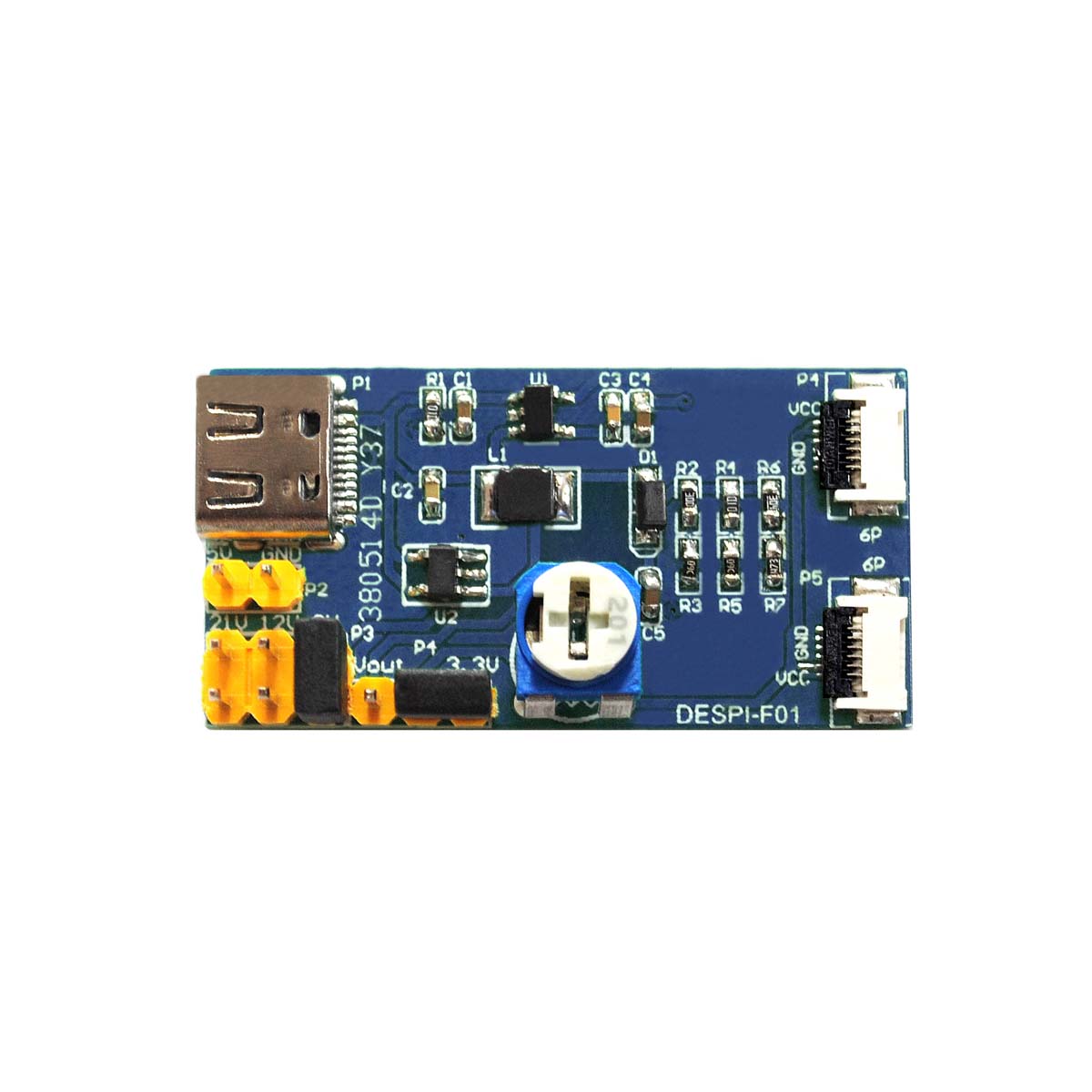

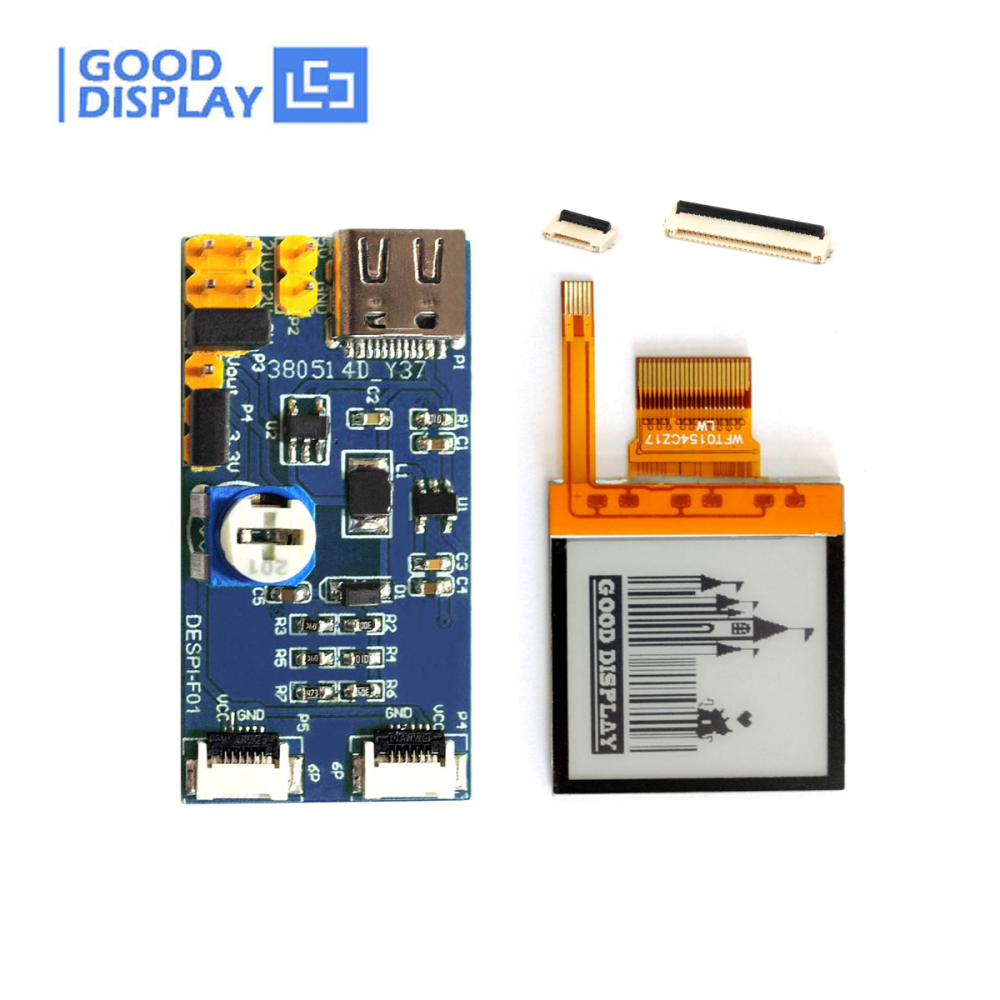

● DESPI-F01 (E-ink Display HAT)
