☆ INTRODUCTION

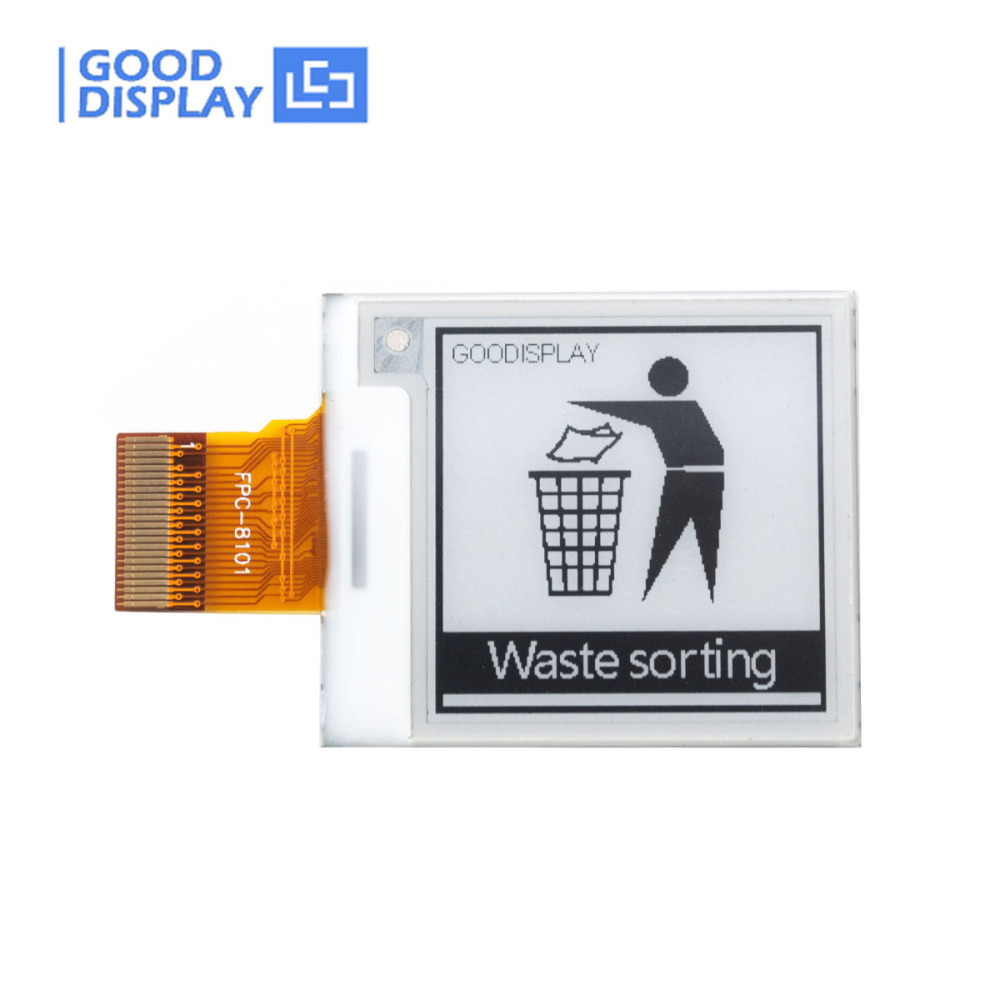

This is a 1.54 inch e-ink screen with 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEM0154D67 is perfect for low power devices powered by solar or batteries.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE
1) 1.54 inch EPD Panel SSD1681 152x152 Partial Refresh E-ink Module * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEM0154D67
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
1.54 inch
|
|
IC
|
SSD1681
|
|
RESOLUTION
|
200x200
|
|

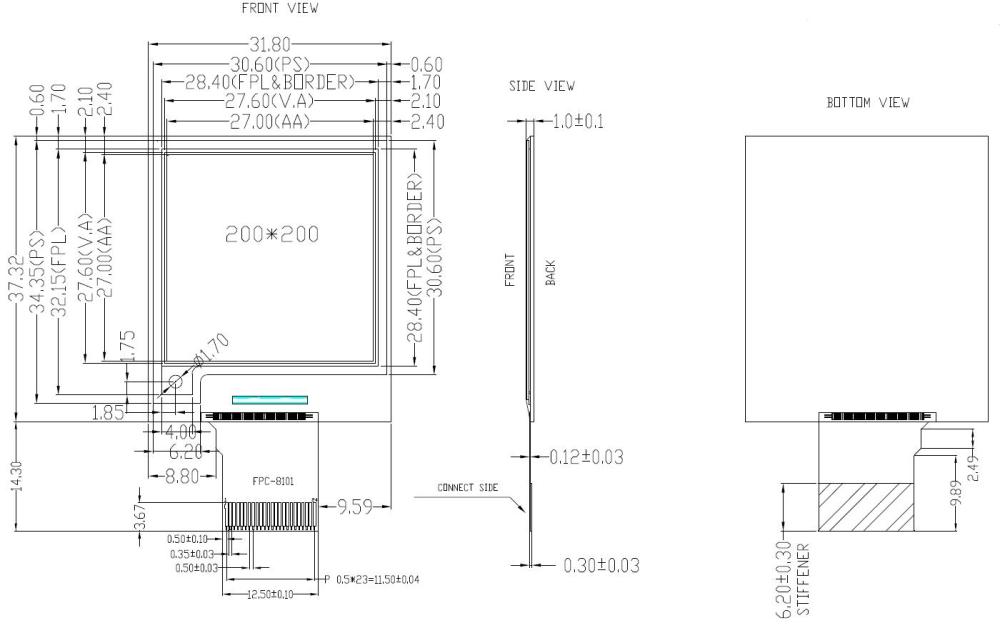

OUTLINE SIZE(mm)
|
31.8x37.32x1.0
|
|
ACTIVE SIZE(mm)
|
27x27
|
|
PIXEL PITCH(mm)
|
0.135x0.135
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
2
|
|
PARTIAL REFRESH TIME(s)
|
0.26
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
6
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.003
|
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
Resolution |
Features
|
Refresh Time |
|
GDEH0154D67
|
BW
|
200x200
|
SSD1681, Partial Refresh
|
2s
|
|
GDEH0154D67-FL
|
BW
|
200x200
|
SSD1681, Partial Refresh, With Frontlight
|
2s
|
|
GDEW0154M09
|
BW
|
152x152
|
JD79653, Fast Refresh, Partial Refresh
|
0.82s
|
|
GDEW0154T8-FL01
|
BW
|
152x152
|
UC8151C, Fast Refresh, Partial Refresh, With Frontlight
|
0.82s
|
|
GDEW0154T8D
|
BW
|
152x152
|
UC8151D, Fast Refresh, Partial Refresh
|
0.82s
|
|
GDEH0154Z90
|
BWR
|
200x200
|
SSD1681, Colorful(Red)
|
15s
|
