This is a Eink HAT with color epaper small e-ink, 1.54 inch, 200x200 resolution, SPI interface, and the color e-paper display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink screen modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This tri-color epaper screen display GDEY0154Z90 is perfect for low power devices powered by solar or batteries.
This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ ESP8266 / ESP32

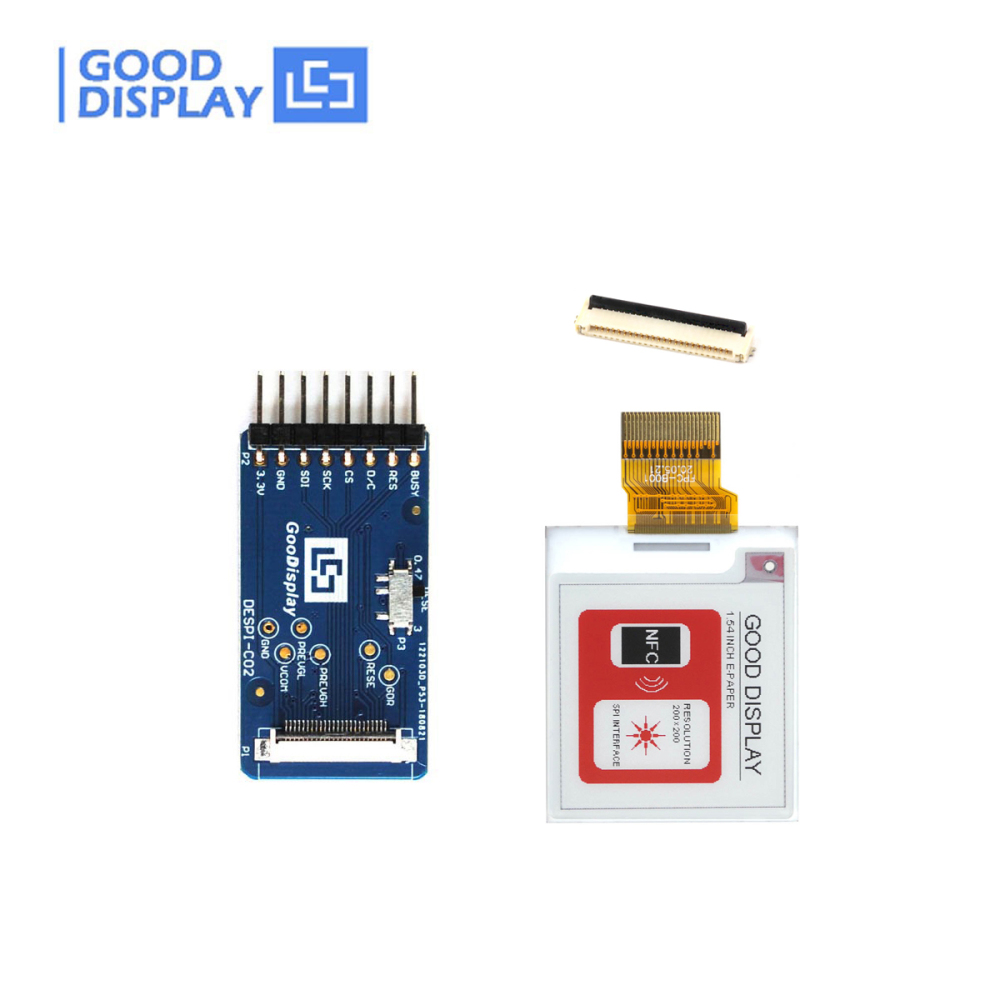

1) 1.54 Inch E-Paper Module E-Ink Display Module Color SPI Screen * 1pc
2) Connector board DESPI-C02 * 1pc
3) FPC Connector * 1pc
PART NUMBER |
GDEY0154Z90 |
TYPE |
Dot Matrix |
SIZE |
1.54 inch |
IC |
SSD1681 |
RESOLUTION |
200x200 |
OUTLINE SIZE(mm) |
37.32x31.80x0.98 |
ACTIVE SIZE(mm) |
27x27 |
PIXEL PITCH(mm) |
0.14x0.14 |
OPERATING TEMP. |
0℃~40℃ |
STORAGE TEMP. |
-25℃~60℃ |
CONNECTOR |
24 Pin FPC |
MAX GRAYSCALE |
2 |
COLOR |
Black, White, Red |
INTERFACE |
SPI |
FULL REFRESH(s) |
16 |
POWER CONSUMPTION OF THE REFRESH(mW) |
7.5 |
STANDBY POWER CONSUMPTION (mW) |
0.003 |
PART NUMBER |
DESPI-C02 |
PLATFORM |
STM32 |
FUNCTION |
Connection E-paper Display with Drive Board |
OUTSIDE DIMENSION |
41x22mm |
INTERFACE |
SPI |
POWER INPUT |
DC3.3V |
FEATURE |
Fully and Partial Refresh |
OPERATING TEMP. |
-20℃~70℃ |
Part Number |
Color |
Resolution |
Features |
Refresh Time |
BW |
200x200 |
SSD1681, Partial Refresh, With Frontlight |
2s |
|
BW |
152x152 |
JD79653, Fast Refresh, Partial Refresh |
0.82s |
|
BW |
152x152 |
UC8151D, DES, High contrast |
3s |
|
BW |
152x152 |
UC8151C, Fast Refresh, Partial Refresh, With Frontlight |
0.82s |
|
BW |
152x152 |
UC8151D, Fast Refresh, Partial Refresh |
0.82s |
|
BWR |
200x200 |
SSD1681, Colorful(Red) |
15s |
