☆ INTRODUCTION

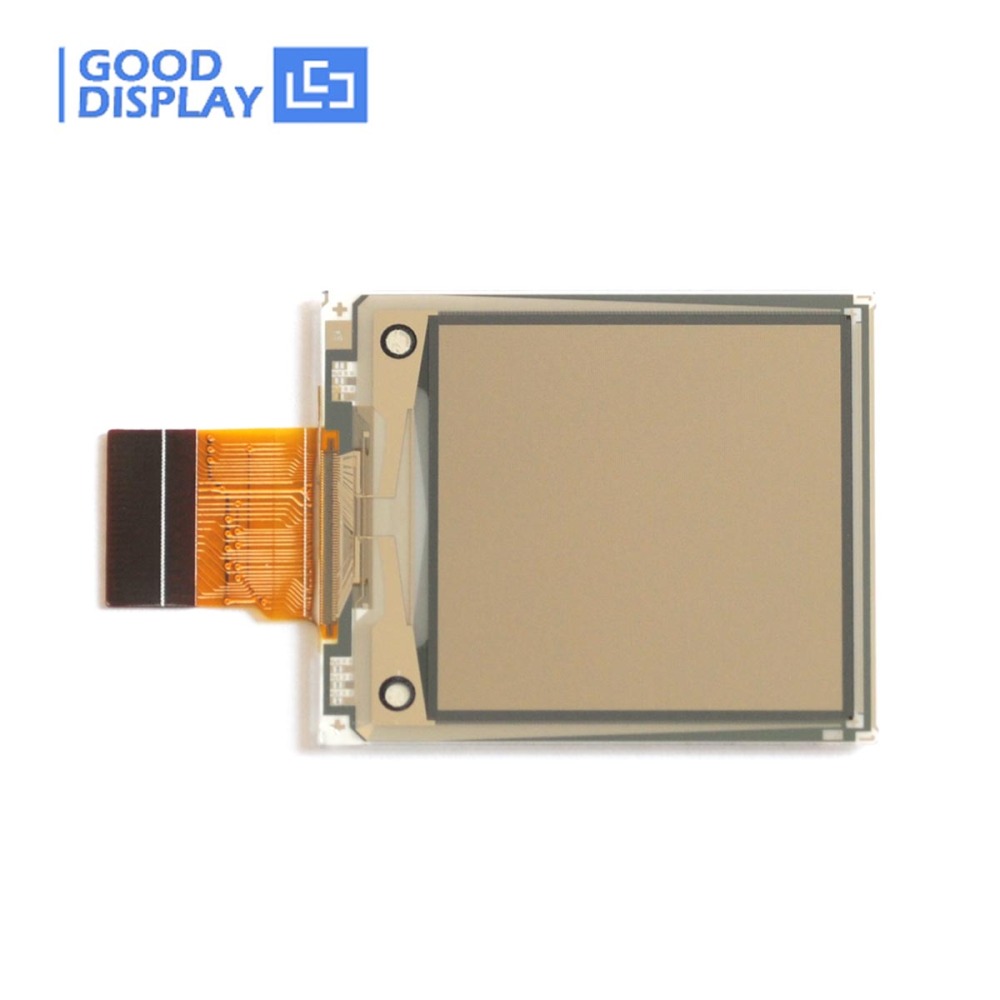

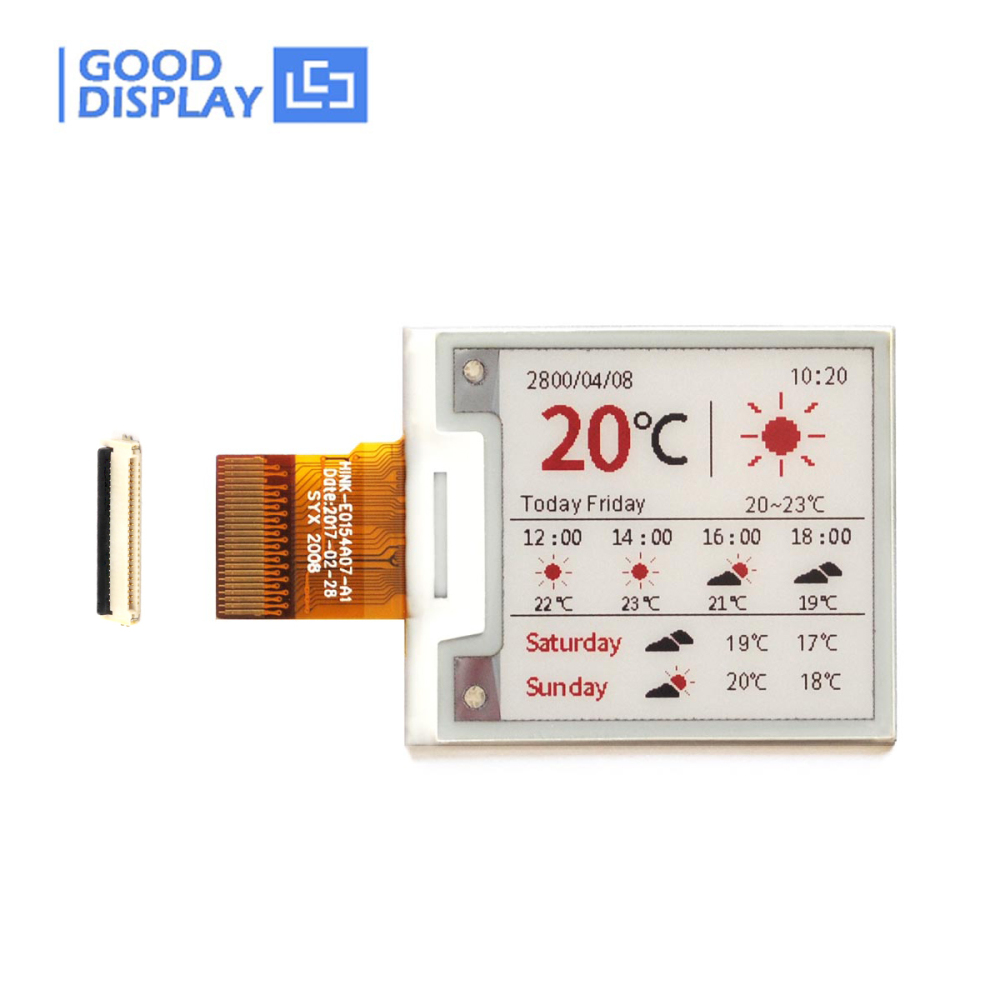

Name: 1.54 inch colorful red e-paper display panel, GDEH0154Z90
Brand: GOOD DISPLAY
SKU: GDEH0154Z90
Price: 6.88 USD
Availability: InStock
Rating: 5 (4 reviews)

This is a 1.54 inch colorful red e-paper display panel with 200x200 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink display GDEH0154Z90 is perfect for low power devices powered by solar or batteries.

We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.

Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates

☆ THE ABOVE PRICE INCLUDE

1) 1.54 inch colorful red e-paper display panel * 1pc
2) FPC Connector * 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDEH0154Z90
TYPE	Dot Matrix	STORAGE TEMP.	-25℃~60℃

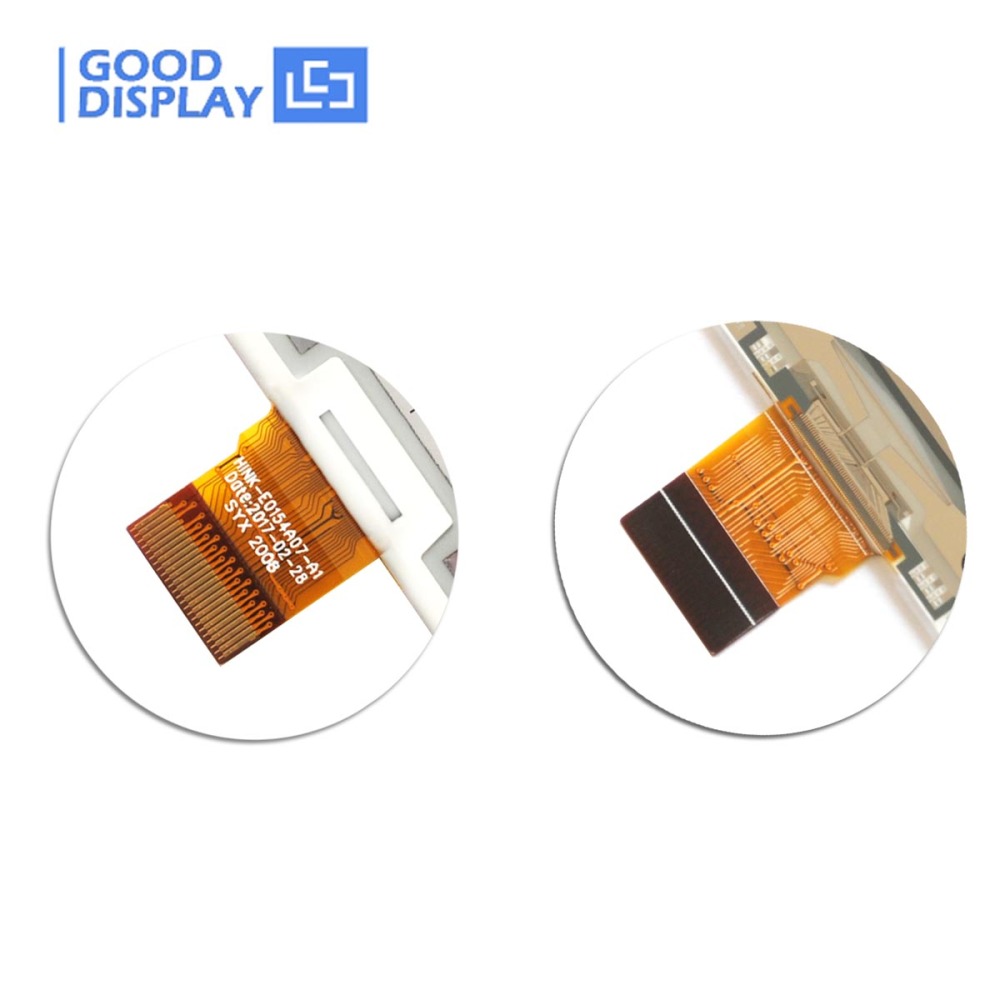

SIZE	1.54 inch	CONNECTOR	24 Pin FPC
IC	SSD1681	MAX GRAYSCALE	2
RESOLUTION	200x200	COLOR	Black, White, Red
OUTLINE SIZE(mm)	37.32x31.80x0.9	INTERFACE	SPI
ACTIVE SIZE(mm)	27x27	FULL REFRESH(s)	15
PIXEL PITCH(mm)	0.135x0.135	POWER CONSUMPTION OF THE REFRESH(mW)	6.6
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.0099

☆ FEATURE

● Versatile. Use in portrait or landscape format

● Bistable. (Will continue to display with no power source)

● I²C Signal Master Interface to read external temperature sensor

● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-C03 (Rasberry Pi Epaper HAT)

☆ WE ALSO SUGGEST...


1.54 inch DES e-paper display wide working temperature 152X152 resolution EPD GDEW0154M10	Small 1.54inch Epaper 200x200 SPI Cheap E ink Display, GDEW0154T11	1.54 inch electronic paper display Customizable 1.5s fast refresh partial refresh digital price tags screen, GDEY0154D67	1.54 inch small e-ink display with frontlight 4 Grayscale display panel, GDEW0154T8-FL

Epaper-display Thin 1.54inch epaper Electronic Shelf Label E Ink Panel, GDEM0154Z91	1.54 inch small eink display for support partial update E-paper screen module GDEH0154D67	1.54 inch e-ink panel 152x152 flexible partial refresh epaperdisplay ACF Thermal Compression Bonding, GDEW0154I9FC	e-paper display 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh GDEW0154T8D

☆ SPECIFICATION DOWNLOAD

1. Product Specification & Sample Code
1)  GDEH0154Z90 Specification
2)  GDEH0154Z90 STM32 Sample Code
3)  GDEH0154Z90 Arduino Sample Code
4)  GDEH0154Z90 ESP32 Sample Code
5)  GDEH0154Z90 ESP8266 Sample Code
6)  GDEH0154Z90 Raspberry Pi Pico Sample Code

2. E-paper Display IC Datasheet
1)  IC Driver SSD1681 Datasheet

3. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual
