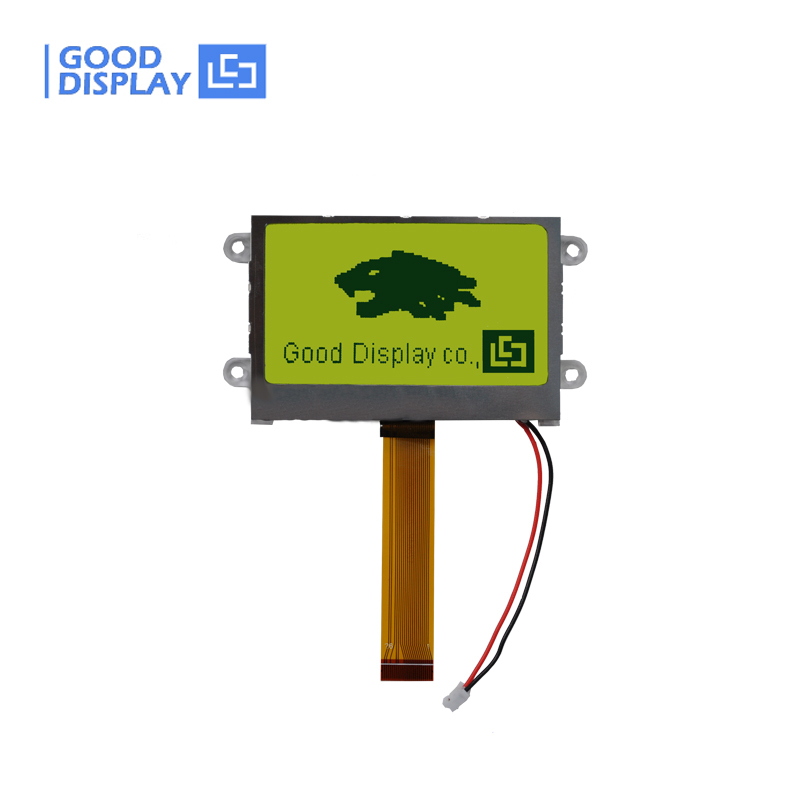

128X64 ultra-extended temperature LCD with touchscreen YM12864P-70

YM12864P-70
128x64 graphic LCD module, Built-in Sitronix  ST7567  controller, Operating voltage 3.3V, with LED backlight, STN Yellow-green mode, Positive.
Price:
USD
$18.40
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

YM12864J-70 Graphic LCDs Family:

128x64 graphic LCD module

Built-in Sitronix  ST7567  controller

Available in several variations of backlight and polarizer  (minimum order may be required)

Wide temperature range: -35°C to 80°C

With 4-wires resistive Touch Screen (Option)

With ITO glass heater, the lowest operatiing temperature is -35°C

With fixed hole.

RoHS Compliant

Manufacturer GOOD DISPLAY
Part Number YM12864P-70
Dot Format 128X64

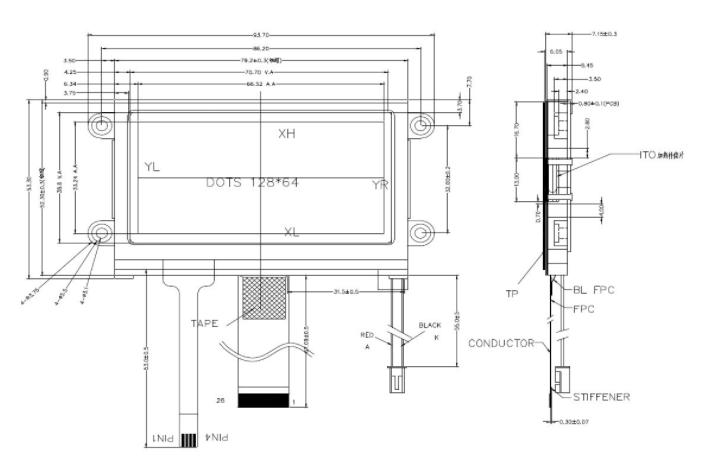

Outline Dimension 93.7 (W) x 51.3 (H) x 7.6 (D)mm
View Area(W×H) 70.7 (W) x 38.8 (H) mm
Dot Size(W×H) 0.48 (W) x 0.48 (H) mm

Operating Temp

Extended temp LCD:-35 to 70℃

Storage Tempe

Normal temp LCD:-40 to 90℃

Dot Pitch(W×H) 0.52 (W) x 0.52 (H)mm
Operating voltage 3.3V
Backlight LED
IC Packaging COG
Net Weight 64g
LCD Mode STN Yellow-green mode, Positive






http://www.e-paper-display.com/products_detail/productId=131.html




International Shipping & Delivery FAQs>>
Payment Methods>>
Shipping & Returns>>


Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!! my email is: clara@good-display.com



Part Number

Digit

Outline Dimension

Active(View) Area

Drive method

GDC02693

2

7.5x10x1.1mm

5.5x4.0mm

1/4D,1/2B

GDC0209

4

23x10x2.8mm

20x6mm

1/4D,1/3B

GD46532

6

37x25.6x2.8mm

34x17.6mm

1/4D,1/3B

GDC0178

11

--

--

1/4D,1/3B

GDC0689

6

42x25x2.8mm

39x17mm

1/4D,1/3B

GDC8811D

--

36.00x36.00x2.00mm

33.00x31.00mm

Static

GDC21310

2

30x21x2.8mm

27x16mm

1/4D,1/3B

GDC03828

5

81.0×37.5×2.8mm

78.0×27.5mm

Static

GDC04212

4

42x23x2.8mm

39*16.5mm

1/4 D, 1/3 B

GDC1038

11

40x32x2.85mm

35x28mm

1/4D,1/3B

GDC1009

--

56.5x70.5x2.8mm

49x59mm

1/4D,1/3B

GDC6375

--

98x34.3x2.8mm

92.64x24.94mm

1/4D,1/3B

GDC7723B

--

96x48x2mm

93x43mm

Static

GDC04824

4

51.0x34.0x2.8mm

48.0x25.0mm

1/4 D, 1/3 B

GDM0328

8

55.8x37x2.8mm

45x27mm

1/4D,1/3B

GDM0689

6

58.0x28.0x6.70mm

39.0x17.0mm

1/4D

GDM0103

8

78x26x9.8mm

60.5x13.5mm

1/4D,1/3B

EDM1190-03

4

72.8x35.5x10.7mm

54.2x24mm

Static

240128A-11

--

114x105.5x15mm

107.95x57.55mm

1/128 D,1/12 B

EDC103

8

64x22.0x2.8mm

60.5x13.5mm

1/4D,1/3B

EDC190

4

50.8x30.48x2.8mm

45.72x17.78mm

Static

EDS819

2-1/2

30.0x26.17mm

26.0x17.17mm

Static

EDS816

4

93.98x45.72x2.8mm

86.36x30.48 mm

Static

EDS815

4

69.85x38.1x2.8mm

62.23x22.86mm

Static

EDS806

8

93.85x30.48x2.8mm

38.9x27.9mm

Static

EDS809

6

69.85x30.48x2.8mm

64.77x16.51mm

Static

EDS810

6

93.85x38.1x2.8mm

86.36x24.13mm

Static

EDS812

3

30.7x16.2x2.8mm

27.9x10.0mm

Static

YM0801B

--

55.0x17.0x8.5mm

39.5x8.0mm

--

YM0802B

--

58.0x32.0x13.0mm

38.0x16.0mm

--

YM0802SYG-3

--

58x32x13.2mm

39x16mm

--

YM12864C

--

78x70x13mm

62x44mm

--

YM1601A

--

80.0x36.0x13.0mm

64.5x14.0mm

--

YM1604C

--

77.0x51.0x13.0 mm

61.7x25.2 mm

--

YM1602C

--

80.0x36.0x12.5mm

64.5x15.8mm

--

YM1602M-1

--

80.0x36.0x13.0mm

64.5x14.0mm

--

YM1602L

--

122.0x44.0x14.0mm

99.0x24.0 mm

--

YM128128G-3

--

46.5x56.7x4.0mm

39.64x46.04mm

--

YM320240B-3

--

139.0x120.0x13.2mm

103.0x79.0mm

--

YM19264A

--

130.0x65.0x13.0mm

104.0x39.0mm

--

YM12864FS-655

--

70.0x50.0x5.8mm

67.0x37.0mm

--

YM12864P-70

--

93.7x51.3x7.6mm

70.7x38.8mm

--

YM0802A-1

--

40.0x35.8x12.0mm

25.74x9.48mm

--

YM12864-G35

--

80.2x51.2x5.6mm

66.52x33.24mm

--

YM12864J

--

93.0x70.0x14.0mm

70.7x38.8mm

--

YM12864J-7

--

93x70x13.5mm

72x40mm

1/64 D,1/9 B
