☆ THE ABOVE PRICE INCLUDE

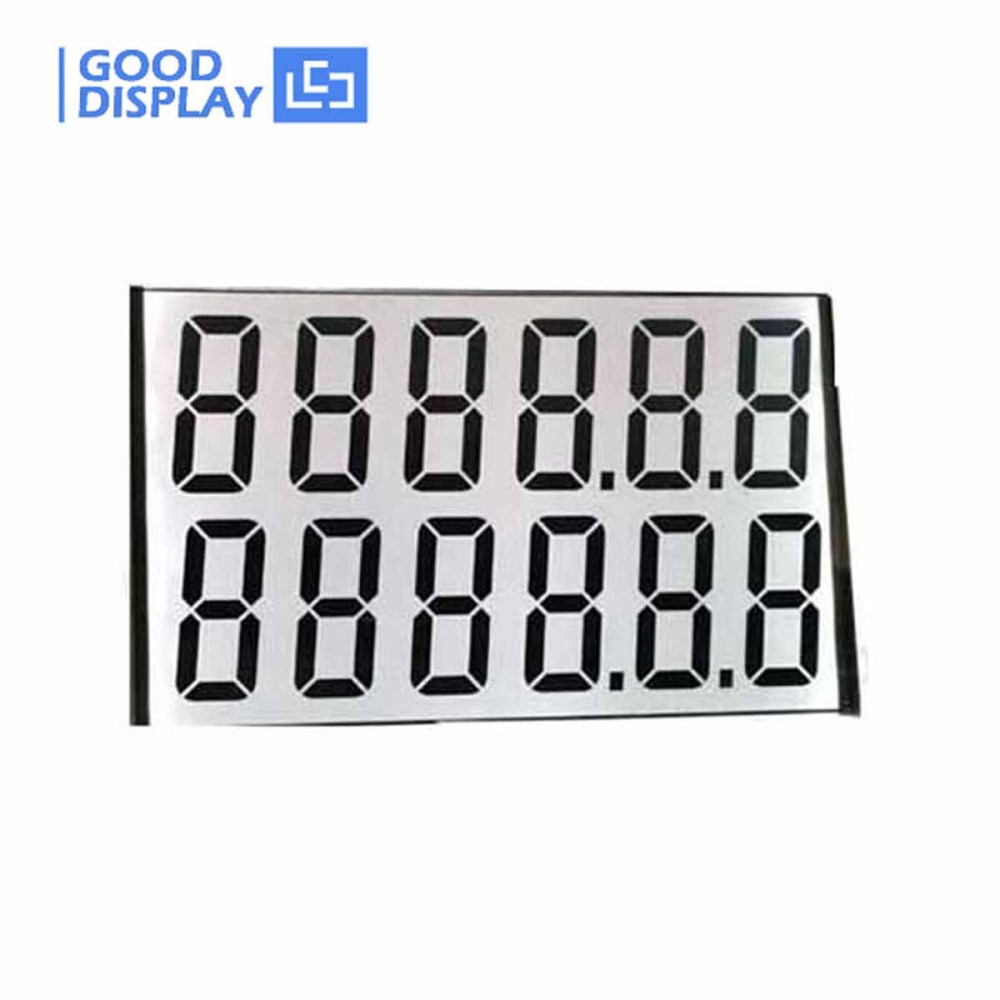

1) 12 Digits LCD Panel GDC9188 * 1pc
☆ MAIN PARAMETERS
| Part Number |
GDC9188 |
| Display content |
12 digits |
Operating Voltage |
3V/5V |

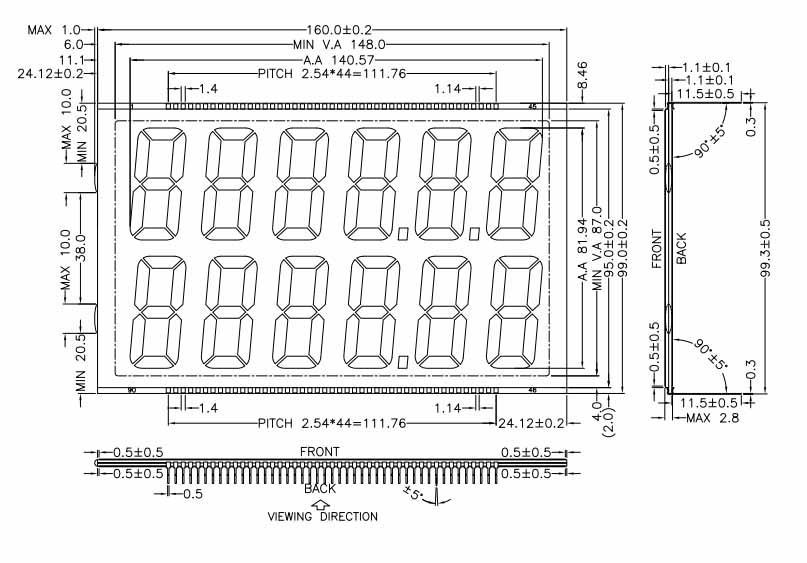

| Outline Dimension(mm) |
156x99x2.8 |
Operating Temp. |
-20℃~70℃ |
| Active Area(mm) |
148x87 |
Drive method |
Static |
| Dot Size(mm) |
16.4x38.2 |
Connector |
Pins |
| Backlight Color |
White optional |
|
|
☆ DETAILS
☆ ABOUT US
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
|
PART NUMBER
|
DIGIT
|
OUTLINE DIMENSION
|
ACTIVE(VIEW) AREA
|
DRIVE METHOD
|
|
GDC02693
|
2
|
7.5x10x1.1mm
|
5.5x4.0mm
|
1/4D,1/2B
|
|
GDC0209
|
4
|
23x10x2.8mm
|
20x6mm
|
1/4D,1/3B
|
|
GDC0178
|
11
|
--
|
--
|
1/4D,1/3B
|
|
GDC8811D
|
--
|
36.00x36.00x2.00mm
|
33.00x31.00mm
|
Static
|
|
GDC21310
|
2
|
30x21x2.8mm
|
27x16mm
|
1/4D,1/3B
|
|
GDC03828
|
5
|
81.0×37.5×2.8mm
|
78.0×27.5mm
|
Static
|
|
GDC6375
|
--
|
98x34.3x2.8mm
|
92.64x24.94mm
|
1/4D,1/3B
|
|
GDC130
|
4
|
51.0x34.0x2.8mm
|
48.0x25.0mm
|
1/4 D, 1/3 B
|
| GDC1156 |
6 |
253x65.5x2.8mm |
250x60mm |
1/4 D, 1/3 B |
| GDM0689 |
6 |
58.0x28.0x6.70mm |
39.0x17.0mm |
1/4Duty |
|
GDM0328
|
8
|
55.8x37x2.8mm
|
45x27mm
|
1/4D,1/3B
|
|
GDC0689
|
6
|
42x25x2.8mm
|
39.0x17.0mm
|
1/4 D, 1/3 B
|
| GDC9188 |
12 |
156x99x2.8mm |
148x87mm |
Static |
|
EDM1190-03
|
4
|
72.8x35.5x10.7mm
|
54.2x24mm
|
Static
|
|
EDC103
|
8
|
64x22.0x2.8mm
|
60.5x13.5mm
|
1/4D,1/3B
|
|
EDC190
|
4
|
50.8x30.48x2.8mm
|
45.72x17.78mm
|
Static
|
|
EDS819
|
2-1/2
|
30.0x26.17mm
|
26.0x17.17mm
|
Static
|
|
EDS816
|
4
|
93.98x45.72x2.8mm
|
86.36x30.48 mm
|
Static
|
|
EDS815
|
4
|
69.85x38.1x2.8mm
|
62.23x22.86mm
|
Static
|
| EDS805 |
4 |
50.8x30.48x2.8mm |
45.72x16.51mm |
Static |
|
EDS809
|
6
|
69.85x30.48x2.8mm
|
64.77x16.51mm
|
Static
|
|
EDS810
|
6
|
93.85x38.1x2.8mm
|
86.36x24.13mm
|
Static
|
|
YM0801B
|
--
|
55.0x17.0x8.5mm
|
39.5x8.0mm
|
--
|
|
YM0802B
|
--
|
58.0x32.0x13.0mm
|
38.0x16.0mm
|
--
|
|
YM0802SYG-3
|
--
|
58x32x13.2mm
|
39x16mm
|
--
|
|
YM12864C
|
--
|
78x70x13mm
|
62x44mm
|
--
|
|
YM1601A
|
--
|
80.0x36.0x13.0mm
|
64.5x14.0mm
|
--
|
|
YM1604C
|
--
|
77.0x51.0x13.0 mm
|
61.7x25.2 mm
|
--
|
|
YM1602C
|
--
|
80.0x36.0x12.5mm
|
64.5x15.8mm
|
--
|
|
YM1602L
|
--
|
122.0x44.0x14.0mm
|
99.0x24.0 mm
|
--
|
|
YM128128G-3
|
--
|
46.5x56.7x4.0mm
|
39.64x46.04mm
|
--
|
|
YM320240B-3
|
--
|
139.0x120.0x13.2mm
|
103.0x79.0mm
|
--
|
|
YM19264A
|
--
|
130.0x65.0x13.0mm
|
104.0x39.0mm
|
--
|
|
YM12864FS-655
|
--
|
70.0x50.0x5.8mm
|
67.0x37.0mm
|
--
|
|
YM0802A-1
|
--
|
40.0x35.8x12.0mm
|
25.74x9.48mm
|
--
|
|
YM12864-G35
|
--
|
80.2x51.2x5.6mm
|
66.52x33.24mm
|
--
|
|
YM12864J
|
--
|
93.0x70.0x14.0mm
|
70.7x38.8mm
|
--
|
| YM12864J-7 |
-- |
93x70x13.5mm |
72x40mm |
-- |
