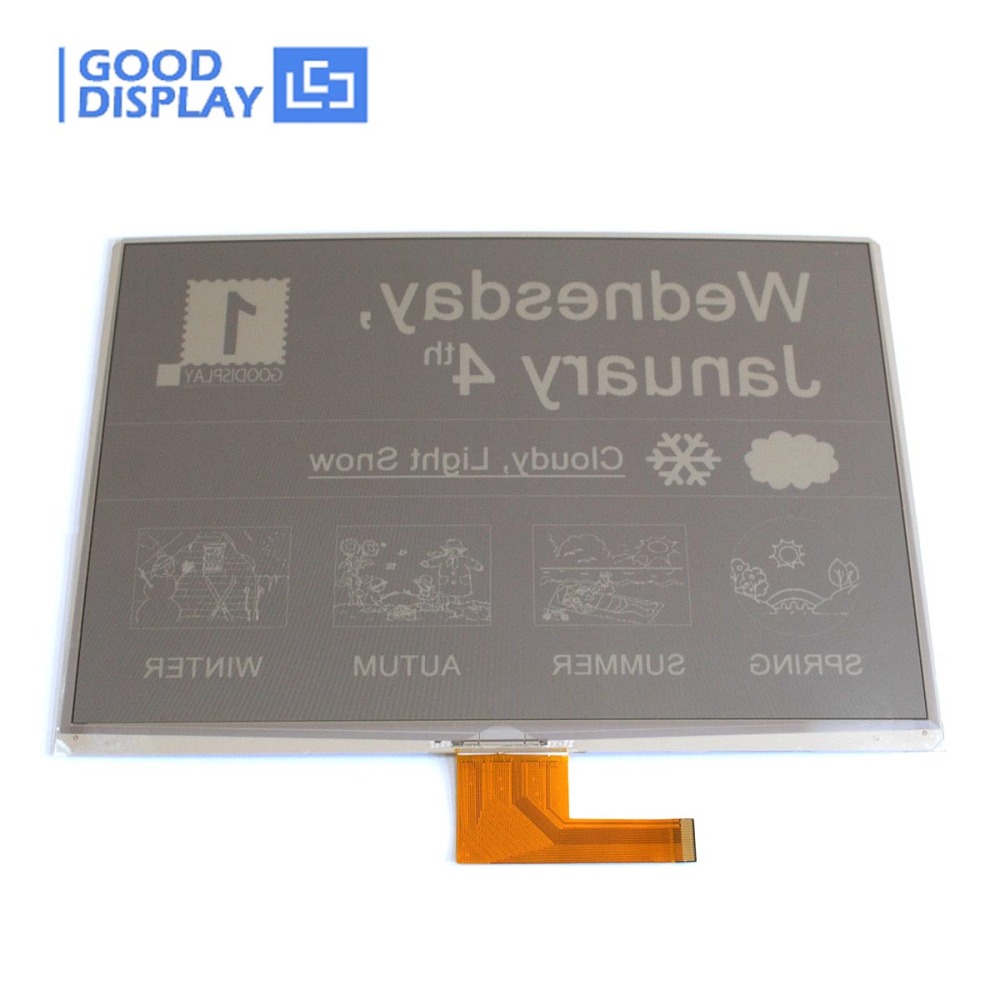

11.6 inch large size e-ink screen module SPI interface resolution 960x640, GDEH116T91

GDEH116T91
11.6 inch e-paper display with 960x640 resolution, 24 pins FPC connection, communicating via SPI interface, supports black and white. The I2C signal master interface to read external temperature sensor/built-in temperature sensor.
Sold:3
Price:
USD
$96.00
Quantity:
-
+
(0 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION

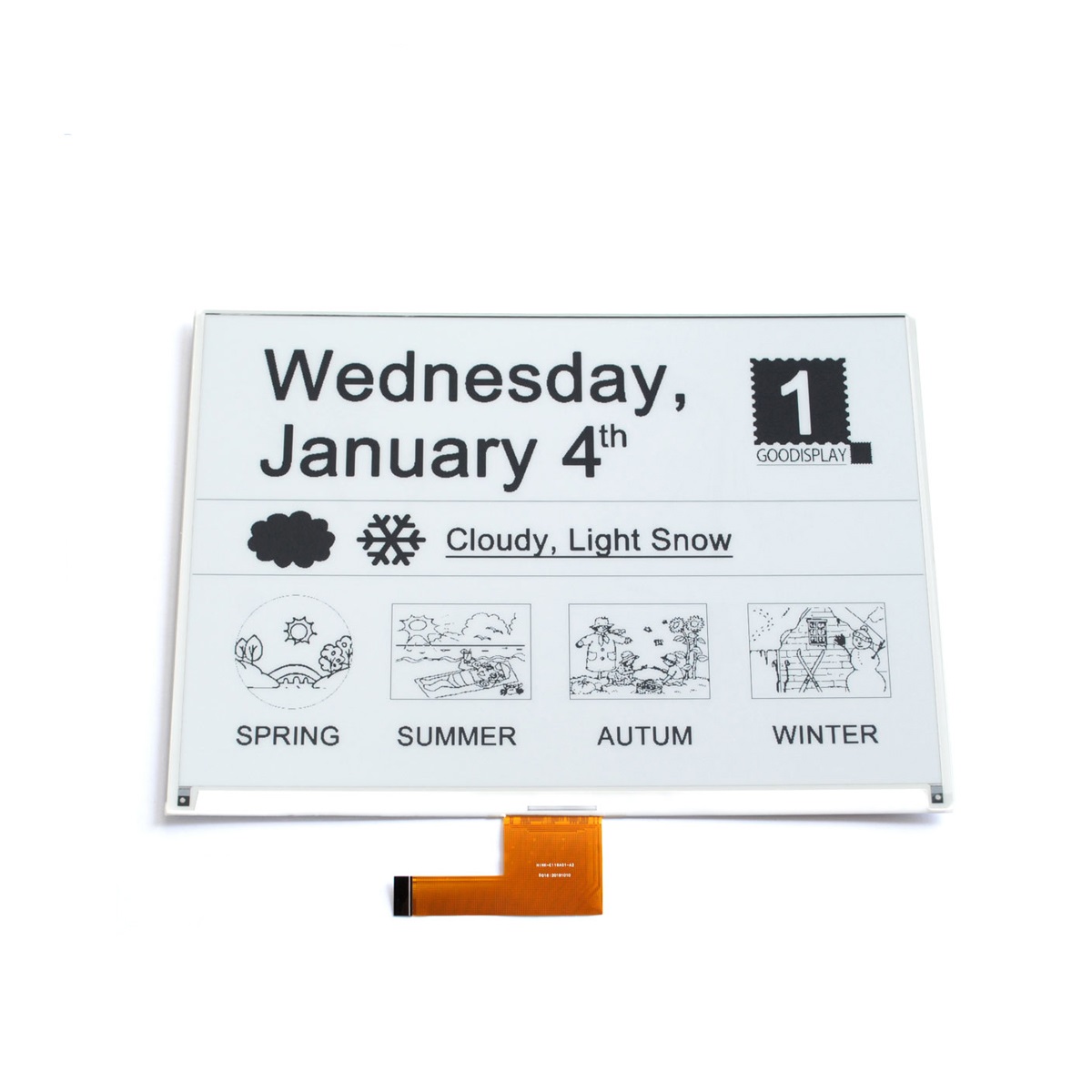

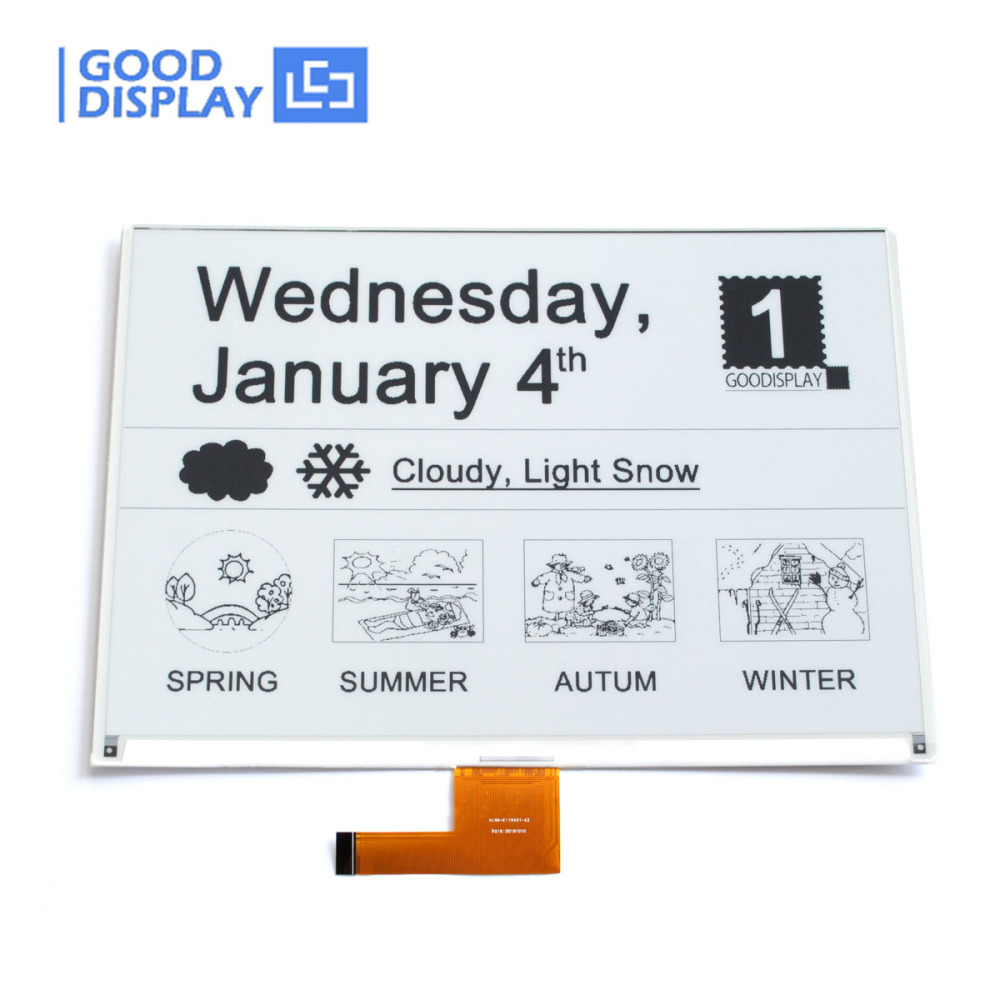

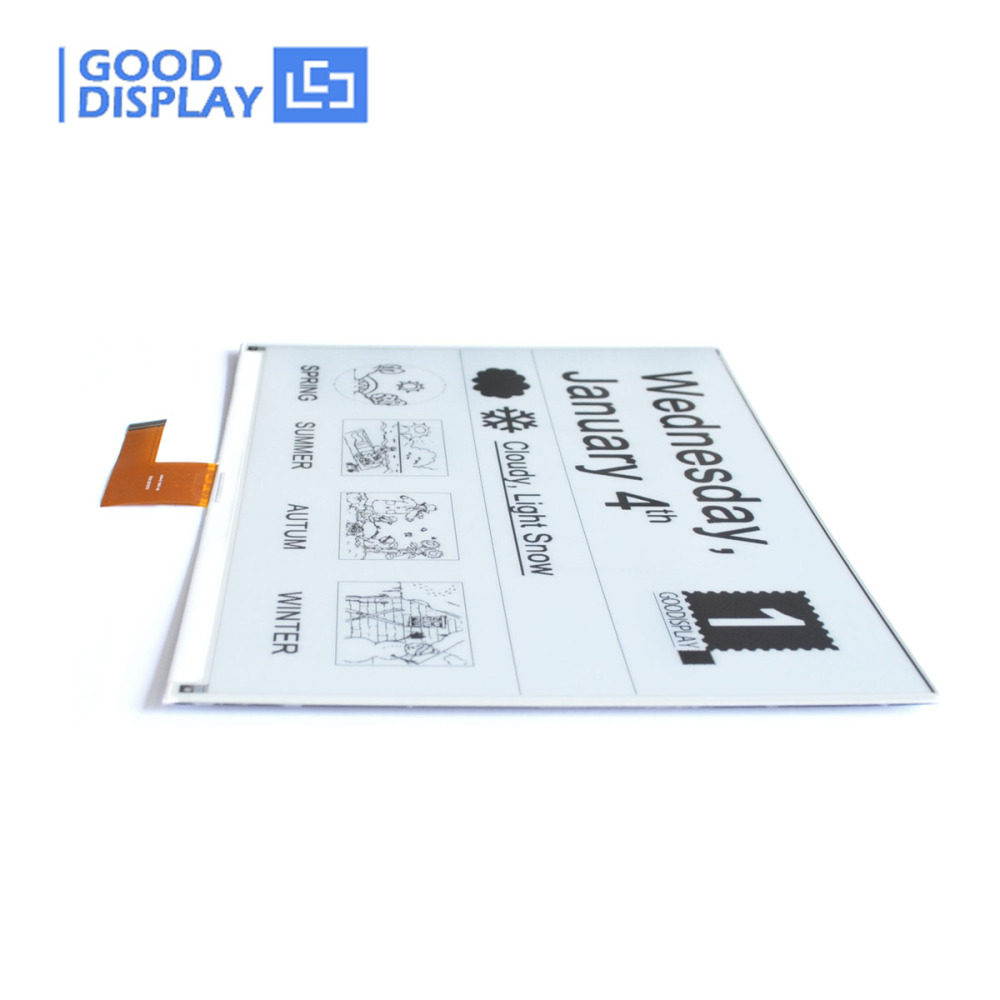

This is a 11.6 inch e-ink display with 960x640 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.


This 11.6 inch e-ink display GDEH116T91 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.





 FEATURE




●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Color Optional. We also have other color for you to choose.

●  Development platform available STM32 ArduinoRaspberry Pi / ESP8266 / ESP32







☆ THE ABOVE PRICE INCLUDE



1) 11.6 inch large size e-ink screen module SPI interface resolution 960x640, GDEH116T91 * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS





PART NUMBER

GDEH116T91

SIZE

11.6 inch

TYPE

Dot Matrix

IC

SSD1677

RESOLUTION

960x640

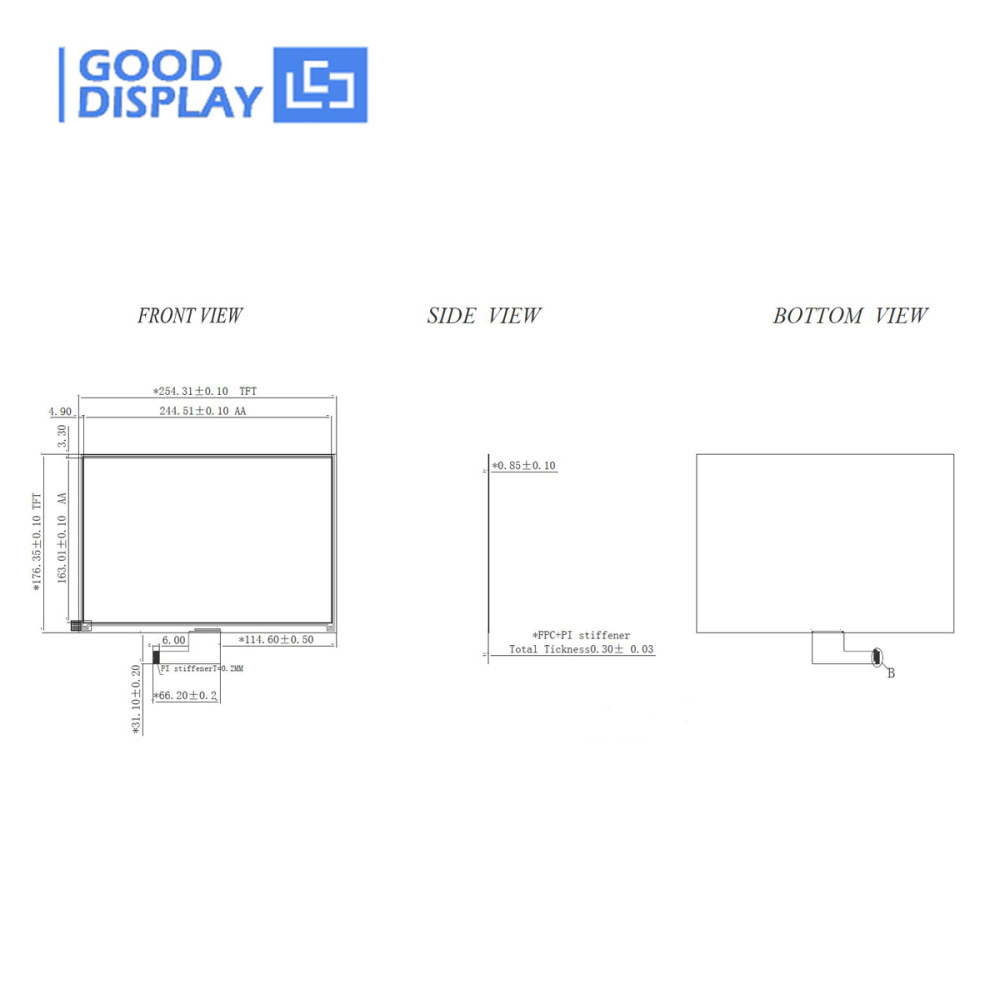

OUTLINE SIZE(mm)

254.31x176.35x0.85

ACTIVE SIZE(mm)

244.512x163.008

PIXEL PITCH(mm)

0.2547x0.2547

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~60℃

CONNECTOR

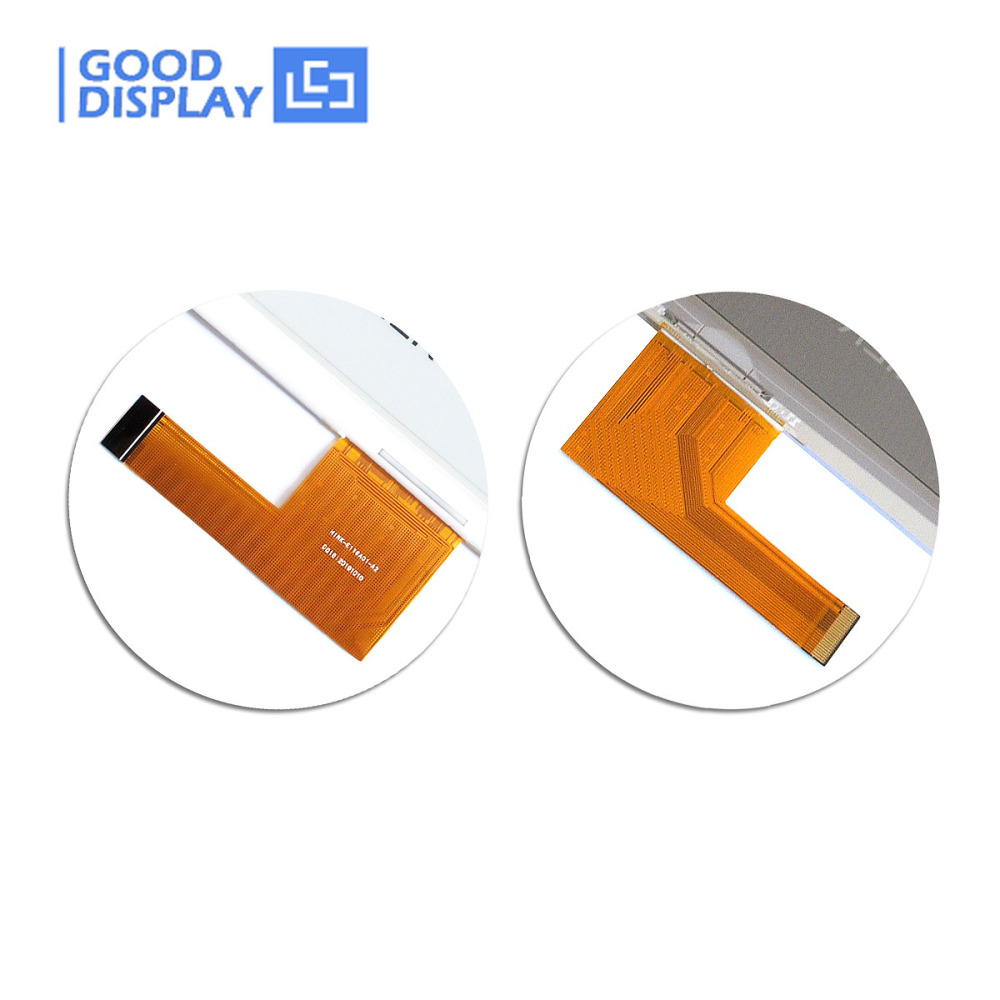

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

5

POWER CONSUMPTION OF THE REFRESH(mW)

33

STANDBY POWER CONSUMPTION (mW)

0.0115







 SPECIFICATION DOWNLOAD




1)  GDEH116T91 Specification
2)  IC Driver SSD1677
3)  GDEH116T91 Bitmap Conversion
4)  GDEH116T91 STM32 Sample Code
5)  GDEH116T91 Arduino Sample Code
6)  GDEH116T91 ESP32 Sample Code
