☆ MAIN PARAMETERS
|

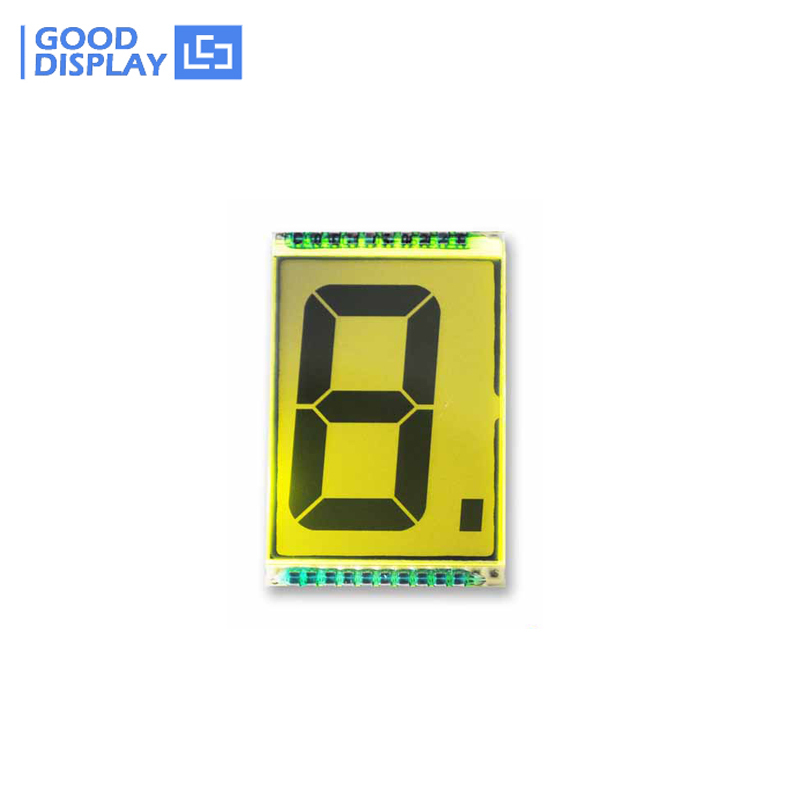

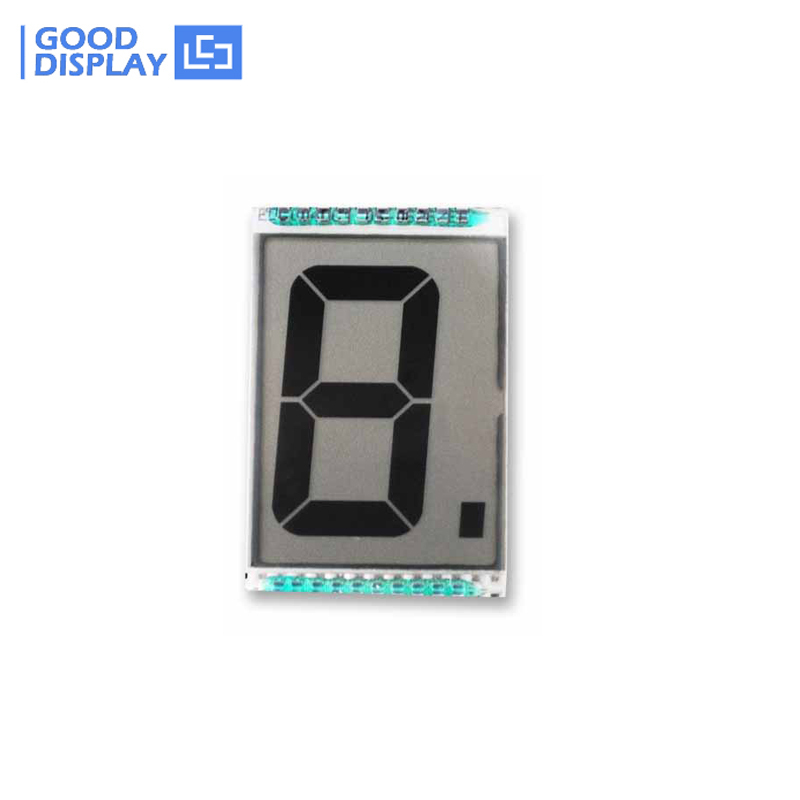

PART NUMBER
|
EDC004
|
|
DISPLAY CONTENT
|
1-digit
|
|
OUTLINE DIMENSION(mm)
|
50.0x33.0x2.8
|
|
VIEWING DIRECTION
|
6:00 o'clock
|
|
BACKLIGHT COLOR
|
White LED side light
|
|
OPERATING VOLTAGE
|
3.0V/5.0V
|
|
OPERATING TEMP.
|
Normal temp LCD：-10℃~60℃
Extended temp LCD: -20℃~70℃
Super-extended temp LCD: -40℃~80℃
|
|
STORAGE TEMP.
|
Normal temp LCD：-20℃~70℃
Extended temp LCD: -30℃~80℃
Super-extended temp LCD: -45℃~85℃
|
|
DRIVE METHOD
|
Static
|
|
DISPLAY TYPE
|
TN Positive
|
|
POLARIZER MODE
|
Reflective/Transflective/Transmissive
|
|
CONNECTOR
|
Pin (20 Pins) Pin Length is optional
|

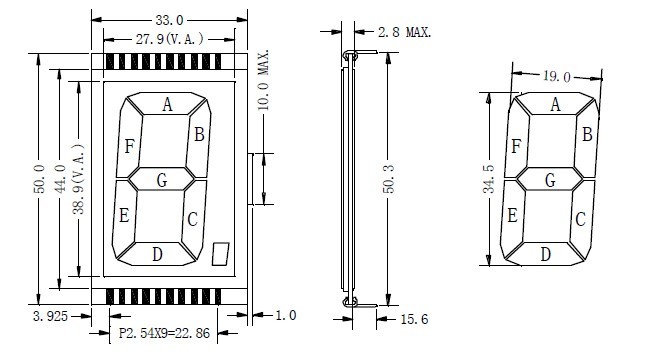

☆ DRAWING
☆ OTHER PRODUCTS
|
Part Number
|
Digit
|
Outline Dimension
|
Active(View) Area
|
Drive method
|
|
GDC02693
|
2
|
7.5x10x1.1mm
|
5.5x4.0mm
|
1/4D,1/2B
|
|
GDC0209
|
4
|
23x10x2.8mm
|
20x6mm
|
1/4D,1/3B
|
|
GD46532
|
6
|
37x25.6x2.8mm
|
34x17.6mm
|
1/4D,1/3B
|
|
GDC0178
|
11
|
--
|
--
|
1/4D,1/3B
|
|
GDC0689
|
6
|
42x25x2.8mm
|
39x17mm
|
1/4D,1/3B
|
|
GDC8811D
|
--
|
36.00x36.00x2.00mm
|
33.00x31.00mm
|
Static
|
|
GDC21310
|
2
|
30x21x2.8mm
|
27x16mm
|
1/4D,1/3B
|
|
GDC03828
|
5
|
81.0×37.5×2.8mm
|
78.0×27.5mm
|
Static
|
|
GDC04212
|
4
|
42x23x2.8mm
|
39*16.5mm
|
1/4 D, 1/3 B
|
|
GDC1038
|
11
|
40x32x2.85mm
|
35x28mm
|
1/4D,1/3B
|
|
GDC1009
|
--
|
56.5x70.5x2.8mm
|
49x59mm
|
1/4D,1/3B
|
|
GDC6375
|
--
|
98x34.3x2.8mm
|
92.64x24.94mm
|
1/4D,1/3B
|
|
GDC7723B
|
--
|
96x48x2mm
|
93x43mm
|
Static
|
|
GDC04824
|
4
|
51.0x34.0x2.8mm
|
48.0x25.0mm
|
1/4 D, 1/3 B
|
|
GDM0328
|
8
|
55.8x37x2.8mm
|
45x27mm
|
1/4D,1/3B
|
|
GDM0689
|
6
|
58.0x28.0x6.70mm
|
39.0x17.0mm
|
1/4D
|
|
GDM0103
|
8
|
78x26x9.8mm
|
60.5x13.5mm
|
1/4D,1/3B
|
|
EDM1190-03
|
4
|
72.8x35.5x10.7mm
|
54.2x24mm
|
Static
|
|
240128A-11
|
--
|
114x105.5x15mm
|
107.95x57.55mm
|
1/128 D,1/12 B
|
|
EDC103
|
8
|
64x22.0x2.8mm
|
60.5x13.5mm
|
1/4D,1/3B
|
|
EDC190
|
4
|
50.8x30.48x2.8mm
|
45.72x17.78mm
|
Static
|
|
EDS819
|
2-1/2
|
30.0x26.17mm
|
26.0x17.17mm
|
Static
|
|
EDS816
|
4
|
93.98x45.72x2.8mm
|
86.36x30.48 mm
|
Static
|
|
EDS815
|
4
|
69.85x38.1x2.8mm
|
62.23x22.86mm
|
Static
|
|
EDS806
|
8
|
93.85x30.48x2.8mm
|
38.9x27.9mm
|
Static
|
|
EDS809
|
6
|
69.85x30.48x2.8mm
|
64.77x16.51mm
|
Static
|
|
EDS810
|
6
|
93.85x38.1x2.8mm
|
86.36x24.13mm
|
Static
|
|
EDS812
|
3
|
30.7x16.2x2.8mm
|
27.9x10.0mm
|
Static
|
|
YM0801B
|
--
|
55.0x17.0x8.5mm
|
39.5x8.0mm
|
--
|
|
YM0802B
|
--
|
58.0x32.0x13.0mm
|
38.0x16.0mm
|
--
|
|
YM0802SYG-3
|
--
|
58x32x13.2mm
|
39x16mm
|
--
|
|
YM12864C
|
--
|
78x70x13mm
|
62x44mm
|
--
|
|
YM1601A
|
--
|
80.0x36.0x13.0mm
|
64.5x14.0mm
|
--
|
|
YM1604C
|
--
|
77.0x51.0x13.0 mm
|
61.7x25.2 mm
|
--
|
|
YM1602C
|
--
|
80.0x36.0x12.5mm
|
64.5x15.8mm
|
--
|
|
YM1602M-1
|
--
|
80.0x36.0x13.0mm
|
64.5x14.0mm
|
--
|
|
YM1602L
|
--
|
122.0x44.0x14.0mm
|
99.0x24.0 mm
|
--
|
|
YM128128G-3
|
--
|
46.5x56.7x4.0mm
|
39.64x46.04mm
|
--
|
|
YM320240B-3
|
--
|
139.0x120.0x13.2mm
|
103.0x79.0mm
|
--
|
|
YM19264A
|
--
|
130.0x65.0x13.0mm
|
104.0x39.0mm
|
--
|
|
YM12864FS-655
|
--
|
70.0x50.0x5.8mm
|
67.0x37.0mm
|
--
|
|
YM12864P-70
|
--
|
93.7x51.3x7.6mm
|
70.7x38.8mm
|
--
|
|
YM0802A-1
|
--
|
40.0x35.8x12.0mm
|
25.74x9.48mm
|
--
|
|
YM12864-G35
|
--
|
80.2x51.2x5.6mm
|
66.52x33.24mm
|
--
|
|
YM12864J
|
--
|
93.0x70.0x14.0mm
|
70.7x38.8mm
|
--
|
|
YM12864J-7
|
--
|
93x70x13.5mm
|
72x40mm
|
1/64 D,1/9 B
|
