☆ INTRODUCTION

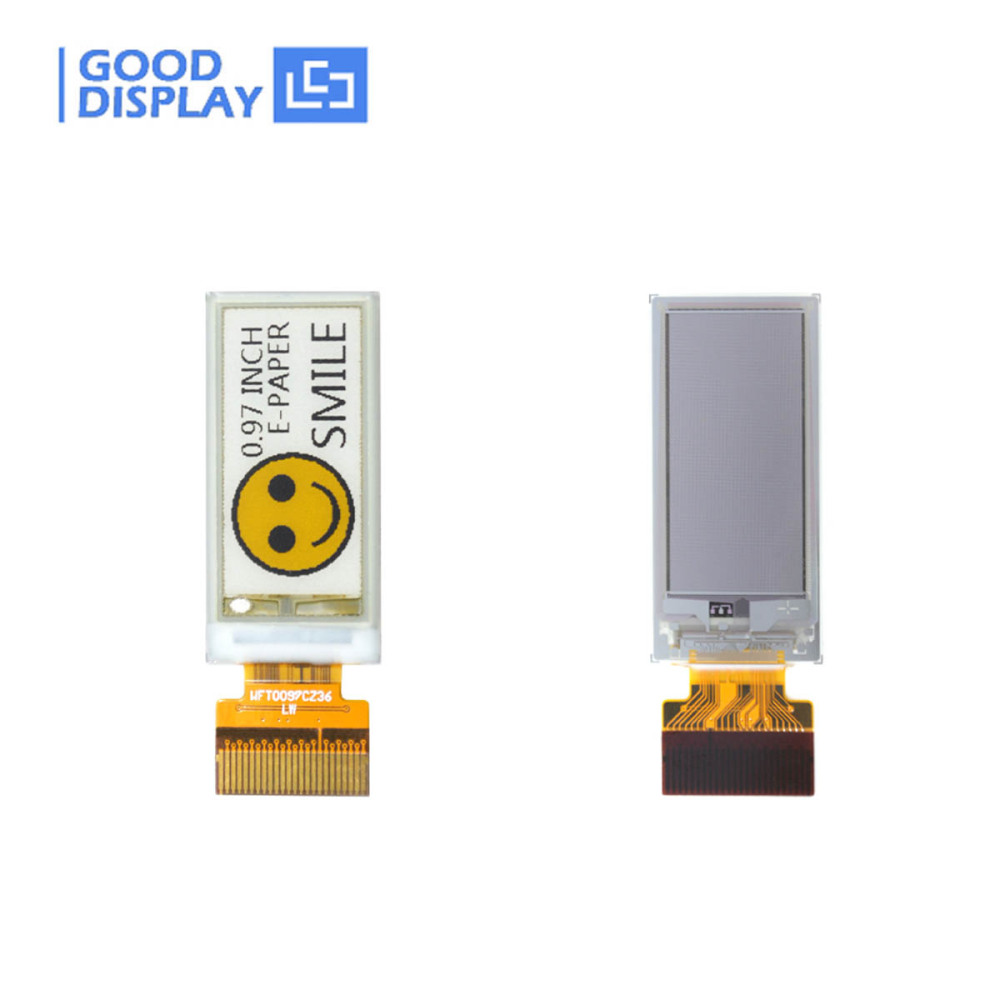

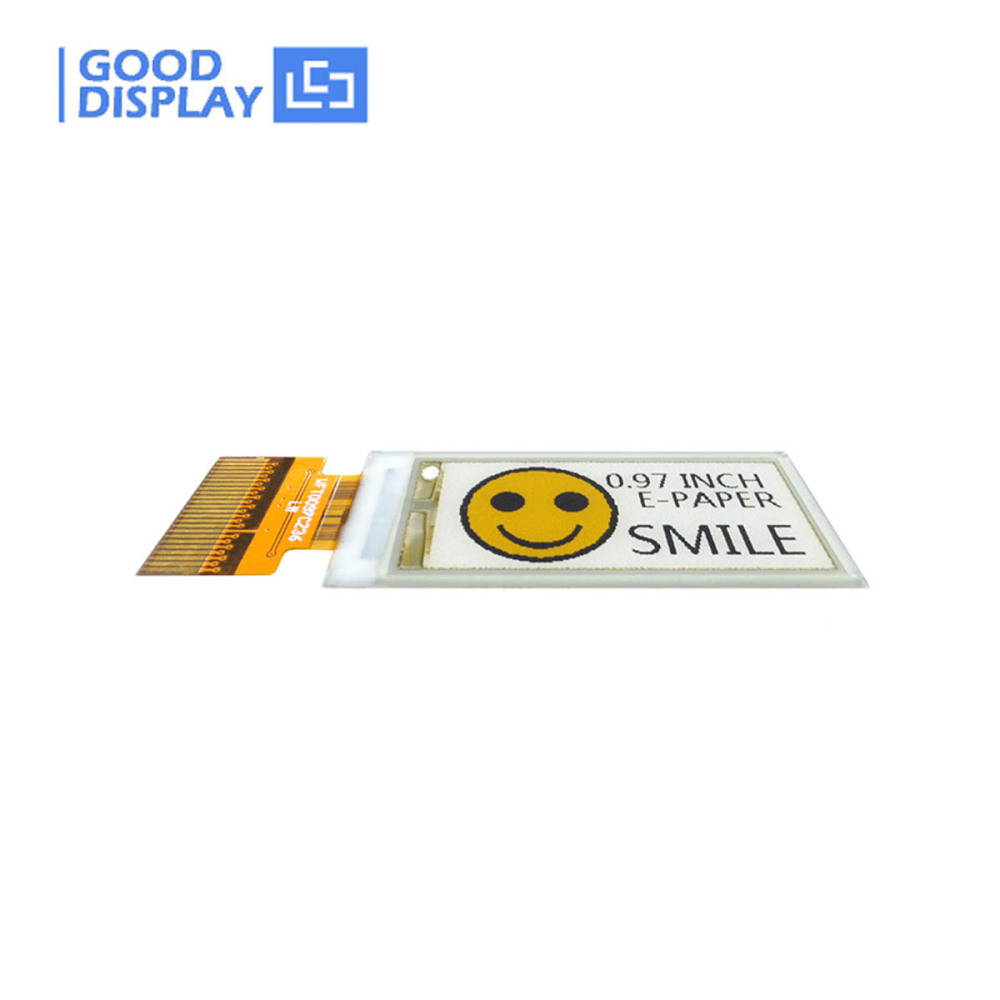

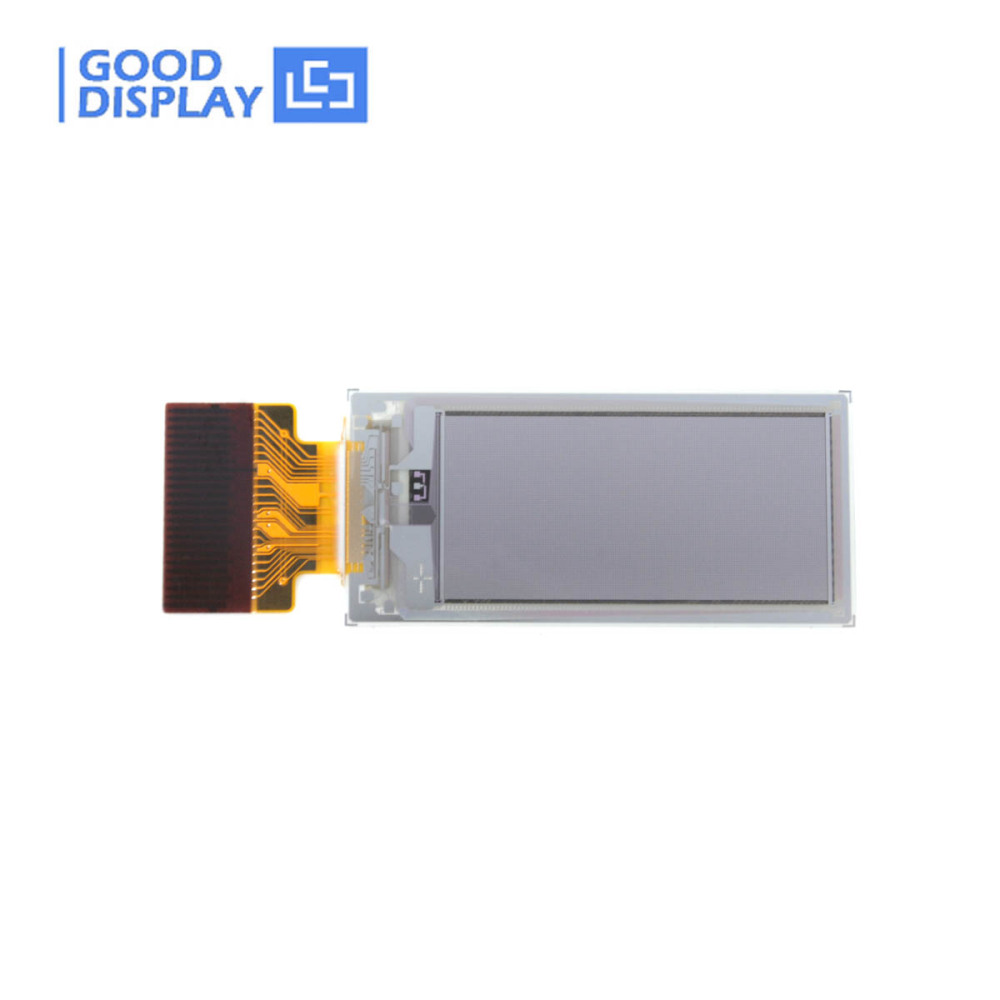

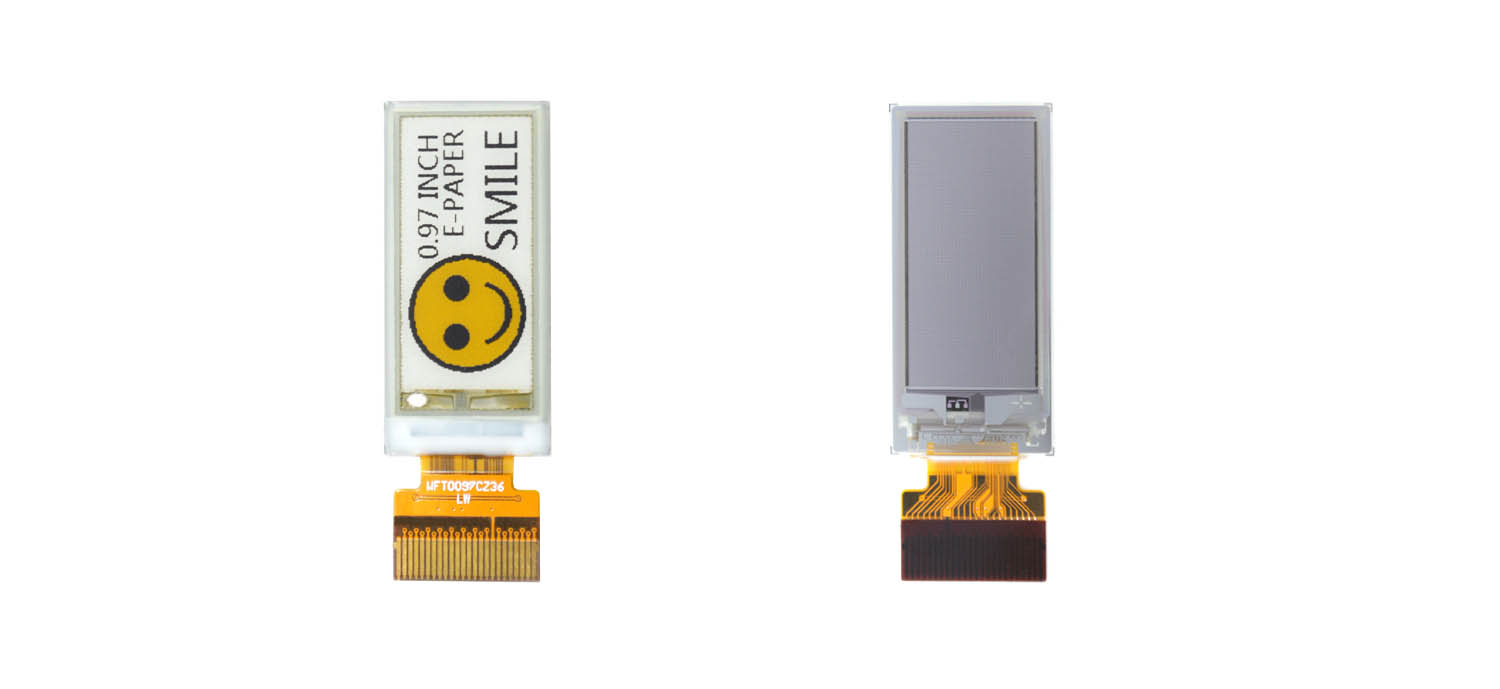

This is a mini electronic paper screen, 0.97 inch, color e-ink display, 184x88 resolution, SPI interface, and the display is capable to display images with black, white and yellow content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This color e-ink screen GDEW0097C50 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We also could provide front light, touch screen and other accessories for you.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ THE ABOVE PRICE INCLUDE
1) 0.97 inch Electornic E-Paper Display Color Small Screen * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0097C50
|
|
|
SIZE
|
0.97 inch
|
STORAGE TEMP. |
-25℃~60℃ |
|
TYPE
|
Dot Matrix
|

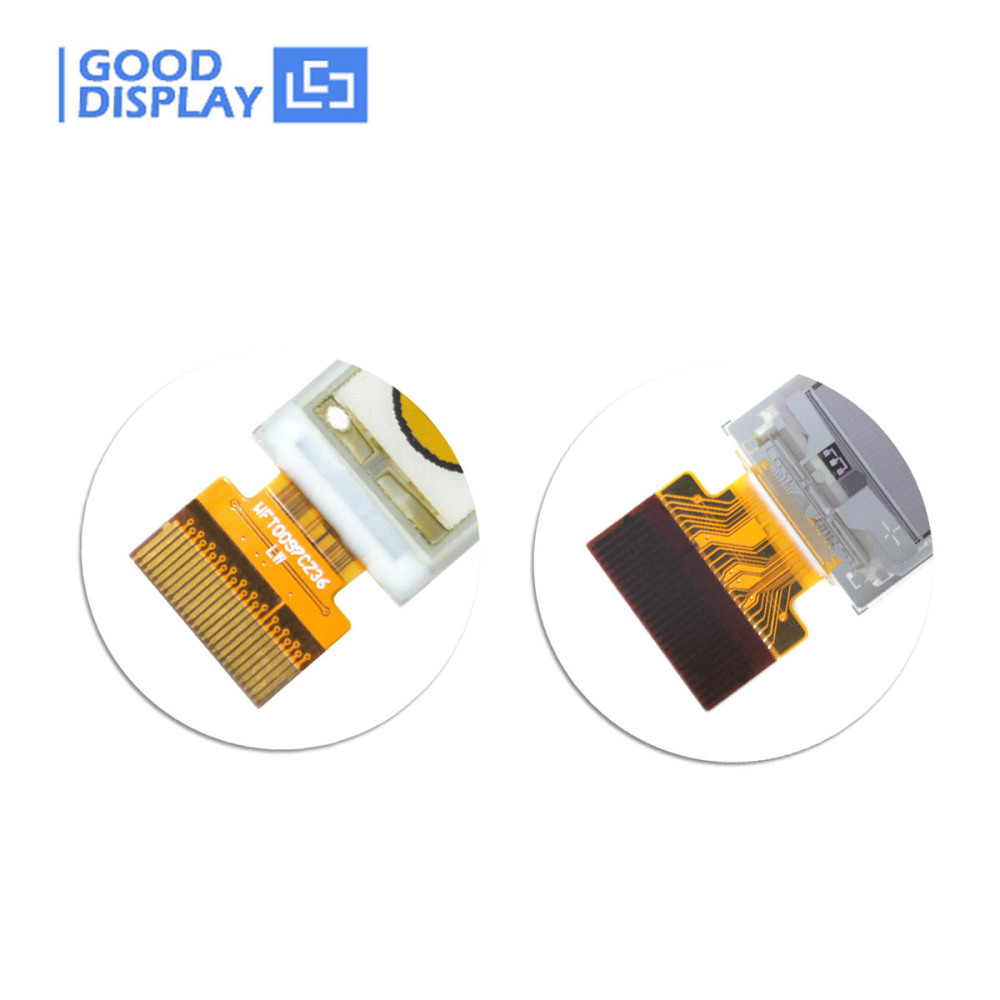

CONNECTOR |
24 Pin FPC |
|
IC
|
JD79651
|
MAX GRAYSCALE |
2 |
|
RESOLUTION
|
184x88
|
INTERFACE |
SPI |
|

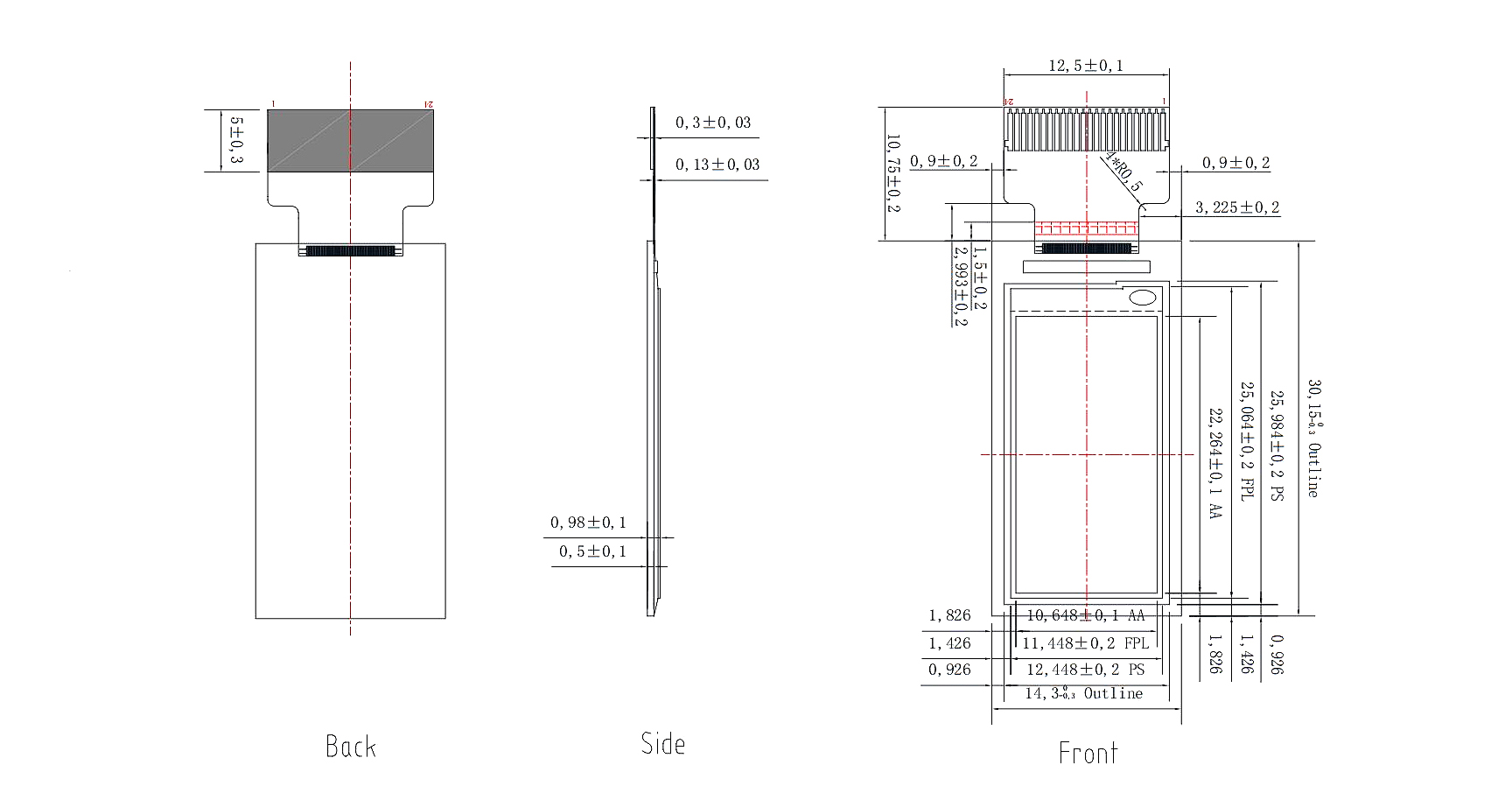

OUTLINE SIZE(mm)
|
30.15x14.3x0.98
|
COLOR |
Black,White, Yellow |
|
ACTIVE SIZE(mm)
|
22.264x10.648
|
FULL REFRESH(s) |
22 |
|
PIXEL PITCH(mm)
|
0.121x0.121
|
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
|
OPERATING TEMP.
|
0℃~40℃
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |

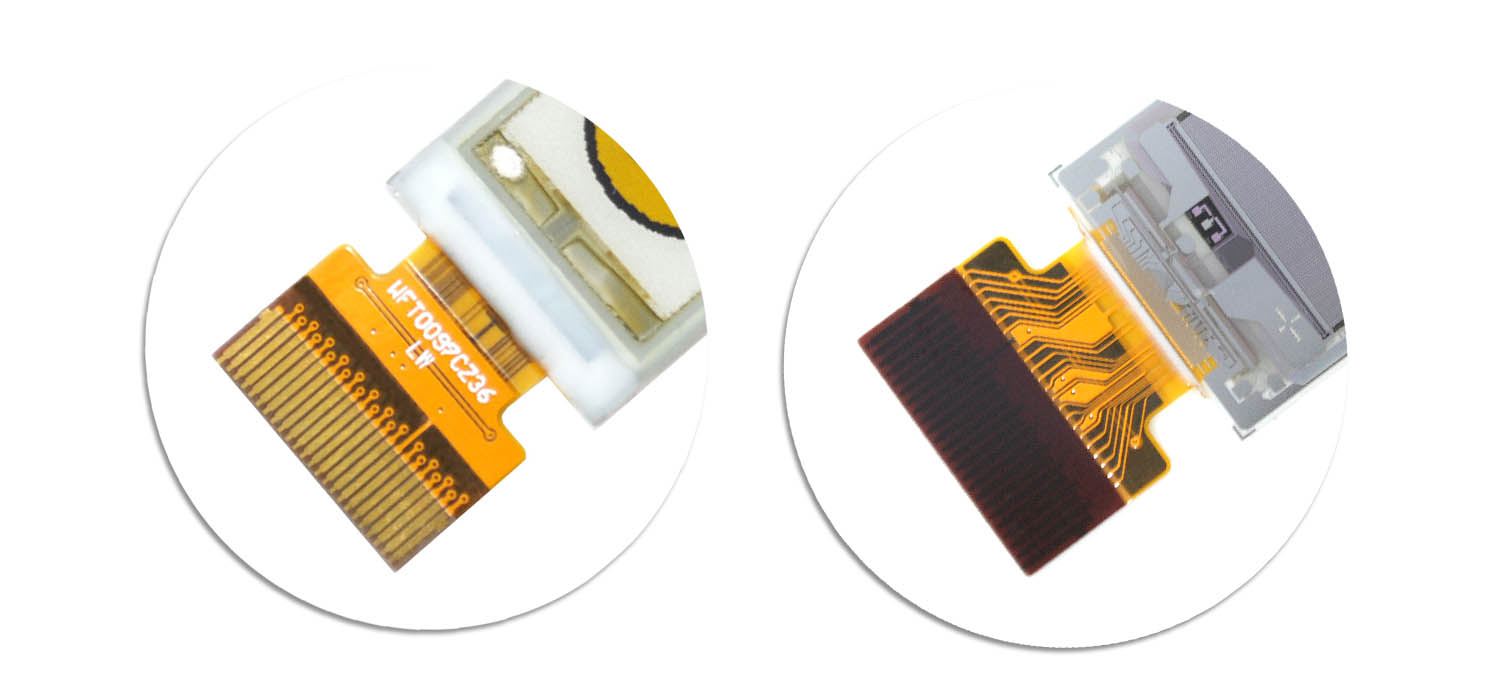

☆ DETEILS
.
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and yellow. Compared with monochrome electronic paper display, it is more beautiful
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ WE ALSO SUGGEST...
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
| PART NUMBER |
SIZE |
COLOR |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL UPDATE (S) |
OPERATING TEMP. |
PARTIAL UPDATE |
FLEXIBLE |

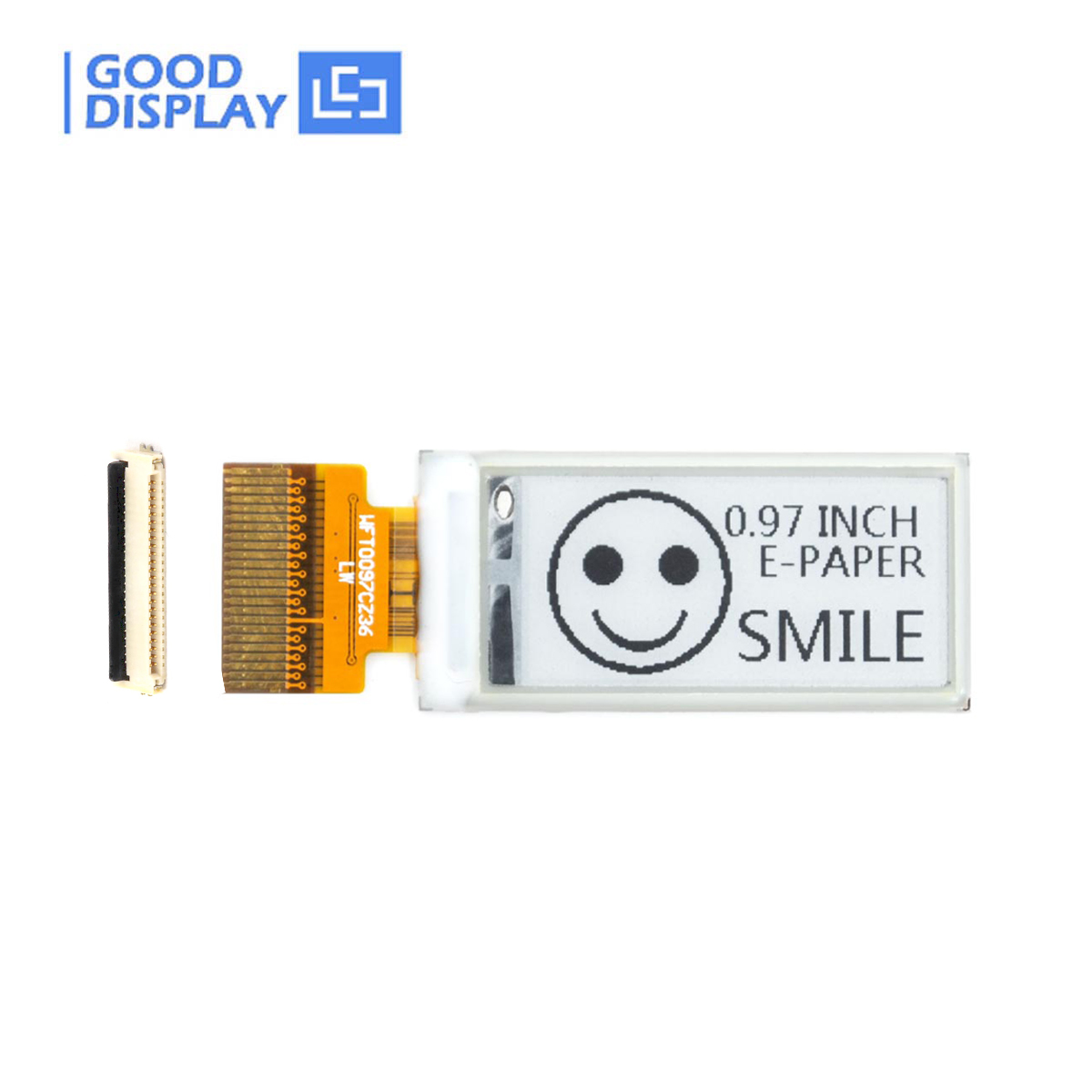

| GDEW0097T50 |
0.97'' |
BW |
184x88 |
22.264x10.648 |
4 |
0℃~50℃ |
√ |
|
| GDEW0097C50 |
0.97'' |
BWY |
184x88 |
22.264x10.648 |
22 |
0℃~40℃ |
|
|

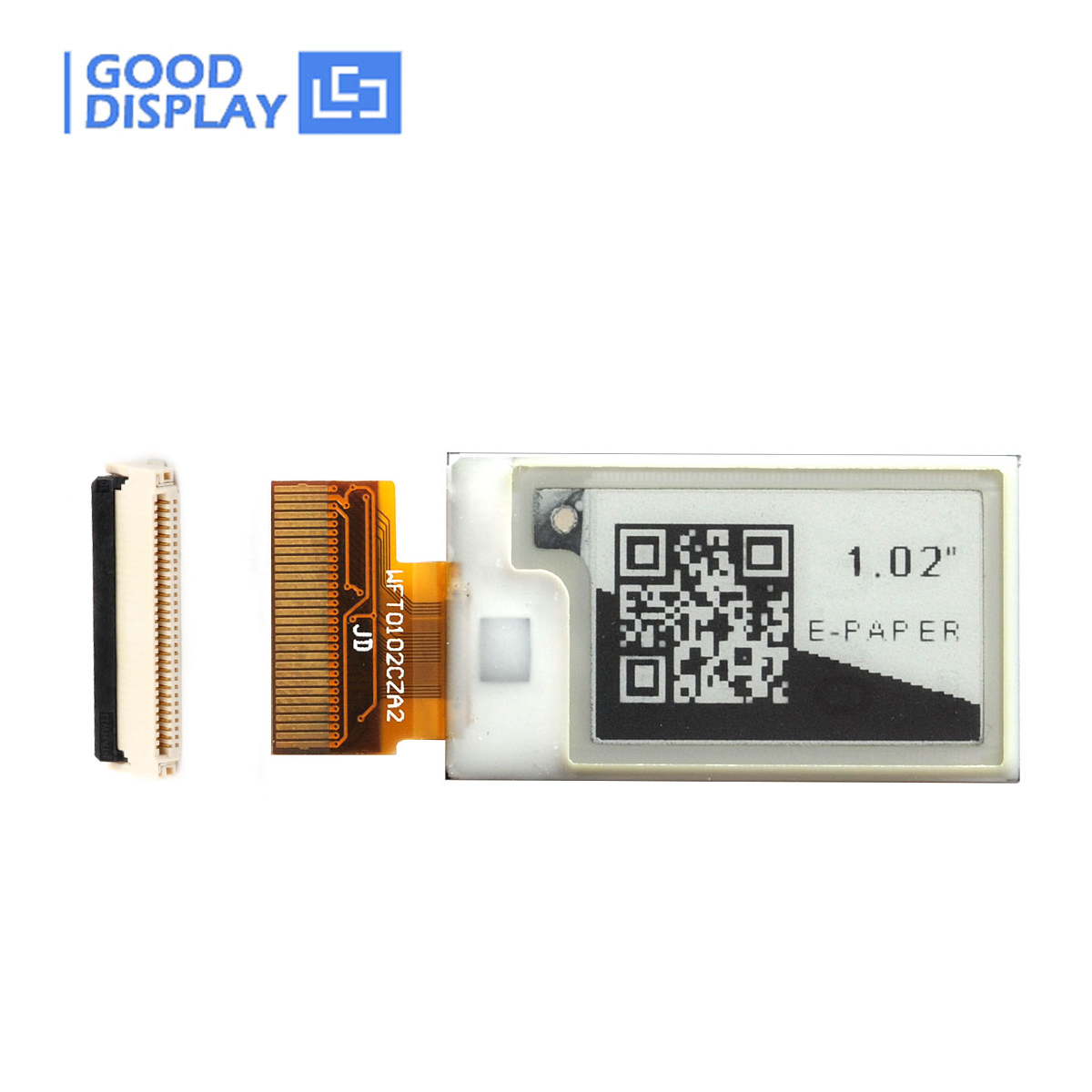

| GDEW0102T4 |
1.02'' |
BW |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
|

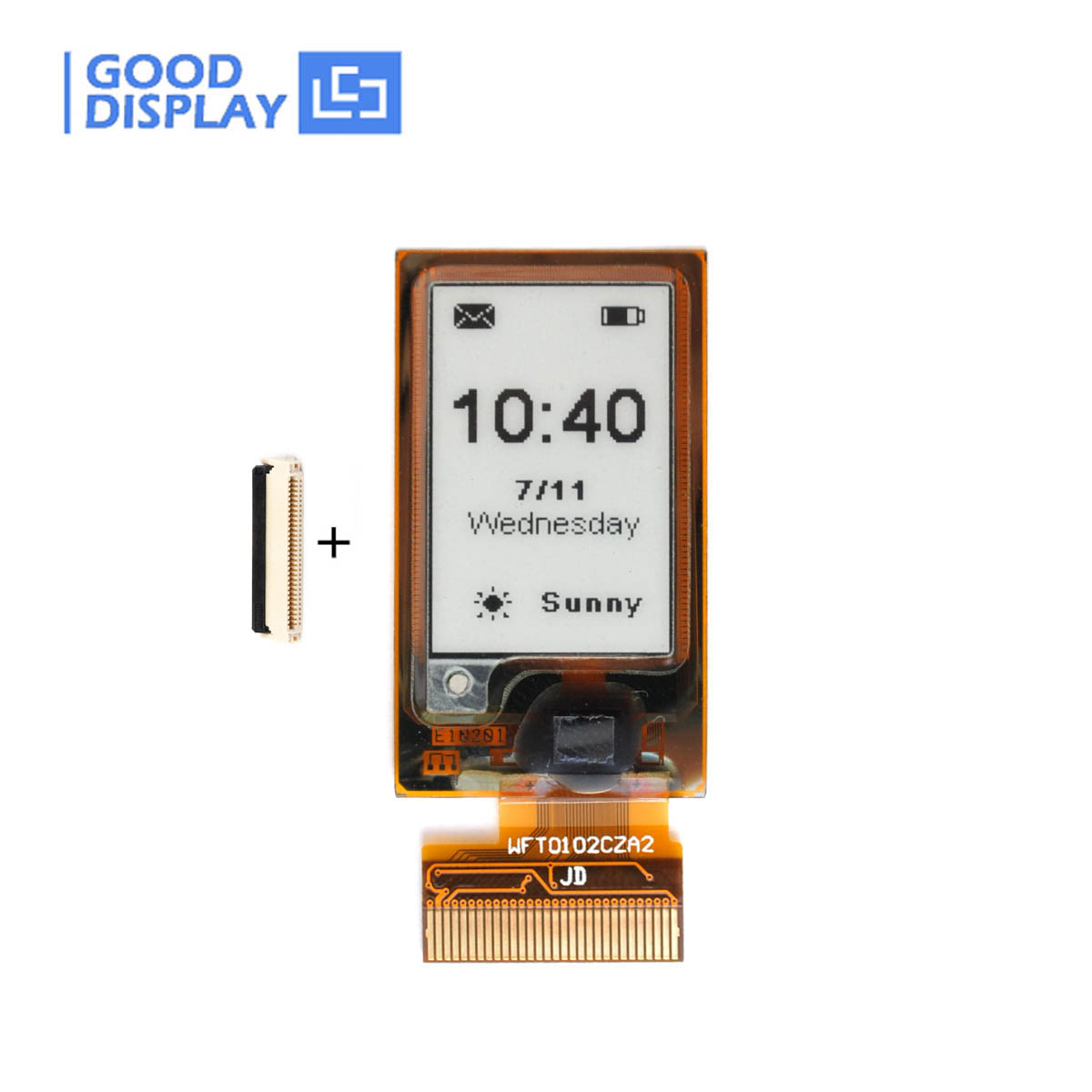

| GDEW0102I3F |
1.02'' |
BW |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
|
GDEW0102I4FC
|
1.02''
|
BW
|
128x80
|
21.76x14
|
3
|
0℃~50℃
|
√
|
√
|
| GDEW0154M10 |
1.54'' |
BW |
152x152 |
27.512x27.512 |
3 |
-10℃~60℃ |
|
|
| GDEY0154D67 |
1.54'' |
BW |
200x200 |
27x27 |
2 |
0℃~50℃ |
√ |
|
| GDEW0154T8D |
1.54'' |
BW |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
|
| GDEY0154Z90 |
1.54'' |
BWR |
200x200 |
27x27 |
16 |
0℃~40℃ |
|
|
| GDEW0154I9FC |
1.54'' |
BW |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
√ |
| GDEW0213I5FD |
2.13'' |
BW |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
√ |
| GDEY0213B74 |
2.13'' |
BW |
250x122 |
48.55x23.7046 |
3 |
0℃~50℃ |
√ |
|
| GDEY0213Z98 |
2.13'' |
BWR |
250x122 |
48.55x23.7046 |
14 |
0℃~40℃ |
|
|
| GDEW0213T5D |
2.13'' |
BW |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
| GDEW026T0D |
2.6'' |
BW |
296x152 |
60.09x30.7 |
3 |
0℃~50℃ |
√ |
|
| GDEY0266T90 |
2.66'' |
BW |
296x152 |
60.088x30.704 |
3 |
0℃~50℃ |
√ |
|
| GDEY0266Z90 |
2.66'' |
BWR |
296x152 |
60.088x30.704 |
12 |
0℃~40℃ |
|
|
| GDEY027T91 |
2.7'' |
BW |
264x176 |
57.29x38.19 |
3 |
0℃~50℃ |
√ |
|
| GDEY029T94 |
2.9'' |
BW |
296x128 |
66.896x29.056 |
3 |
0℃~50℃ |
√ |
|
| GDEY029Z94 |
2.9'' |
BWR |
296x128 |
66.896x29.056 |
12 |
0℃~40℃ |
|
|
| GDEW029I6FD |
2.9'' |
BW |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
√ |
| GDEQ031T10 |
3.1'' |
BW |
320x240 |
62.72x47.04 |
3 |
0℃~50℃ |
√ |
|
| GDEY037Z03 |
3.71'' |
BWR |
416x240 |
81.54x47.04 |
12 |
0℃~40℃ |
|
|
| GDEY037T03 |
3.71'' |
BW |
416x240 |
81.54x47.04 |
3 |
0℃~50℃ |
|
|
| PART NUMBER |
SIZE |
COLOR |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL UPDATE (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
| GDEW042C37 |
4.2'' |
BWY |
400x300 |
84.8x63.6 |
28 |
0℃~40℃ |
|
|
| GDEW042T2 |
4.2'' |
BW |
400x300 |
84.8x63.6 |
3 |
0℃~50℃ |
√ |
|
| GDEY042T91 |
4.2'' |
BW |
400x300 |
84.8x63.6 |
3 |
0℃~50℃ |
√ |
|
| GDEQ042Z21 |
4.2'' |
BWR |
400x300 |
84.8x63.6 |
19 |
0℃~40℃ |
|
|
| GDEY0579T93 |
5.79'' |
BW |
792x272 |
139.00×47.74 |
3 |
0℃~50℃ |
|
|
| GDEY0579Z93 |
5.79'' |
BWR |
792x272 |
139.00×47.74 |
20 |
0℃~40℃ |
|
|
| GDEW0583C64 |
5.83'' |
BWY |
600x448 |
118.80x88.26 |
25 |
0℃~40℃ |
|
|
| GDEY0583T8 |
5.83'' |
BW |
648x480 |
118.78x88.22 |
3 |
0℃~50℃ |
|
|
| GDEW0583Z83 |
5.83'' |
BWR |
648x480 |
119.232x88.32 |
12 |
0℃~40℃ |
|
|
| GDEY075T7 |
7.5'' |
BW |
800x480 |
163.2x97.72 |
3 |
0℃~50℃ |
√ |
|
| GDEY075Z08 |
7.5'' |
BWR |
800x480 |
163.2x97.72 |
12 |
0℃~40℃ |
|
|
| GDEP097TC2 |
9.7''
|
BW
|
1200x825
|
202.8x139.425
|
1
|
0℃~50℃
|
√
|
|
| GDEQ102T90 |
10.2'' |
BW |
960x640 |
215.52x143.68 |
4 |
0℃~50℃ |
|
|
| GDEQ102Z90 |
10.2'' |
BWR |
960x640 |
215.52x143.68 |
4 |
0℃~50℃ |
|
|
| GDEH116T91 |
11.6'' |
BW |
960x640 |
244.512x163.008 |
5 |
0℃~50℃ |
|
|
| GDEH116Z91 |
11.6'' |
BWR |
960x640 |
244.512x163.008 |
30 |
0℃~35℃ |
|
|
| GDEY1248Z51 |
12.48'' |
BWR |
1304x984 |
252.98x190.90 |
25 |
0℃~40℃ |
|
|
| GDEP133UT3 |
13.3'' |
BW |
1600x1200 |
270.4x202.8 |
1 |
-15℃~65℃ |
√ |
|
