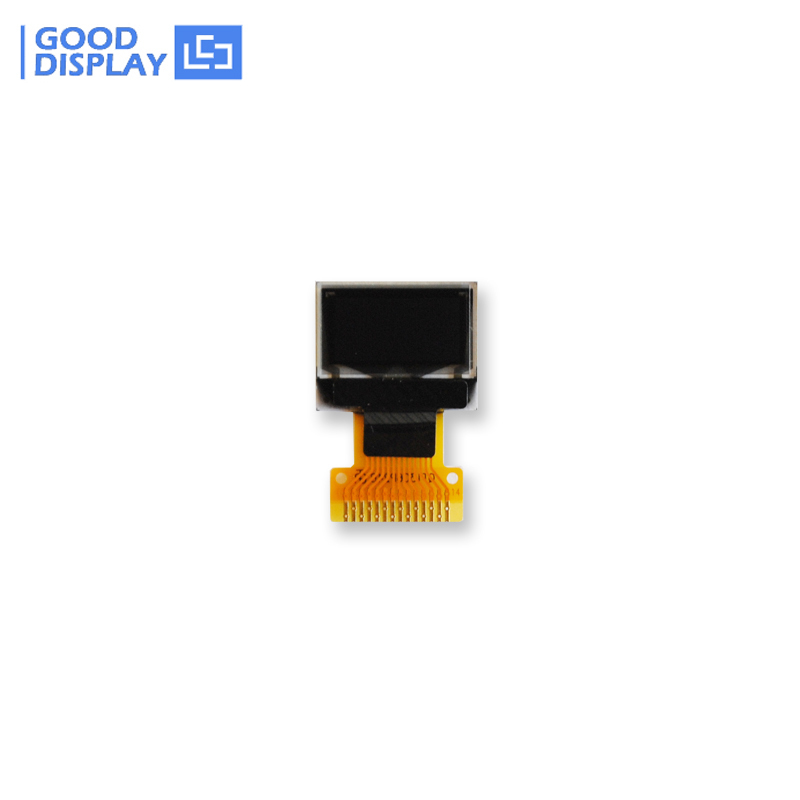

0.49inch oled micro display micro screen I2C interface small oled display, GDO0049W

GDO0049W is the graphic OLED display module made of 64x32 individual white OLED pixels,diagonal is only 0.49 inch.The controller ic SSD1306, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 2.8V p
Price:
USD
$2.79
Quantity:
-
+
(1 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




GDO0049W is the graphic OLED display module made of 64x32 individual white OLED pixels,diagonal is only 0.49 inch.The controller ic SSD1306, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed.


Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.


Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




●  Self-luminous, no backlight is required.

●  Ultra low power consumption

●  Wide operating temperature: -40℃~85℃






 THE ABOVE PRICE INCLUDE



1) 0.49inch oled micro display micro screen I2C interface small oled display * 1pc




 MAIN PARAMETERS



ITEM SPECIFICATION
PART NUMBER GDO0049W
DIAGONAL SIZE 0.49"
DISPLAY MODE Passive Matrix
DISPLAY COLOR Monochrome (White)
DRIVE DUTY 1/32 Duty
NUMBER OF PIXELS 64x32
INTERFACE IIC
DRIVER IC SSD1306
CONNECTION FPC-Soldering

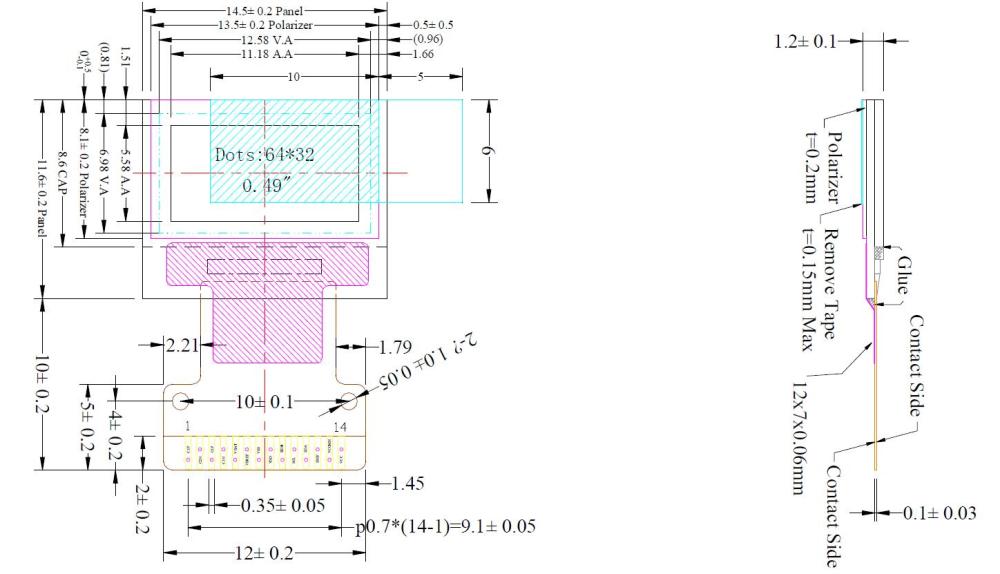

OUTLINE DIMENSION(mm) 14.5x11.6x1.2
VIEW AREA(mm) 12.58x6.95
ACTIVE AREA(mm) 11.18x5.58
PIEXL PITCH(mm) 0.175x0.175
PIXEL SIZE(mm) 0.155x0.155
IC PACKAGE COG
BRIGHTNESS(Typ) 180cd/m2
VIEW ANGLE Free
POWER SUPPLY(Typ) 2.8V
OPERATING TEMP. -40℃~85℃
STORAGE TEMP. -40℃~85℃








☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




 SPECIFICATION DOWNLOAD




1)  GDO0049W Specification
2)  IC Driver SSD1306
3)  GDO0049W Sample Code
