2.13 inch Low temperature e paper display 212*104 Resolution eink screen with demo kit

GDEW0213V7LT+DESPI
This is ultra low temperature (-25~10℃) 2.13 inch e-paper display with 212*104 resolution. It has 24 pins FPC connection, optional FPC connector, also communicated via SPI interface, supports black and white.
Price:
USD
$39.92
    Please select the information you wantX
Quantity:
-
+
(30 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

There are plenty in stock, welcome to your order!

General Description

This is a set of demo kit with ultra low temperature (-25~10℃) 2.13 inch e-paper display with 212*104 resolution. It has 24 pins FPC connection, optional FPC connector, also communicated via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black and white.

DESPI Develop Kit consists of the development board DESPI-M02 and the pinboard DESPI-C02. It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) E-paper Display.Feature
Ultra wide operating temperature range: -25℃ to 10℃
Its refresh time is shorter than GDEH0213D30LT, but GDEH0213D30LT's effects is better than it.
SPI interface, for connecting with controller boards

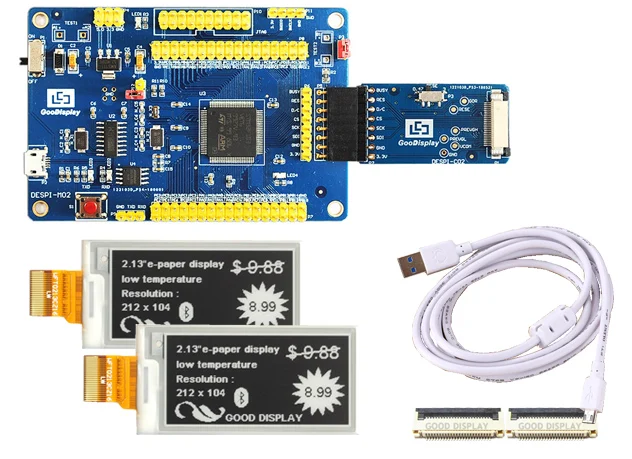

Come with helpful development demo kit with resources and manual (STM32 platform )The above price inclundes
1. 2.13 inch 212*104 Low Temperature epaper display GDEW0213V7LT *2pcs
2. Matched FPC Connector*2pcs
3. Driving boardDESTM32-S1-12 *1pc
4. Connector board DESTM32-S2-12 *1pc
5. USB port cable *1pc
6. Helpful resources and manual(sent via email or download link) *1pcMain Parameters

Part Number

GDEW0213V7LT

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

59.2*29.2*0.98

Active Size(mm)

48.55*23.71

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

-25~10℃

Storage Temp.

-25~70℃

Connector

24 Pin FPC

Max Grayscale

2

Color

Black, White



Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

Suitable Size

1.54/2.04/2.13/2.7/2.9/4.2/5.83/7.5''

Interface

USB, Raspberry Pi

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level Max 16 grey scale
Operating Temp -20~70℃
Recommended Tool Keil4
Example Code Available
Reserved Function USB to Serial


GDEW0213V7LT+PCB++USB

Specification download

http://www.e-paper-display.com/products_detail/productId=405.html

TIM20180802094853
