2.13 inch 3-Color yellow e-ink display with USB port programmable demo kit

GDEW0213C38+DESPI
This is a set of demo kit with 2.13 inch black-white-yellow color e ink display, 212*104 resolution. Matched demo kit will help starters to develop their own projects as a reference.
Price:
USD
$36.78
$40.53
(9% OFF)
    Please select the information you wantX
Quantity:
-
+
(100 available)
  • Description
  • Reviews
Any questions, just feel free to contact me, my email is: clara@good-display.com

General Description

This is a set of demo kit with 2.13 inch black-white-yellow color e ink display, with 212*104 resolution.

Matched demo kit will help starters to develop their own projects as a reference.

GDEW0213C38 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
Feature
Keep displaying the last content when power down.
Reflective type, sunlight readable.
Ultra low power consumption, basically power is only required for refreshing.
USB serial port, Raspberry Pi and LED indicator light.
For SPI interface EPD
Power supply via USB or DC 5V
Come with helpful development demo kit with resources and manual (STM32 platform )
The above price inclundes
1. Driving board DESPI-M02 *1pc
2. Connector board DESPI-C02  *1pc
3. USB port cable *1pc
4. Connection cable*1pc
5. 2.13 inch 212*104 low power consumption epaper display GDEW0213C38 * 2pcs
6. Matched FPC Connector * 2pcs
7.Helpful resources and manual(sent via email or download link) *1pc

Main Parameters

Part Number

GDEW0213C38

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

59.2*29.2*0.98

Actve Size(mm)

48.55*23.71

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

0℃~+40℃

Storage Temp.

-25℃~+60℃

Connector

24 PIN,  Pitch: 0.5mm

Max Grayscale

2

Color

Black, White and Yellow



Part Number

DESPI

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90x60mm (DESPI-M02)
41x22mm (DESPI-C02)

Suitable Size

1.54/2.04/2.13/2.7/2.9/4.2/5.83/7.5''

Interface

USB, Raspberry Pi

Power Input

DC5V

Feature

Fully and Partial refresh

Grey scale Level

Max 16 grey scale

Operating Temp

-20~70℃

Recommended Tool

Keil4

Example Code

Available

Reserved Function

USB to Serial


product details

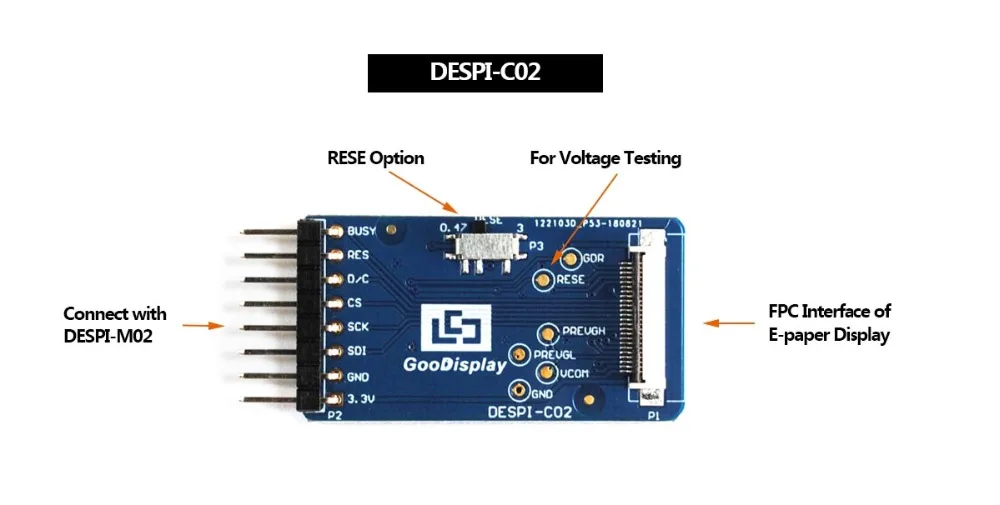

HTB1VjVeah2rK1RkSnhJq6ykdpXa4
Related Products

Part Number

Color

Resolution

Feature

Refresh time

T/P(optional) Frontlight
(optional)
GDEH0213B73 B/W

250x122

Partial refresh 1s -- --
GDEW0213I5F B/W 212x104 Flexible, Partial refresh 3s -- --
GDEH0213D30LT B/W 212x104 Low temperature -- -- --
GDEW0213V7LT B/W 212x104 Low temperature 3s -- --
GDEW0213Z16 B/W/R 212x104 Three colors 16s -- --
GDEW0213C38 B/W/Y 212x104 Three colors 18s -- --
GDEW0213T5 B/W 212x104 Partial refresh 3s -- --
GDEM0213U23 B/W/R 250x122 Three colors -- -- --
GDEM0213D23 B/W 250x122 SPI interface -- -- --

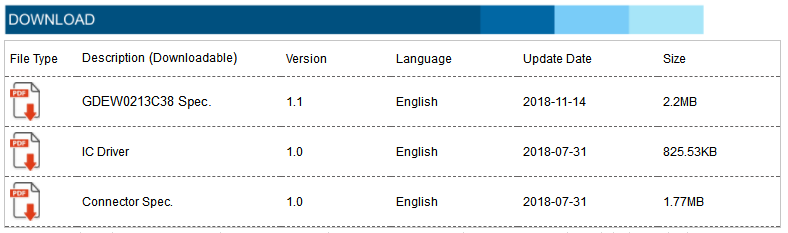

Specification download
http://www.e-paper-display.com/products_detail/productId=380.html
