Promotion!!!2.9 inch 296*128 resolution EPD display e-ink screen module(5 pieces)

GDEH029A1(5 pieces)
GDEH029A1 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference system design. The 2. 9” active area contains 128x296 pixels, and has 1-bit full display capabilities. The module is a TFT-array driving electrophoretic display,
Sold:1
Price:
USD
$44.20
    Please select the information you wantX
Quantity:
-
+
(498 available)
  • Description
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com
The above price inclundes

1)2.9'' epaper display GDEH029A1 *5pc
2)FPC connector *5pc

General Description

GDEH029A1 is an Active Matrix Electrophoretic Display(AM EPD), with interface and a reference system design.

The 2. 9” active area contains 128x296 pixels, and has 1-bit full display capabilities.

The module is a TFT-array driving electrophoretic display, with integrated circuits including gate buffer, source buffer, MCU interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM.

Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Feature

128*296 pixels display

White reflectance above 30%

Contrast ratio above 8:1

Ultra wide viewing angle

Ultra low power consumption

Pure reflective mode

Bi-stable display

Commercial temperature range

Landscape, portrait modes

Hard-coat antiglare display surface

Ultra Low current deep sleep mode





Main Parameters

Part Number GDEH029A1
Type Dot Matrix
Resolution 296*128
Outline Size(mm) 79*36.7*1.18
Actve Size(mm) 66.9*29.1
Pixel Pitch(mm) 0.227*0.226
Operating Temp. 0~50C
Storage Temp. —20~70C
Controller ILE3820
Connector 24 Pin FPC, Pitch:0.5mm
Max Grayscale 2
Color Black,White

simple drawing



Related Products

Part Number

Color

Features

Refresh Time

GDEH029A1

B/W

Partial refresh

3S

GDEW029Z10

B/W/R

Three colors

16S

    GDEM029E97

B/W

SPI interface

3S

GDEW029C32

B/W/Y

Three colors

18S

GDEW029T5

B/W

Partial refresh, 4 Grayscale

3S

GDEH029D56LT

B/W

Ultra-low temperature

3S

GDEW029I6F

B/W

Flexible, Partial refresh, 4 Grayscale

3S

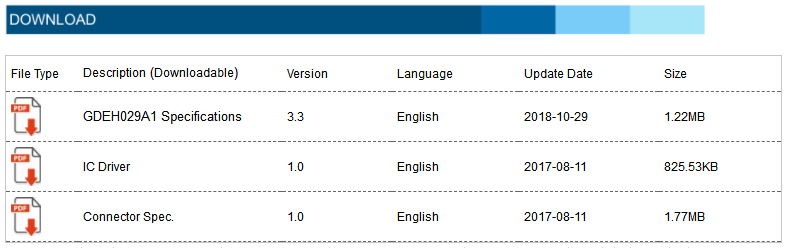

Specification download
http://www.e-paper-display.com/products_detail/productId=251.html
