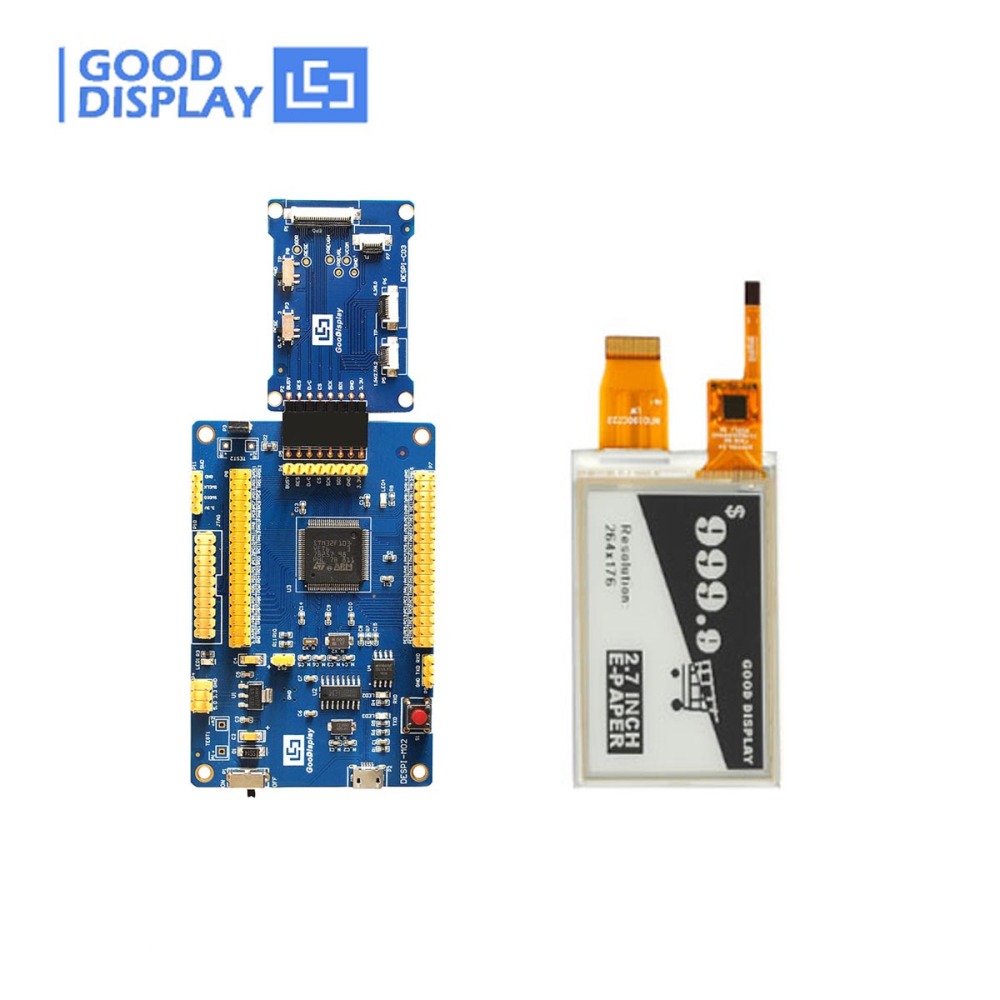

2.7 inch e-paper display 4 Grayscale buy with CTP touch screen with development demo kit

GDEW027W3-T+DESPI-V3.0
This is a 2.7 inch E ink E paper display with CTP capacitive touch screen, 264*176 resolution, 24 pins FPC connection, optional FPC connector, 4 Grayscale, communicating via SPI interface, supports black and white.
Price:
USD
$53.17
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)

Any questions, just feel free to contact me, my email is: clara@good-display.com

This is a set of development kit with 2.7 inch e-ink display 4 Grayscale with touch screen, 264*176 resolution, 24 pins, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. It's IC Driver is EK79652.

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper with provided source code to create more differentiated solutions. Supports black-white and three-color E-paper.
With Touch Panel.
Front light(optional)

4 Grayscale
Partial refresh
Come with helpful development demo kit with resources and manual
Development platform available
STM32 / Arduino Raspberry Pi / ESP8266 / ESP32

1. 2.7 inch e-ink display with touch panel GDEW027W3-T *2pc
2. E-paper matched FPC Connector*2pcs
3. Touch screen matched FPC Connector*2pcs
4. Driving board DESPI-M02 *1pc
5. Connector board DESPI-C03  *1pc
6. USB port cable *1pc
7.Helpful resources and manual(sent via email or download link) *1pc
If you only want to buy this e-paper display, click here:
http://upaj177.myueeshop.com/e-ink-touchscreen-27inch-spi-interface-china-e-ink-manufacturer-p0057.html

Part Number

GDEW027W3-T

Type

Dot Matrix

IC EK79652

Resolution

264*176(DPI:117)

Outline Size(mm)

70.42*45.8*1.3

Actve Size(mm)

57.288*38.192

Pixel Pitch(mm)

0.217*0.217

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black, White

Max Grayscale

4

Time of refresh(s) 3
Time of partial refresh(s) 0.3
Power consumption of the e-paper only(mW) 26.4
Power consumption of the touch screen(mW) 14.3

Main Parameters of demo kit

Part Number

DESPI-V3.0

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90mmx60mm (DESPI-M02)
52mmx36mm (DESPI-C03)

Power Interface

USB Interface

Main Function

EPD driving, touch panel driving and frontlight driving.

Sample Code

Available (please contact sales)

Additional Function

USB to serial port, indicator light, keys, current detection and so on.

Operating Temp

-20~70℃

Recommended Tool

Keil4

Part Number

Color

Resolution

Features

Refresh Time

GDEW027W3

 B/W

264*176

Partial refresh, 4 Grayscale, Frontight/Touch screen(optional)

3S

GDEW027W3-T

     B/W

264*176

Partial refresh, touch screen, 4 Grayscale, Frontight/Touch screen(optional)

3S

GDEH027Z70 B/W/R 264*176 Three colors, Frontight/Touch screen(optional) 16S

http://www.e-paper-display.com/products_detail/productId=406.html
