GDT250T2080 is a 2.5 inch color TFT-LCD display panel, 320x240 resolution, wide operating temp. -30℃~85℃, suitable for outdoor or cold environment, 4:3 contrast, 6 o'clock viewing angle, surface anti-glare treatment, 18-bit RGB (with T-CON) + 4-wire SPI interface, superior display quality, wide range of applications, it can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.
1)2.5''TFT LCD display panel GDT250T2080 *1pc
· 320xRGBx240 resolution
· Wide operating temp.: -30℃~85℃
· Viewing Angle: 50/70/75/75(U/D/L/R)
· Color: 262K
Precautions
1. When the metal parts of the TFT-LCD module (shielding cover and back cover) are dirty (such as water or finger grease), please wipe it with a dry soft cloth. Long-term contact with water may cause discoloration or spots.
2. The TFT-LCD panel is also glass. If it is dropped or bumped, the glass is easy to break. Please handle it carefully.
3. The IC on the TFT-LCD panel and module is sensitive to electrostatic discharge; please ensure that the equipment and the operator are properly grounded before and during operation.
| Part Number | GDT250T2080 |
| Size | 2.5 inch |
| Type | TN |
| LCD Display Ratio | 4:3 |
| Interface | 18-bits RGB +4-wire SPI |
| Backlight | LED |
| Brightness | 500 cd/m2(Typ) |
| Resolution | 320xRGBx240 |
| Viewing Direction | 50/70/75/75(U/D/L/R) |

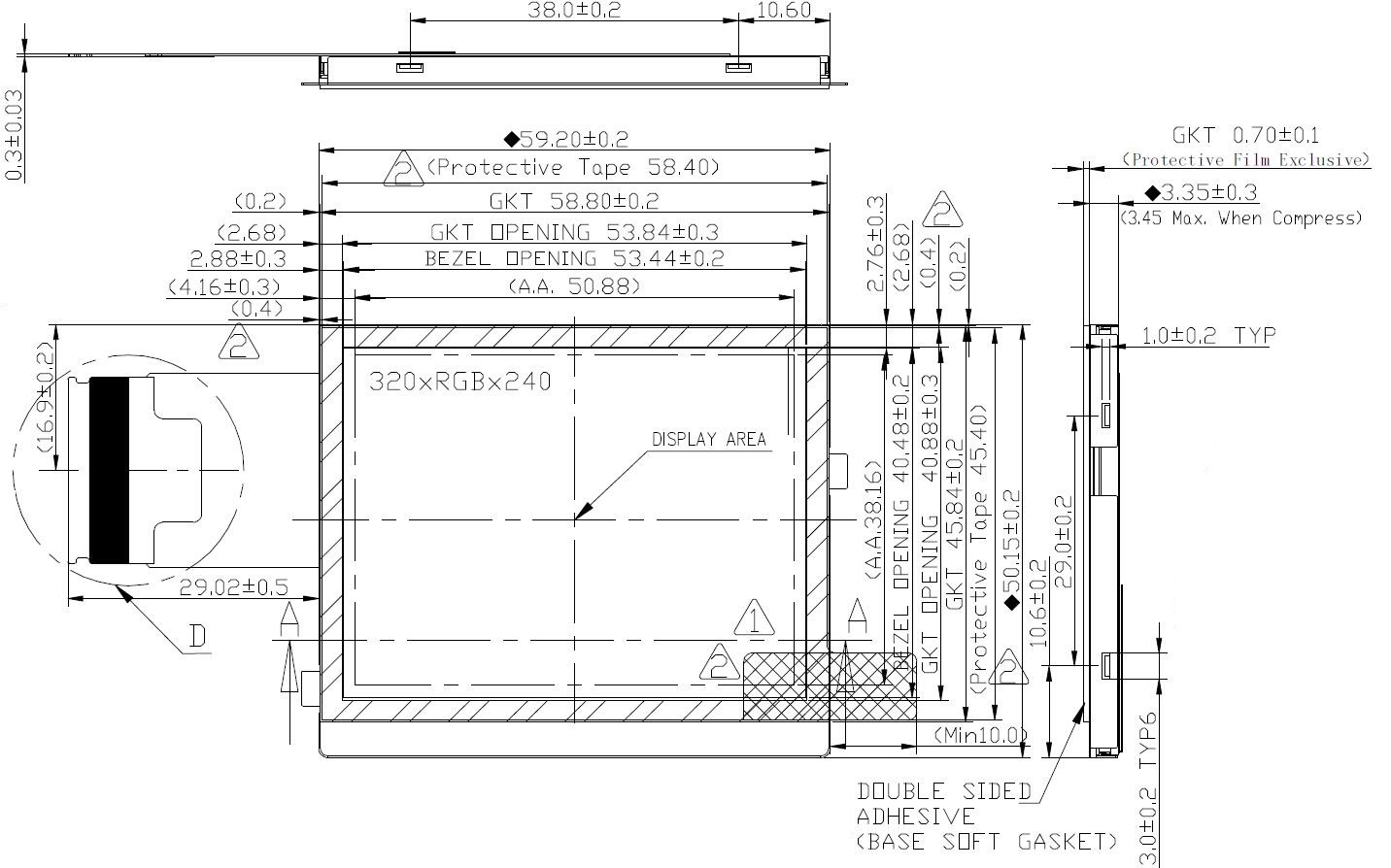

| Outline Dimension of display(mm) | 59.2(W)x50.15(H)x3.35(D) |
| Active Area(mm) | 50.88(H)x38.16(V) |
| Dot pitch | 0.053 (*3) (W) x 0.159 (H) |
| Input Voltage | 3.0V |
| Color | 262K |
| Contrast Ratio | 500 |
| Response Time | 30ms |
| Operating Temp. | -30℃~85℃ |
| Storage Temp. | -40℃~90℃ |
